KS158T UV Resin is a transparent resin with properties similar to ABS plastic. This 3D printed material is used in laser SLA 3D printers.

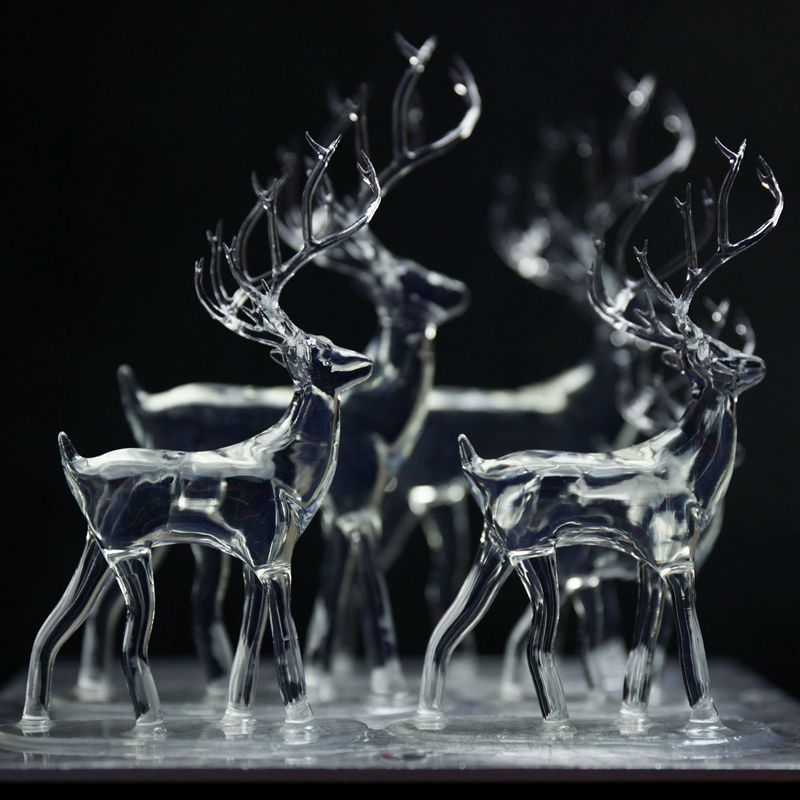

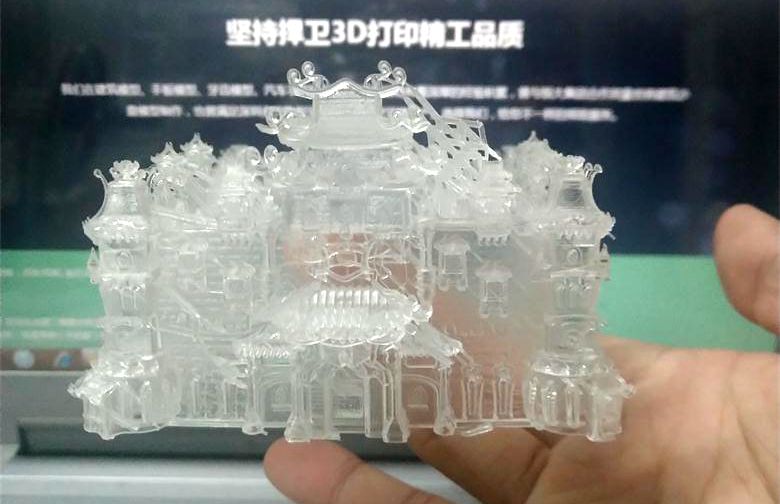

Transparent Resin 3D Printing can be used in prototypes and models for automotive, medical, consumer electronics and other products.
Do know the concrete use of the Transparent Resin 3D Printing? Please click this link: What We Can Print With SLA Clear Resin KS158T.
TYPICAL FEATURES
The medium viscosity of the liquid resin makes the re-coating as well as the machine and parts cleaning easier.
Improved strength and dimension retention in humid condition.
Good green strength, so need minimal part finishing.
TYPICAL BENEFITS
Superior clear,building parts with outstanding clarity and excellent accuracy.
Need less part finishing time,easier post-curing.
Physical Properties – Liquid Material
Appearance | Clear |
Density | 1.12g/cm3 @ 25 ℃ |
Viscosity | 408cps @ 26 ℃ |
Dp | 0.18 mm |
Ec | 6.7 mJ/cm2 |
Building layer thickness | 0.1mm |
Mechanical Properties of Post-Cured Material
MEASUREMENT | TEST METHOD | VALUE |
|
| 90-minute UV post-cure |
Hardness, Shore D | ASTM D 2240 | 83 |
Flexural modulus, Mpa | ASTM D 790 | 2,680-2,790 |
Flexural strength, Mpa | ASTM D 790 | 75- 83 |
Tensile modulus, MPa | ASTM D 638 | 2,580-2,670 |
Tensile strength , MPa | ASTM D 638 | 45-60 |
Elongation at break | ASTM D 638 | 11-20% |
Impact strength,notched lzod, J/m | ASTM D 256 | 38 - 48 |
Heat deflection temperature, ℃ | ASTM D 648 @66PSI | 52 |
Glass transition,Tg，℃ | DMA，E”peak | 62 |
SLA Resin Cost
In any production process, the choice of the material not only is the key to creating a suitable and durable product but also ensures successful fabrication. Moreover, the cost of the material can have the most significant impact on the final cost of the product.
Why is SLA resin so expensive?
The price reflects the lengths we go to ensure that only the best materials are used with our printers.
How long do resin prints last?
The lifespan of extra resins remaining in your printer’s tray will be between a few days to two months. If your printer is in a place where ambient UV light will reach the resin, it may not last longer than 1-2 days. If you can cover the resin to prevent UV light exposure, the lifespan will increase a bit more.
FDM vs SLA
FDM usually is much cheaper regarding machines and materials. You can also produce bigger parts with better mechanical performance than with SLA. But SLA gives you much finer details and higher surface quality.
Resin 3D printers are able to offer a very high level of detail and smooth surfaces. They are most commonly seen in dental labs and clinics as well as in jewelry workshops but are also increasingly popular with hobbyists and makers.If you want to know more details about SLA Resin Cost,please contact us.
