TECHNICAL DATA SHEET
PRODUCT DESCRIPTION

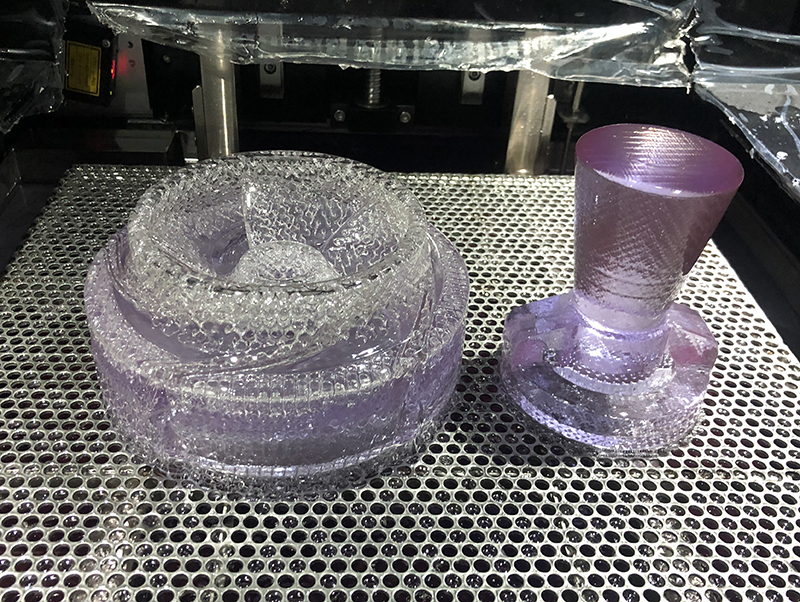

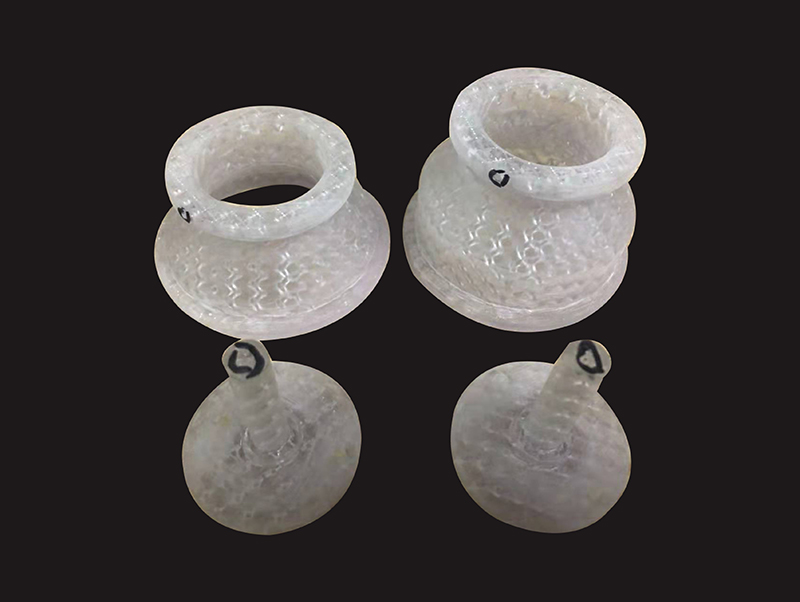

KS168C UV Resin is a clear SLA resin which has accurate and durable features. It is designed for solid state SLA platforms. KS168C UV Resin can be applied in master patterns, concept models, general parts and functional prototypes in the field of automotive, medical and consumer electronics industries.
TYPICAL FEATURES
-Liquid resin`s medium viscosity, so easy recoating, easy clean parts and machines
-Improved strength retention, improved dimensions retention of parts in humid condition
-Good green strength, so need minimal part finishing
-EASY burning completely
TYPICAL BENEFITS
-Superior clear,building patrs with outstanding clarity and excellent accuracy
-Need less part finishing time,easier post-curing

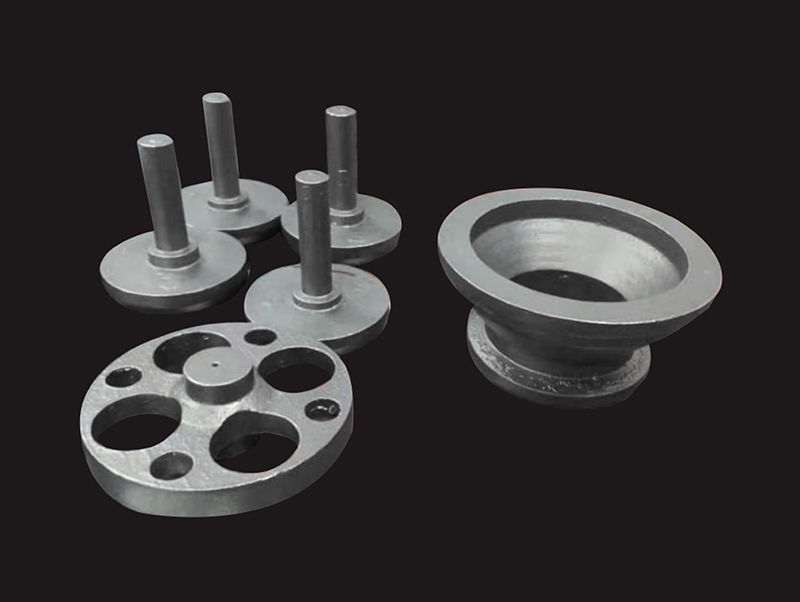

-Suitable for casting
Physical Properties – Liquid Material
Appearance | Clear |
Density | 1.12g/cm3 @ 25 ℃ |
Viscosity | 407cps @ 26 ℃ |
Dp | 0.18 mm |
Ec | 9.7 mJ/cm2 |
Building layer thickness | 0.1mm |
Mechanical Properties of Post-Cured Material
MEASUREMENT | TEST METHOD | VALUE |
|
| 90-minute UV post-cure |
Hardness D | ASTM D 2240 | 83 |
Flexural modulus , Mpa | ASTM D 790 | 2,670-2,780 |
Flexural strength , Mpa | ASTM D 790 | 75- 82 |
Tensile modulus , MPa | ASTM D 638 | 2,570-2,660 |
Tensile strength , MPa | ASTM D 638 | 45-61 |
Elongation at break | ASTM D 638 | 12-21% |
Impact strength,notched lzod, J/m | ASTM D 256 | 32 - 47 |
Heat deflection temperature, ℃ | ASTM D 648 @66PSI | 51 |
Glass transition,Tg ，℃ | DMA，E”peak | 60 |
