TECHNICAL DATA SHEET
High toughness and tear resistance UV resin
SLA photosensitive resin
Product description

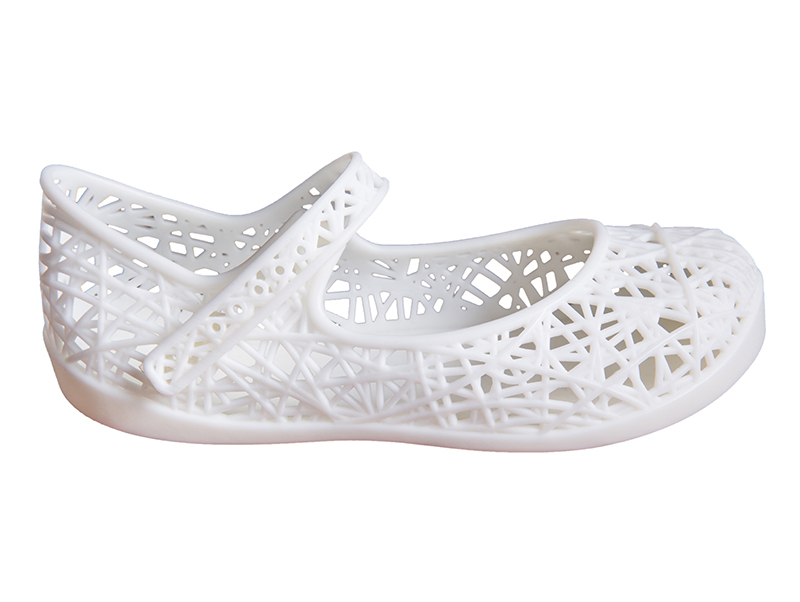

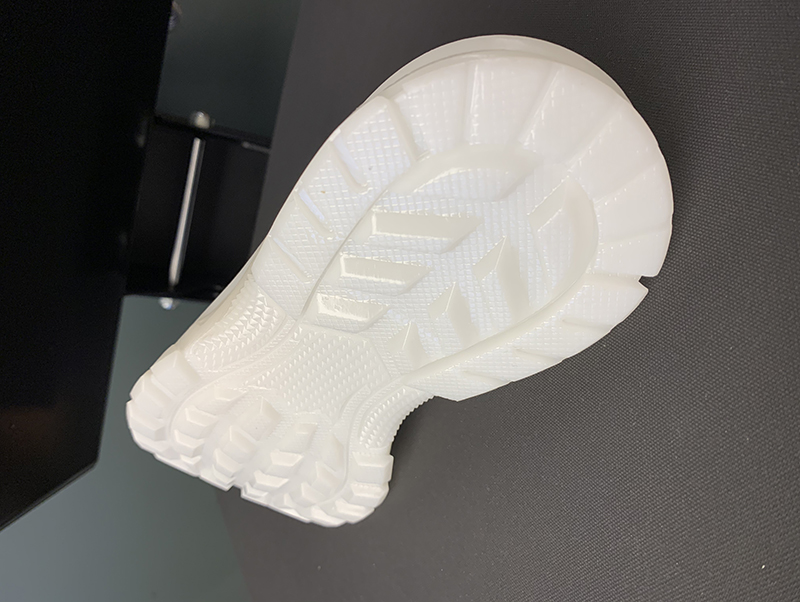

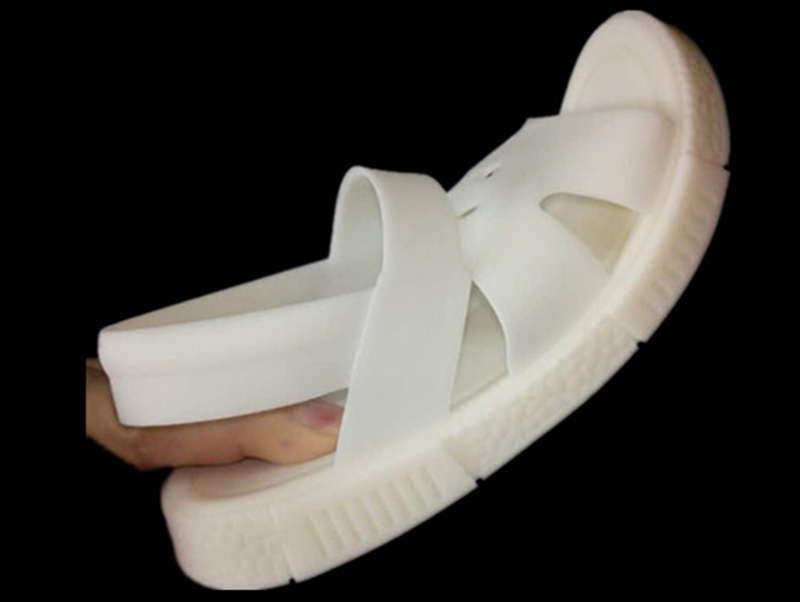

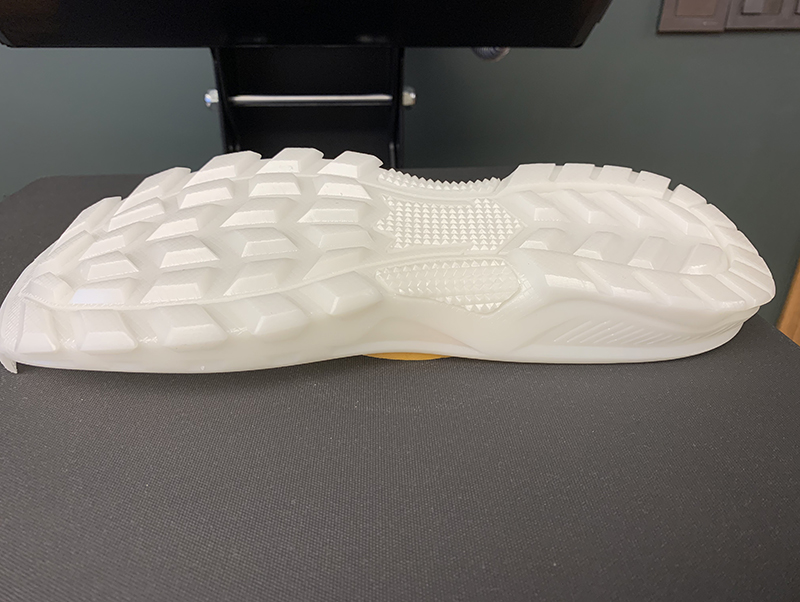

KS198S UV Resin is a high toughness UV-curable 3D printing material. The printed objects have high flexibility, high elasticity, soft touch characteristics, similar to the rubber used in real life. It can be applied to the manufacture of footwear, rubber parts and so on, and is suitable for SLA 3D printers.
Main advantages
Low viscosity
High flexibility, high tear resistance
High accuracy
Physical properties of liquid materials |
Appearance | white |
Viscosity | 300 cps@30℃ |
Mechanical properties of cured materials |
Test project | test method | numerical value |
Tensile strength | GB/T 1040.1-2006 | 13.2 MPa |
Elongation at break | GB/T 1040.1-2006 | 90 % |
Tear strength | GB/T 529-91 | 28.6 kN/m |
Hardness | GB/T 531.1-2008 | 84 A / 38 D |
Glass transition temperature | DMA，tanθ peak | 24 ℃ |
