TECHNICAL DATASHEET
PRODUCT DESCRIPTION
Kings SLM Material 316L stainless steel is a good metal material for functional parts and spare parts. The parts printed are easy to maintain as it attracts little dirt and the presence of chrome gives it the added benefit of never rusting.
TYPICAL FEATURES
> High hardness and toughness
> High corrosion resistance
> Good machine-ability
> Can be highly polished
IDEAL APPLICATIONS
> Plastic injection and pressure die-casting moulds

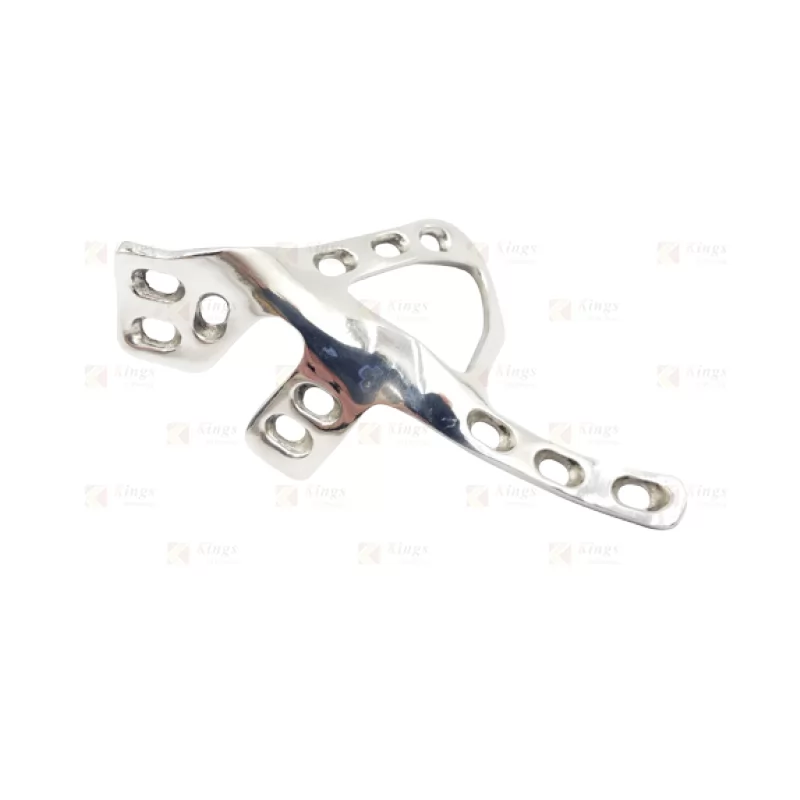

> Medical implants
> Surgical tools
> Cutlery and kitchenware
> Maritime components
> Spindles and screws
> General engineering
Technical Datasheet
General Properties | Density ISO3369 | ≥7.90 g/cm3 |
Mechanical Properties (As-built) | Tensile Strength ISO6892-1 | ≥650 MPa |
Yield Strength ISO6892-1 | ≥650 MPa |
Elongation after Fracture ISO6892-1 | ≥35 % |
Vickers hardness ISO6507-1 | ≥205 HV5/15 |
Hardness (HRC) ISO6507-1 | 22 |
Thermal conductivity at 20 ºC | 10.4W/mK-19.8 W/mK |
Surface roughness Ra Z | 6 μm-8 μm |
Mechanical Properties (Heat treated) | Tensile Strength ISO6892-1 | ≥600 MPa |
Yield Strength ISO6892-1 | ≥400 MPa |
Elongation after Fracture ISO6892-1 | ≥40 % |
Vickers hardness ISO6507-1 | ≥180 HV5/15 |
