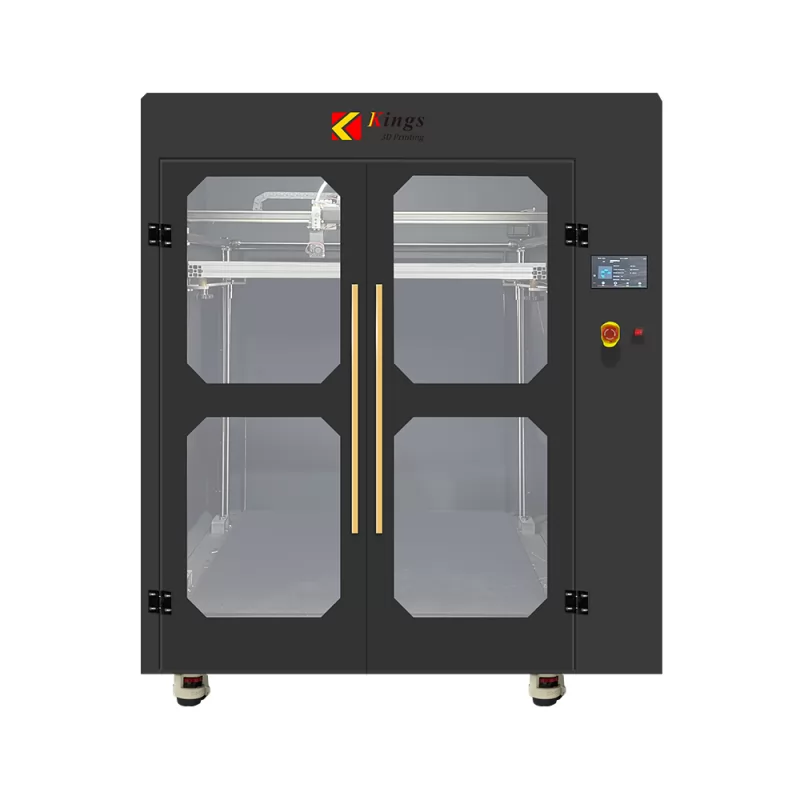

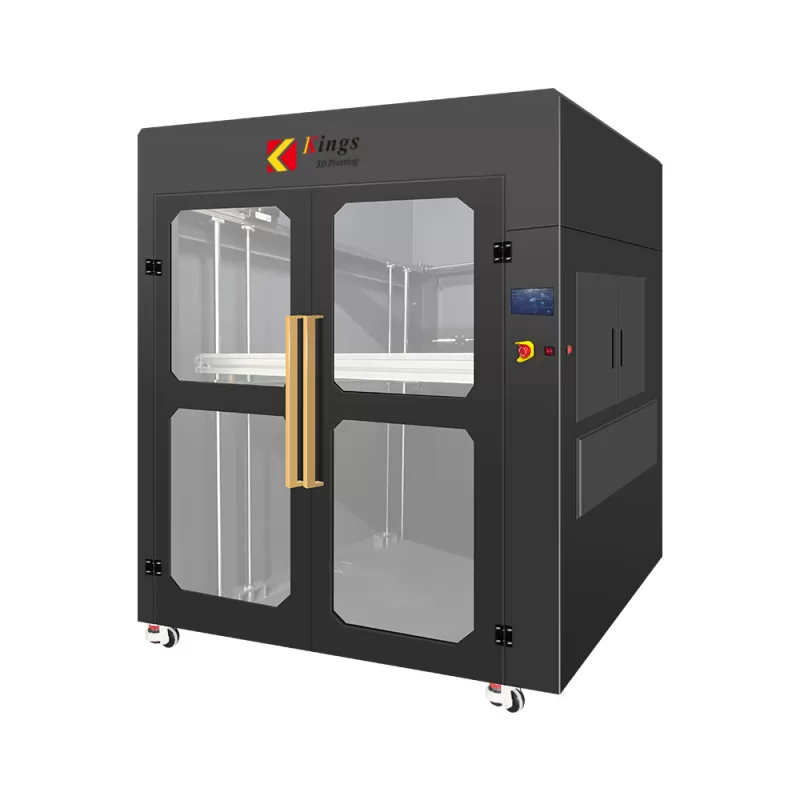

FDM 3D Printer 1000

FDM 3D Printer 1000

Printing Size: 1000*1000*1000mm

Machine Size: 1570*1300*1910mm

Printing Speed: 30-350mm/s

Nozzle Temperature: Max 320℃

Number of Nozzles: 1

Printing Color: Single Color

Product Details

Features

  • Klipper High-Speed System

  • Closed-Loop Servo Motor

  • Linear Industrial Module

  • Extra-Large Print Size: 1000*1000*1000mm

  • Fast Printing Speed, Up to 500mm/s

  • Stable Printing

  • Custom Ball Screw, 12mm Aluminum Plate Platform with a Maximum Load of Over 80kg

  • Independent Material Storage Box



Datasheet


Model

1000

Printing Technology

Fused Deposition Modeling (FDM)

Printing Size

1000*1000*1000mm

Layer Resolution

0.05-1.40mm

Printing Material

PLA, ABS

Printing Method

Local Area Network (WiFi), USB Drive

Display Screen Features

7-inch Full-Color Touchscreen

Language Interface

Chinese, English (supports multiple languages)

Temperature of Nozzle

30-320℃

Temperature of Heated Bed

30-100℃




Recommended Printing Speed

30-350mm/s

Extruder Diameter

Optional: 0.6/0.8/1.0/1.2/1.5/2.0mm

Material Specifications

3.5mm

Slicing Software

Cura/Prusa (supports various third-party software)

Operating System Support

Compatible with common operating systems such as Windows, macOS, and Linux

Input Voltage

220V

Rated Power

1000-2000W

Maximum Power

3500W

Overall Dimensions of the Machine

1570*1300*1910mm



Compatible Printing Materials:

Recommended PLA (eco-friendly, non-toxic), ABS, and other standard 1.75mm diameter 3D printing materials
