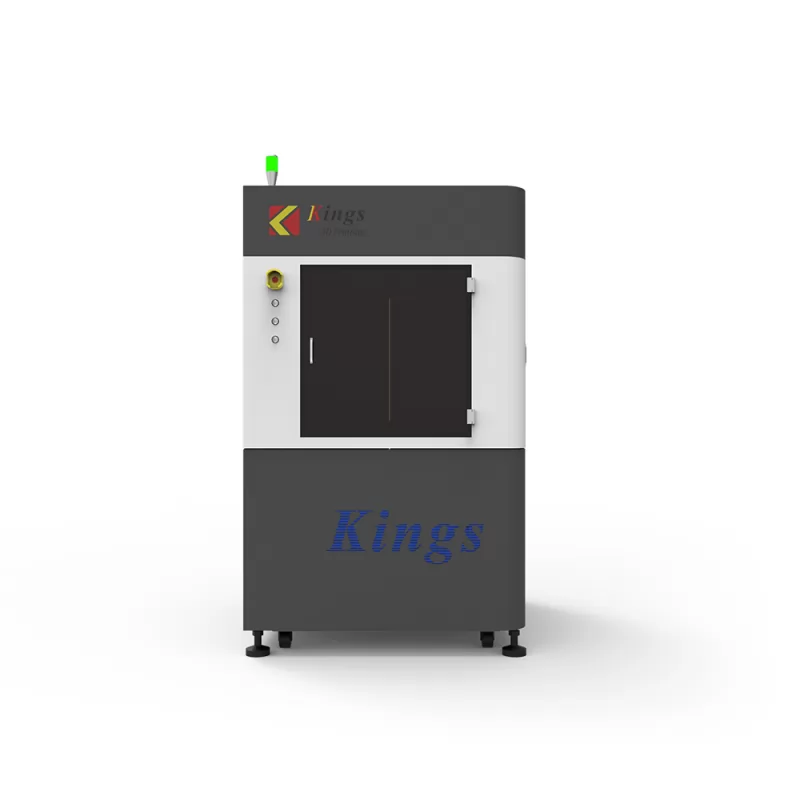

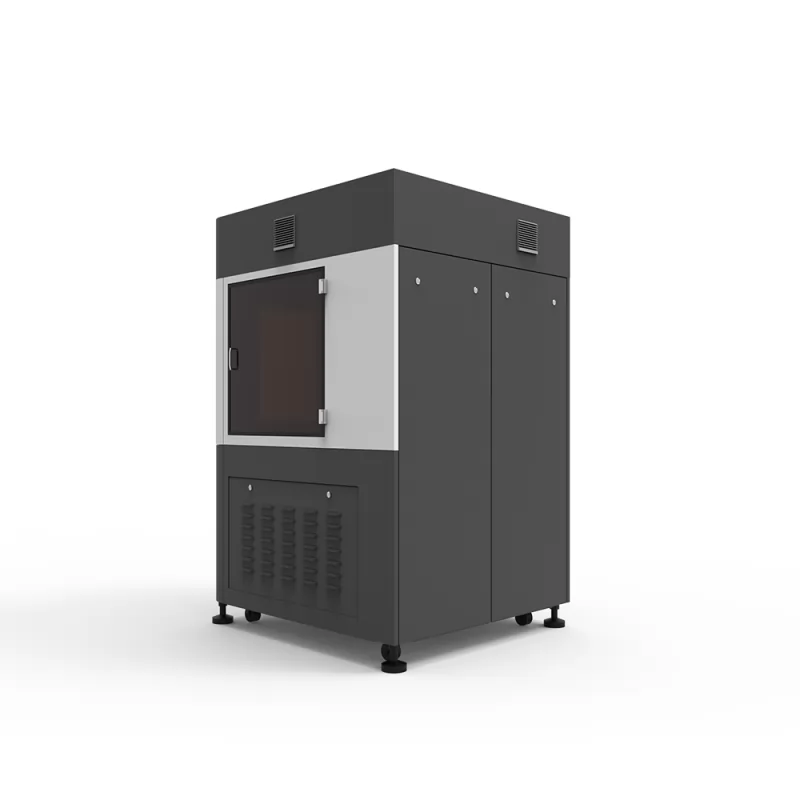

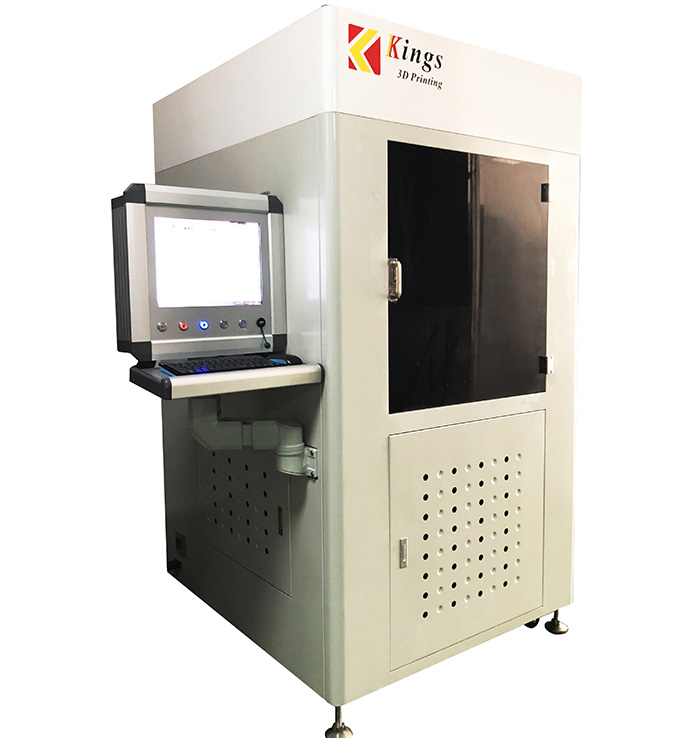

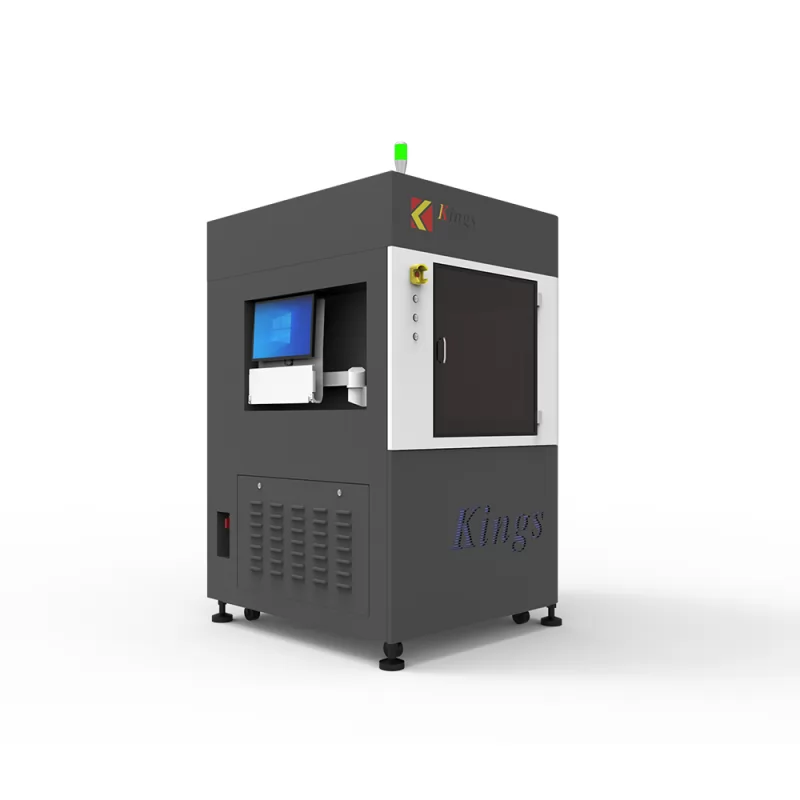

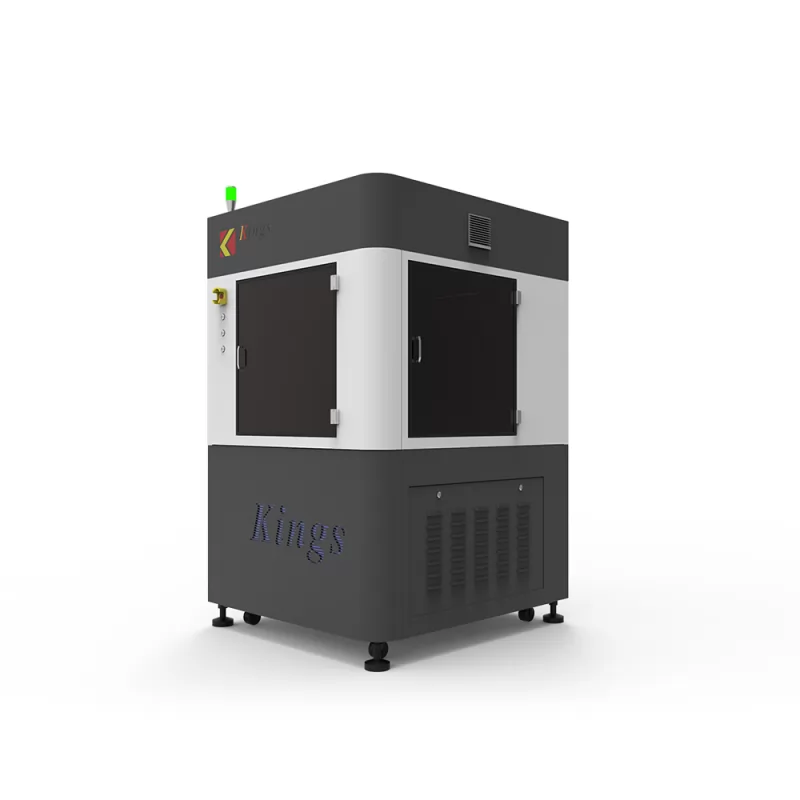

KINGS 600Pro Industrial SLA 3D Printer

KINGS 600Pro Industrial SLA 3D Printer

Basic information

Construction Size: 600mm(X)×600mm(Y)×400mm(Z)

Equipment Size (without display): 108cm(W)×120cm(L)×198cm(H)

Equipment Weight:about 990kg

Rated Dissipation: 1.5KVA

Product Details

BASIC INFORMATION
Max Printing Size600*600*400mm
Machine Size118cm(W)*129cm(D)*217cm(H)
Rated Power Consumption1.5KVA
Machine Weightabout 990kg
LASER SYSTEM
Laser TypeSolid-state frequency tripled Nd: YV04
Wavelength355nm
PowerResin Surface Power≥ 300 mW
OPTICAL & SCANNING SYSTEM
Scanning ModeGermanic galvanometer scanner
Variable Beam SystemGalvo/Closed-loop
Beam Size (diameter @1/e2)0.075-0.8mm (Variable Beam)
Max Scanning Speed15.0 m/s
RECOATING SYSTEM
Main SturctureMarble recoater frame, marble elevator holder and marble scanning system base
Coating ModeIntelligent position vacuum recoating
Vertical Resolution Ratio0.0005mm
Repeat Positioning Accuracy±0.01mm
Layer Thickness0.05mm~0.25mm
Accuracy

L≤150mm, ±0.1mm;

 L>150mm, ±0.1%*L

CONTROL SOFTWARE
Motion Control SystemClosed-loop
Machine Control SoftwareKINGS 3D control software
Input Data File FormatSTL/SLC
Operating SystemWindows 7/10
Network Type and ProtocolEthernet,TCP/IP
INSTALLATION CONDITION
Electrical Requirement200-240VAC 50/60Hz, single-phase,10A
Ambient Temperature20-26ºC (72-79℉)
Relative Humidity<40%,non-condensing
First Tank Resin225kg
WARRANTY
MachineTwo years
LaserTwo years
