| 260mm*260mm*300mmBuild Size | 1650mm*1000mm*1950mmExternal Dimensions |
| ±0.1(L≦100 mm)；±0.1%*L(L>100 mm)Printing Accuracy | 0.02-0.2 mmLayer Thickness |
| 380V 50 HzPower Supply | 20~50cm³/hForming Efficiency |
Product Details
Overview
Kings M280 series 3D metal printers ensure superior part quality with ultra-precision filtration system and fresh air protection system, offering dual protection to minimize defects and featuring moderate build size and high precision. Ideal for small-batch, moldless production or customization, M280 printers excel in mold manufacturing, industrial precision components, aerospace, automotive, medical applications, and scientific research.
Advantages
High precision & high quality:
Dual circulation wind site protection system
Fully pop-up piston system
All closed looped powder handling system
Basic Parameter
| Build Size | 260mm*260mm*300mm |
| External Dimensions | 1650mm*1000mm*1950mm |
| Forming Materials | Stainless steel, titanium alloy, mold steel, aluminum alloy, high-temperature alloy, tungsten, tantalum, etc |
| Powder Supply Method | Double Cylinder One-Way Powder Feeding |
| Printing Accuracy | ±0.1(L≦100 mm)；±0.1%*L(L>100 mm) |
| Layer Thickness | 0.02-0.2 mm |
| Protection System | Efficient Protective Gas Circulation System (Nitrogen, Argon) |
| Supporting Consumables | Stainless steel powder 316L, no less than 50kg, with various material process parameter packages |
| Laser Type | IPG 500W×2 (1064nm) |
| Scanning System | SCANLAB*2 (Equipped with F-theta Field Lens) |
| Laser Speed | Scanning:1.0~4.0m/s (Recommended); Jumping: 5~7m/s(Recommended); Up to 11m/s |
| Data Processing Software | Voxeldance Additive (STL file) |
| Equipment Control Software | Independently Developed by Kings |
| Operating System | Windows 10 |
| Data Format | STL/SLC/JOB |
| Power Supply | 380V 50 Hz |
| Rated Power Consumption | 10kW, Three-phase Electricity |
| Preheat Temperature | RT+20℃~80℃ |
| Industrial Control Computer Configuration | 10th Gen i7, 16GB RAM |
| Forming Efficiency | 20~50cm³/h |
| Relative Humidity | Below 40%, Frost-free |
| Ambient Temperature | 15-30 ℃ |
| Equipment Weight | 1200kg |

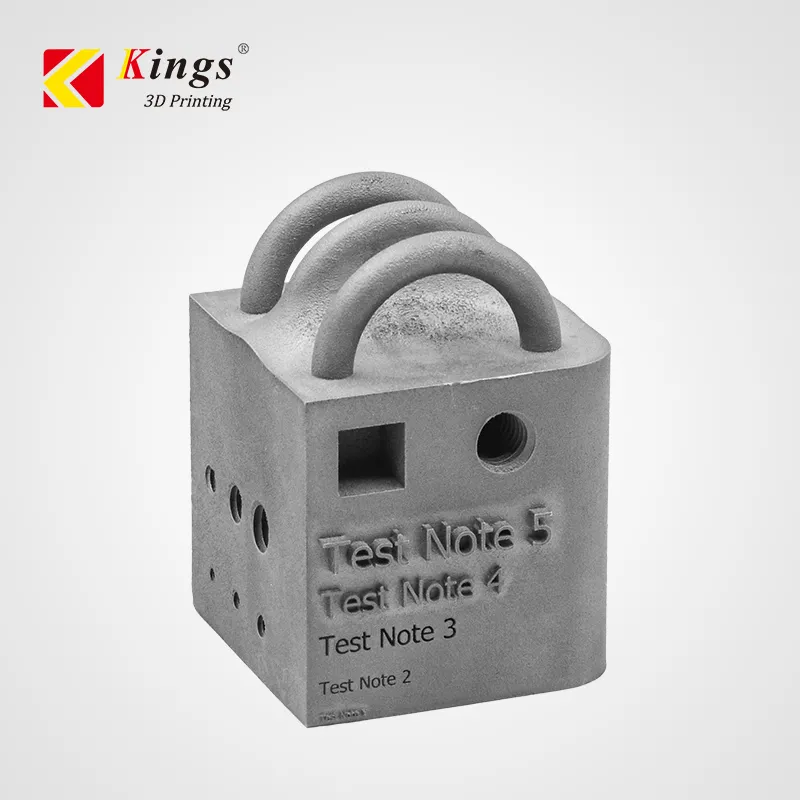

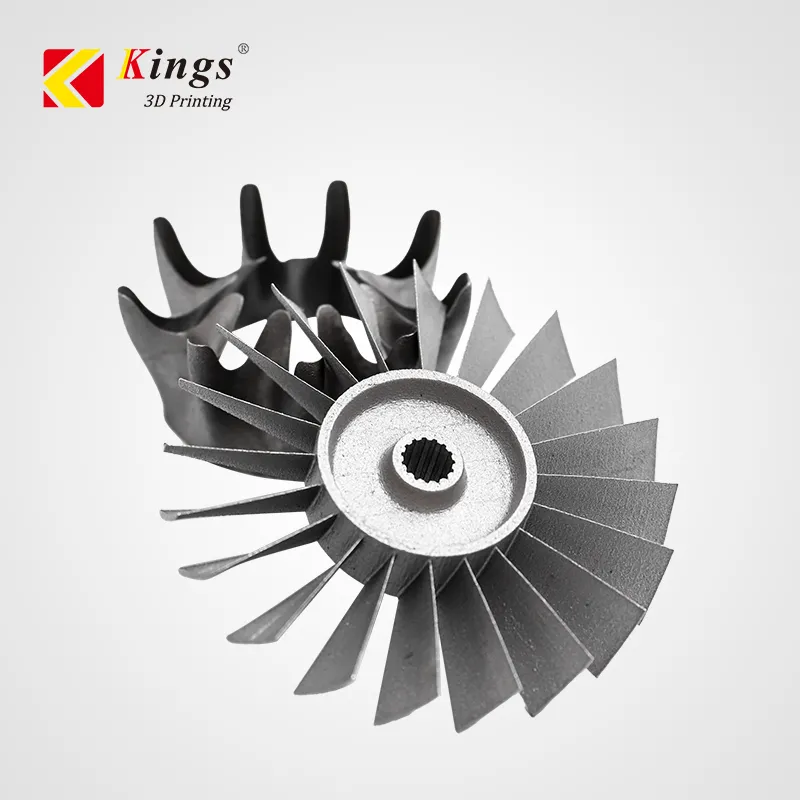

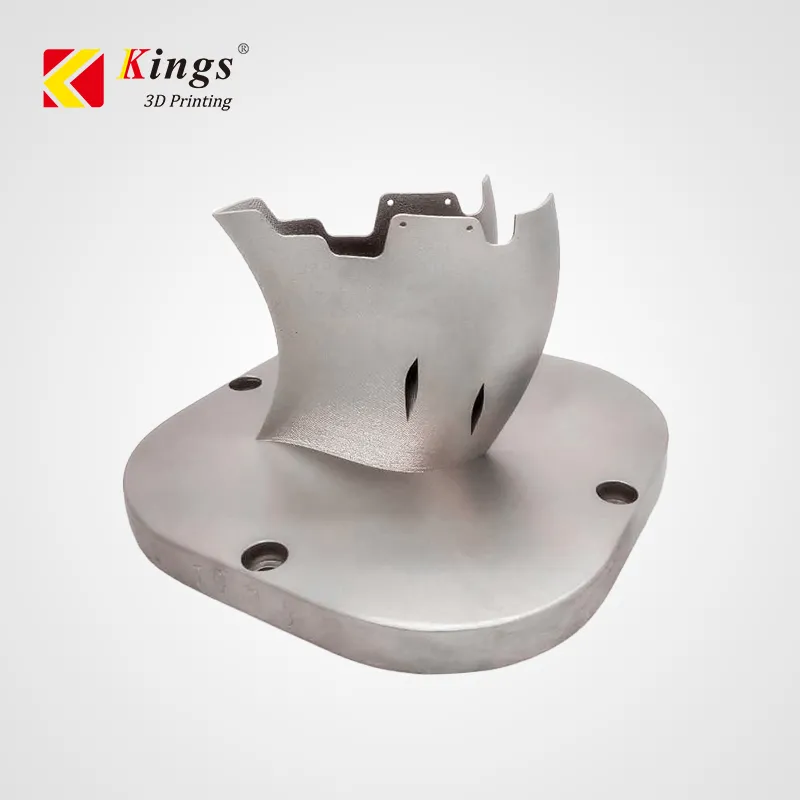

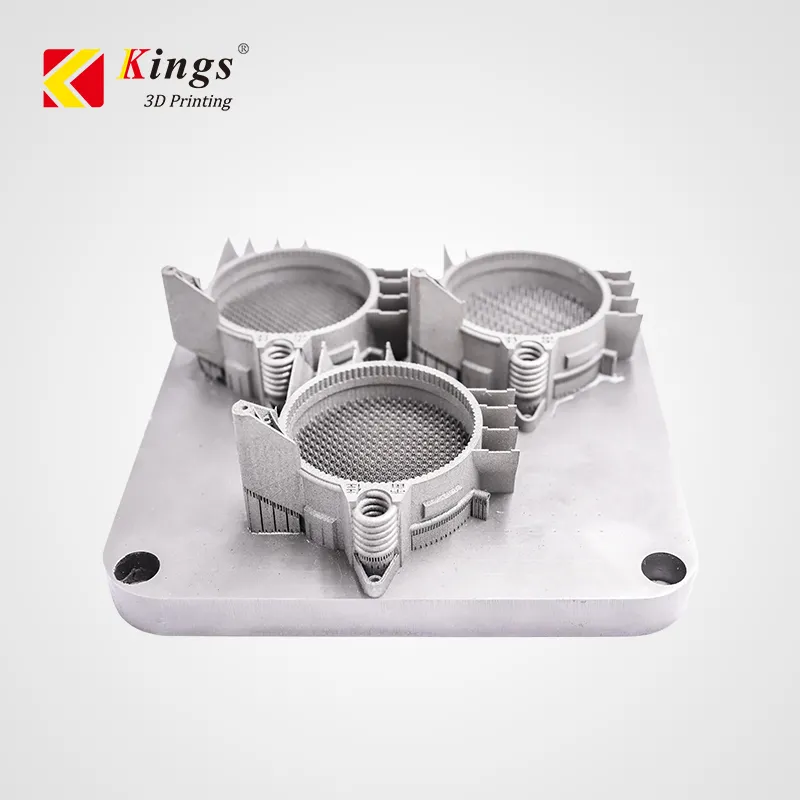

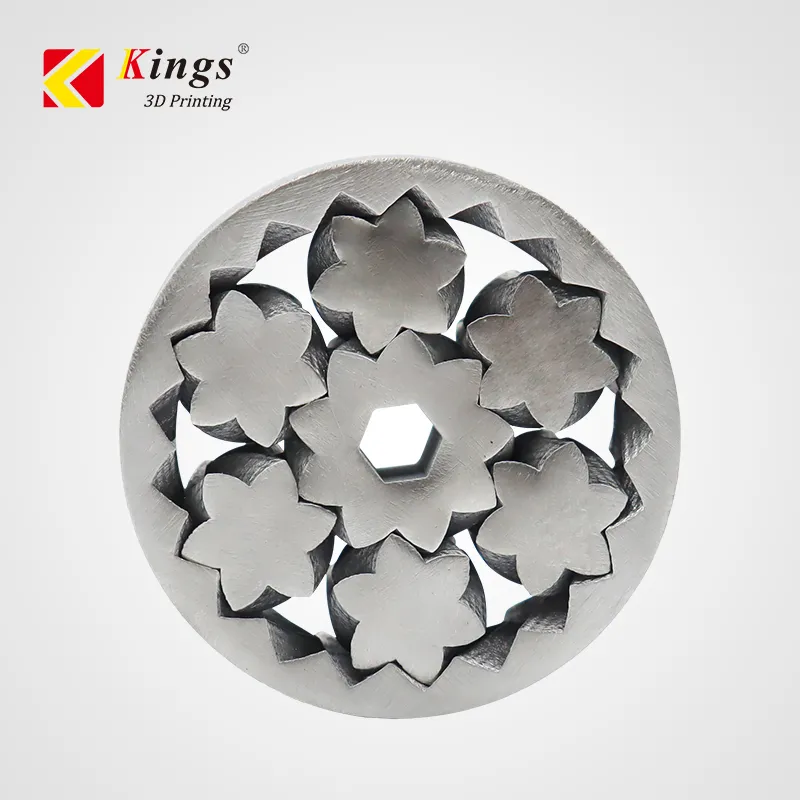

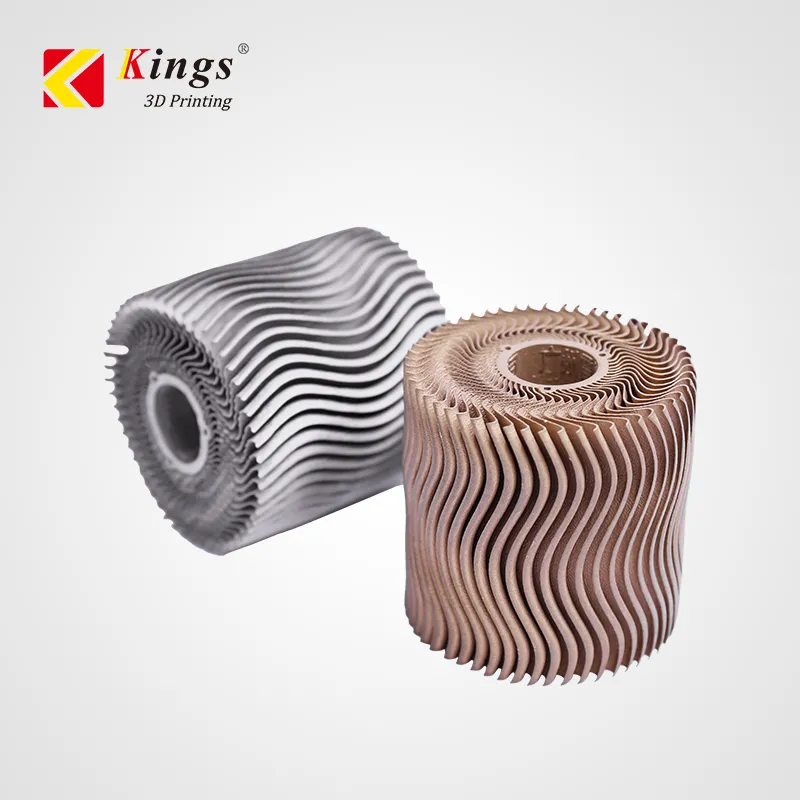

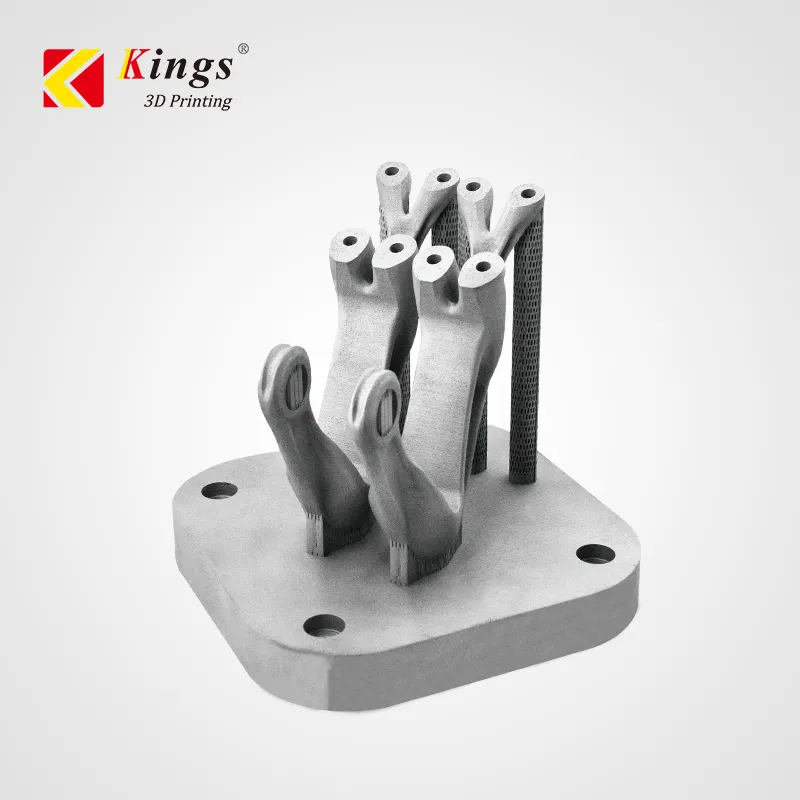

Printing Samples
