| 600*600*400mmMax Printing Size | 118cm(W)*129cm(D)*217cm(H)Machine Size |
| 1.5KVARated Power Consumption | 990kgMachine Weight |
| 255kgFirst Tank Resin | 0.08-0.8mm (Variable Beam)Beam Size (diameter @1/e²) |
Product Details
Overview
The Kings SLA 600 Pro 3D Printer offers high-precision SLA technology for professional applications. It excels in producing small and medium-sized detailed models, prototypes, and functional parts for industries like automotive, aerospace, and engineering. With enhanced scanning and CAD software integration, it ensures precise data collection and seamless design.
Advantages
Enhanced Printing Efficiency
Long-term Printing Stability
Basic Parameter
| Max Printing Size | 600*600*400mm |
| Machine Size | 118cm(W)*129cm(D)*217cm(H) |
| Rated Power Consumption | 1.5KVA |
| Machine Weight | 990kg |
| First Tank Resin | 225kg |
| Beam Size (diameter @1/e²) | 0.08-0.8mm(Variable Beam) |
| Max Scanning Speed | 15.0m/s |
| Layer Thickness | 0.05mm~0.2mm |
| Accuracy | ±0.1(L≦100mm)； ±0.1%*L(L>100mm) |
| Laser Type | Solid-state frequency tripled Nd: YV04 |
| Wavelength | 355nm |
| Power | Resin Surface Power≥300 mw |
| Variable Beam System | Galvo/Closed-loop |
| Main structure | Marble recoater frame, marble elevator holder and marble scanning system base |
| Coating Mode | lntelligent position vacuum recoating |
| Vertical Resolution Ratio | 0.0005mm |
| Repeat Positioning Accuracy | 土0.01mm |
| Motion Control System | Closed-loop |
| Machine Control Software | KINGS 3D control software |
| lnput Data File Format | STL/SLC |
| Operating System | Windows 10 |
| Network Type and Protocol | Ethernet，TCP/IP |
| Electrical Requirement | 200-240VAC 50/60Hz,single-phase,10A |
| Ambient Temperature | 20-26°C(72-79F) |
| Relative Humidity | <40%，non-condensing |
| Machine Warranty | 2 years (including laser) |

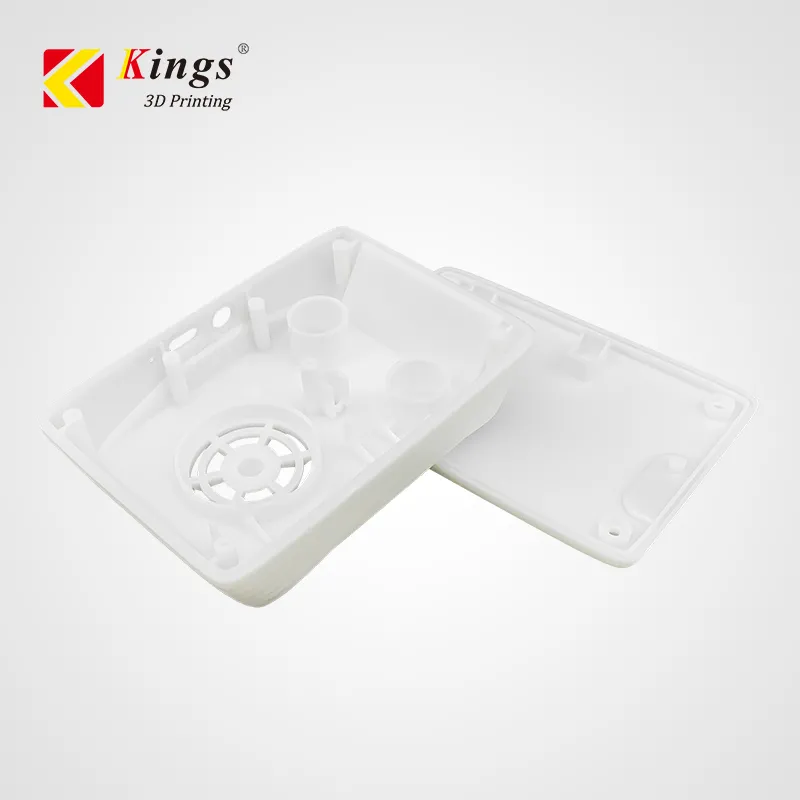

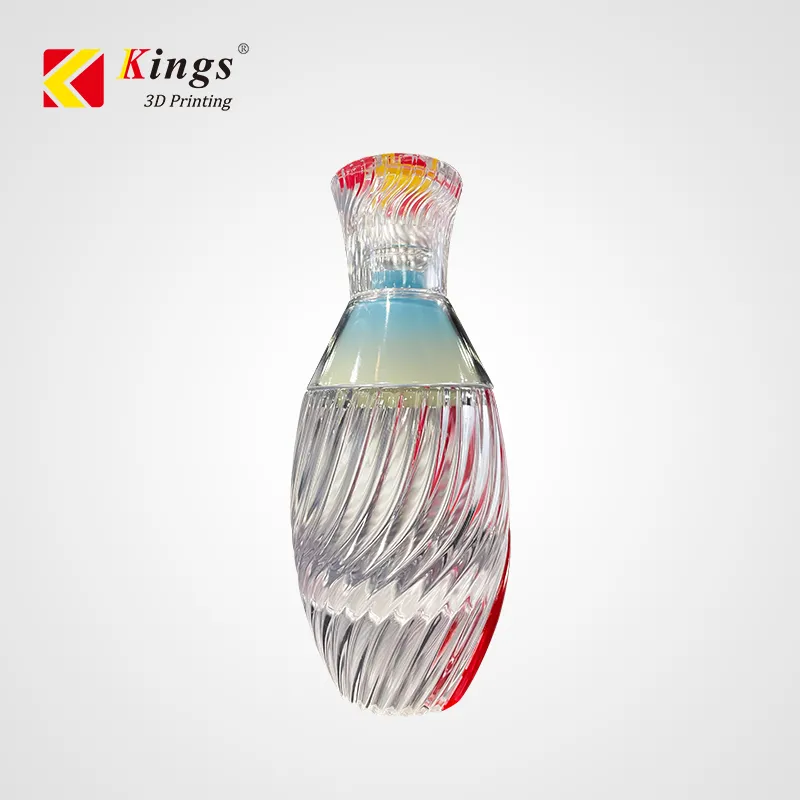

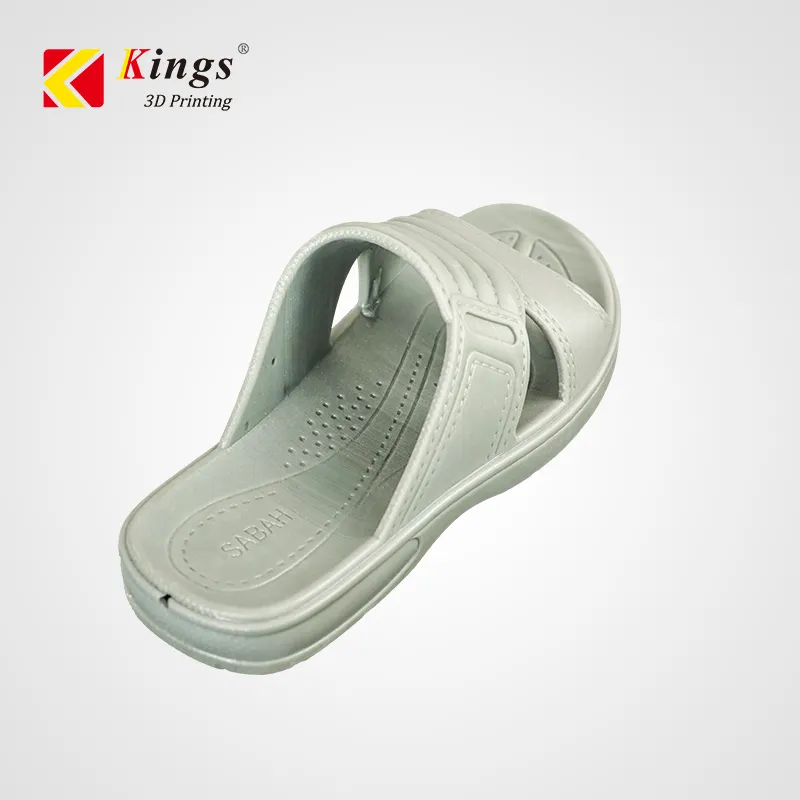

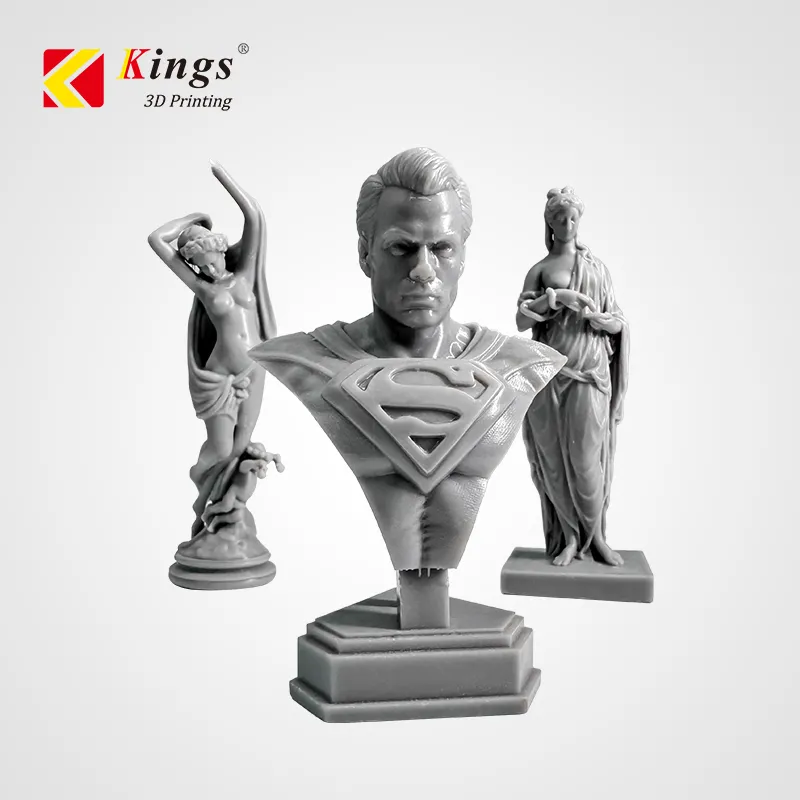

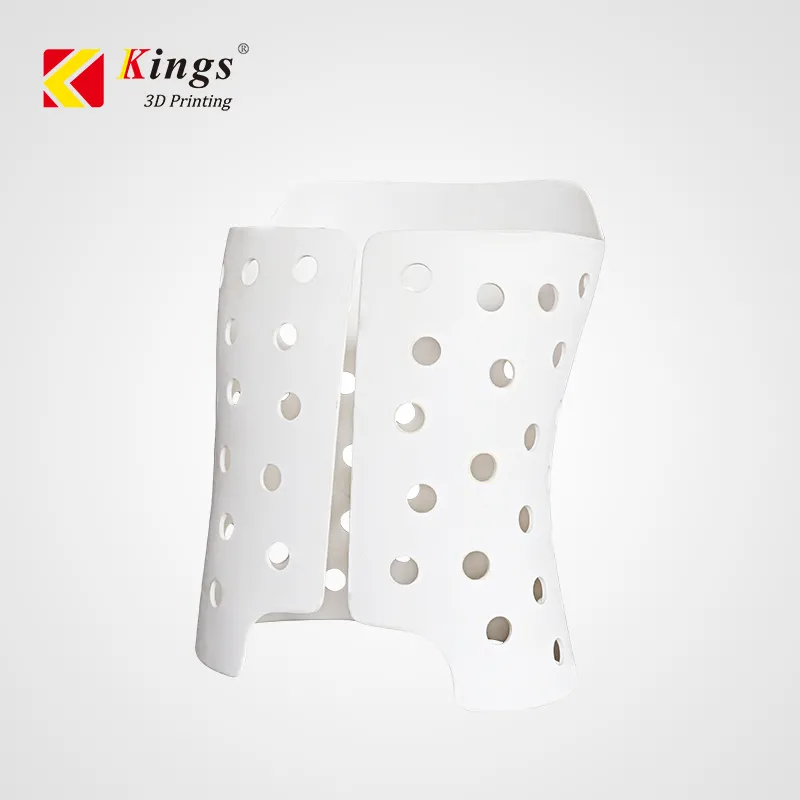

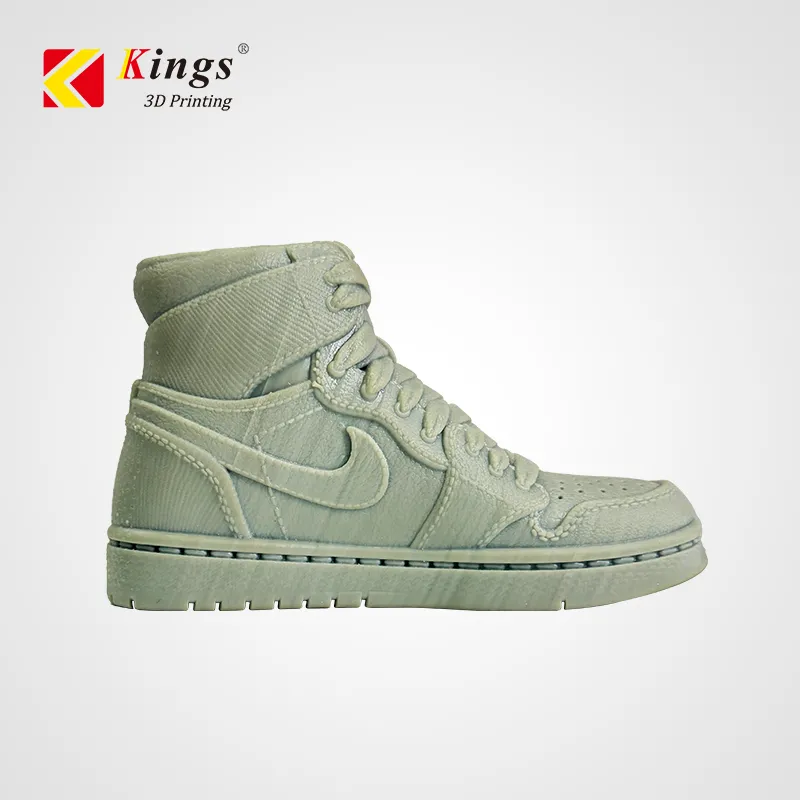

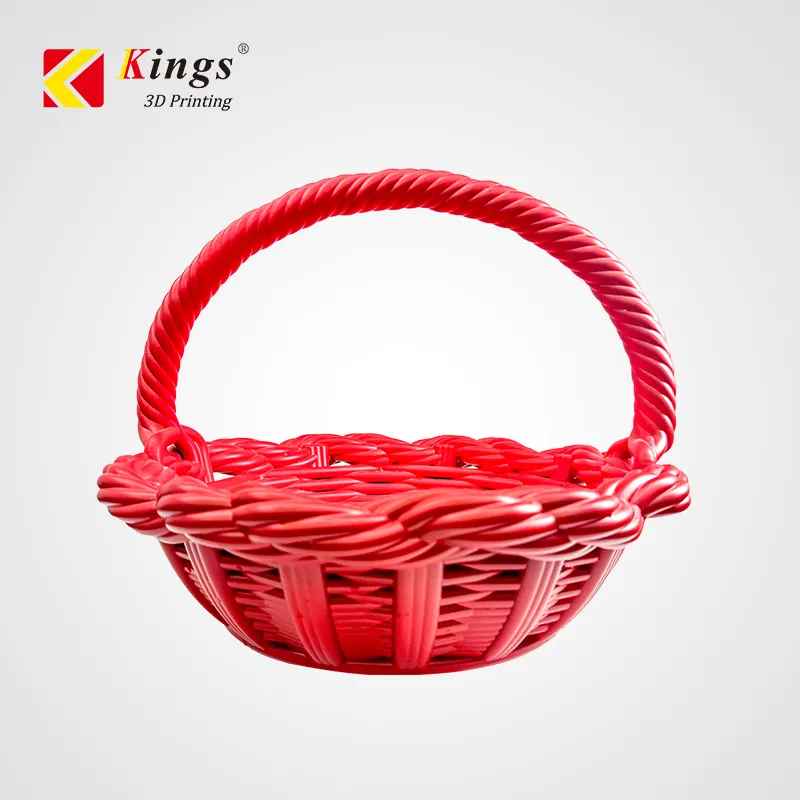

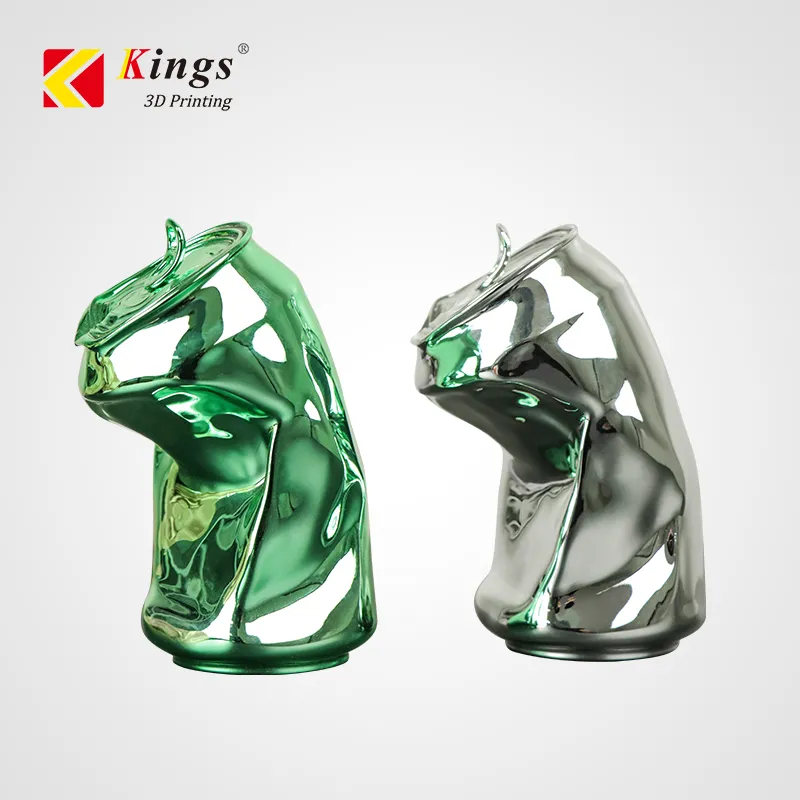

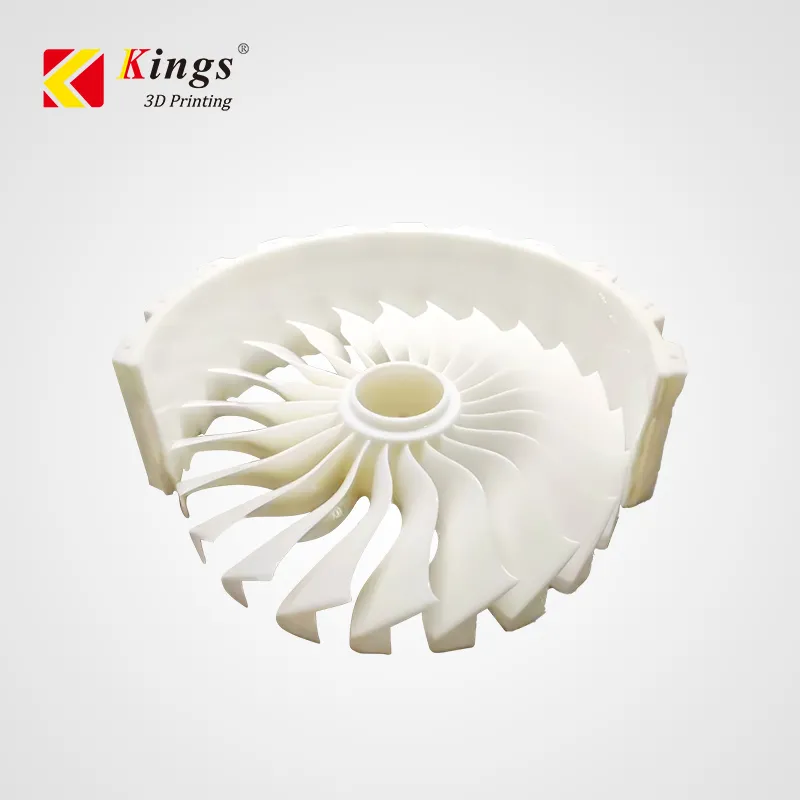

Printing Samples
