| 400*400*200mm 400*400*300mmPrinting Size | 70kg 100kgFirst Tank Weight |
| 85cm(W)*105cm(D)*190cm(H)Equipment Dimensions | ±0.08(L≦100mm); ±0.1%*L(L>100mm)Printing Precision |
| 200-240V, 50/60Hz, Unidirectional 10APower Supply | 650kgEquipment Weight |
Product Details
Overview
Kings SLA 400 3D Printer provides professional dental 3D digital solutions using model and intraoral 3D scanning technology to collect data, design with professional CAD software, and produce working models, orthodontic models, implant models, guides, wax crowns, and bridges via SLA 3D printing.
Advantages
Marble Ultra-Stable Main Frame Structure
High Scanning Accuracy
Compact and Exquisite Appearance
Basic Parameter
| Printing Size | 400*400*200mm / 400*400*300mm |
| First Tank Weight | 70kg / 100kg |
| Equipment Dimensions | 85cm(W)*105cm(D)*190cm(H) |
| Printing Precision | ±0.08(L≦100mm); ±0.1%*L(L>100mm) |
| Layer Thickness | Optional (between 0.05mm-0.2mm) |
| Laser Type | Diode-Pumped Solid-State Laser Nd, Wavelength 355nm |
| Beam Size | Variable Beam Size between 0.08mm-0.8mm |
| Scanning System | High-speed Scanning Galvanometer System, Paired with F-theta Lens |
| Scanning Speed | 8-15m/s automatically generates scanning paths |
| Equipment Control Software | Kings SLA control software, independently developed, copyrighted |
| Operating System | Windows 10 |
| Data Interface | STL, SLC |
| Power Supply | 200-240V, 50/60Hz, Unidirectional 10A |
| Rated Power Consumption | 1.2 KVA |
| Heating Method | Hot Air Heating (optional) |
| Ambient Temperature | 20-26℃ |
| Relative Humidity | ≦40%, Frost-free |
| Equipment Weight | 650kg |

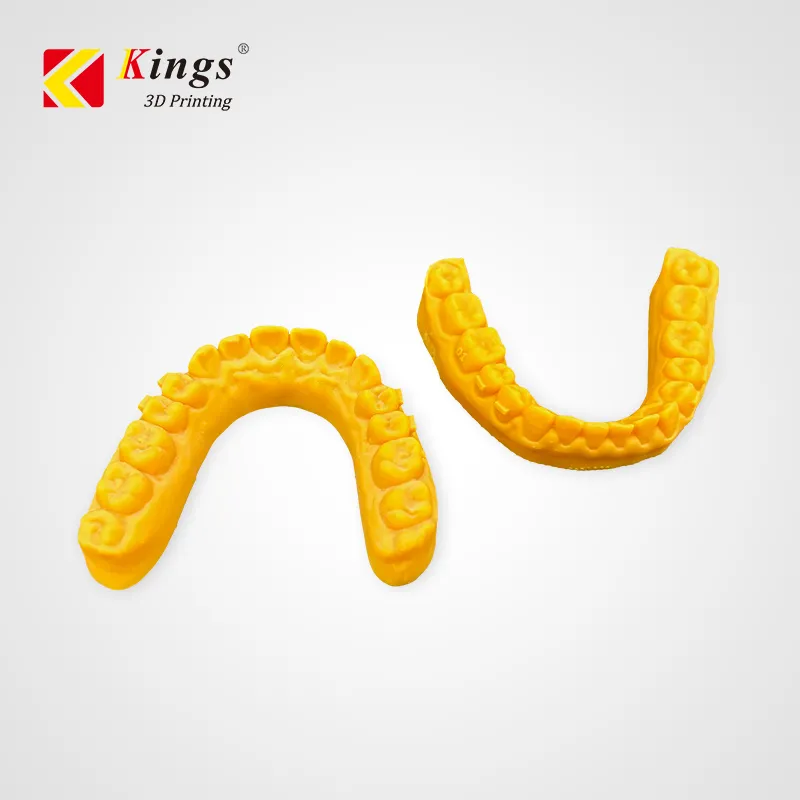

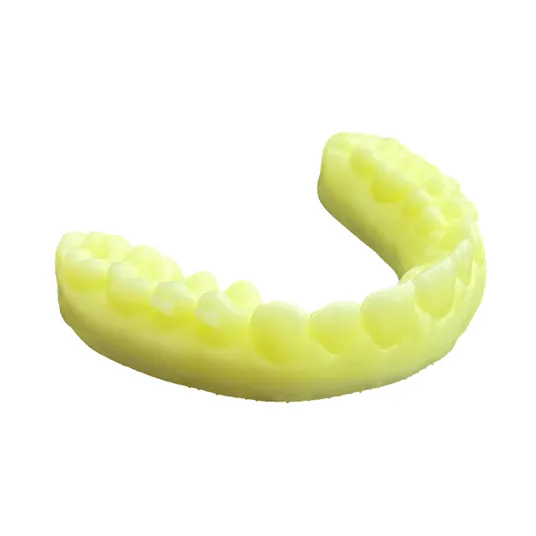

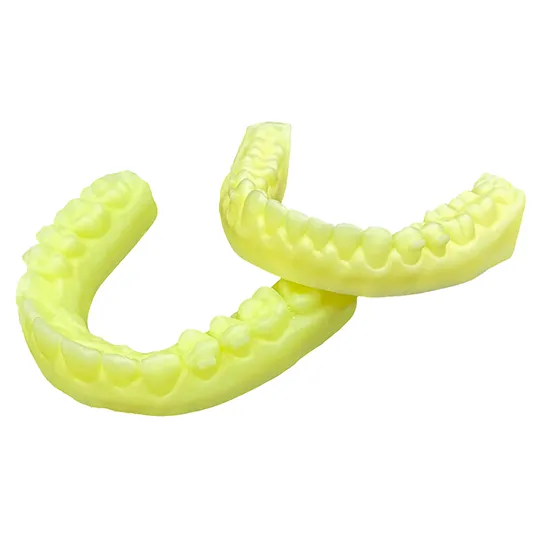

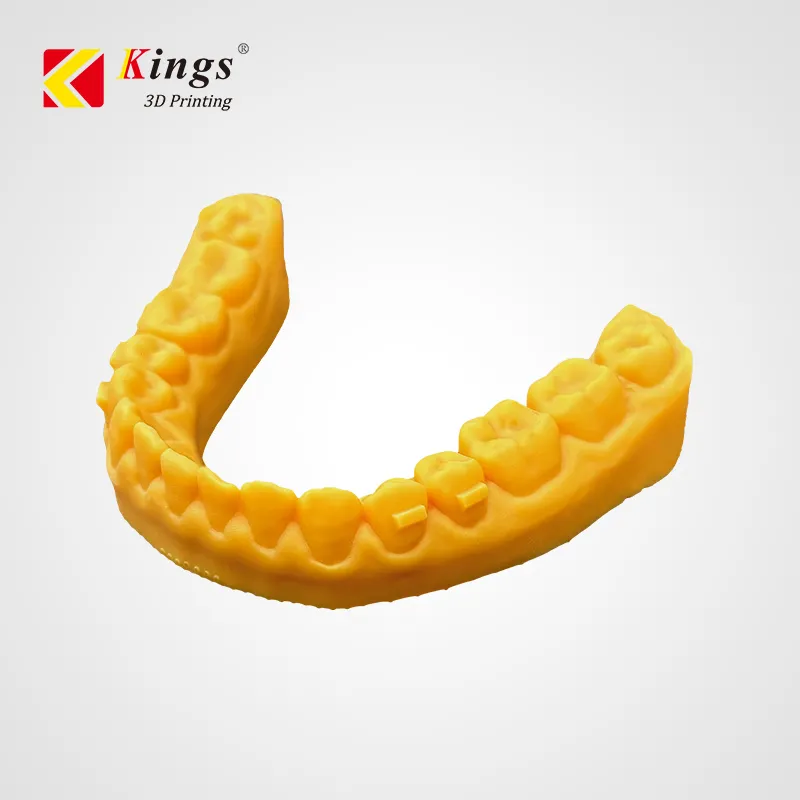

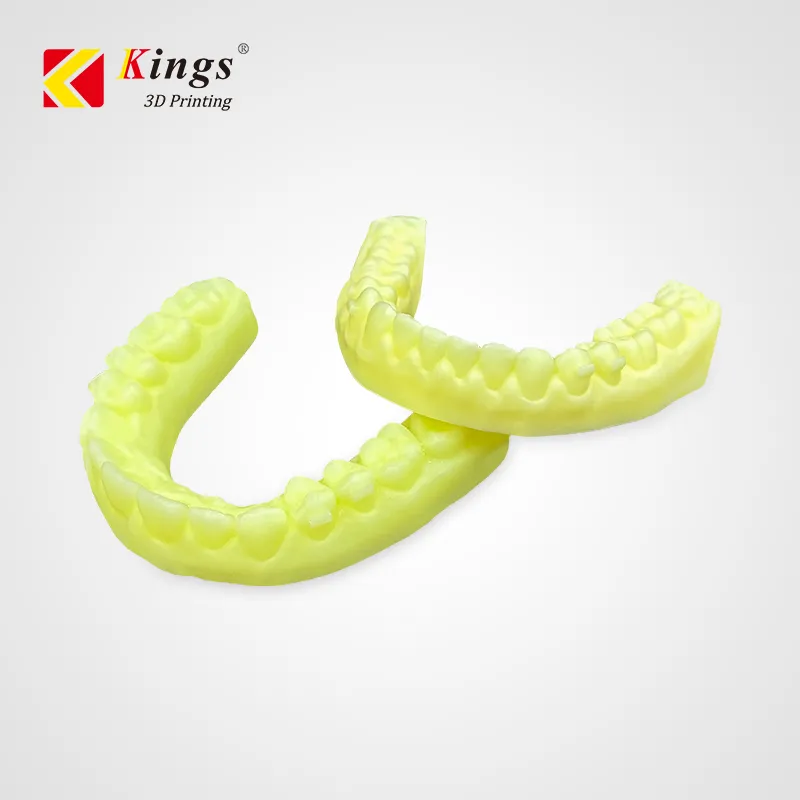

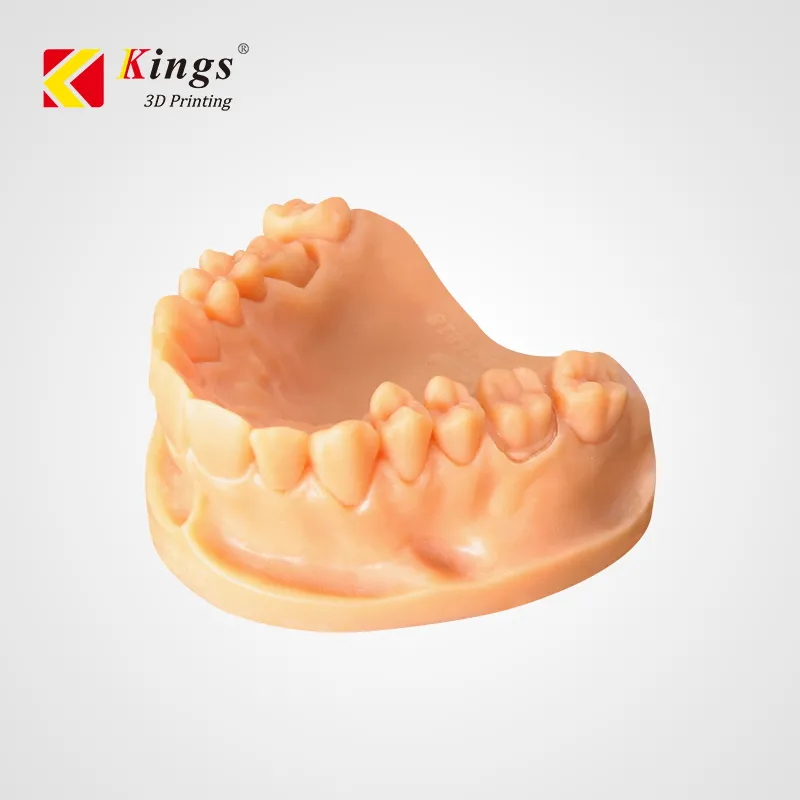

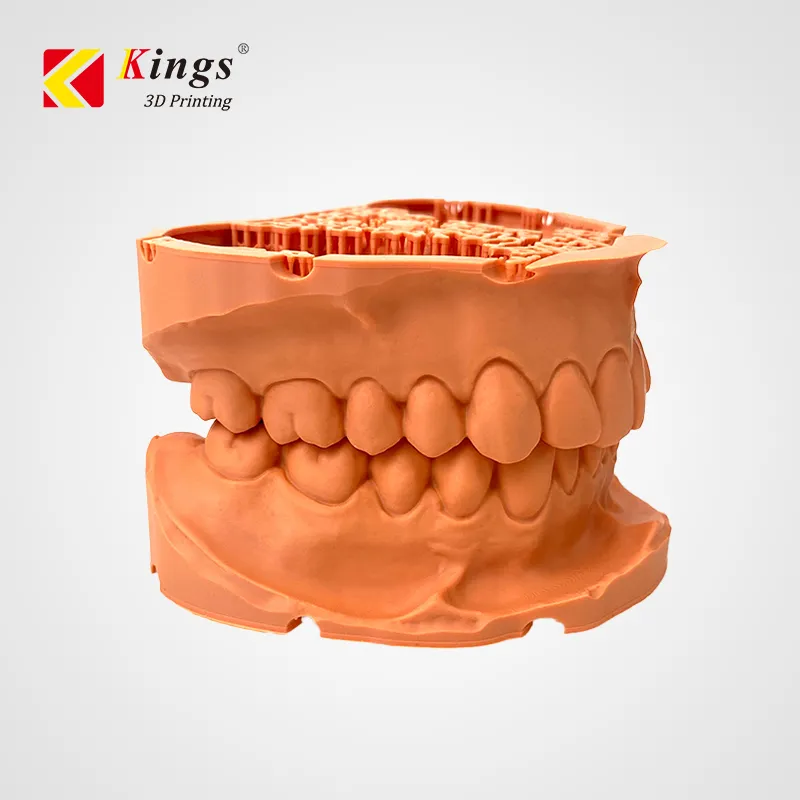

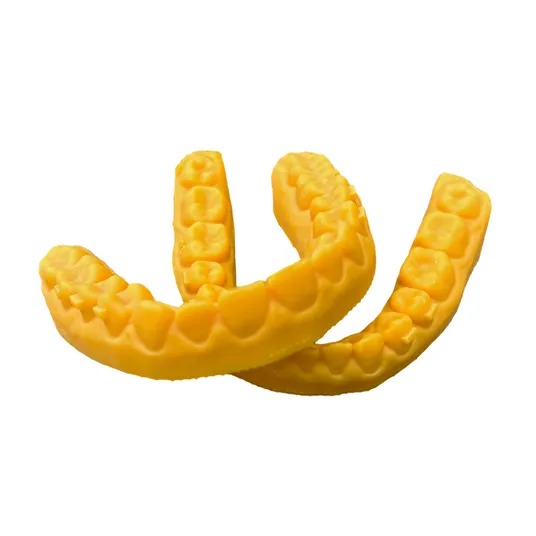

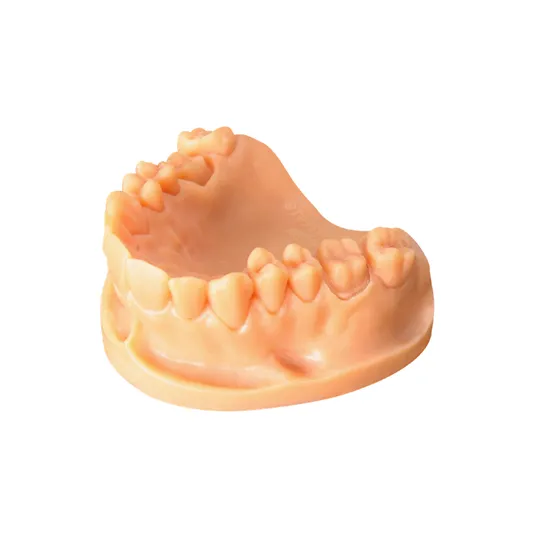

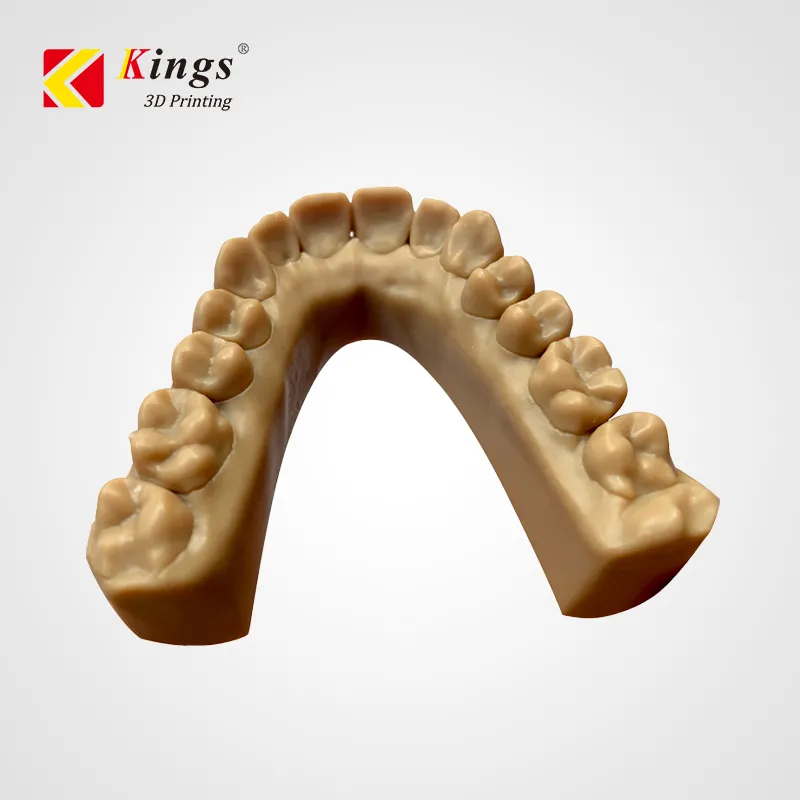

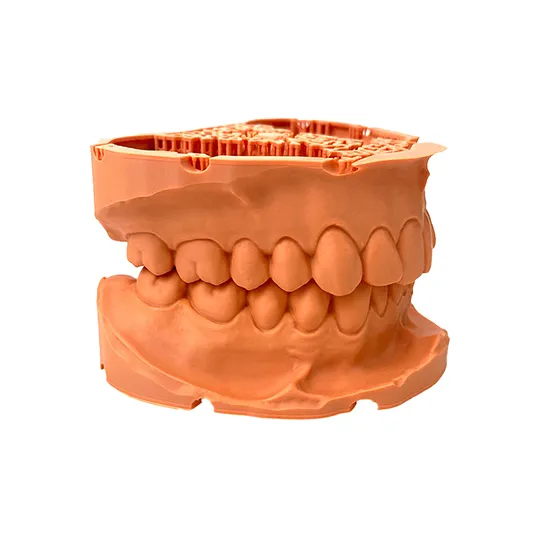

Printing Samples
