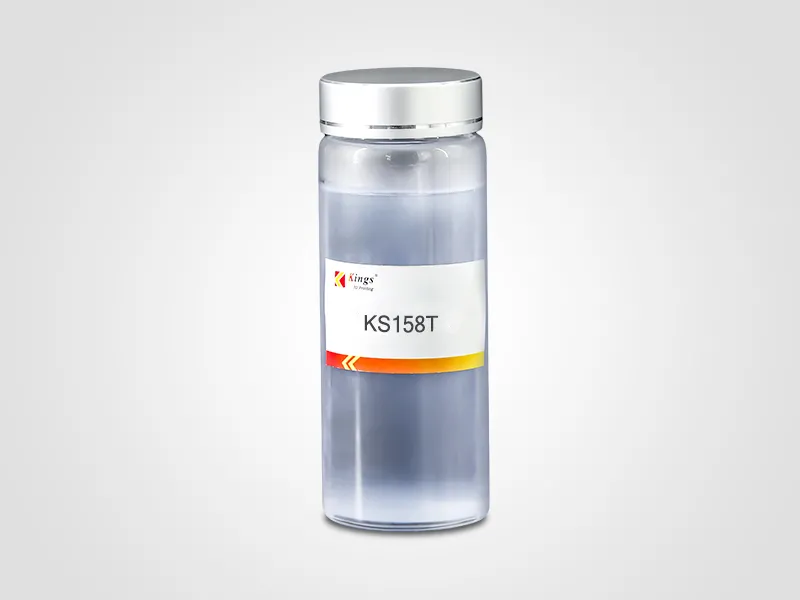

KS158T UV Resin is a transparent SLA resin with ABS-like properties and high clarity. It is perfect for prototypes, models, and transparent parts in automotive, healthcare, and consumer electronics industries.
Product Details
Overview
KS158T UV Resin is a transparent SLA material with ABS-like properties, offering both clarity and strength. It is ideal for laser SLA 3D printing and can be applied in prototypes and models for automotive, medical, consumer electronics, and other industries.
Want to explore more concrete applications of transparent resin 3D printing? Click here: What We Can Print With SLA Clear Resin AclyGlo6000.
Typical Benefits
Superior clarity, building parts with outstanding clarity and excellent accuracy.
Need less part finishing time, easier post-curing.
Physical Properties – Liquid Material
Appearance | Clear |
Density | 1.12g/cm3 @ 25 ℃ |
Viscosity | 408cps @ 26 ℃ |
Dp | 0.18 mm |
Ec | 6.7 mJ/cm2 |
Building layer thickness | 0.1mm |
Mechanical Properties of Post-Cured Material
MEASUREMENT | TEST METHOD | VALUE |
90-minute UV post-cure | ||
Hardness, Shore D | ASTM D 2240 | 83 |
Flexural modulus, MPa | ASTM D 790 | 2,680-2,790 |
Flexural strength, MPa | ASTM D 790 | 75- 83 |
Tensile modulus, MPa | ASTM D 638 | 2,580-2,670 |
Tensile strength, MPa | ASTM D 638 | 45-60 |
Elongation at break | ASTM D 638 | 11-20% |
Impact strength,n otched lzod, J/m | ASTM D 256 | 38 - 48 |
Heat deflection temperature, ℃ | ASTM D 648 @66PSI | 52 |
Glass transition, Tg, ℃ | DMA, E'peak | 62 |
The lifespan of leftover resin in your printer's tray can range from a few days to two months. If exposed to ambient UV light, it may only last 1–2 days. Keeping the resin covered and shielded from UV light will help extend its usability.
Advantages
Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance

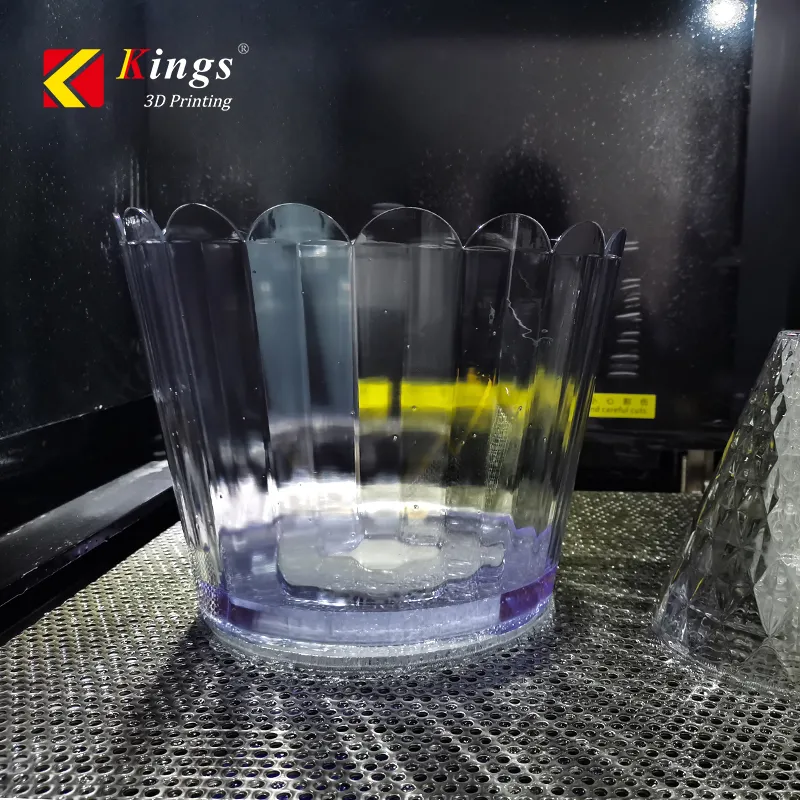

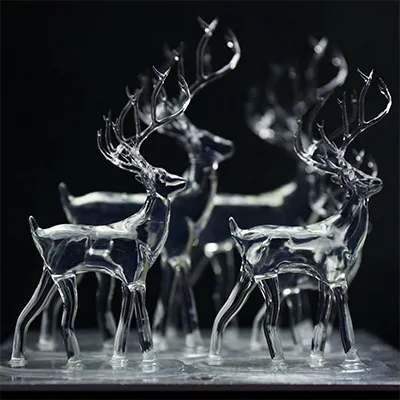

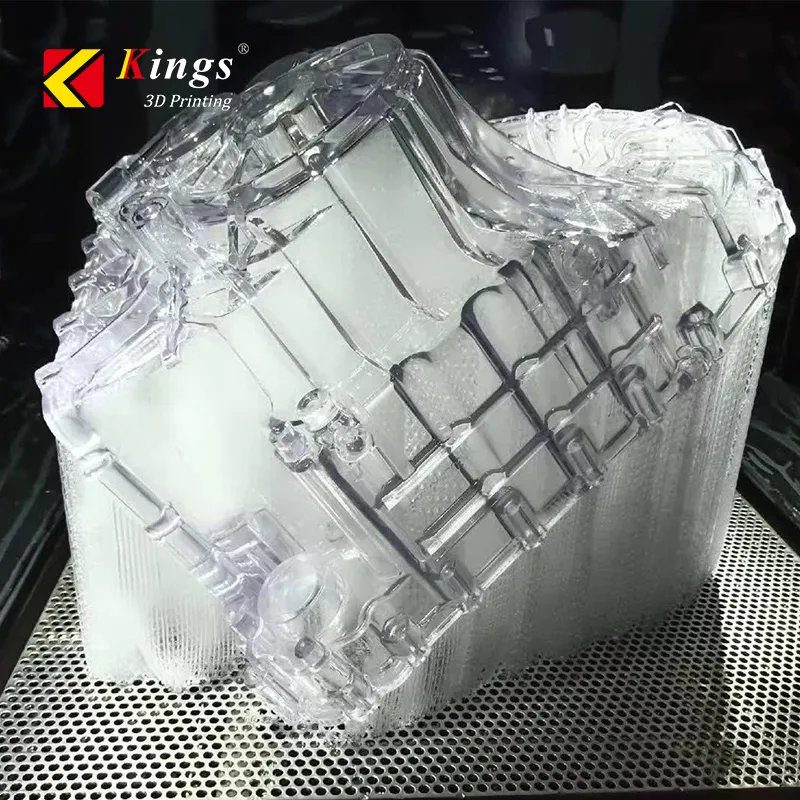

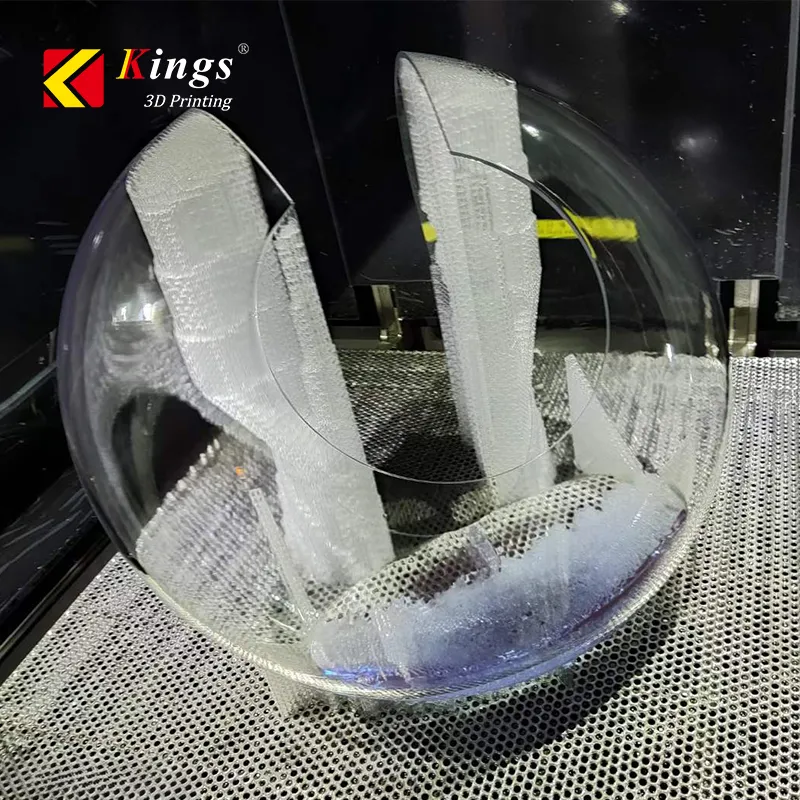

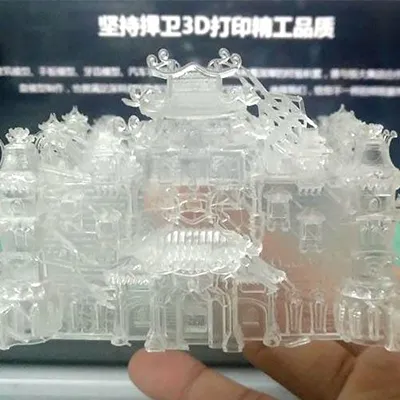

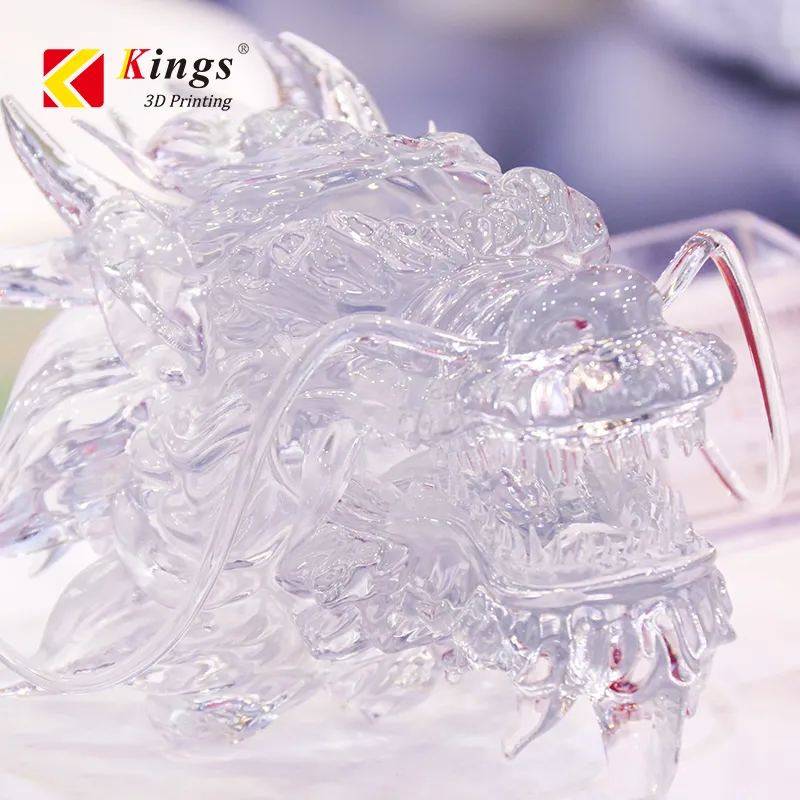

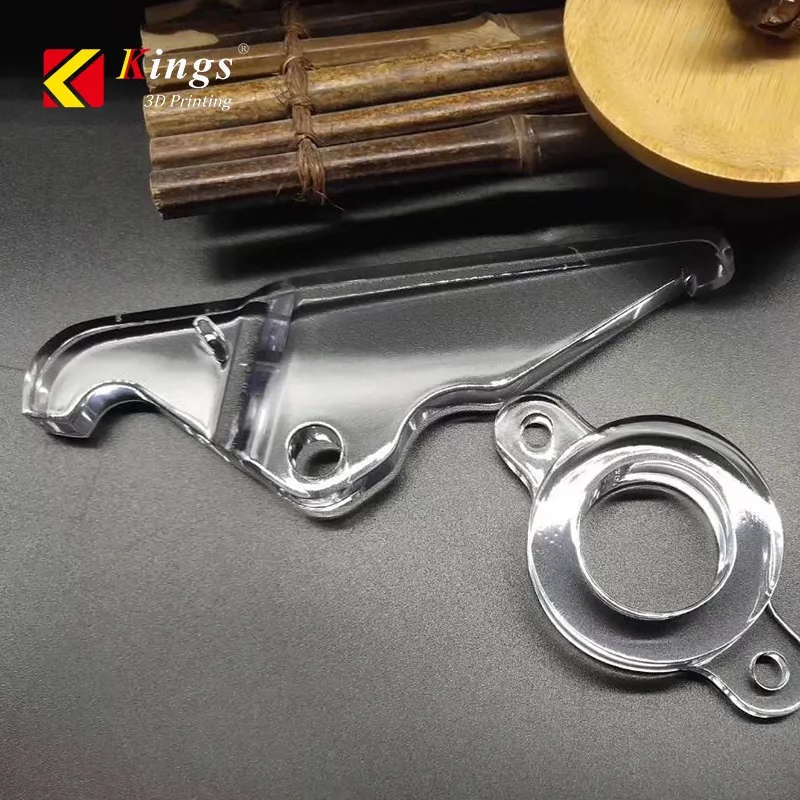

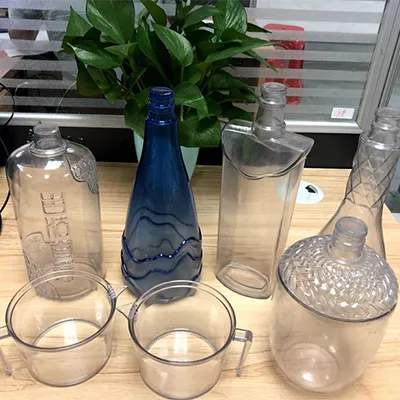

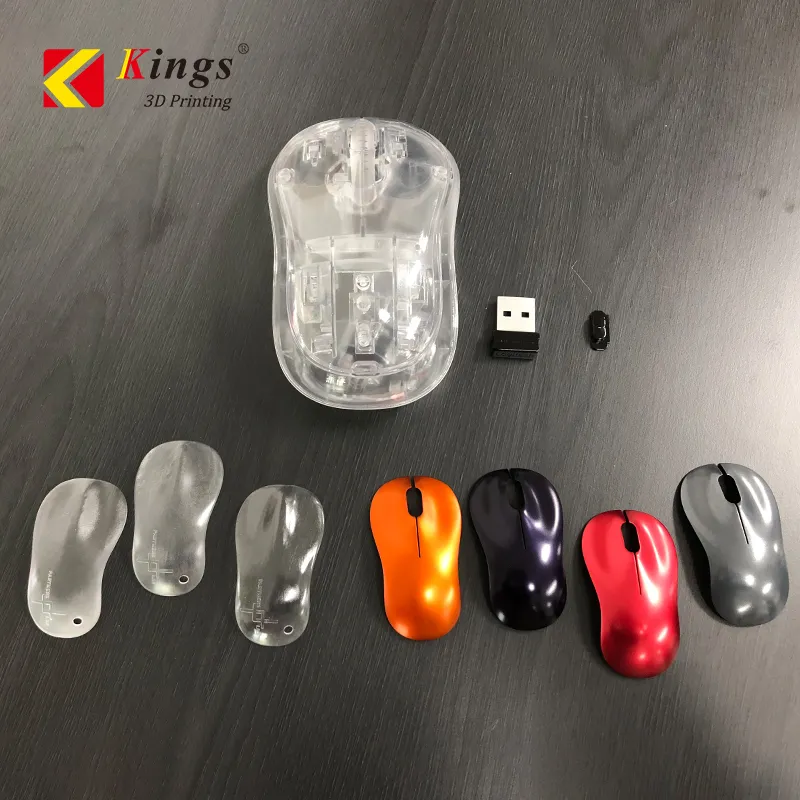

Printing Samples
