Discover Cutting-Edge 3D Printing Technologies

From resin and powder to metal and pellet, Kings 3D delivers precision solutions for industrial manufacturing.

Home > Products > FGF 3D Printer > Kings FGF 3000 Pro 3D Printer

Kings FGF 3000 Pro 3D Printer

(LWH) 300020001000mmMolding dimensions	(LWH) 410430673100mmMachine dimensions
2-6mmOptional nozzle diameter	100kgStorage hopper volume
6000kgMachine weight	Self-developed new generation CNCControl System

Inquire Now

Download

Product Details

Overview

Kings FGF-3000Pro is a large-format, industrial pellet extrusion 3D printer specifically designed for the mold industry. It offers advantages such as lower material costs, high printing efficiency, and excellent printing stability.

It uses thermoplastic pellets for mold manufacturing, such as PETG+30%GF (heat resistance up to 90°C) and PP+30%GF (up to 130°C), making it ideal for producing durable and functional molds.

It is widely used in industries such as automotive, marine, and composite tooling, helping to significantly reduce production time and overall manufacturing costs.

Features

Large-Format Pellet Extrusion Printing

Industrial-grade large build volume with pellet-based extrusion, designed for one-piece mold manufacturing.

Wide Material Compatibility

Supports thermoplastic pellets including fiber-reinforced materials (e.g., PETG+GF, PP+GF, PC+GF, PPS+CF) for high-performance applications.

Intelligent & Stable Printing System

Equipped with automatic feeding and multi-zone heating control to ensure continuous, stable, and efficient 24/7 printing.

Advantages

Lower Material Cost
High Printing Efficiency
High Accuracy & Reduced Assembly Errors
Self-developed CNC System with Power-loss Recovery

Basic Parameter

Download

Molding technology	Fused granular fabrication
Molding dimensions	(LWH) 300020001000mm
Machine dimensions	(LWH) 410430673100mm
Optional nozzle diameter	2-6mm
Nozzle heating method	Three-zone intelligent heating
Control System	Self-developed new generation CNC system
Drive mode	Servo motor
Machine weight	6000kg
The maximum temperature of the nozzle	≤350 degrees Celsius (450 degrees Celsius is optional)
Printing connection method	SD/USB/WiFi
Slicing supported formats	STL/OBJ/AMF/3MF/STP/STEP
Slicing software	Kings studio
Materials	PC+ABS/PETG+GF/PP+GF/PA+GF/ABS+GF/PPS/PC/PA etc
Material particle diameter	1-5mm
Automatic feeder	Integrated
Granular dryer	100kg tank, 6kW, 2.5kW, Three-phase AC 380V±7%, 12A, 50/60Hz, 0.6MPa, 200liters/minute
Power supply voltage	Three-phase AC 380V

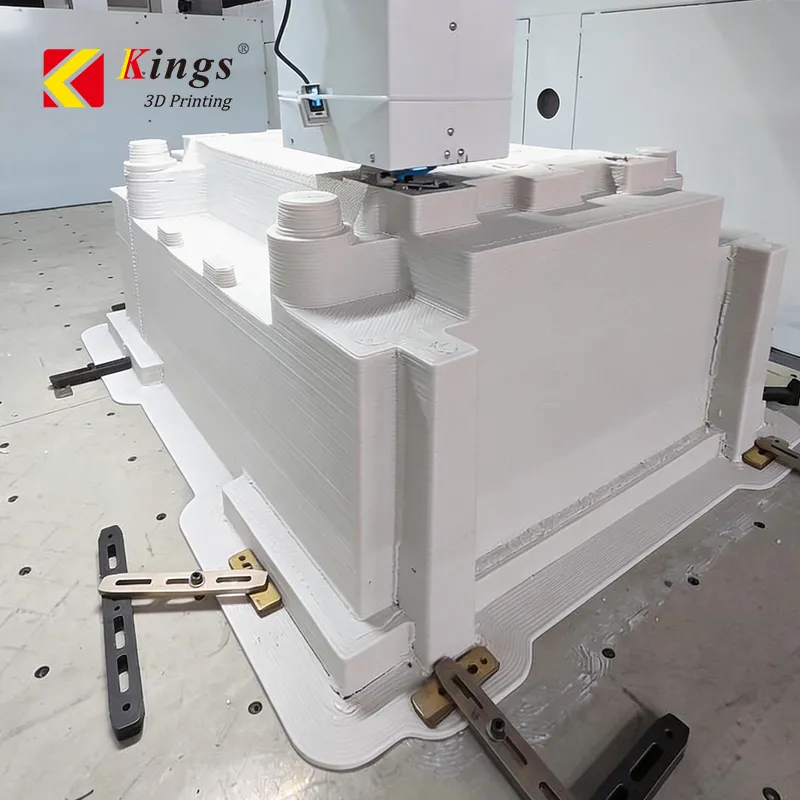

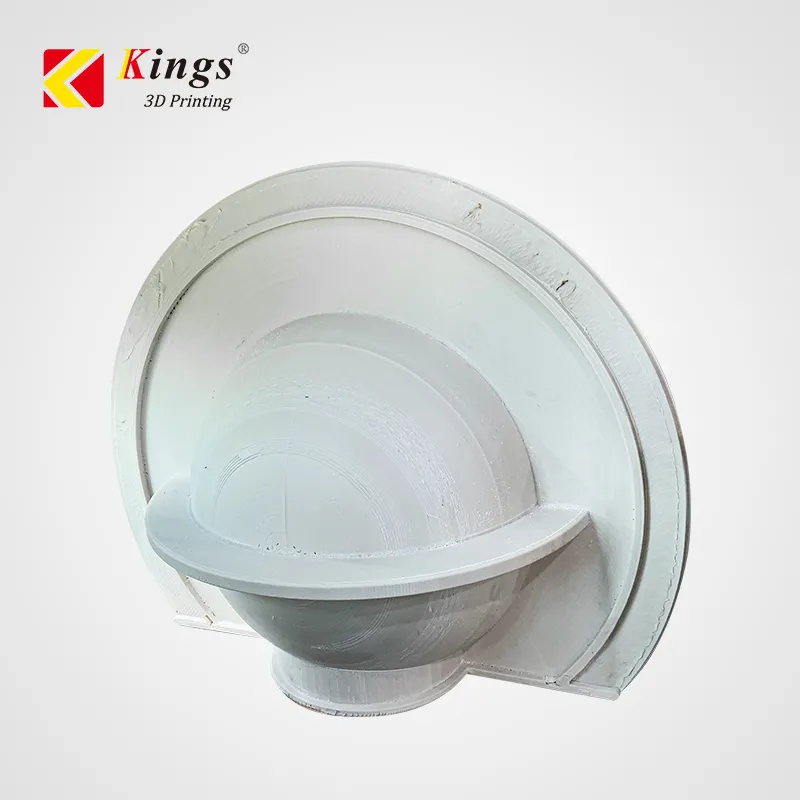

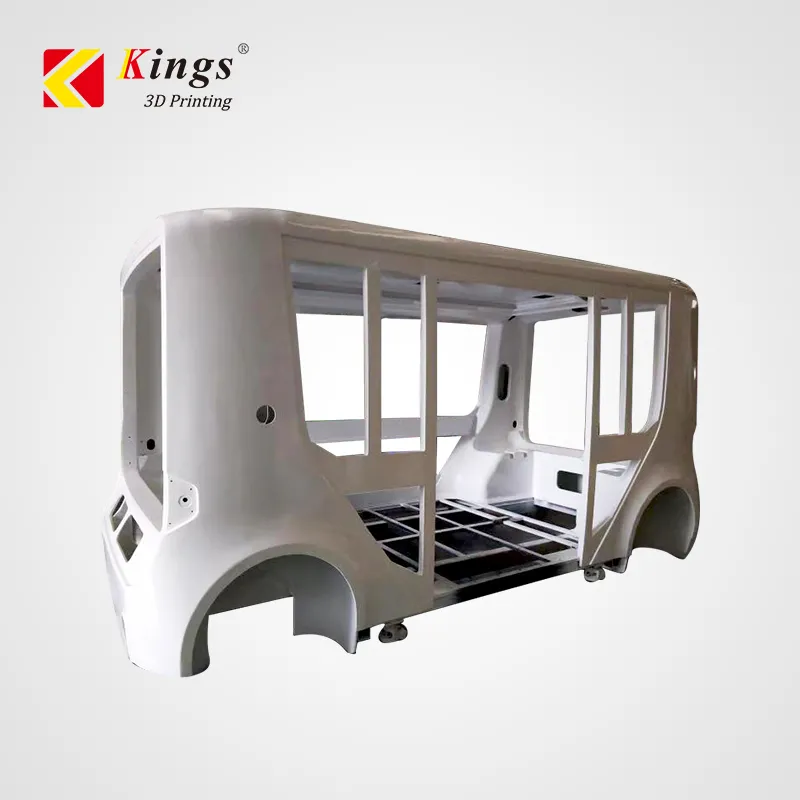

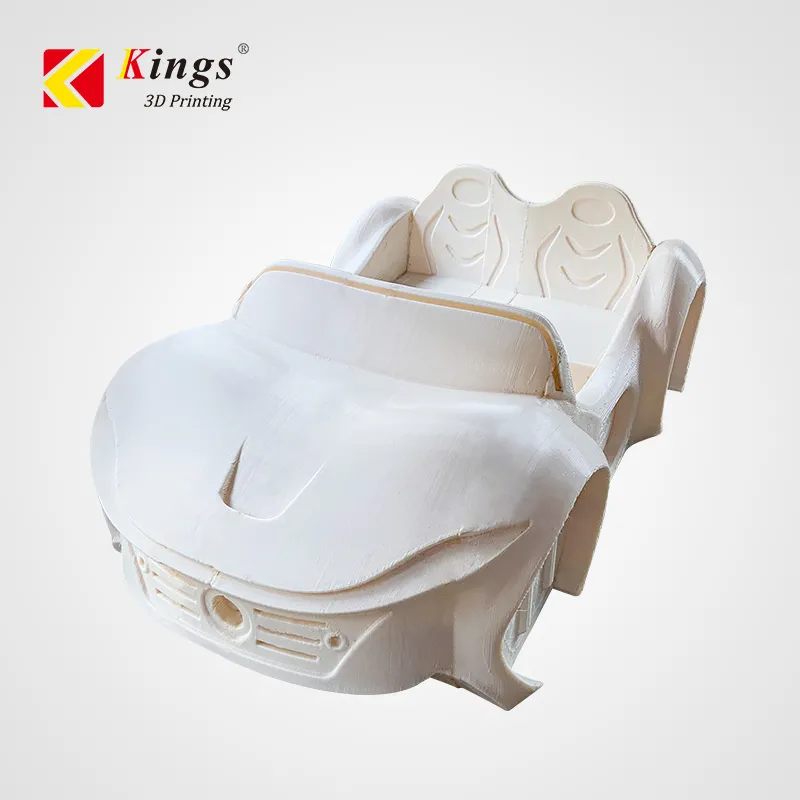

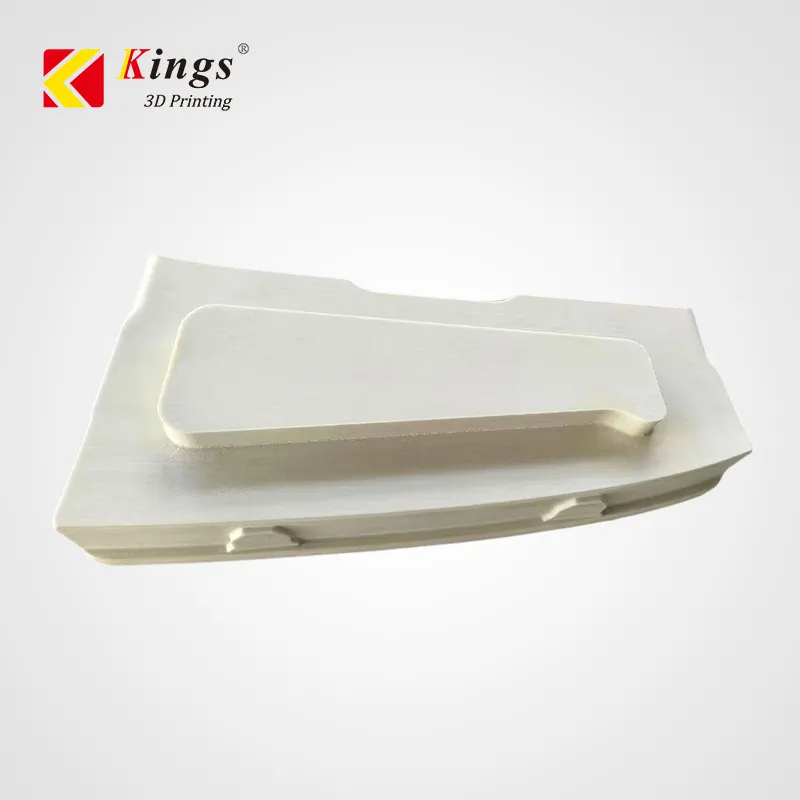

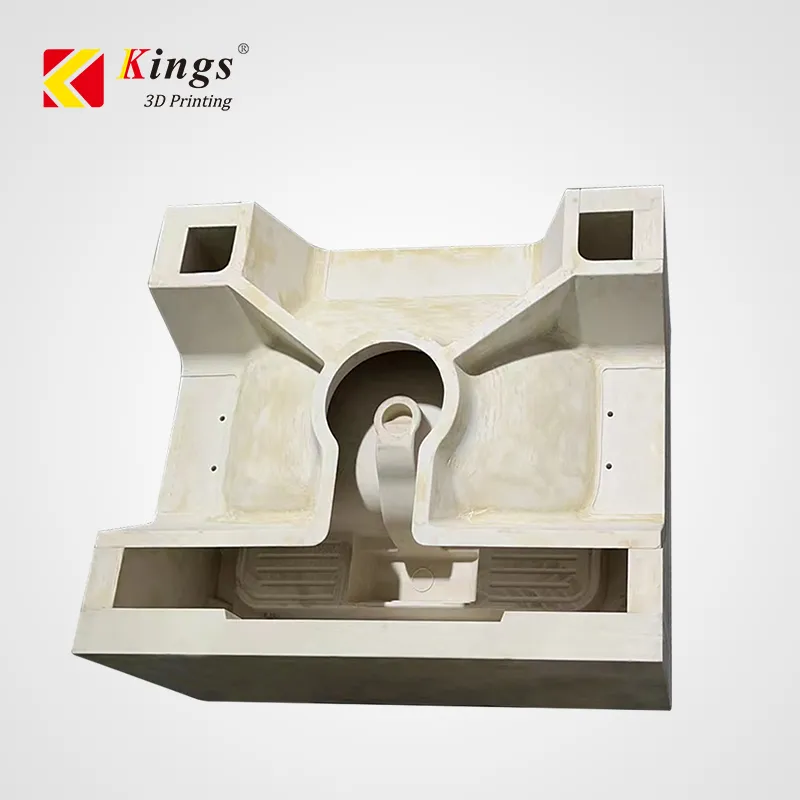

Printing Samples

Application

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
