| 625mm*625mm*1100mm (Net Build Size)Build Size | 5490mm*4710mm*5480mmExternal Dimensions |
| ±0.1(L≦100 mm)；±0.1%*L(L>100 mm)Printing Accuracy | 0.03~0.1mmLayer Thickness |
| 50~100cm³/hForming Efficiency | 15000kgEquipment Weight |
Product Details
Overview
Kings M650 is the largest laser selective melting equipment launched by Kings 3D, with a printing size of 625mmx625mmx1100mm. It is the representative work of KINGS 3D's many years of technology accumulation, and it is also a rare large-size laser selection melting equipment in the market. Its expansive build envelope opens new possibilities for large-scale metal production that couldn’t be built before in industries such as aerospace, mold industry, automobile industry, etc and many others.
Advantages
Large-size quad-laser high-efficiency printing on the same platform
Intelligent operation design
Double circulation wind site protection system
All closed looped powder handling system
Basic Parameter
| Build Size | 625mm*625mm*1100mm (Net Build Size) |
| External Dimensions | 5490mm*4710mm*5480mm |
| Forming Materials | Stainless Steel, Cobalt-Chromium Alloy, Titanium Alloy, Tool Steel, Aluminum Alloy, High-Temperature Alloy |
| Powder Supply Method | Top Powder Feeding & Two-Way Powder Feeding |
| Printing Accuracy | ±0.1(L≦100 mm)；±0.1%*L(L>100 mm) |
| Layer Thickness | 0.03~0.1mm |
| Protection System | Efficient Protective Gas Circulation System (Nitrogen, Argon) |
| Supporting Consumables | Stainless Steel Powder 316L, no less than 200kg, with various material process parameter packages |
| Laser Type | IPG 500W×4/8 (1064nm) |
| Scanning System | SCANLAB*4/8 (Equipped with F-theta Field Lens) |
| Laser Speed | Scanning:1.0~4.0m/s (Recommended); Jumping: 5~7m/s(Recommended); Up to 15m/s |
| Data Processing Software | Voxeldance Additive (STL file) |
| Equipment Control Software | Independently Developed by Kings |
| Operating System | Windows 7 and above |
| Data Format | STL/SLC/JOB |
| Power Supply | 380V 50/60 Hz |
| Rated Power Consumption | 22kW, Three-phase Electricity |
| Preheat Temperature | RT+20℃~100℃ |
| Industrial Control Computer Configuration | 10th Gen i7, 16GB RAM |
| Forming Efficiency | 50~100cm³/h |
| Relative Humidity | Below 40%, Frost-free |
| Ambient Temperature | 15-30 ℃ |
| Equipment Weight | 15000kg |

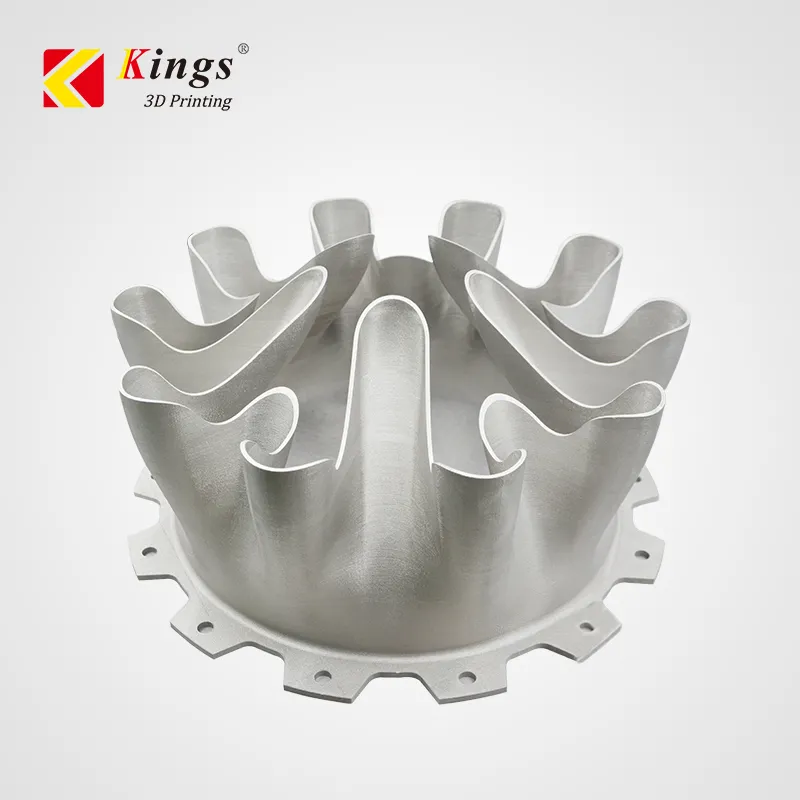

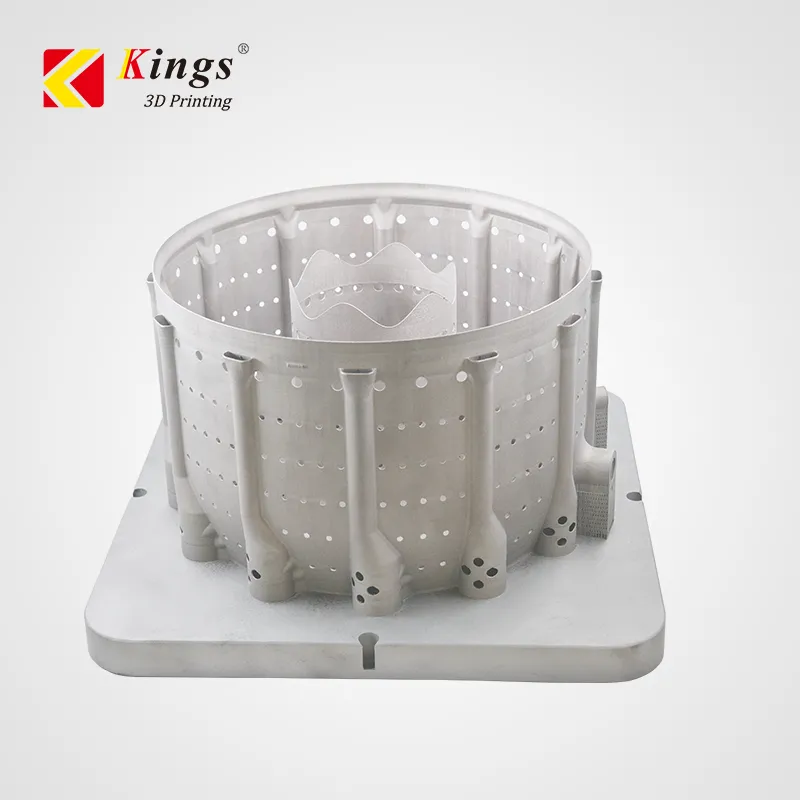

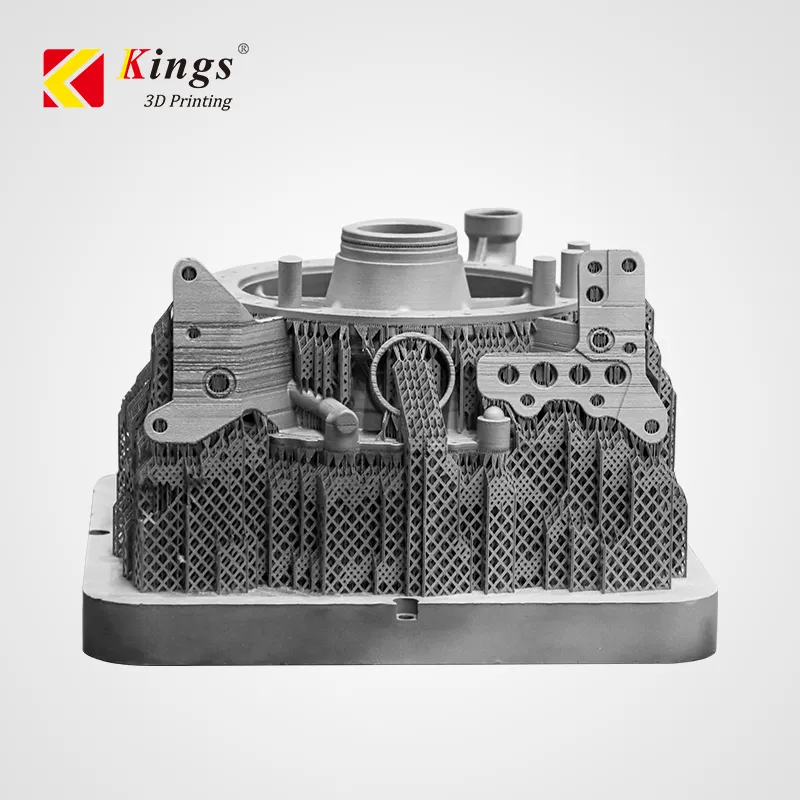

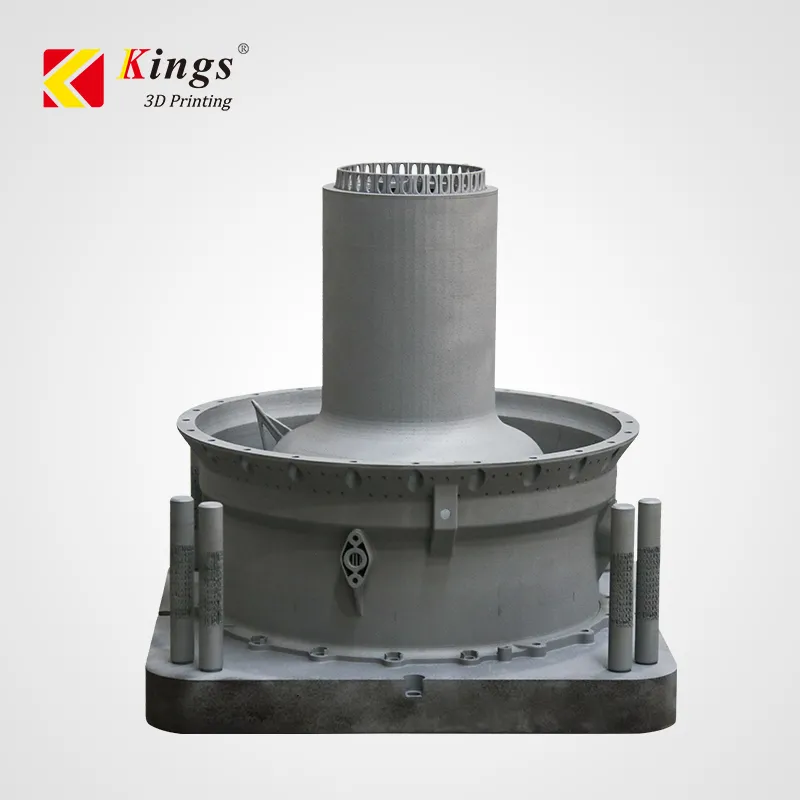

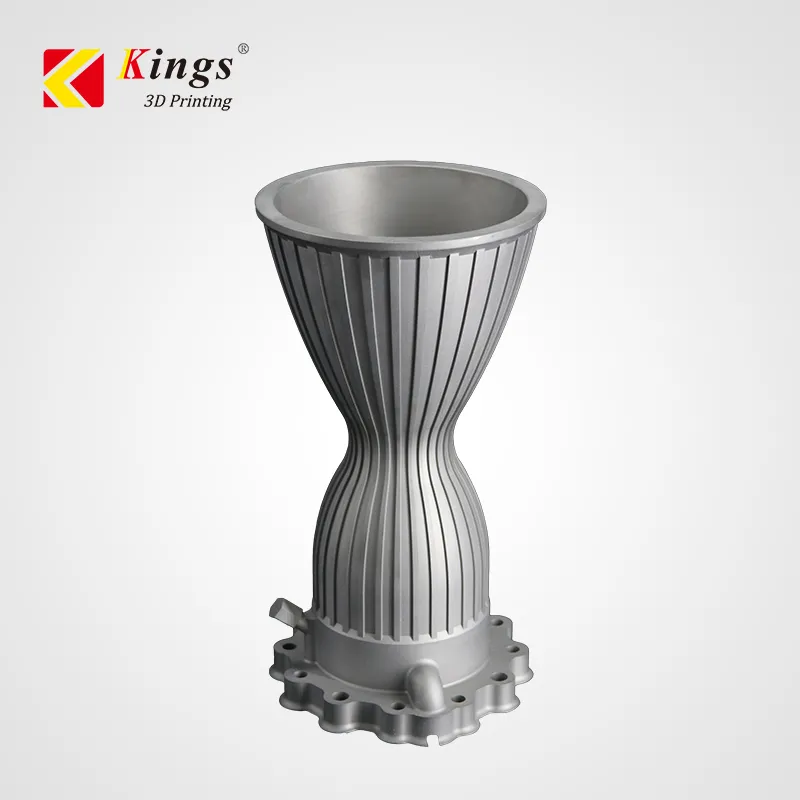

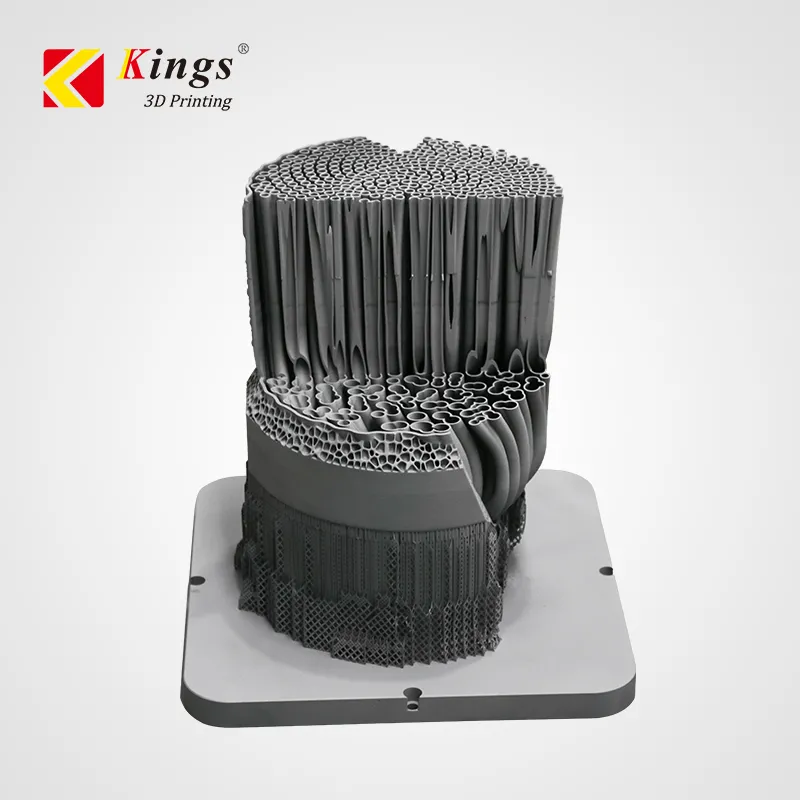

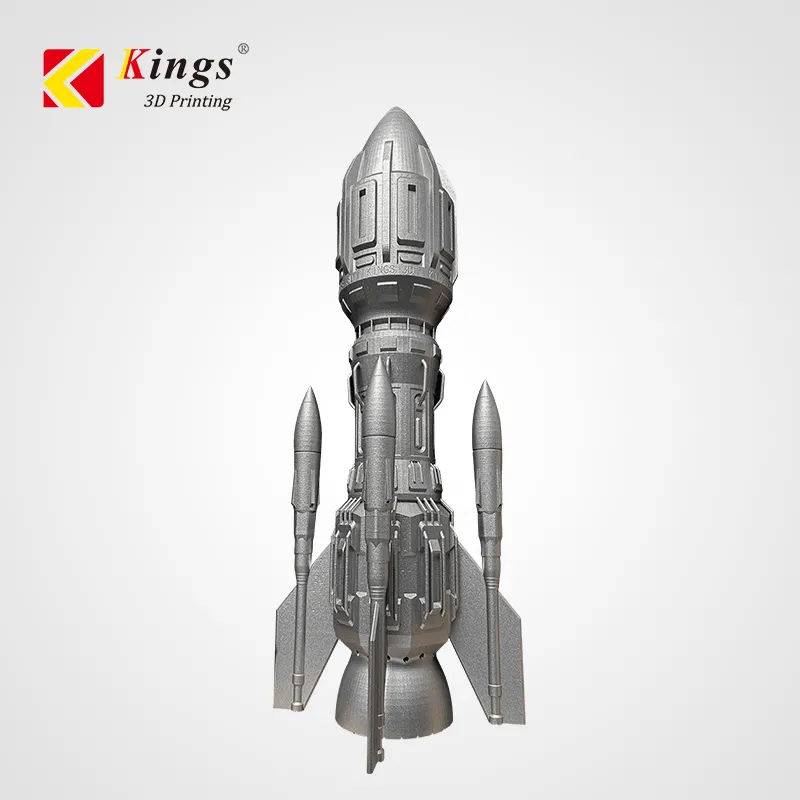

Printing Samples
