| 500mm*400mm*300mm (Net Build SIze)Build Size | 2040mm*1450mm*2170mmExternal Dimensions |
| ±0.1(L≦100 mm)；±0.1%*L(L>100 mm)Printing Accuracy | 0.02-0.2mmLayer Thickness |
| 20-80 cm³/hForming Efficiency | 2000kgEquipment Weight |
Product Details
Overview
Kings M500 presents an efficient solution specifically designed for large-scale metal 3D printing needs. By incorporating a quad-laser and quad-galvanometer system with a unified forming approach, this solution dramatically increases printing efficiency by over 200%. Kings M500 has a closed internal powder processing system, aimed at reducing dust and minimizing harm to the human body. This innovative solution finds diverse applications in moulds, automobiles, aerospace, nuclear power, military industries, orthopedic medi cine, etc.
Advantages
Large Build Volume
Unattended Stable Operation
Advanced Air Filtration & Precision Protection
Quad-Laser High-Efficiency Scanning
Basic Parameter
| Build Size | 500mm*400mm*300mm (Net Build SIze) |
| External Dimensions | 2040mm*1450mm*2170mm |
| Forming Materials | Stainless Steel, Cobalt-Chromium Alloy, Titanium Alloy, Tool Steel, Aluminum Alloy, High-Temperature Alloy |
| Powder Supply Method | Top Powder Supply & Two-Way Powder Feeding |
| Printing Accuracy | ±0.1(L≦100 mm)；±0.1%*L(L>100 mm) |
| Layer Thickness | 0.02-0.2mm |
| Protection System | Efficient protective gas circulation system (Nitrogen, Argon) |
| Supporting Consumables | 316L Stainless Steel Powder, no less than 100kg (With Multiple Material Process Parameter Packages |
| Laser Type | IPG 500W×4 (1064nm) |
| Scanning System | SCANLAB*4 with F-theta lens |
| Laser Speed | Scanning:1.0~4.0m/s (Recommended); Jumping:7-7m/s (Recommended) ; Up to 11m/s |
| Data Processing Software | Voxeldance Additive (STL file) |
| Equipment Control Software | Independently Developed by Kings |
| Operating System | Windows 10 and above |
| Data Format | STL/SLC/JOB |
| Power Supply | 380V 50 Hz |
| Rated Power Consumption | 15kW, Three-phase Electricity |
| Heating Method | RT+20℃~80℃ |
| Industrial Control Computer Configuration | 10th Gen i7, 16GB RAM |
| Forming Efficiency | 20-80 cm³/h |
| Relative Humidity | Below 40%, Frost-free |
| Ambient Temperature | 15-30 ℃ |
| Equipment Weight | 2000kg |

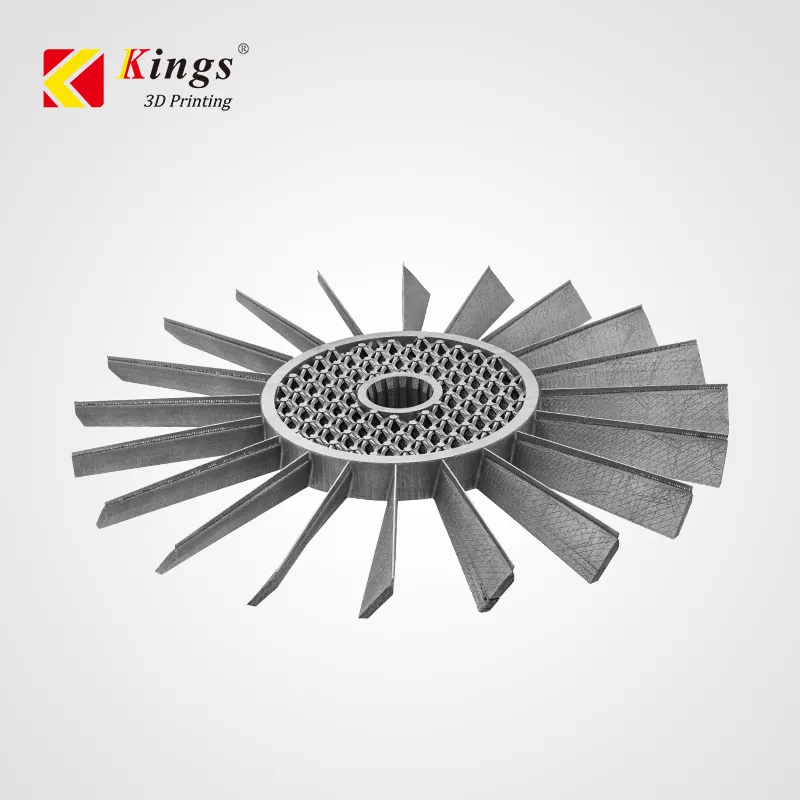

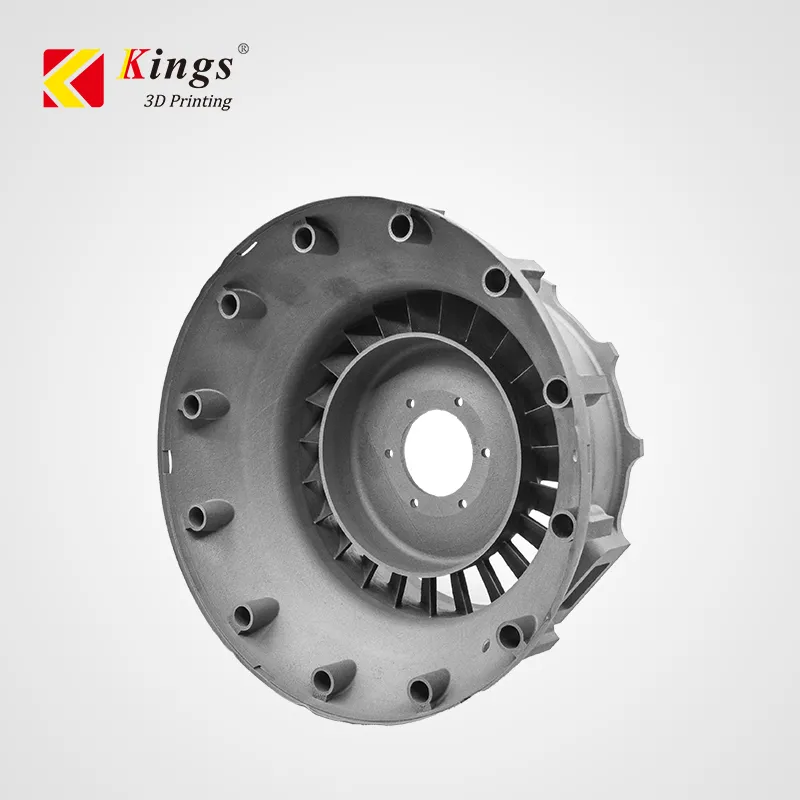

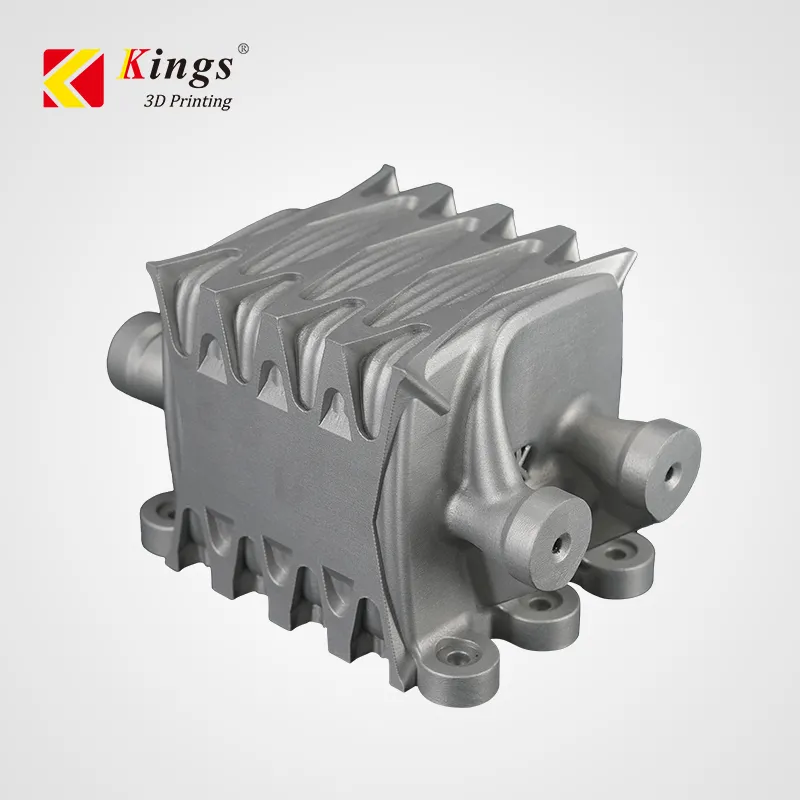

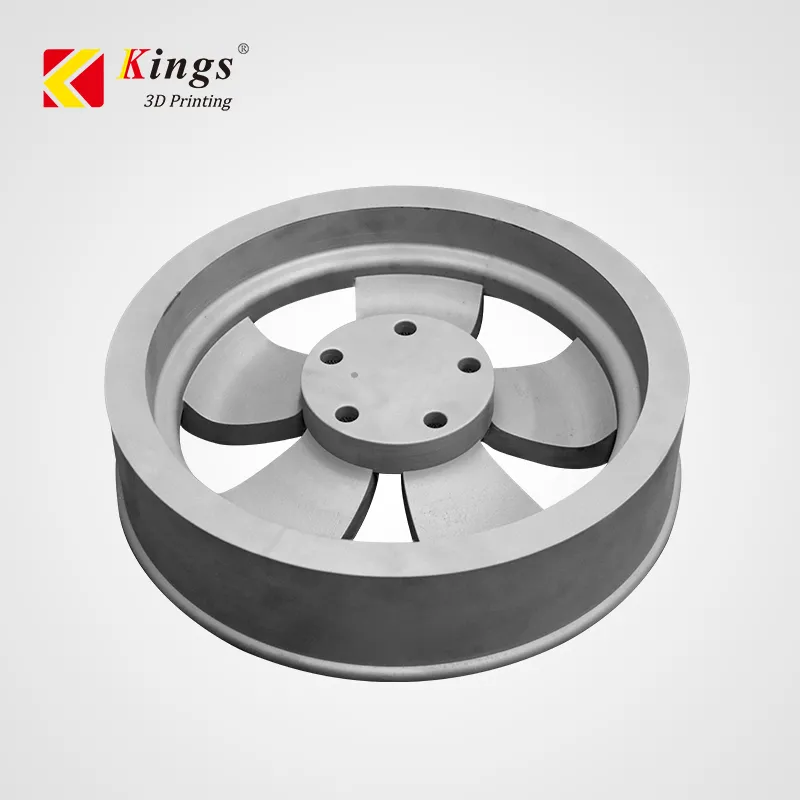

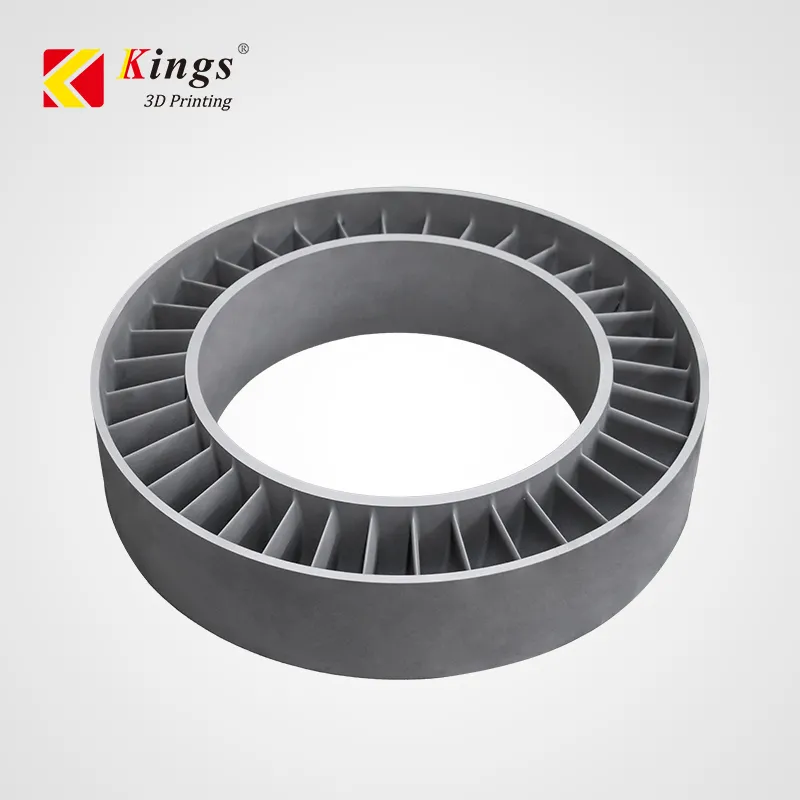

Printing Samples
