| Φ70mm*50mmBuild Size | 720mm*810mm*1500mmExternal Dimensions |
| ±0.1(L≦100 mm)；±0.1%*L(L>100 mm)Printing Accuracy | 0.02-0.2 mmLayer Thickness |
| 220V 50 HzPower Supply | 5-20 cm³/hForming Efficiency |
Product Details
Overview
Kings M50 is a new generation of metal 3D printers specially developed by Kings 3D for the vocational education industry, moulding small parts with zero and high precision. It is very suitable for low-cost education and training work, providing complete metal 3D printing operations and skills training for students and vocational trainees.
Advantages
Work without protective gas
High precision and strong stability
Dual-circulation wind site protection system
High security multiple safety insurance
Basic Parameter
| Build Size | Φ70mm*50mm |
| External Dimensions | 720mm*810mm*1500mm |
| Forming Materials | Metal Powders |
| Powder Supply Method | Double Cylinder One-Way Powder Feeding |
| Printing Accuracy | ±0.1(L≦100 mm)；±0.1%*L(L>100 mm) |
| Layer Thickness | 0.02-0.2 mm |
| Protection System | No need for protective gas |
| Supporting Consumables | Metal tin powder 20 kg |
| Laser Type | High performance domestic laser 200W (1064nm) |
| Scanning System | Domestic scanning galvanometer system (Equipped with F-theta Field Lens) |
| Laser Speed | Scanning:1.0~4.0m/s (Recommended); Jumping: 10.0m/s(Recommended); Up to 7.8m/s |
| Data Processing Software | Voxeldance Additive / Magics (STL/SLC file) |
| Equipment Control Software | Independently Developed by Kings |
| Operating System | Windows 10 |
| Data Format | STL/SLC |
| Power Supply | 220V 50 Hz |
| Rated Power Consumption | 1kW, Single Phase |
| Preheat Temperature | No Substrate Preheating |
| Industrial Control Computer Configuration | 10th Gen i7\8G |
| Forming Efficiency | 5-20 cm³/h |
| Relative Humidity | Below 40%, Frost-free |
| Ambient Temperature | 15-30 ℃ |
| Equipment Weight | 150kg |

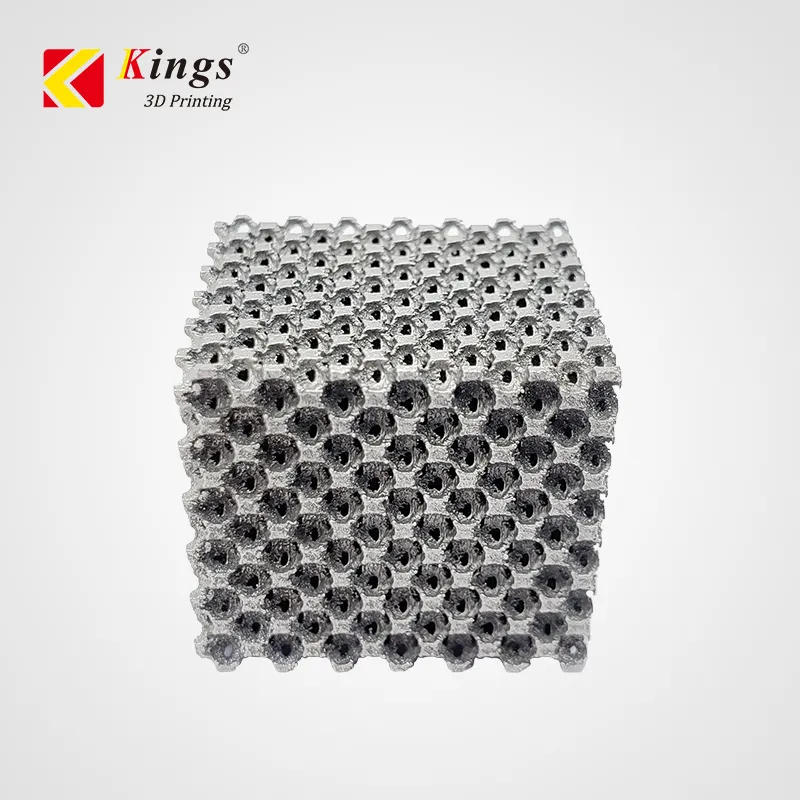

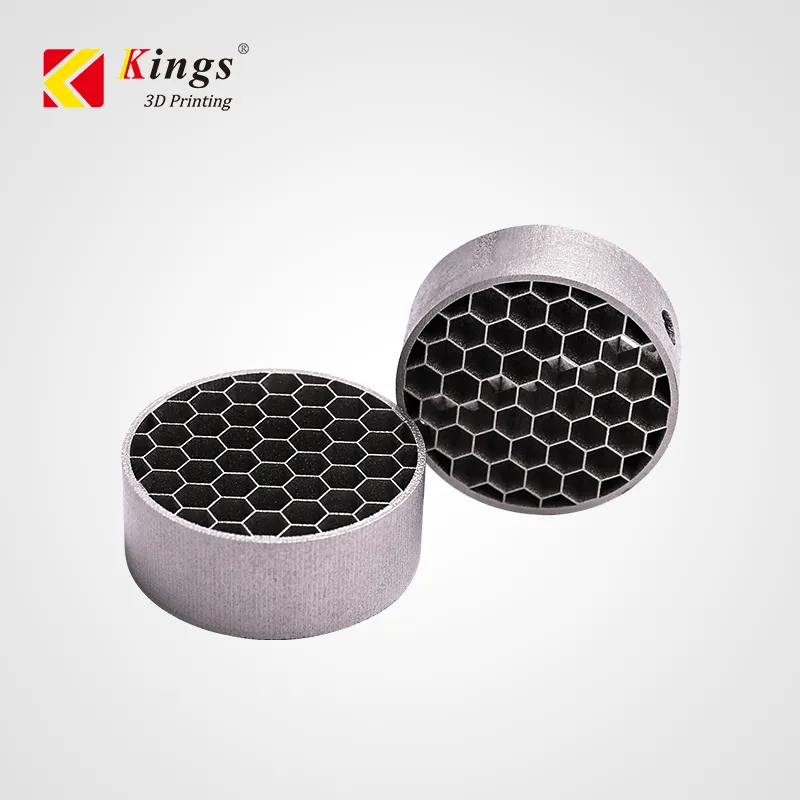

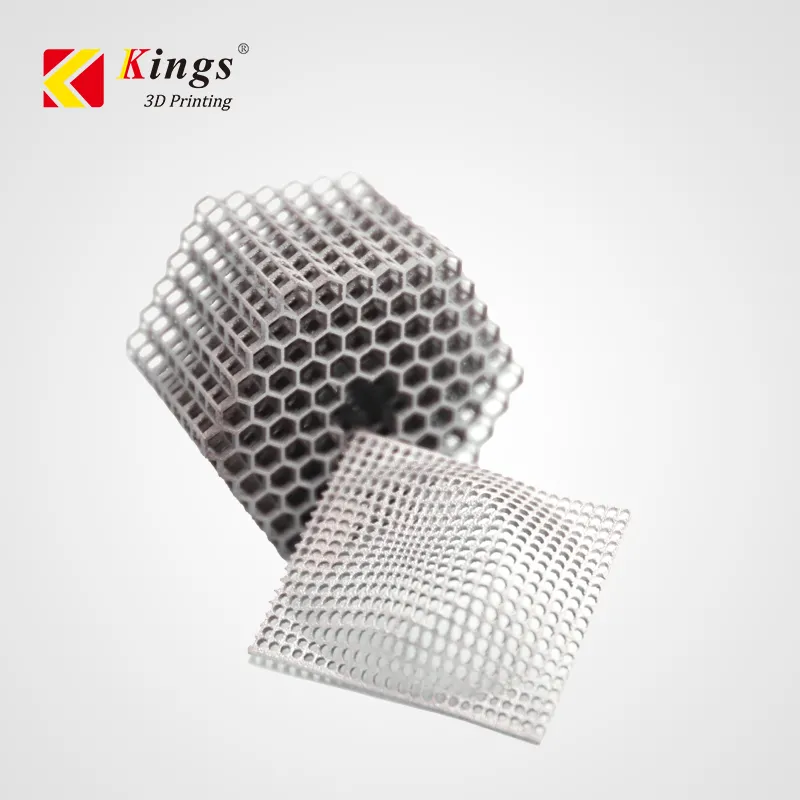

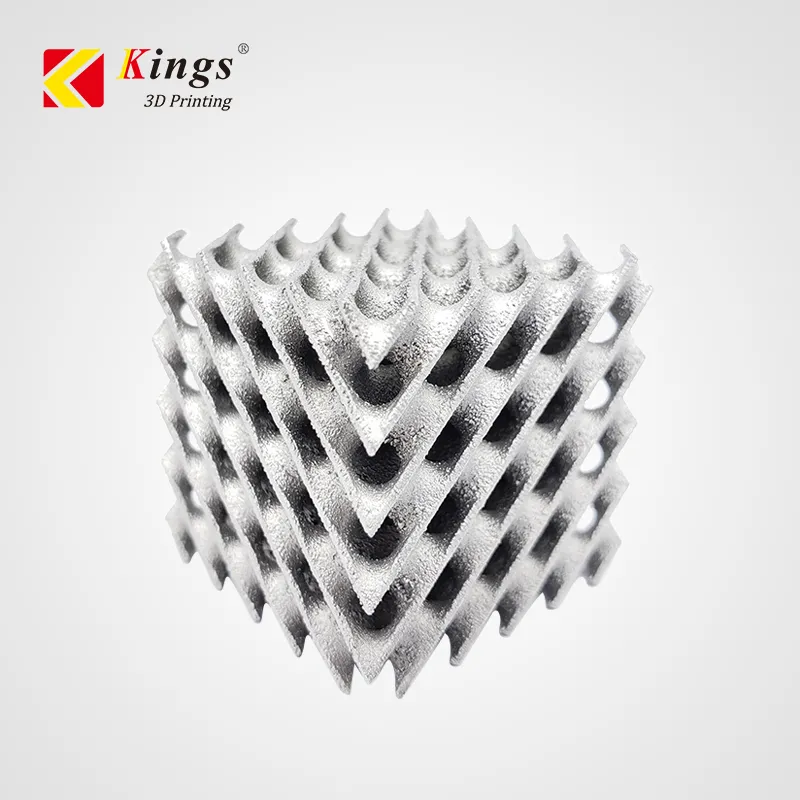

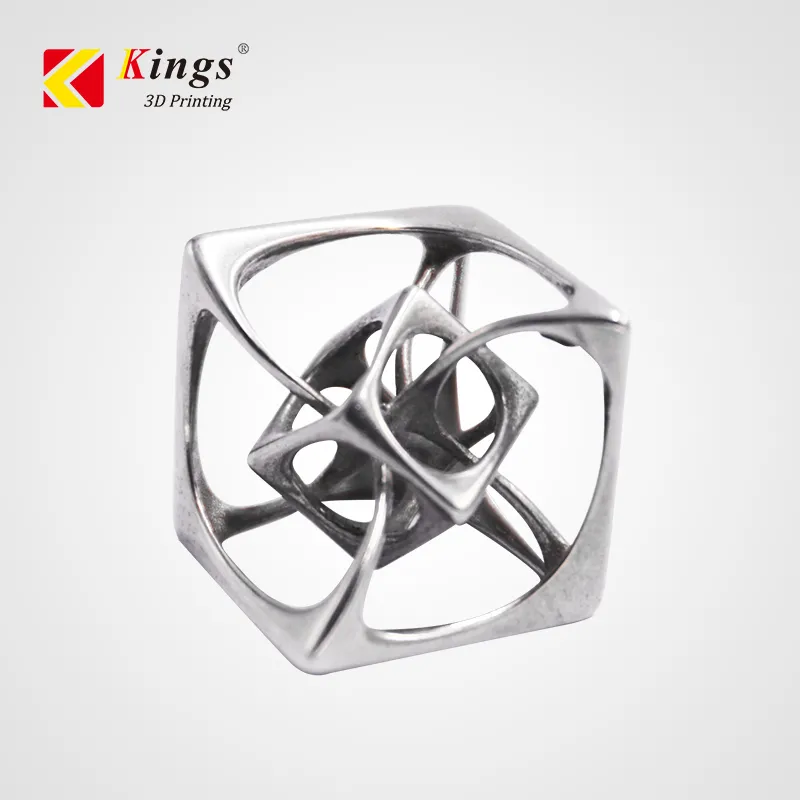

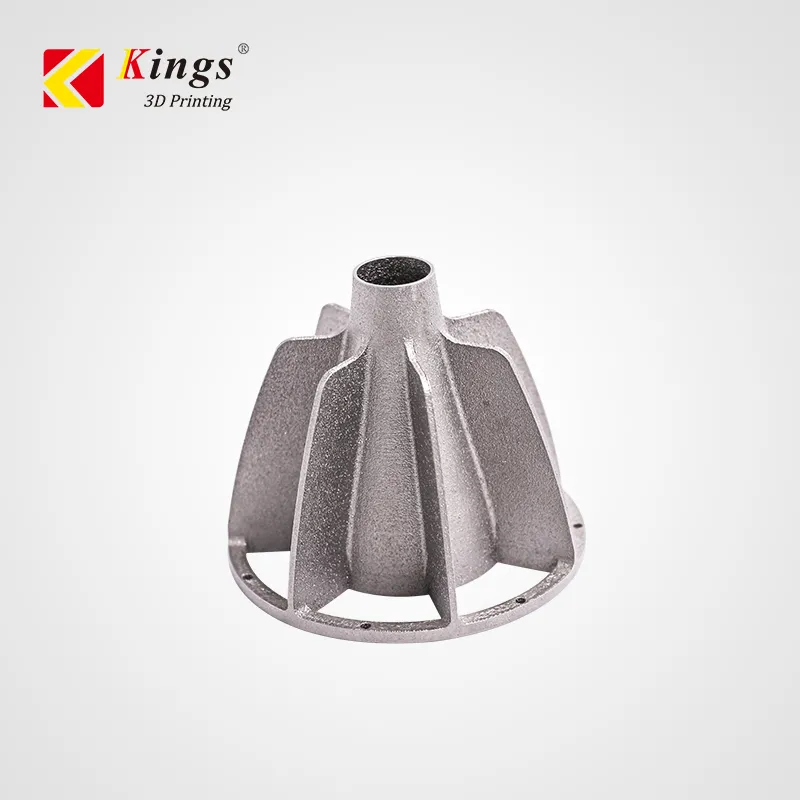

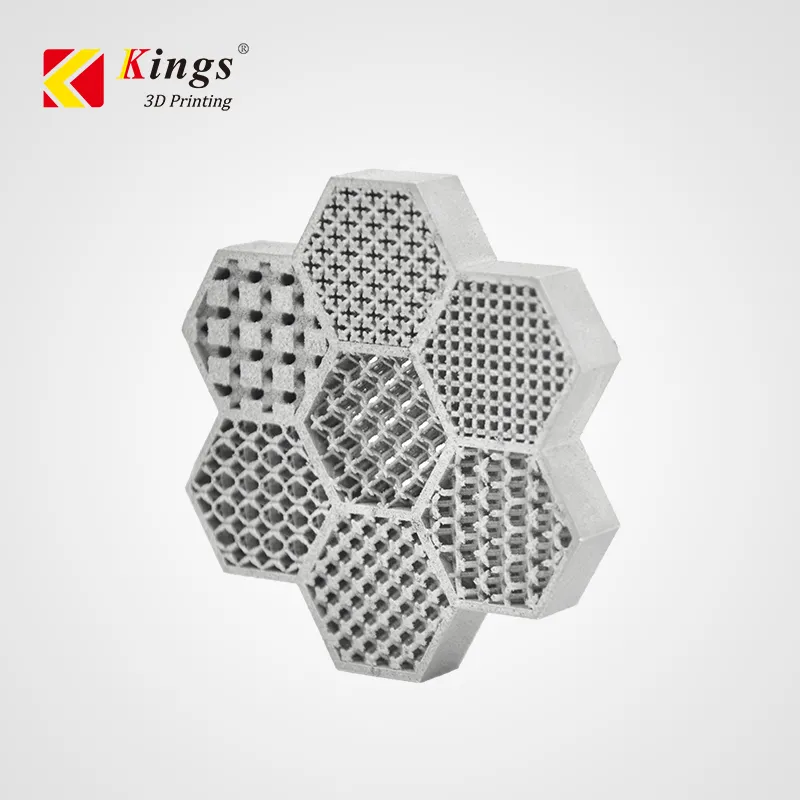

Printing Samples
