| 480mm*320mm*300mm (Net Build Size)Build Size | 1940mm*1110mm*2075mmExternal Dimensions |
| ±0.1(L≦100 mm)；±0.1%*L(L>100 mm)Printing Accuracy | 0.02-0.2mmLayer Thickness |
| 380V 50/60 HzPower Supply | 1500kgEquipment Weight |
Product Details
Overview
Dual-laser technology revolutionizes the landscape of large-scale metal 3D printing, presenting a groundbreaking approach to applications. Incorporating a quad-laser and quad-galvanometer uniform-forming solution elevates forming efficiency by more than 200%.
This cutting-edge technology caters to diverse sectors such as moulds, automotive, aerospace, nuclear power, military, orthopedic medicine, and beyond.
Features
Core components use international brands, providing ultra-fine laser spots, high stability, reliability, and superior forming accuracy.
Efficient back-blow filtration system with an extended lifespan, reducing operating costs.
Unique substrate module for quick assembly and disassembly, offering higher precision and more accurate mold alignment.
Efficient intelligent layering: variable layer thickness, mixed layer thickness, and customized layer thickness.
Equipped with a pop-up piston platform, ensuring 100% contamination-free powder changing.
Advantages
Large-size Multi-laser High-efficiency Forming On The Same Platform
Intelligent Operation Design
Double Circulation Wind Site Protection System
All Closed Looped Powder Handling System
Basic Parameter
| Build Size | 480mm*320mm*300mm (Net Build Size) |
| External Dimensions | 1940mm*1110mm*2075mm |
| Forming Materials | Stainless Steel, Tool Steel, Copper Alloy, Aluminum Alloy |
| Powder Supply Method | Top Powder Supply & Two-way Variable-Speed Powder Feeding |
| Printing Accuracy | ±0.1(L≦100 mm)；±0.1%*L(L>100 mm) |
| Layer Thickness | 0.02-0.2mm |
| Protection System | Efficient Protective Gas Circulation System (Nitrogen, Argon) |
| Supporting Consumables | 316L Stainless Steel Powder, No Less Than 100kg With (Process Parameter Packages For 4 Materials) |
| Laser Type | IPG 500W×2 (1064nm) |
| Scanning System | SCANLAB*2 (Equipped with F-theta Field Lens) |
| Laser Speed | Scanning:1.0~4.0m/s (Recommended); Jumping: 6~7m/s(Recommended); Up to 11m/s |
| Data Processing Software | Voxeldance Additive (STL file) |
| Equipment Control Software | Independently Developed by Kings |
| Operating System | Windows 7 and above |
| Data Format | STL/SLC/JOB |
| Power Supply | 380V 50/60 Hz |
| Rated Power Consumption | 13kW, Three-phase Electricity |
| Heating Method | Precision Resistive Heating (up to 200°C) |
| Industrial Control Computer Configuration | 10th Gen i7, 16GB RAM |
| Forming Efficiency | 20-50 cm³/h |
| Relative Humidity | Below 40%, Frost-free |
| Ambient Temperature | 15-30 ℃ |
| Equipment Weight | 1500kg |

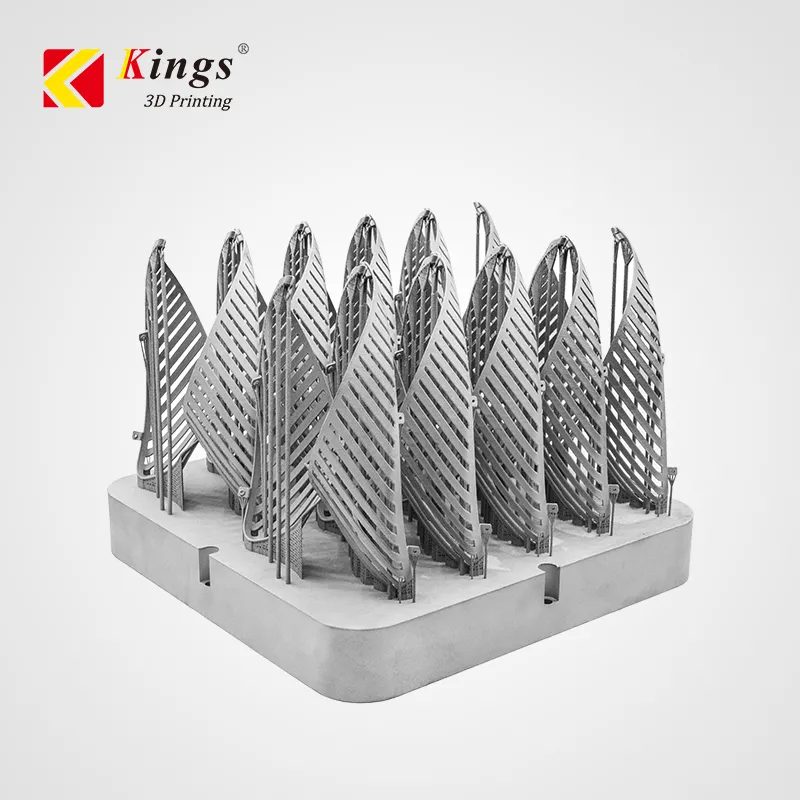

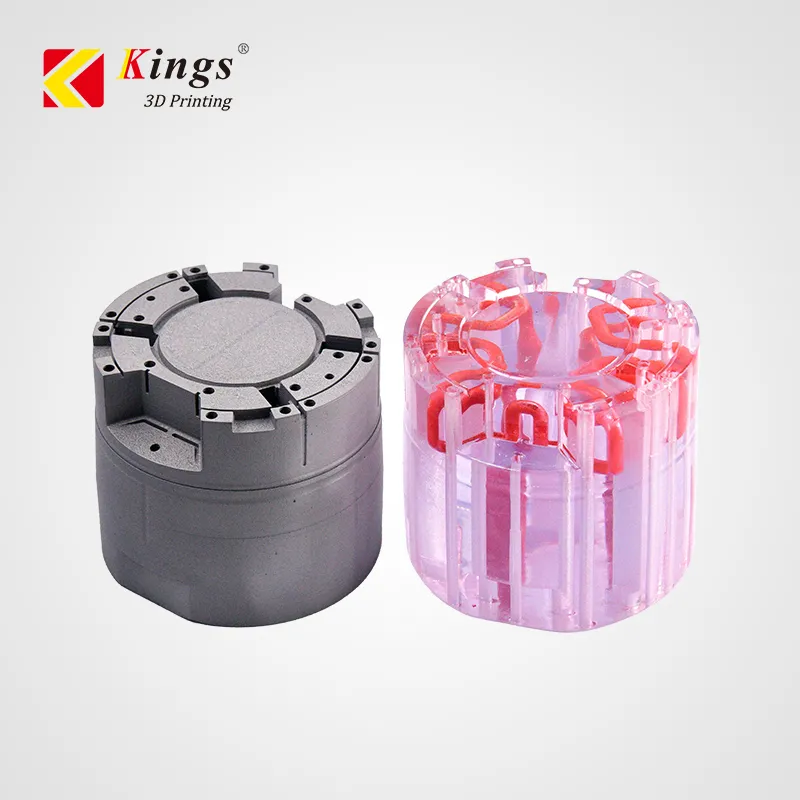

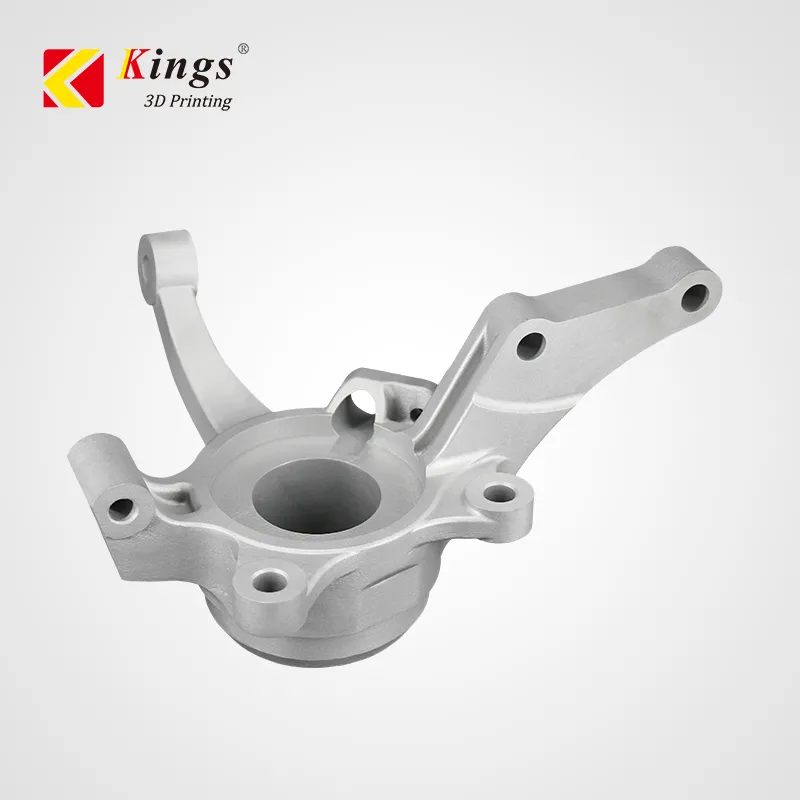

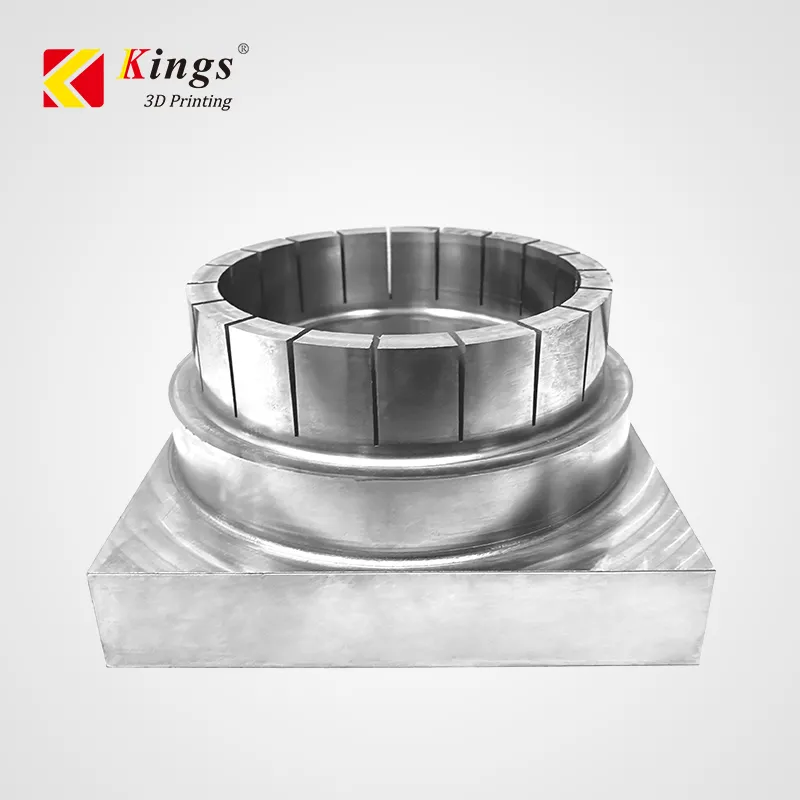

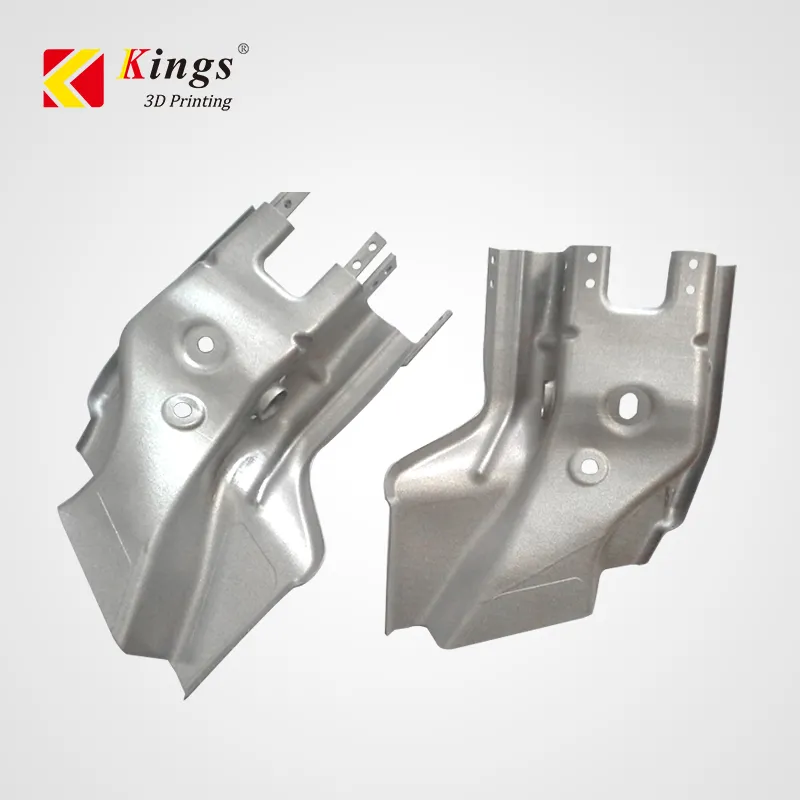

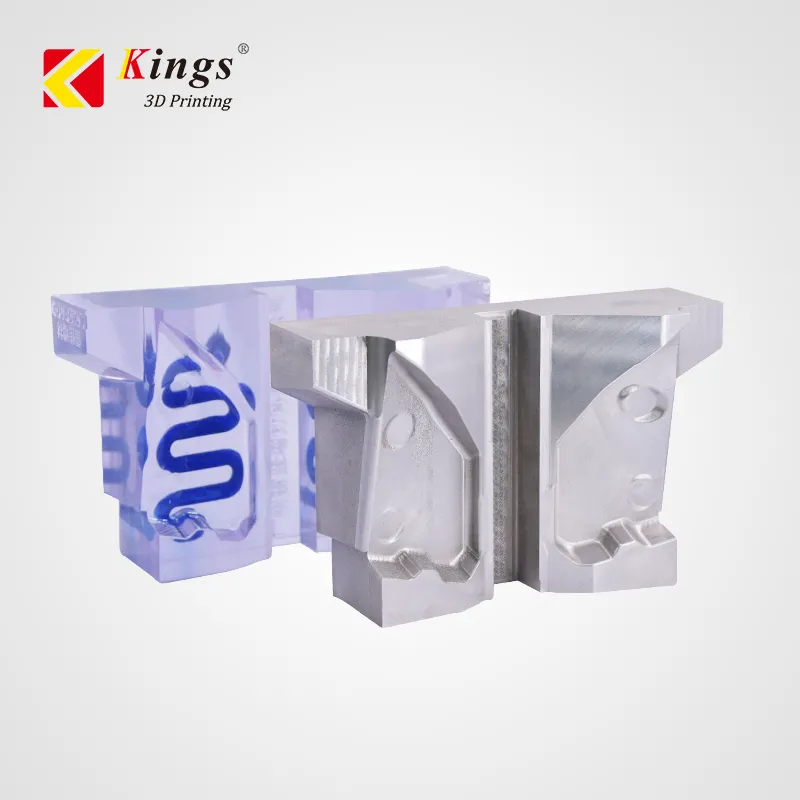

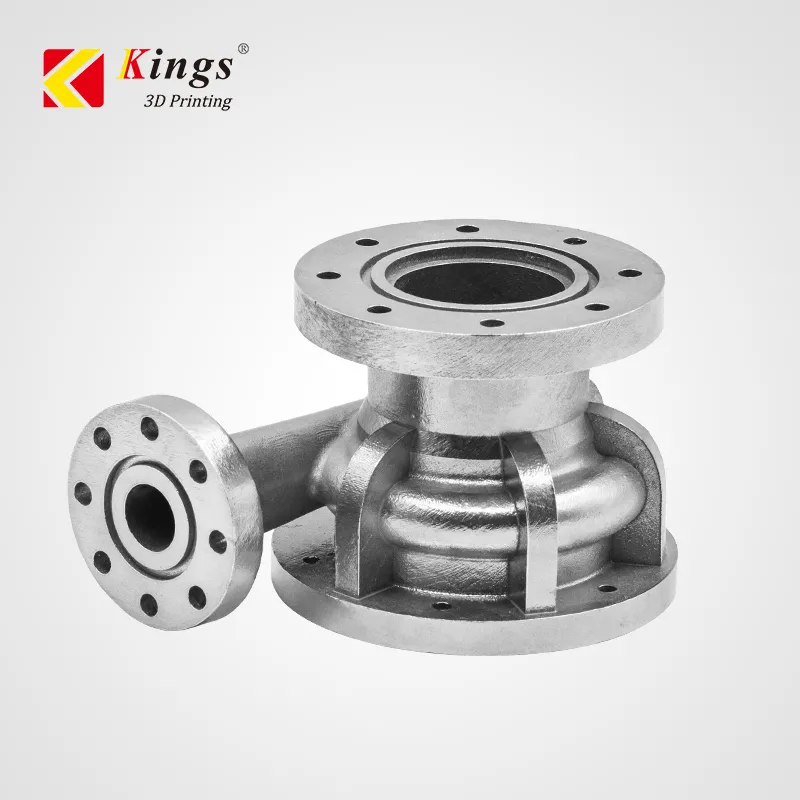

Printing Samples
