| 425mm*425mm*450mm (Net Build Size)Build Size | 3950mm*2380mm*3130mmExternal Dimensions |
| ±0.1(L≦100 mm)；±0.1%*L(L>100 mm)Printing Accuracy | 0.02-0.2mmLayer Thickness |
| 380V 50/60 HzPower Supply | 20~50cm³/hForming Efficiency |
Product Details
Overview
Kings M450 is a high-efficiency solution launched by KINGS 3D for large-scale metal 3D printing applications. Multi-laser and multi-galvanometer systems are combined on the same platform, improving printing efficiency by more than 80%. For the first time, an entirely closed-loop powder handling system is adopted to reduce the harm of dust to human health.
Advantages
Large-size multi-laser high-efficiency forming on the same platform
Intelligent operation design
Dual circulation wind site protection system
All closed looped powder handling system
Basic Parameter
| Build Size | 425mm*425mm*450mm (Net Build Size) |
| External Dimensions | 3950mm*2380mm*3130mm |
| Forming Materials | Stainless Steel, Cobalt-Chromium Alloy, Titanium Alloy, Tool Steel, Aluminum Alloy, High-Temperature Alloy |
| Powder Supply Method | Top Powder Supply & Two-Way Powder Feeding |
| Printing Accuracy | ±0.1(L≦100 mm)；±0.1%*L(L>100 mm) |
| Layer Thickness | 0.02-0.2mm |
| Protection System | Efficient Protective Gas Circulation System (Nitrogen, Argon) |
| Supporting Consumables | Stainless Steel Powder 316L, no less than 100kg, with various material process parameter packages |
| Laser Type | IPG 500W×2 (1064nm) |
| Scanning System | SCANLAB*2 (Equipped with F-theta Field Lens) |
| Laser Speed | Scanning:1.0~4.0m/s (Recommended); Jumping: 6~7m/s(Recommended); Up to 11m/s |
| Data Processing Software | Voxeldance Additive (STL file) |
| Equipment Control Software | Independently Developed by Kings |
| Operating System | Windows 7 and above |
| Data Format | STL/SLC/JOB |
| Power Supply | 380V 50/60 Hz |
| Rated Power Consumption | 20kW, Three-phase Electricity |
| Preheat Temperature | RT+20℃~80℃ |
| Industrial Control Computer Configuration | 10th Gen i7, 16GB RAM |
| Forming Efficiency | 20~50cm³/h |
| Relative Humidity | Below 40%, Frost-free |
| Ambient Temperature | 15-30 ℃ |
| Equipment Weight | 4000kg |

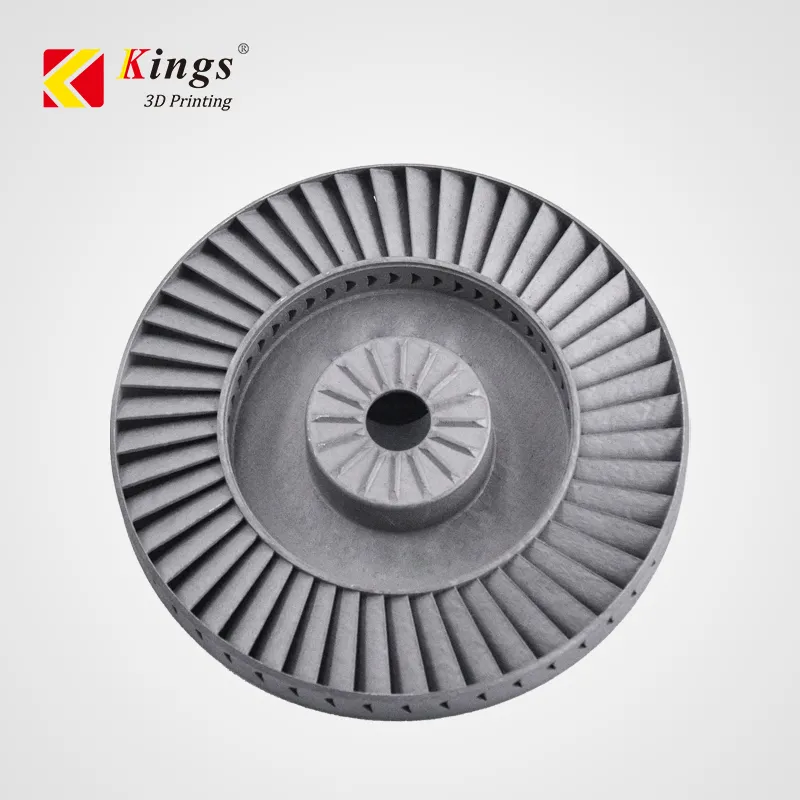

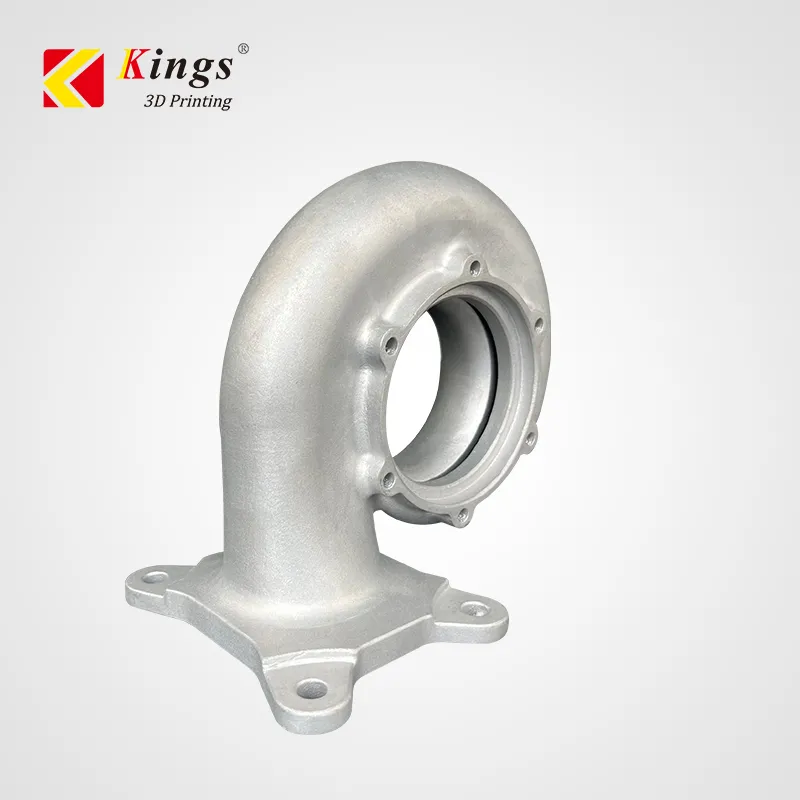

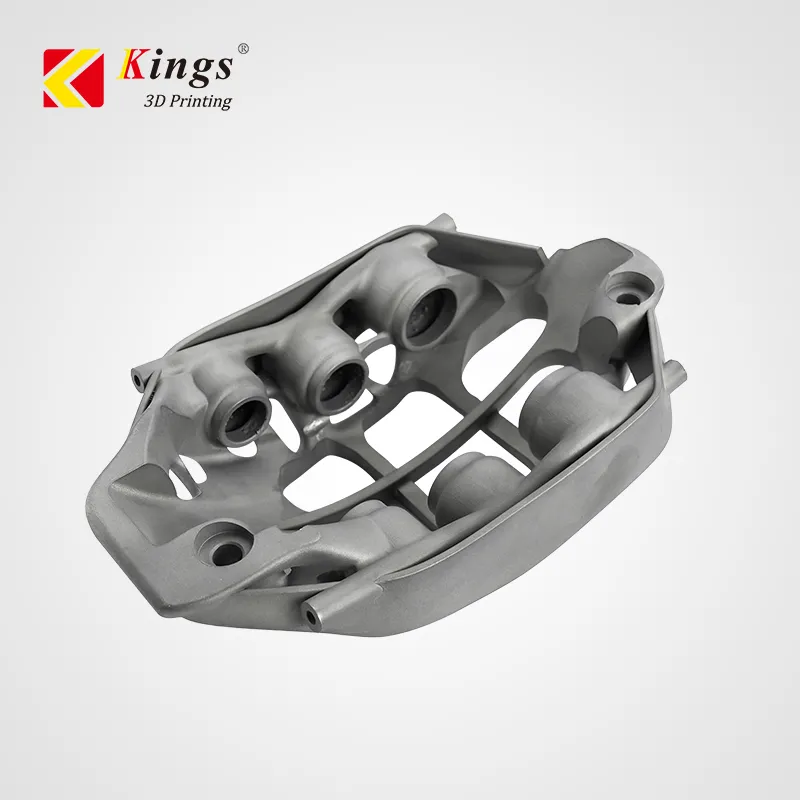

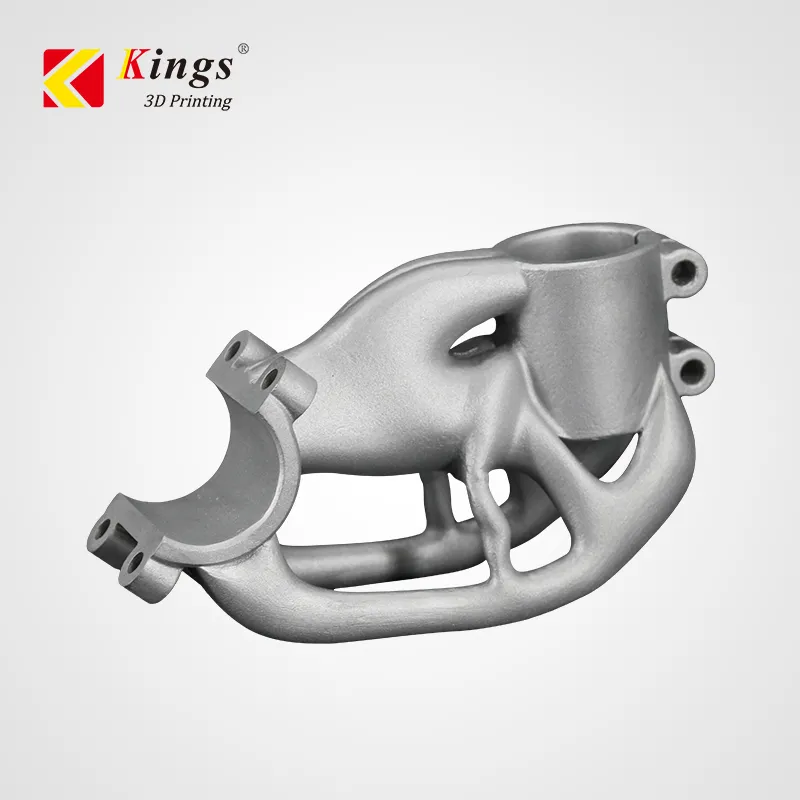

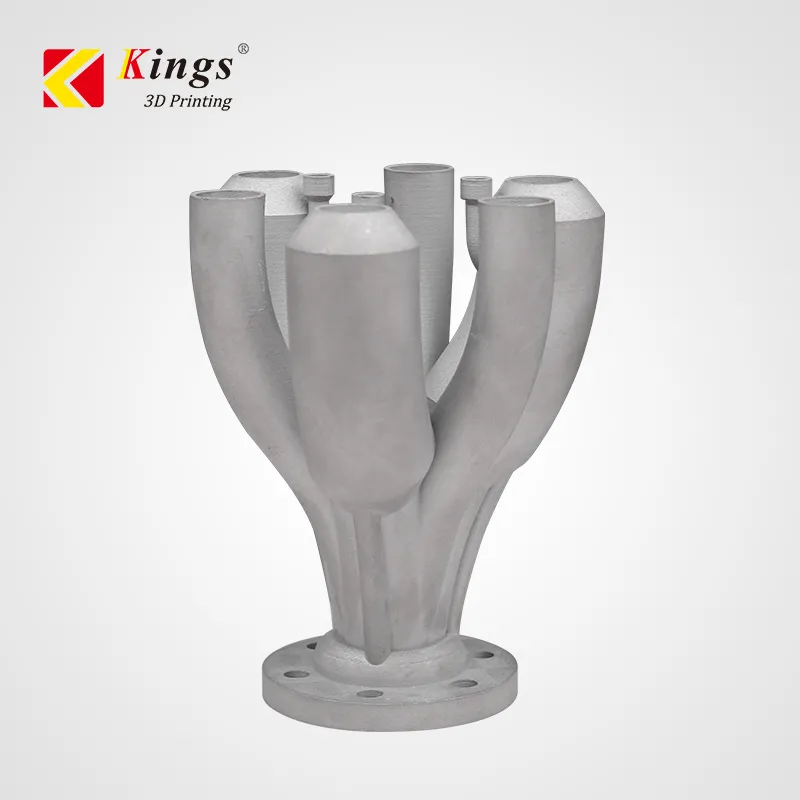

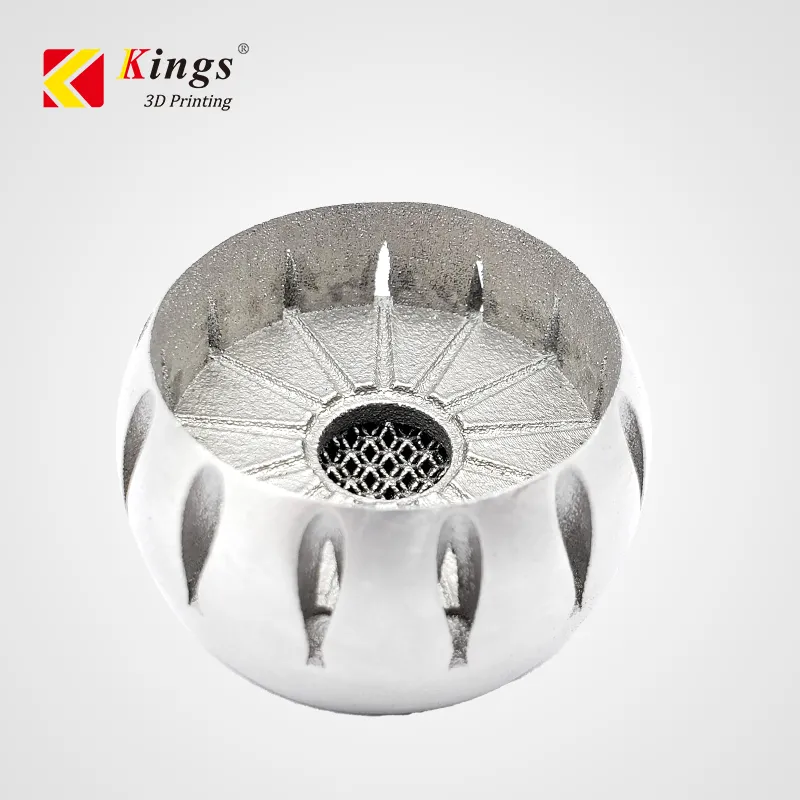

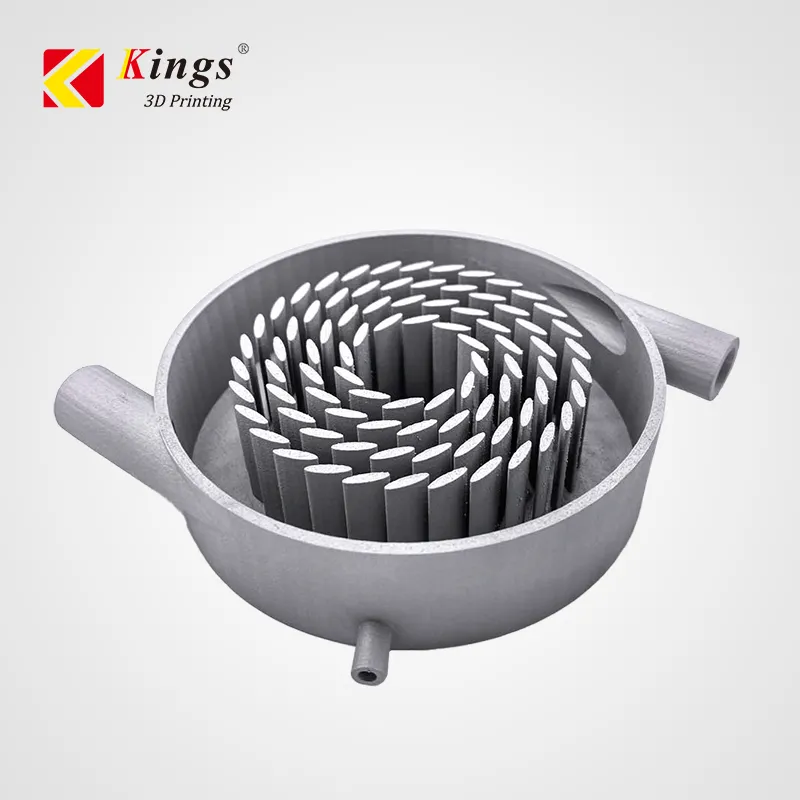

Printing Samples
