| 150mm*150mm*120mmBuild Size | 1462mm*894mm*1795mmExternal Dimensions |
| ±0.1(L≦100 mm)；±0.1%*L(L>100 mm)Printing Accuracy | 0.02-0.2 mmLayer Thickness |
| 220V 50 HzPower Supply | 20~50cm³/hForming Efficiency |
Product Details
Overview
After multiple technical advancements, the Kings M150 printer series exhibits outstanding performance, boasting low operating costs and high precision. Equipped with an ultra-precision filtration system and a fresh air protection system, they provide dual protection, effectively minimizing forming defects and ensuring the qual ity of the parts produced.
They are used in small-batch moldless production, customization of mold manufacturing, industrial precision components, education, medical and dental applications, scientific research, and more.
Advantages
High precision & high quality
All closed looped powder handling system:
Dual-circulation wind site protection system:
Fully pop-up piston system
Basic Parameter
| Build Size | 150mm*150mm*120mm |
| External Dimensions | 1462mm*894mm*1795mm |
| Forming Materials | Stainless steel, cobalt chromium alloy, titanium alloy, tool steel, etc |
| Powder Supply Method | Double Cylinder Two-Way Powder Feeding |
| Printing Accuracy | ±0.1(L≦100 mm)；±0.1%*L(L>100 mm) |
| Layer Thickness | 0.02-0.2 mm |
| Protection System | Efficient Protective Gas Circulation System (Nitrogen, Argon) |
| Supporting Consumables | Stainless Steel Powder, no less than 40kg, with various material process parameter packages |
| Laser Type | IPG 500W×1/2 (1064nm) |
| Scanning System | SCANLAB (Equipped with F-theta Field Lens) |
| Laser Speed | Scanning:1.0~4.0m/s (Recommended); Jumping: 5~7m/s(Recommended); Up to 11m/s |
| Data Processing Software | Voxeldance Additive / Magics (SLC file) |
| Equipment Control Software | Independently Developed by Kings |
| Operating System | Windows 10 |
| Data Format | STL/SLC/JOB |
| Power Supply | 220V 50 Hz |
| Rated Power Consumption | 7kW, Three-phase Electricity |
| Preheat Temperature | No Substrate Preheating |
| Industrial Control Computer Configuration | 10th Gen i7, 16GB RAM |
| Forming Efficiency | 20~50cm³/h |
| Relative Humidity | Below 40%, Frost-free |
| Ambient Temperature | 15-30 ℃ |
| Equipment Weight | 700kg |

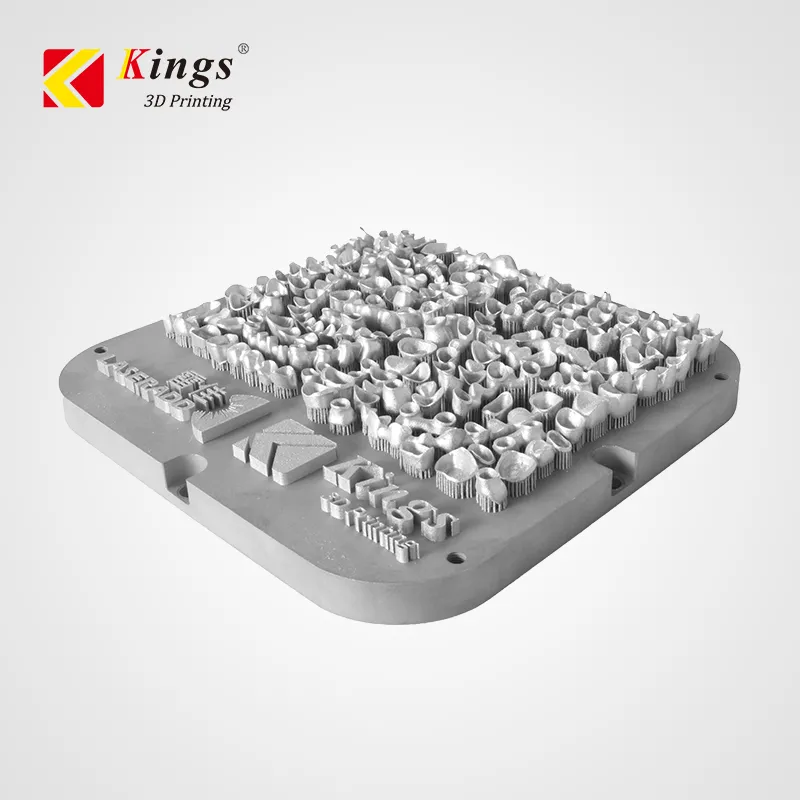

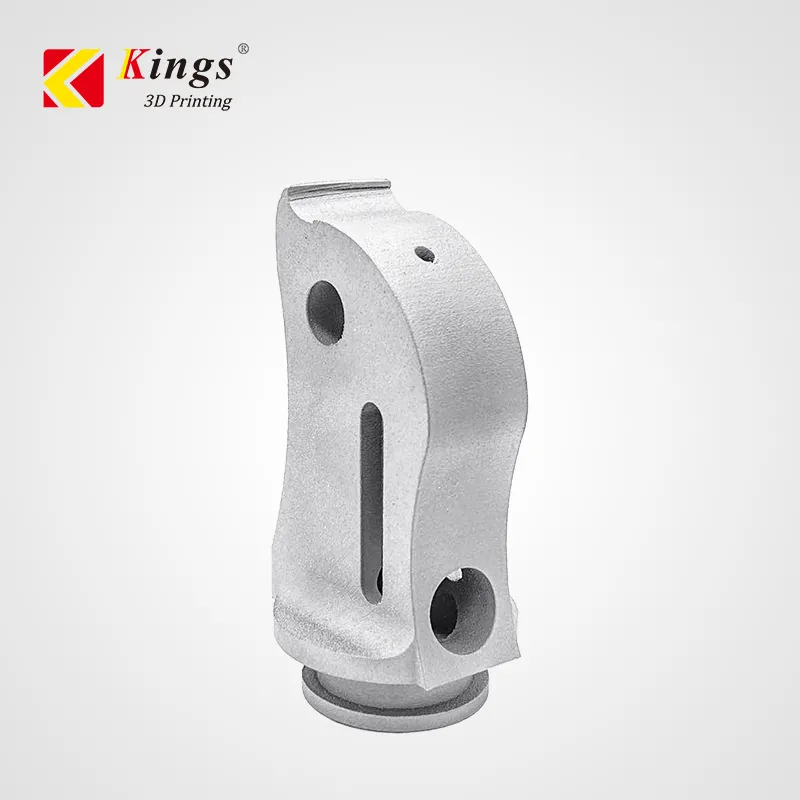

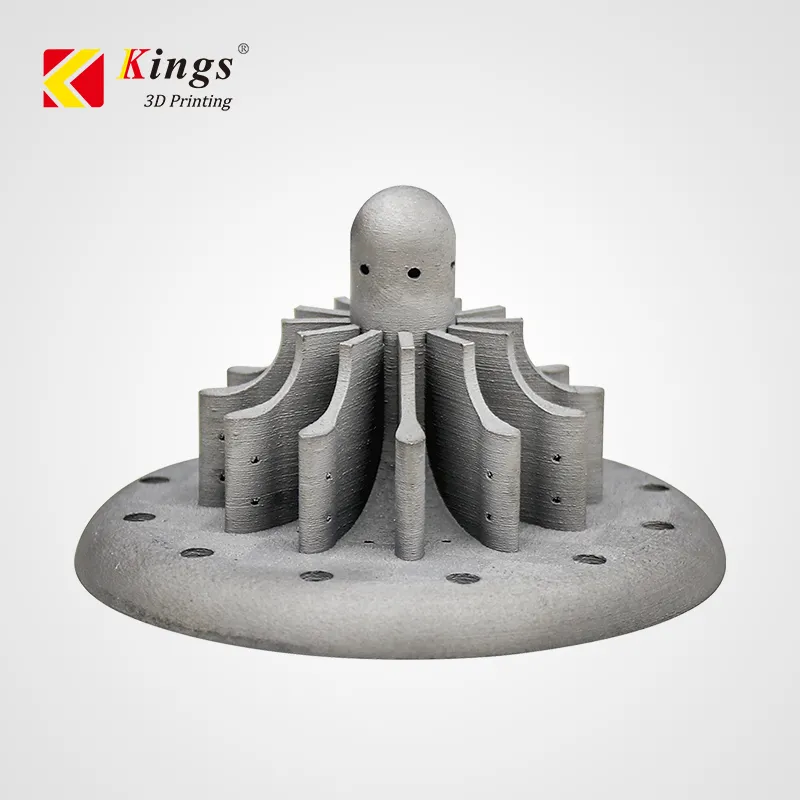

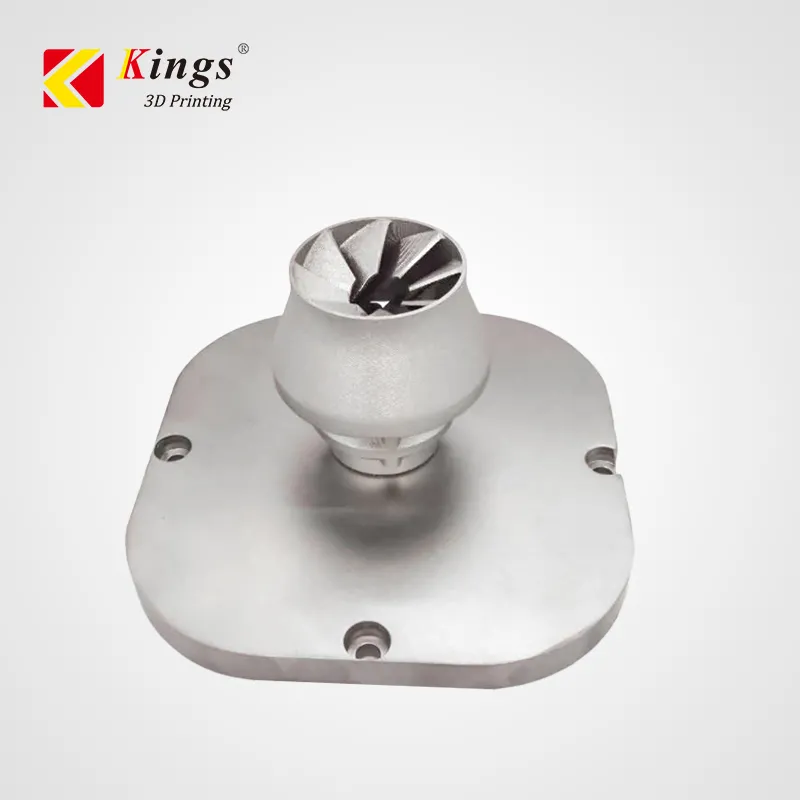

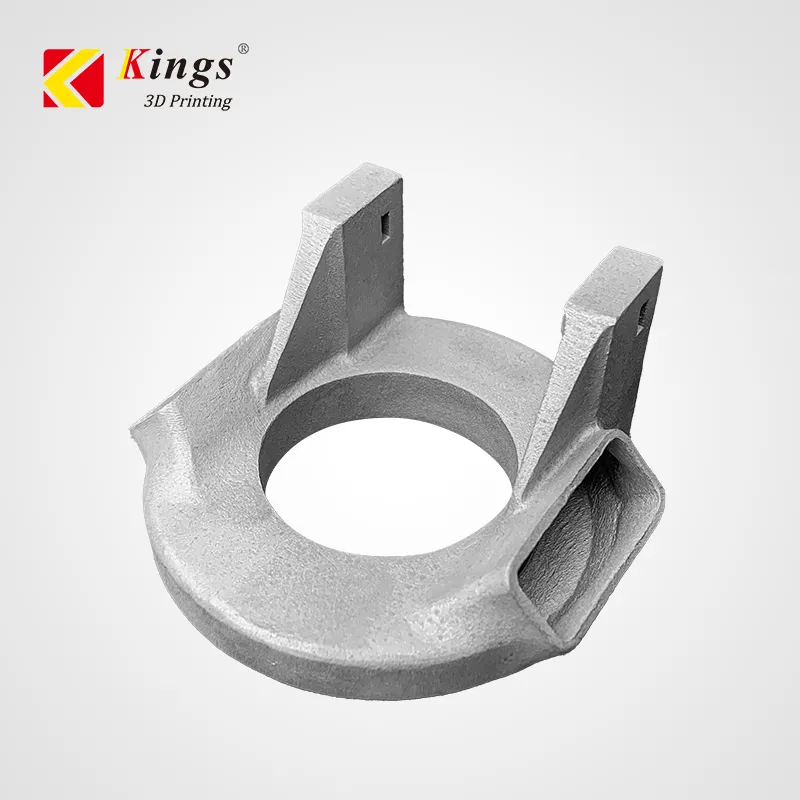

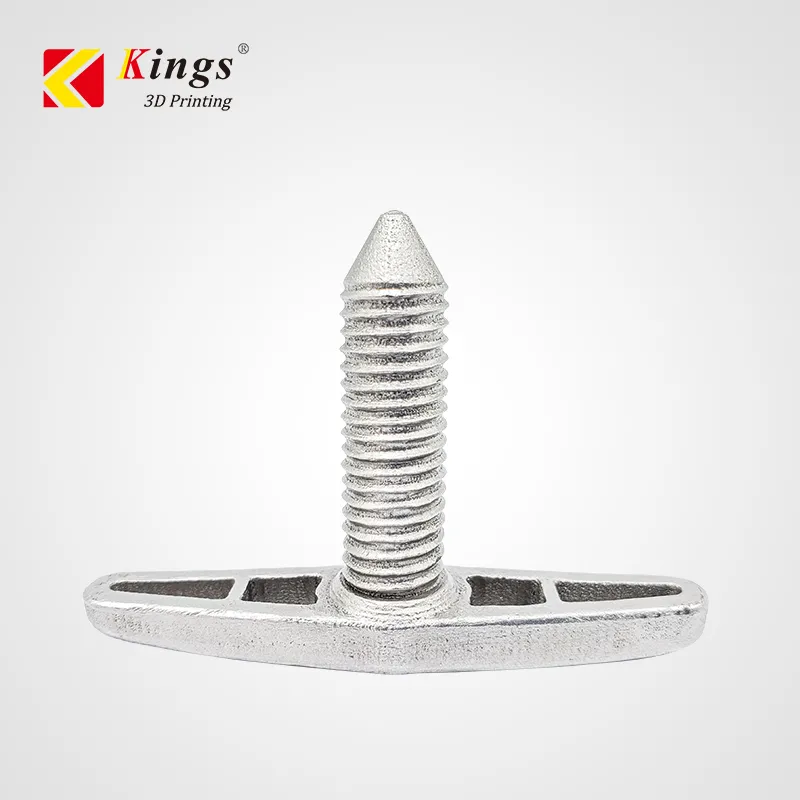

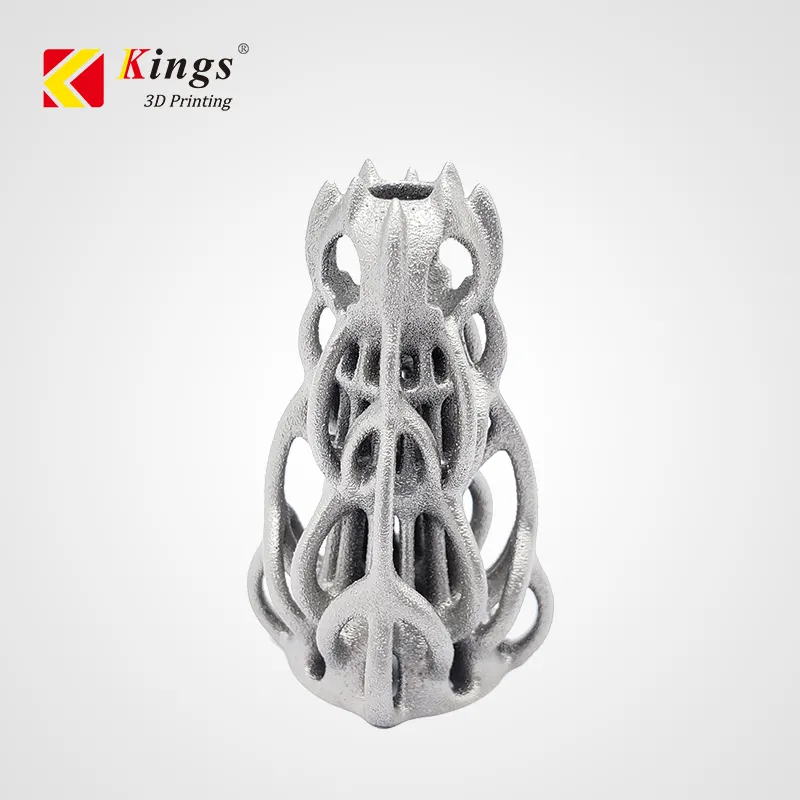

Printing Samples
