| 100mm*100mm*100mmBuild Size | 735mm*920mm*1780mmExternal Dimensions |
| ±0.1(L≦100 mm)；±0.1%*L(L>100 mm)Printing Accuracy | 0.02-0.2 mmLayer Thickness |
| 220V 50 HzPower Supply | 20~50cm³/hForming Efficiency |
Product Details
Overview
Kings M100 Series are cutting-edge 3D printers tailored for dental labs. Equipped with an ultra-precision f iltration system and a fresh air protection system, they provide dual protection, effectively minimizing forming defects and ensuring the quality of the parts produced. With its refined design and upgraded build cylinder, it delivers exceptional precision and efficiency, specializing in processing materials like Titanium (Ti), Cobalt-Chrome (Co-Cr), Stainless Steel (SS), and more. It is used in small-batch moldless production, customization of mold manufacturing, industrial precision components, education, medical and dental applications, scientific research, and more.
Advantages
High precision & high quality
Customizable configuration
Dual-circulation wind site protection system:
Fully pop-up piston system
Basic Parameter
| Build Size | 100mm*100mm*100mm |
| External Dimensions | 735mm*920mm*1780mm |
| Forming Materials | Stainless steel, cobalt chromium alloy, titanium alloy, tool steel, etc |
| Powder Supply Method | Double Cylinder One-Way Powder Feeding |
| Printing Accuracy | ±0.1(L≦100 mm)；±0.1%*L(L>100 mm) |
| Layer Thickness | 0.02-0.2 mm |
| Protection System | Efficient Protective Gas Circulation System (Nitrogen, Argon) |
| Supporting Consumables | Stainless Steel Powder, no less than 20kg, with various material process parameter packages |
| Laser Type | IPG 500W×1 (1064nm) |
| Scanning System | SCANLAB (Equipped with F-theta Field Lens) |
| Laser Speed | Scanning:1.0~4.0m/s (Recommended); Jumping: 5~7m/s(Recommended); Up to 7.8m/s |
| Data Processing Software | Voxeldance Additive / Magics (SLC file) |
| Equipment Control Software | Independently Developed by Kings |
| Operating System | Windows 10 |
| Data Format | STL/SLC/JOB |
| Power Supply | 220V 50 Hz |
| Rated Power Consumption | 3kW, Three-phase Electricity |
| Preheat Temperature | No Substrate Preheating |
| Industrial Control Computer Configuration | 10th Gen i7, 16GB RAM |
| Forming Efficiency | 20~50cm³/h |
| Relative Humidity | Below 40%, Frost-free |
| Ambient Temperature | 15-30 ℃ |
| Equipment Weight | 300kg |

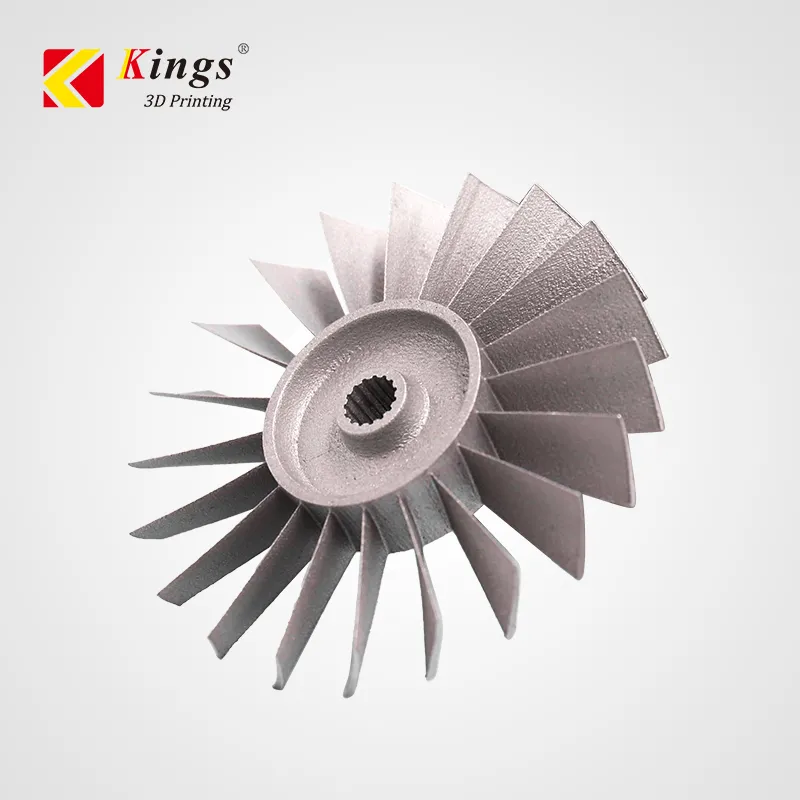

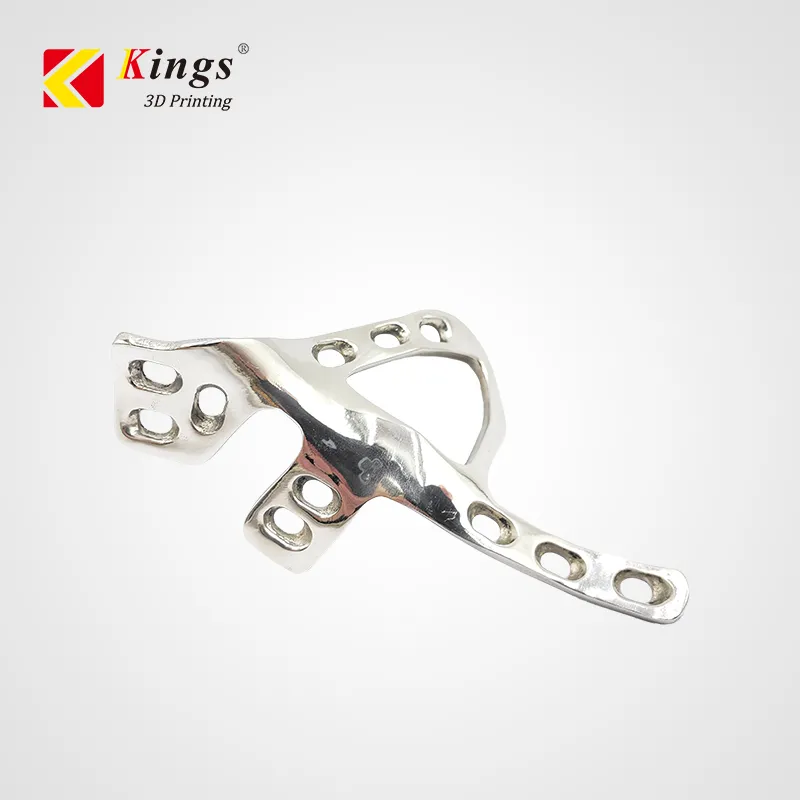

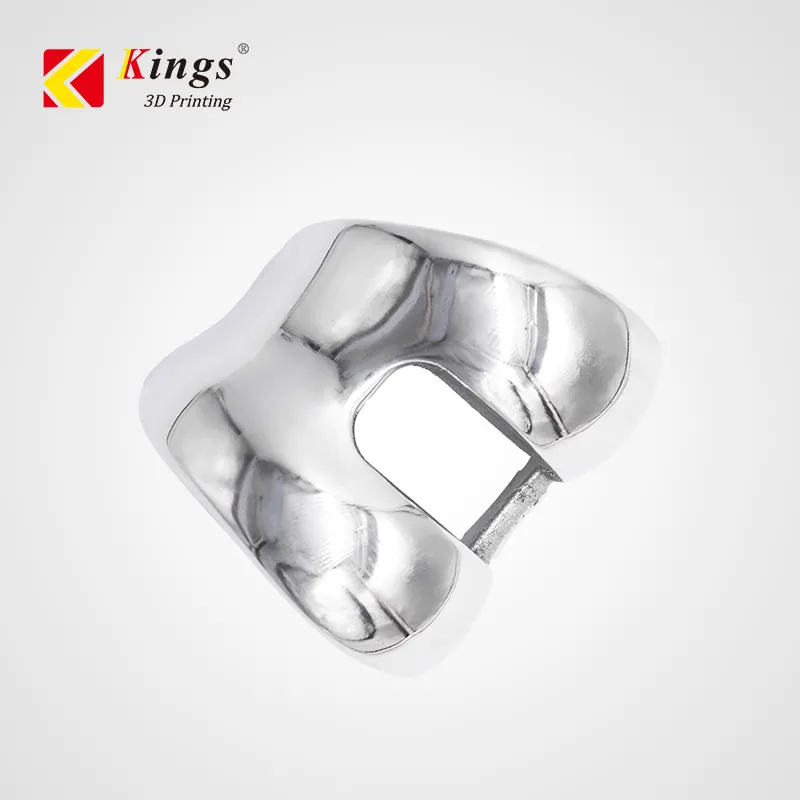

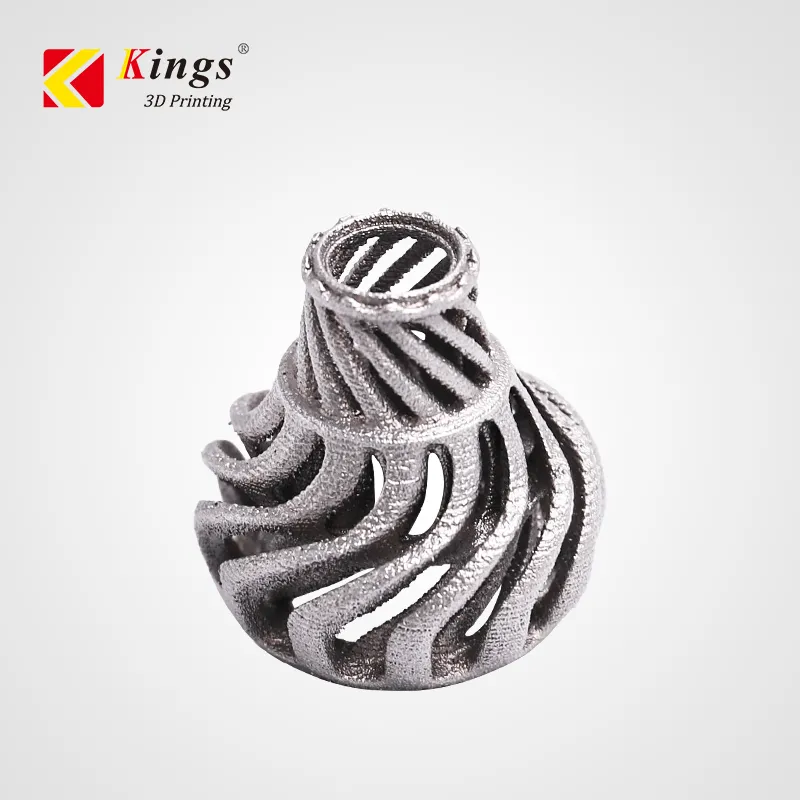

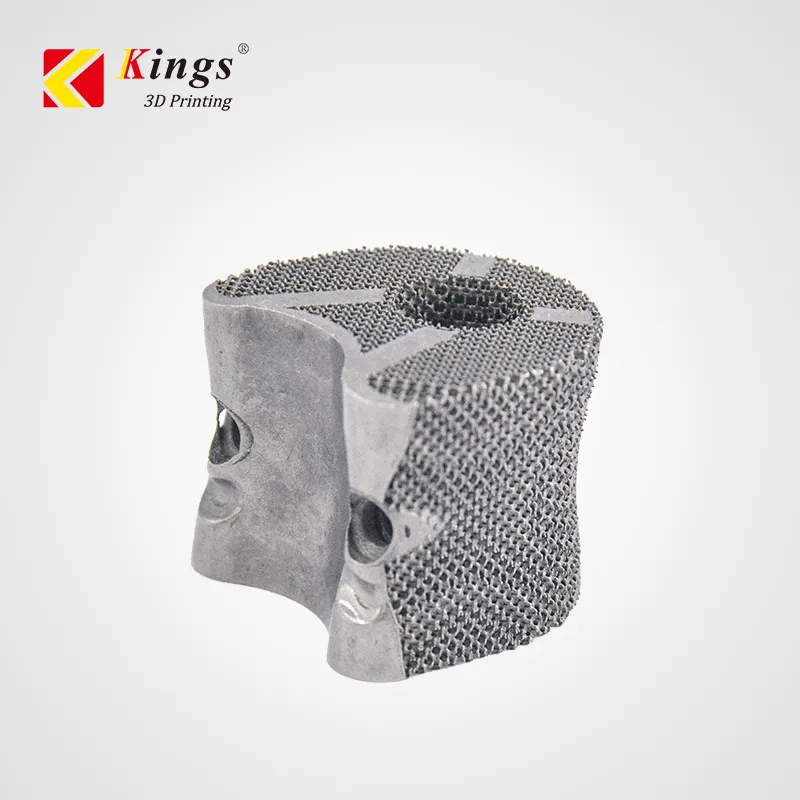

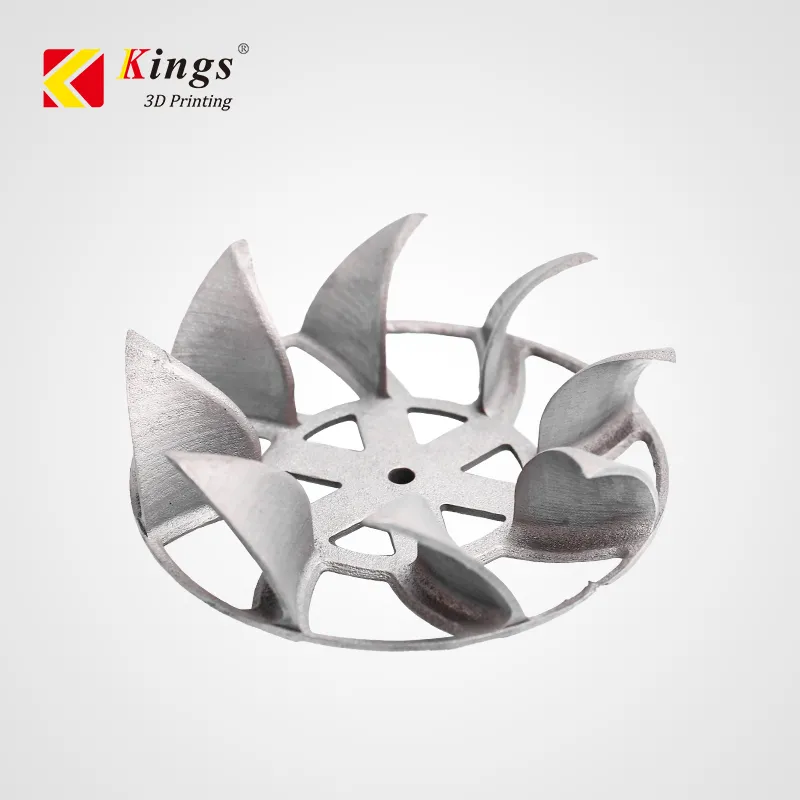

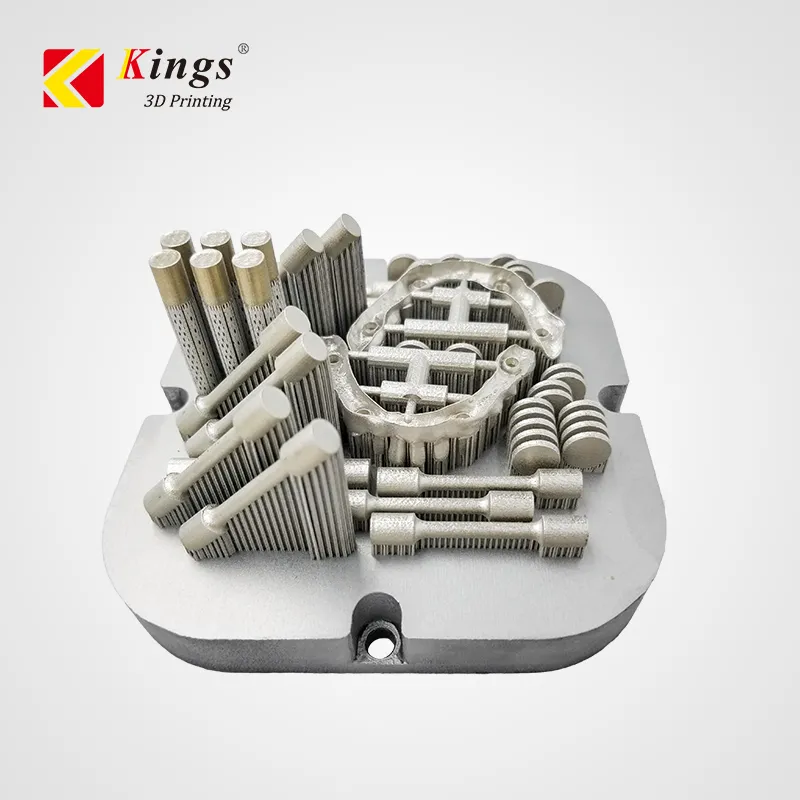

Printing Samples
