Kings SLM M300G 3D Printer

The Type of Kings 3D Printer	Kings M300G SLM 3D Printer
External Dimensions (LWH)	2460mm1300mm2400mm
Build Size (LWH)	260mm260mm300mm
Layer Thickness	0.02mm~0.1mm
Scanning Speed	Max 7m/s
Laser Power	500W IPG Green Single-Mode Fiber Laser (500W)
Scanning System	High-precision Scanning Galvanometer

Inquire Now

Download

Product Details

Overview

Kings SLM M300G 3D Printer is an advanced industrial 3D printing system engineered for high-reflectivity and difficult-to-process materials. Designed to overcome key limitations in large-format and high-performance part manufacturing, it delivers superior precision, material compatibility, and surface quality. With its optimized optical system and integrated protection design, the M300G ensures stable, efficient, and high-quality production for demanding applications.

Features

Large-Area Forming Capability

Enables the production of large-format parts using high-reflectivity materials, addressing challenges in manufacturing medium-to-large complex components

Optimized for High-Reflectivity Materials

Effectively solves the issue of low infrared absorption in reflective materials, improving printability and consistency

Integrated Ultra-Precision Filtration System

Combined with a new airflow protection design, it reduces footprint requirements while minimizing defects and ensuring consistent part quality

Smaller Laser Spot with Higher Energy Density

Enhances material melting efficiency, especially for metals and difficult materials, delivering finer details and a superior surface finish

High Laser Absorption Efficiency

Supports a wide range of materials including copper, gold, aluminum, and other high-reflectivity or difficult-to-process metals, significantly improving forming efficiency while protecting optical components

Advantages

Enhanced System Stability
Superior Print Quality
Improved Production Efficiency
Expanded Material Compatibility

Basic Parameter

Download

TECHNICAL CONFIGURATION	SPECIFICATION PARAMETERS
The Type of 3D Printer	Kings SLM M300G 3D Printer
External Dimensions (LWH)	2460mm1300mm2400mm
Build Size (LWH)	300mm300mm400mm
Layer Thickness	0.02mm~0.1mm
Scanning Speed	Max 7m/s
Laser Power	500W IPG Green Single-Mode Fiber Laser (500W)
Scanning System	High-Precision Galvanometer Scanner
Feeding Method	Dual-cylinder, Single-feeding Powder System
Equipment Weight	1300kg
Filtration system	Standard Filtration Unit
Data File Format	STL or Other Convertible Formats
Power Supply & Consumption	380V 50Hz 14kW
Ambient Temperature	Operating Temperature 15~30℃
Materials	Pure copper, Copper Alloys, Refractory Metals, Gold, Aluminum Alloys, High-temperature Alloys, Stainless Steel, Mold Steel, etc.

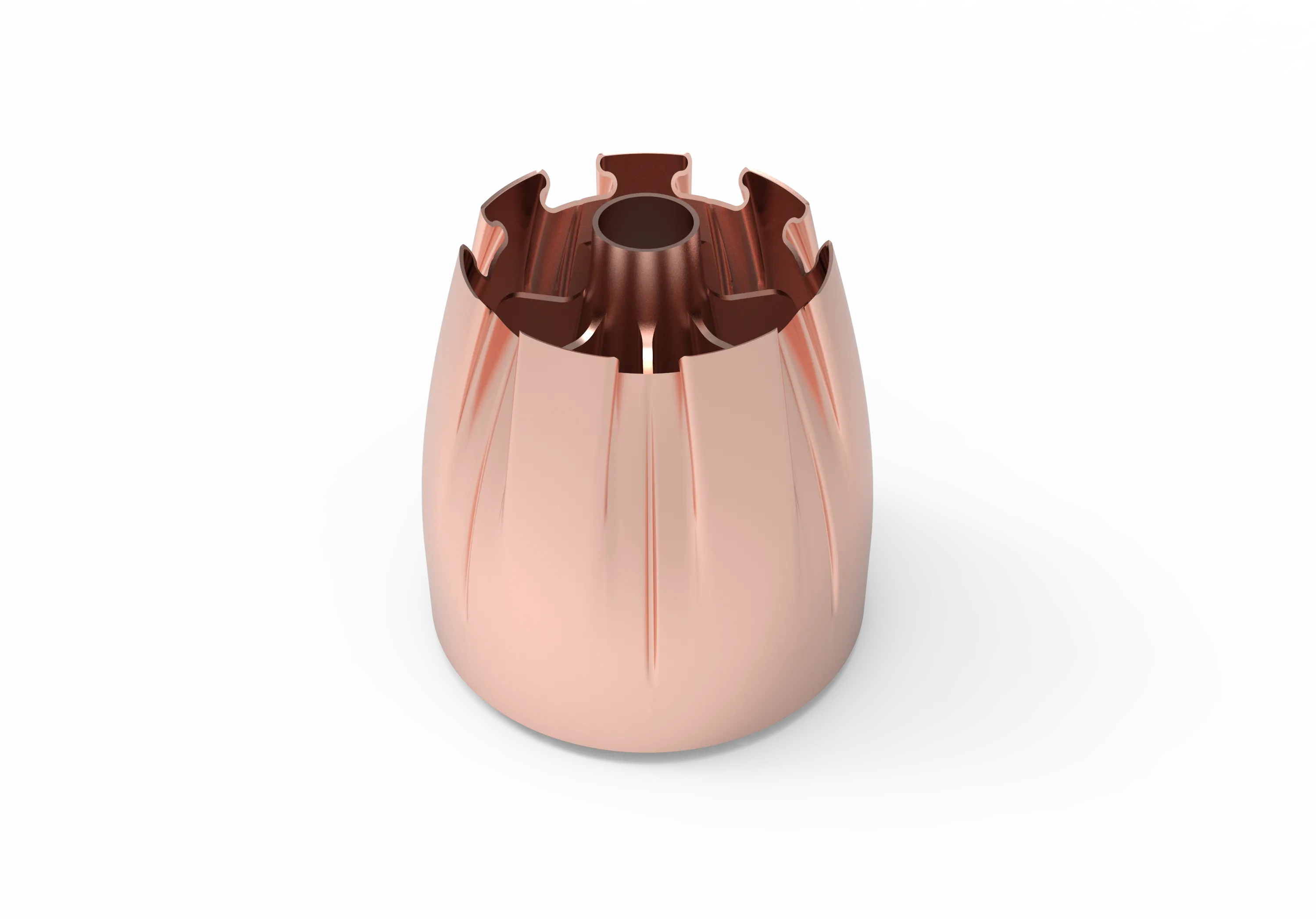

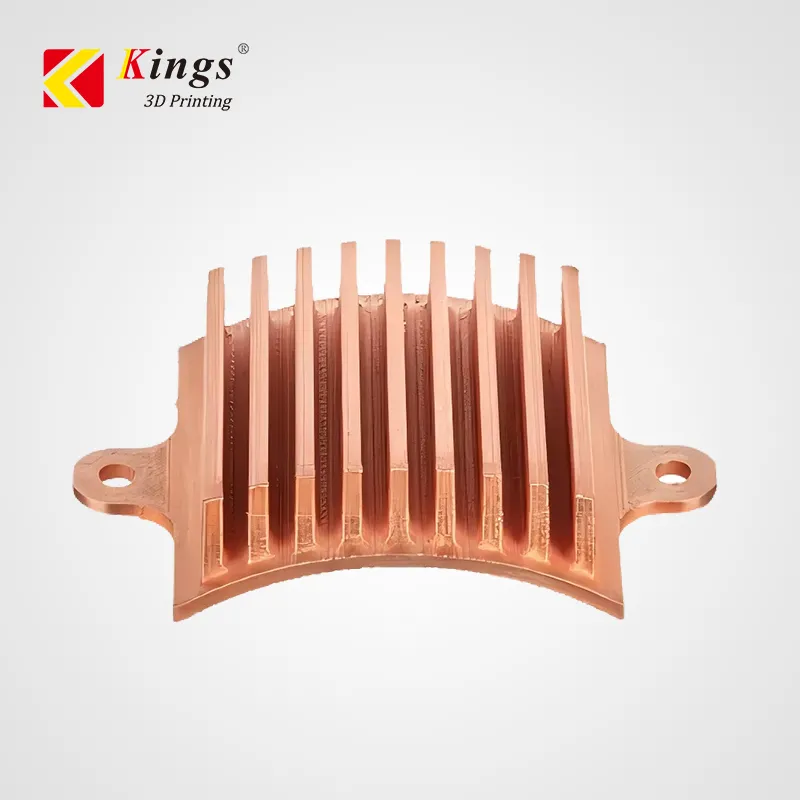

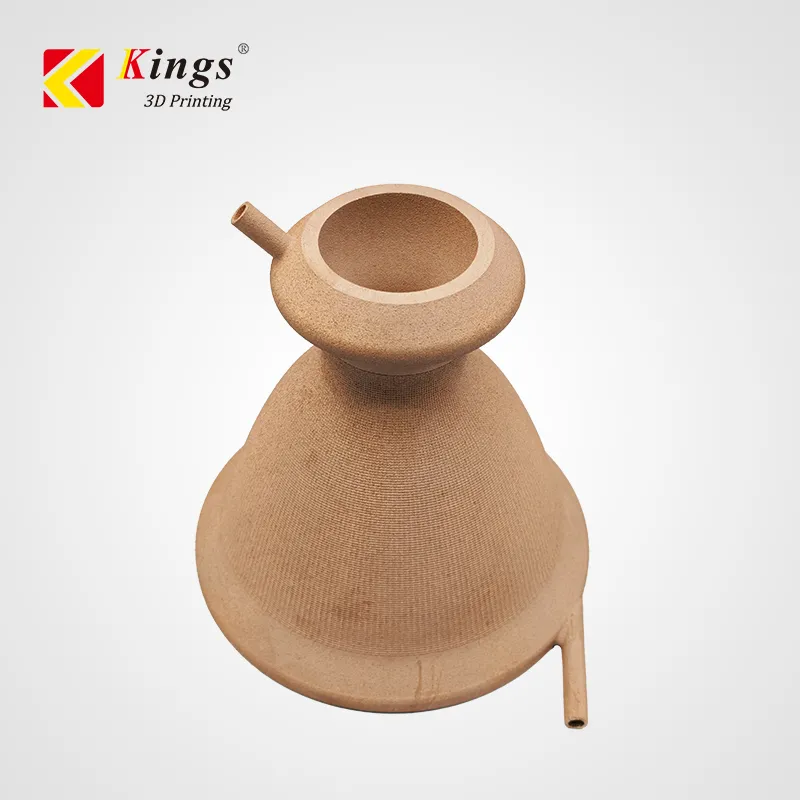

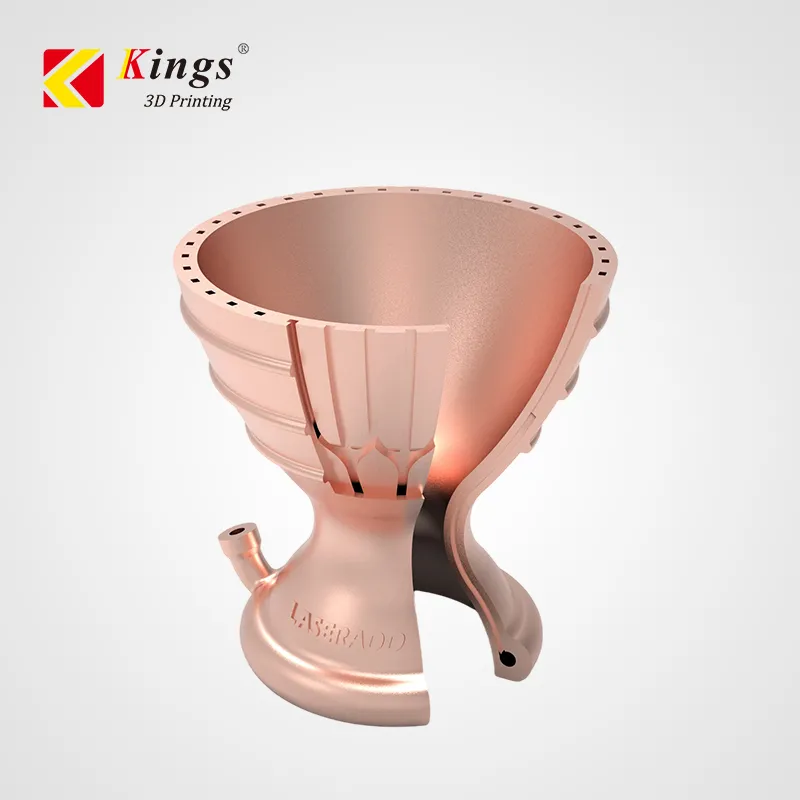

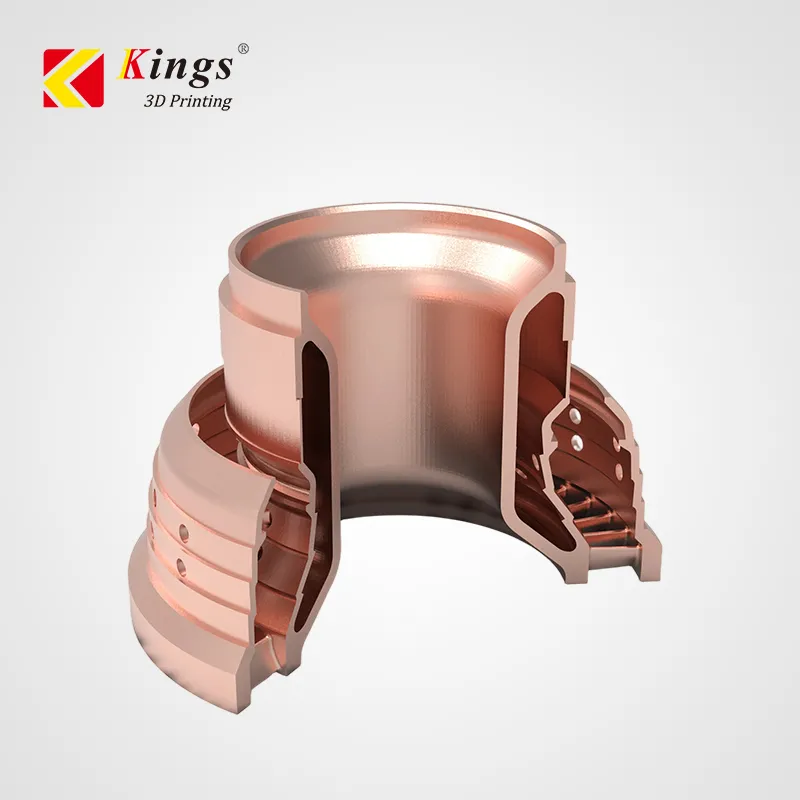

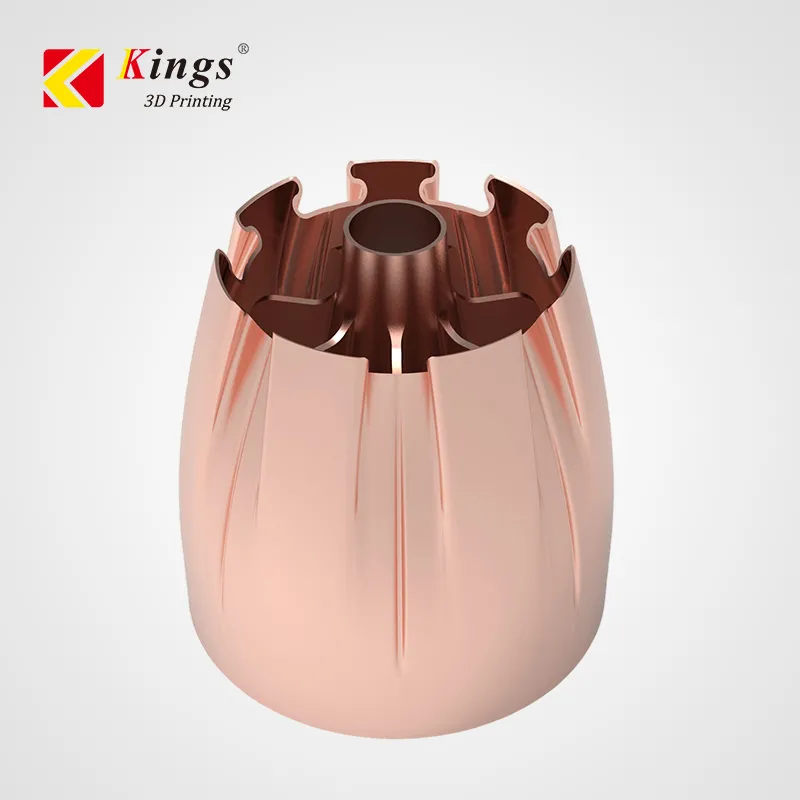

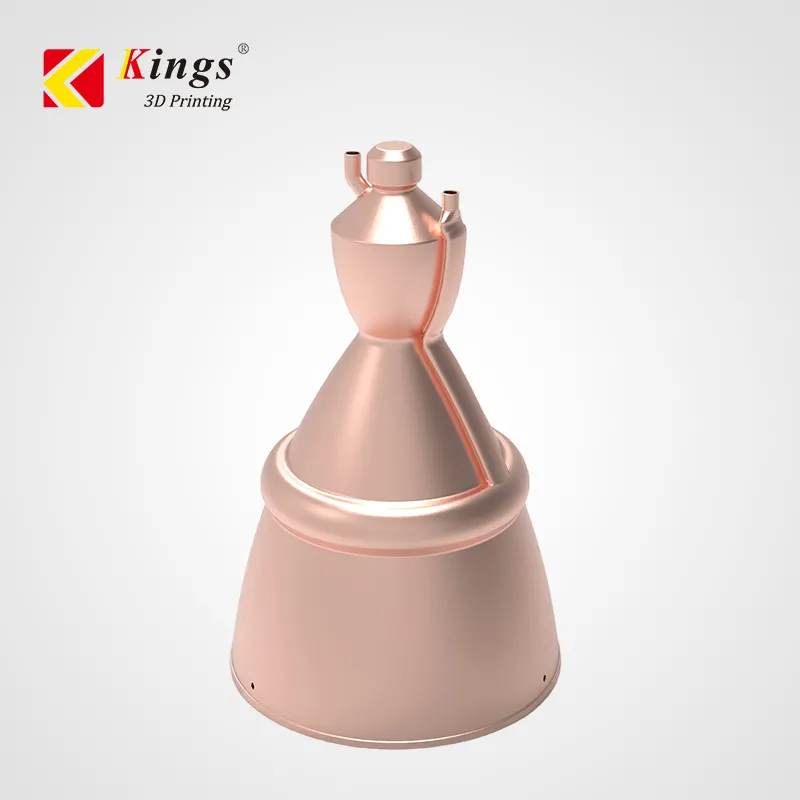

Printing Samples

Application

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
