Kings SLM M150T 3D Printer Series

150mm150mm140mmBuild Size	1290mm1040mm1730mmExternal Dimensions
±0.1(L≦100 mm)；±0.1%L(L>100 mm)*Printing Accuracy	0.02~0.1 mmLayer Thickness
220V 50 HzPower Supply	10~25cm³/hForming Efficiency

Inquire Now

Download

Product Details

Overview

The Kings SLM M150T Series 3D Printer is a compact and flexible metal additive manufacturing system designed for precision small-part production, research, and education applications. Featuring an upgraded build chamber, advanced fresh air protection system, and open software platform, it provides a reliable and user-friendly solution for printing a variety of metal materials.

Advantages

Open Software System
Multi-material Metal Printing
Fresh Air Protection System
Upgraded Build Chamber Design

Basic Parameter

Download

Build Size	150mm150mm140mm
External Dimensions	1290mm1040mm1730mm
Consumables	≥25kg 316L Stainless Steel Powder, Multiple Material Process Parameter Packages
Powder Delivery	Three-Cylinder Bidirectional Powder Feeding System
Printing Accuracy	±0.1(L≦100 mm)；±0.1%*L(L>100 mm)
Layer Thickness	0.02~0.1 mm
Protection System	Efficient Protective Gas Circulation System (Nitrogen, Argon)
Laser Type	IPG 500W×1/2 (1064nm)
Scanning System	500W x 2 Infrared Ytterbium Fiber Lasers (Single Laser is Optional) (1064nm)
Laser Speed	Scanning:1.0~4.0m/s (Recommended); Jumping: 5~7m/s(Recommended); Up to 7m/s
Data Processing Software	Voxeldance Additive / Magics (STL file)
Machine Control Software	Kings3D SLM Self-Developed Software
Operating System	Windows 10
Data Format	STL/SLC/JOB
Power Supply	220V 50 Hz
Rated Power Consumption	10kW (Single Laser) / 12kW (Dual Laser)
Preheat Temperature	RT+20℃~80℃
Industrial Control Computer Configuration	i7\16G
Forming Efficiency	10~25cm³/h
Relative Humidity	≤40%
Ambient Temperature	15~30 ℃
Equipment Weight	860kg

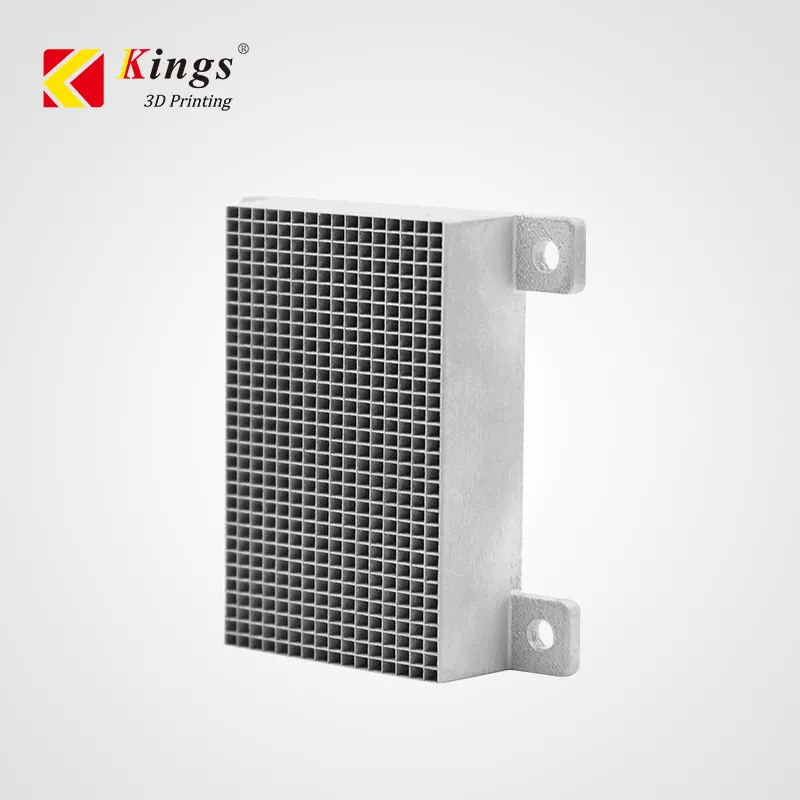

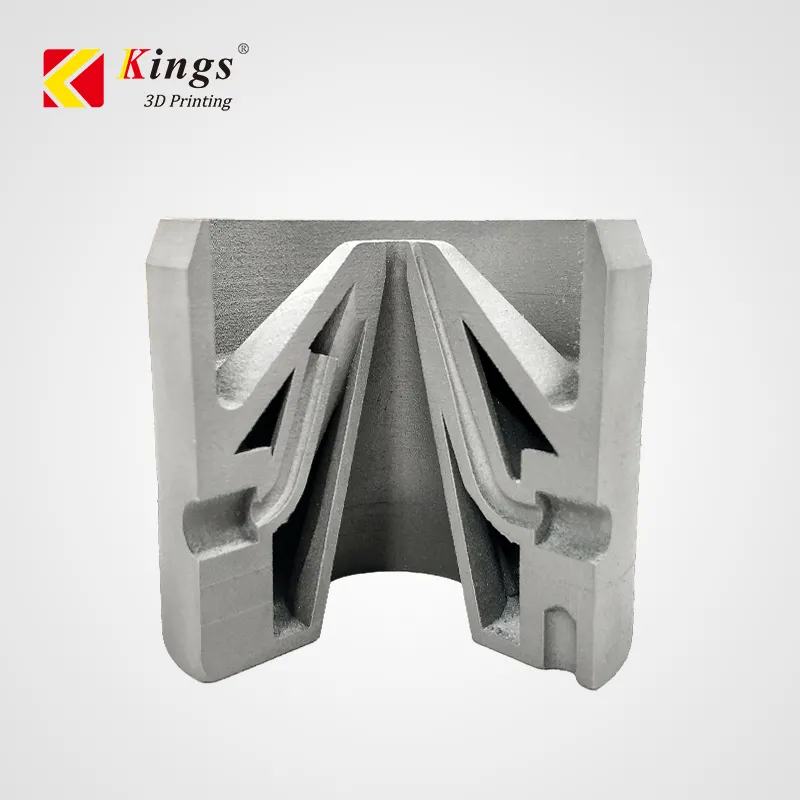

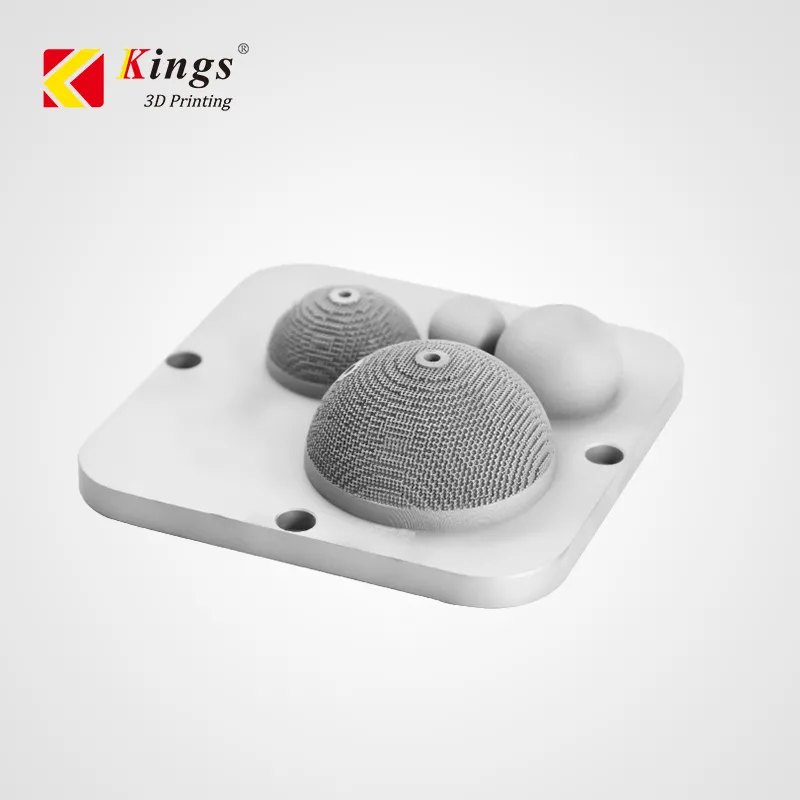

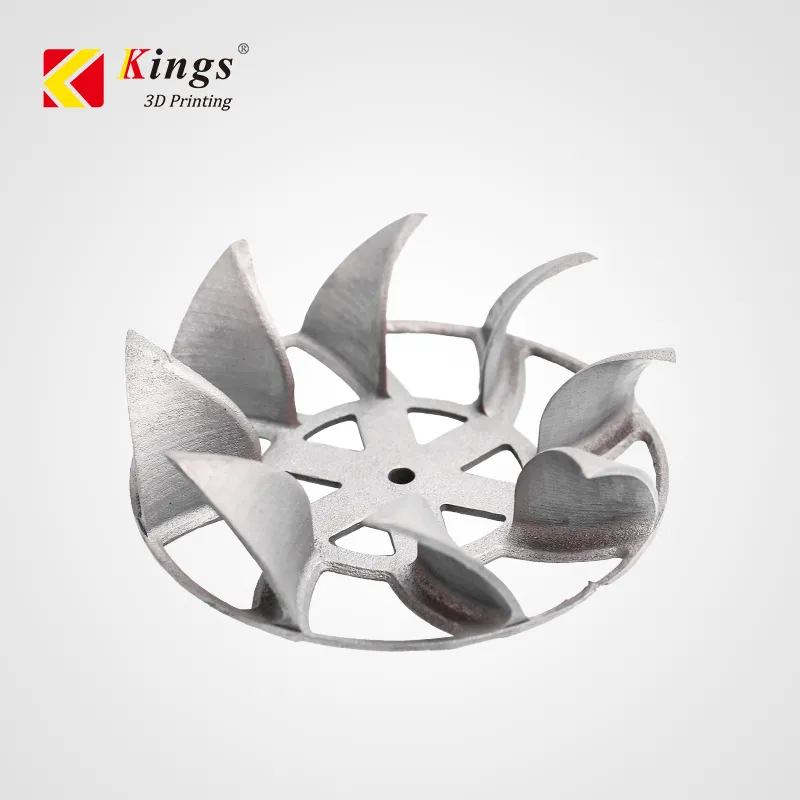

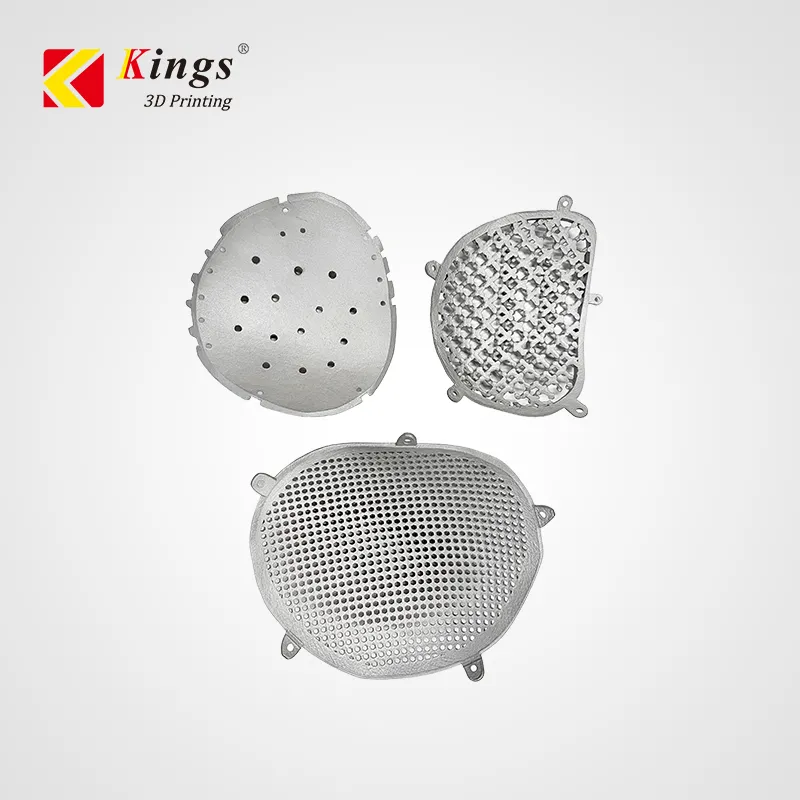

Printing Samples

Application

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
