Kings SLM M150G 3D Printer

The Type of Kings 3D Printer	Kings M150G SLM 3D Printer
External Dimensions (LWH)	1280mm860mm1780mm
Build Size (LWH)	150mm150mm150mm
Layer Thickness	0.02mm~0.1mm
Scanning Speed	Max 7m/s
Laser Power	500W IPG Green Single-Mode Fiber Laser (500W)
Scanning System	High-precision Scanning Galvanometer

Inquire Now

Download

Product Details

Overview

The Kings 150G SLM 3D Printer is an advanced green laser metal additive manufacturing system designed for processing highly reflective and difficult-to-form metal materials. Equipped with green laser technology, it delivers higher laser absorption efficiency for materials such as copper, gold, silver, aluminum, and other reflective alloys. With a smaller laser spot and higher energy density, the 150G enables precise metal melting, finer details, and excellent surface quality. It is an ideal solution for material research, process development, and precision metal part manufacturing.

Features

Green Laser Technology

Enables efficient processing of highly reflective metals

High Laser Absorption

Improves forming efficiency and reduces processing challenges

Fine Detail Printing

Delivers precise structures and superior surface quality

Wide Material Compatibility

Supports copper, aluminum, silver, gold, and other advanced alloys

Flexible Process Development

Provides an ideal platform for material research and application exploration

Advantages

Enhanced System Stability
Superior Print Quality
Improved Production Efficiency
Expanded Material Compatibility

Basic Parameter

Download

TECHNICAL CONFIGURATION	SPECIFICATION PARAMETERS
Build Size	150 × 150 × 150mm
External Dimensions (LWH)	1280 × 860 × 1780mm
Layer Thickness	0.02mm~0.1mm
Laser Power	500W IPG Green Single-Mode Fiber Laser (500W)
Scanning Speed	Max 7m/s
Scanning System	High-Precision Galvanometer Scanner
Feeding Method	Dual-cylinder, Single-feeding Powder System
Data Format	STL Files or Other Convertible Formats
Display	17.3-inch Monitor
Filtration system	Standard Filtration Unit
Build Plate Heating	Up to 200℃ (with integrated piston water cooling)
Power Supply & Consumption	220V 50Hz 10kW
Ambient Temperature	Operating Temperature 15~30℃
Materials	Red copper, copper alloys, refractory metals, gold, aluminum alloys, etc.

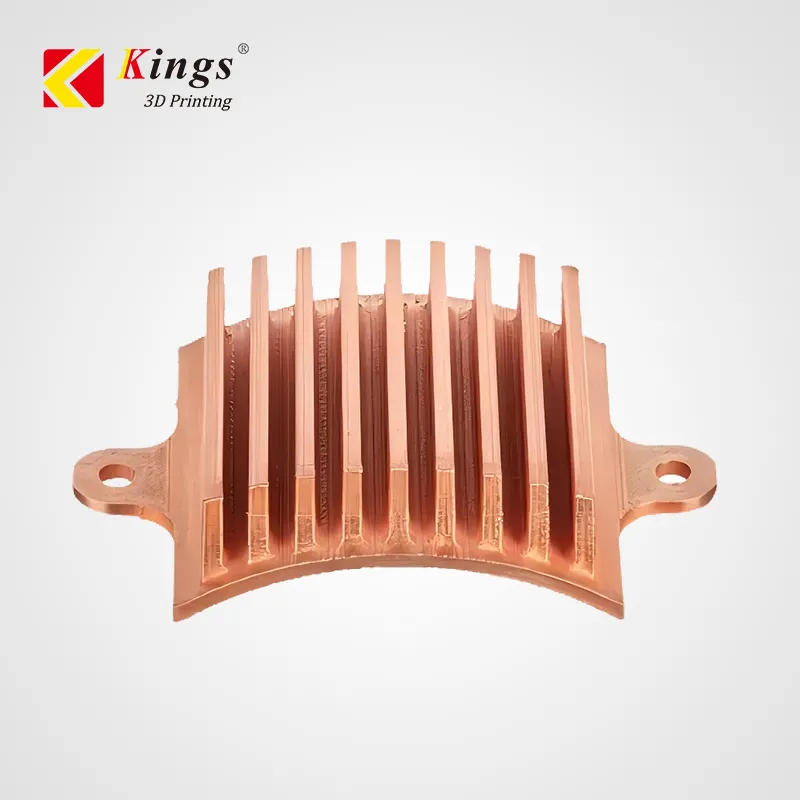

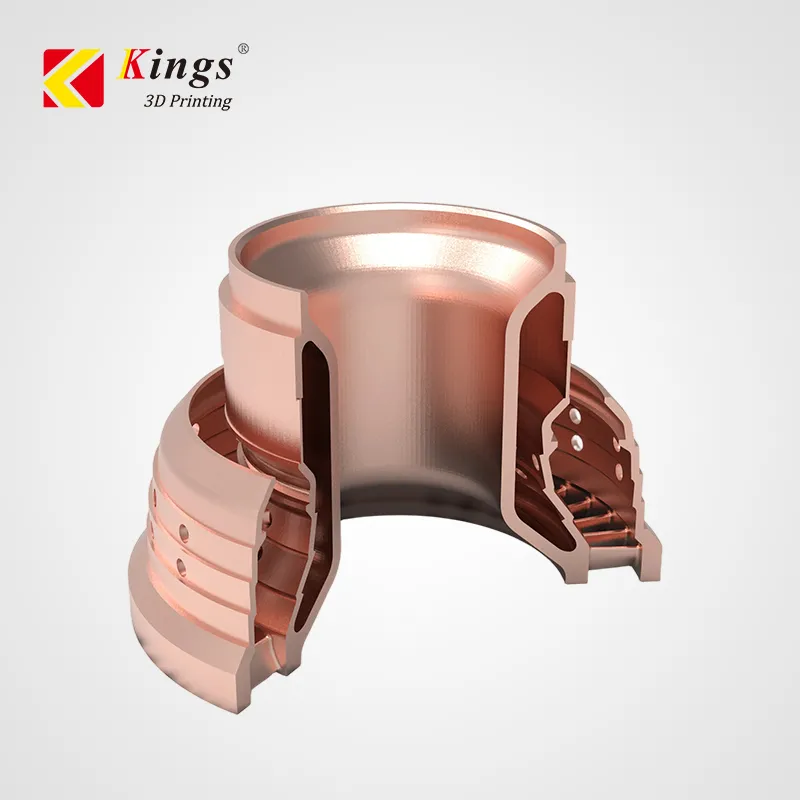

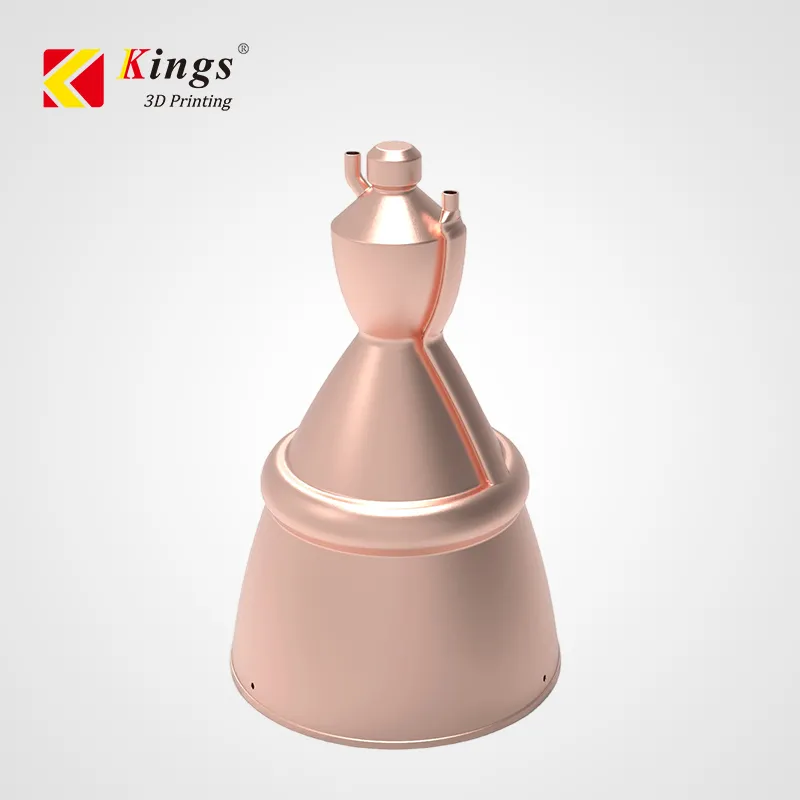

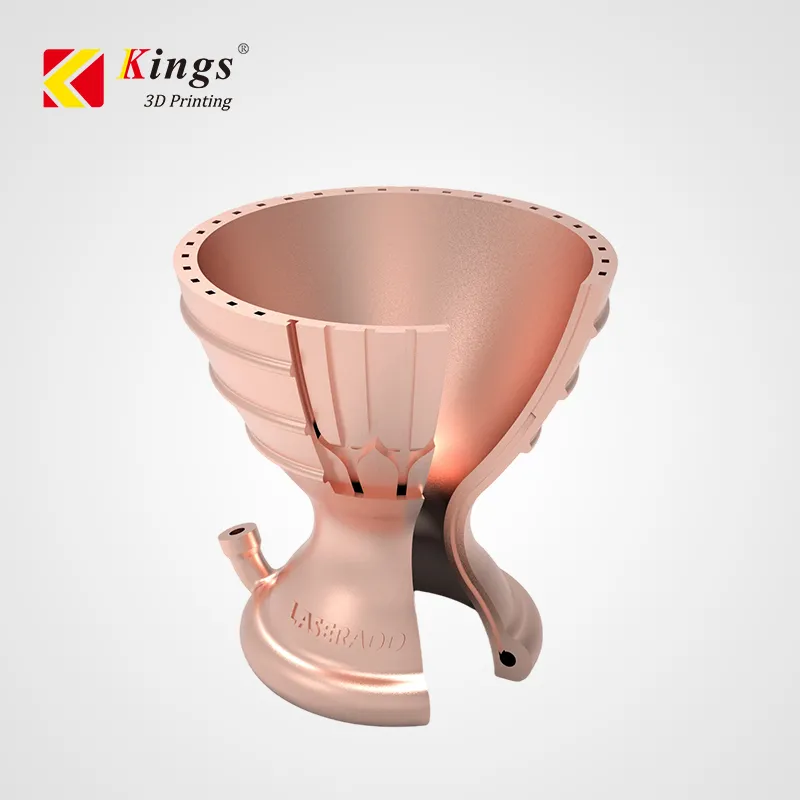

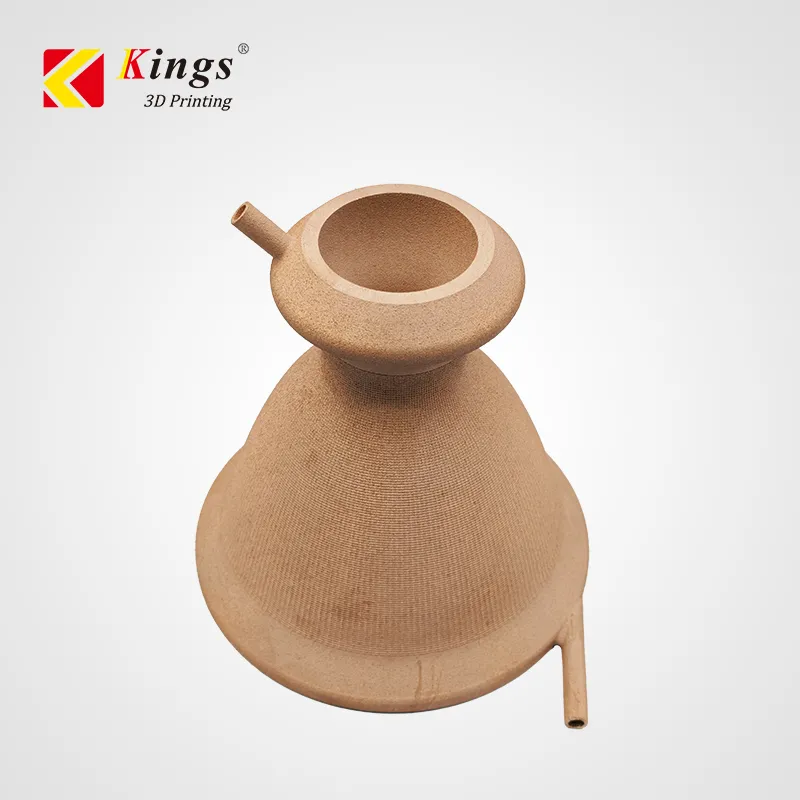

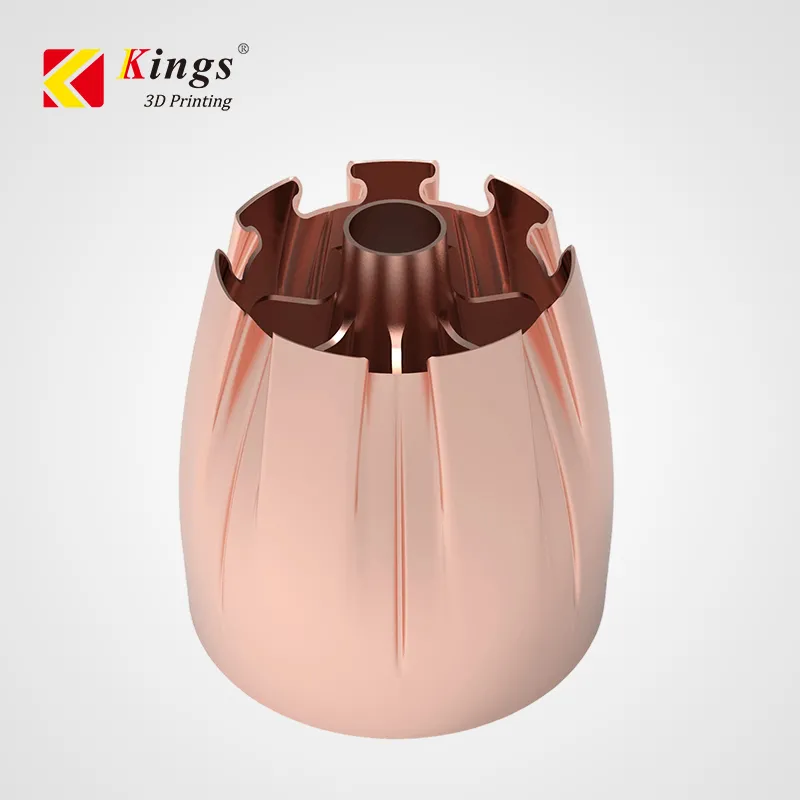

Printing Samples

Application

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
