| Φ120*100mmBuild Size | 690mm*720mm*1000mmExternal Dimensions |
| ±0.1(L≦100 mm)；±0.1%*L(L>100 mm)Printing Accuracy | 0.02-0.1 mmLayer Thickness |
| 220V 50 HzPower Supply | 5~15cm³/hForming Efficiency |
Product Details
Overview

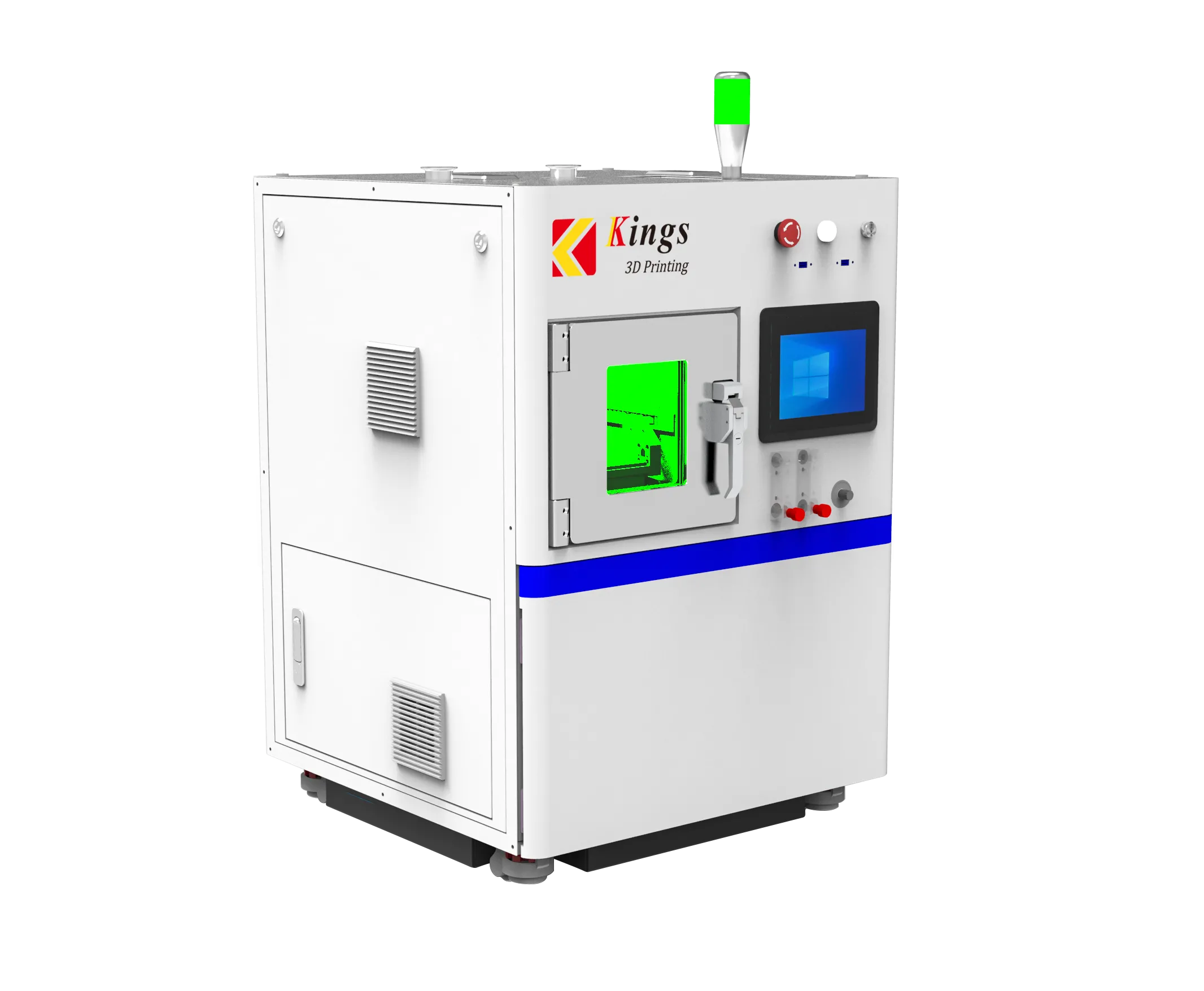

The Kings SLM D100 is a desktop metal 3D printer specially designed for dental labs, research institutions, and precision manufacturing applications. Featuring an ultra-precision filtration system and advanced fresh air protection system, it provides dual protection to effectively reduce forming defects and ensure consistent part quality.
With its compact design, upgraded build cylinder, and high-precision printing capability, the D100 enables efficient production of customized metal parts using materials such as Titanium (Ti), Cobalt-Chrome (Co-Cr), Stainless Steel (SS), and more. It is ideal for small-batch mold-free production, customized dental restorations, precision industrial components, education, medical applications, and scientific research.
Advantages
High precision & high quality
Customizable configuration
Dual-circulation wind site protection system:
Fully pop-up piston system
Basic Parameter
| Build Size | Φ120mm*100mm |
| External Dimensions | 690mm*720mm*1000mm |
| Forming Materials | Stainless steel, cobalt chromium alloy, titanium alloy, tool steel, etc |
| Powder Supply Method | Top Powder Supply & One-Way Powder Feeding |
| Printing Accuracy | ±0.1(L≦100 mm); ±0.1%*L(L>100 mm) |
| Layer Thickness | 0.02~0.1 mm |
| Protection System | Efficient Protective Gas Circulation System (Nitrogen, Argon) |
| Supporting Consumables | Stainless Steel Powder, no less than 20kg, with various material process parameter packages |
| Laser Type | 300W Infrared Ytterbium-doped Fiber Laser ×1 |
| Scanning System | SUPERSCAN |
| Laser Speed | Max 7m/s |
| Data Processing Software | Voxeldance Additive / Magics (SLC file) |
| Equipment Control Software | Independently Developed by Kings |
| Operating System | Windows 10 |
| Data Format | STL/SLC/JOB |
| Power Supply | 220V 50 Hz |
| Rated Power Consumption | 6kW, Single-phase Electricity |
| Preheat Temperature | No Substrate Preheating |
| Industrial Control Computer Configuration | Gen i7, 16GB RAM |
| Forming Efficiency | 5~15cm³/h |
| Relative Humidity | Below 40%, Frost-free |
| Ambient Temperature | 15~30 ℃ |
| Equipment Weight | 140kg |
Printing Samples
