| 800*800*500mmMax Printing Size | 140cm(W)*149cm(D)*243cm(H)Machine Size |
| 1.5KVARated Power Consumption | 1370kgMachine Weight |
| 475kgFirst Tank Resin | 0.08-0.8mm (Variable Beam)Beam Size (diameter @1/e²) |
Product Details
Overview
The Kings 800Pro SLA 3D printer leads in precision and performance for professional 3D printing. It excels in crafting medium and large sized models, like intricate prototypes, detailed dental models, and complex engineering designs with unmatched accuracy. Integrated with advanced scanning and CAD software, it ensures precise data handling and streamlined workflows across industries like dentistry, jewelry, and engineering. Ideal for demanding projects, the The Kings 800Pro SLA 3D printer set a new standard in additive manufacturing, offering exceptional quality and reliability.
Advantages
Enhanced Printing Efficiency
Long-term Printing Stability
Basic Parameter
| Max Printing Size | 800 × 800 × 500 mm |
| Machine Size | 140 cm (W) × 149 cm (D) × 243 cm (H) |
| Rated Power Consumption | 1.5 KVA |
| Machine Weight | 1370 kg |
| First Tank Resin | 475 kg |
| Beam Size (diameter @1/e²) | 0.08 – 0.8 mm (Variable Beam) |
| Max Scanning Speed | 15.0 m/s |
| Layer Thickness | 0.05 – 0.2 mm |
| Accuracy | ±0.1 mm (L ≤ 100 mm); ±0.1 % × L (L > 100 mm) |
| Laser Type | Solid-state frequency-tripled Nd:YVO₄ |
| Wavelength | 355 nm |
| Power | Resin Surface Power ≥ 300 mW |
| Variable Beam System | Galvo / Closed-loop |
| Main Structure | Marble recoater frame, marble elevator holder, marble scanning system base |
| Coating Mode | Intelligent position vacuum recoating |
| Vertical Resolution Ratio | 0.0005 mm |
| Repeat Positioning Accuracy | ±0.01 mm |
| Motion Control System | Closed-loop |
| Machine Control Software | KINGS 3D control software |
| Input Data File Format | STL / SLC |
| Operating System | Windows 10 |
| Network Type and Protocol | Ethernet, TCP/IP |
| Electrical Requirement | 200–240 VAC, 50/60 Hz, single-phase, 10 A |
| Ambient Temperature | 20–26 °C (72–79 °F) |
| Relative Humidity | ≤ 40 %, non-condensing |
| Machine Warranty | 2 years (including laser) |

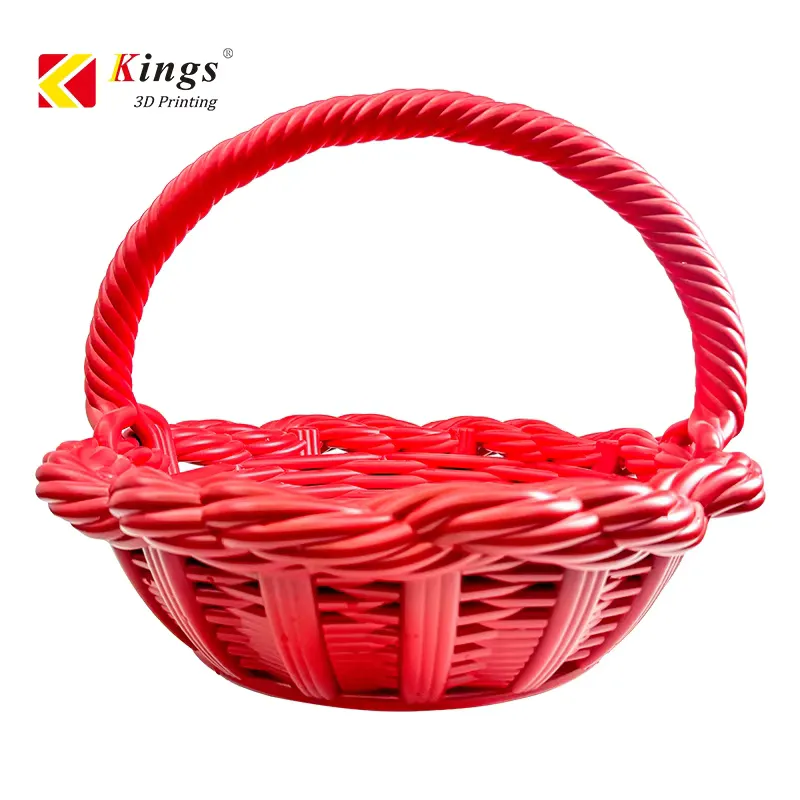

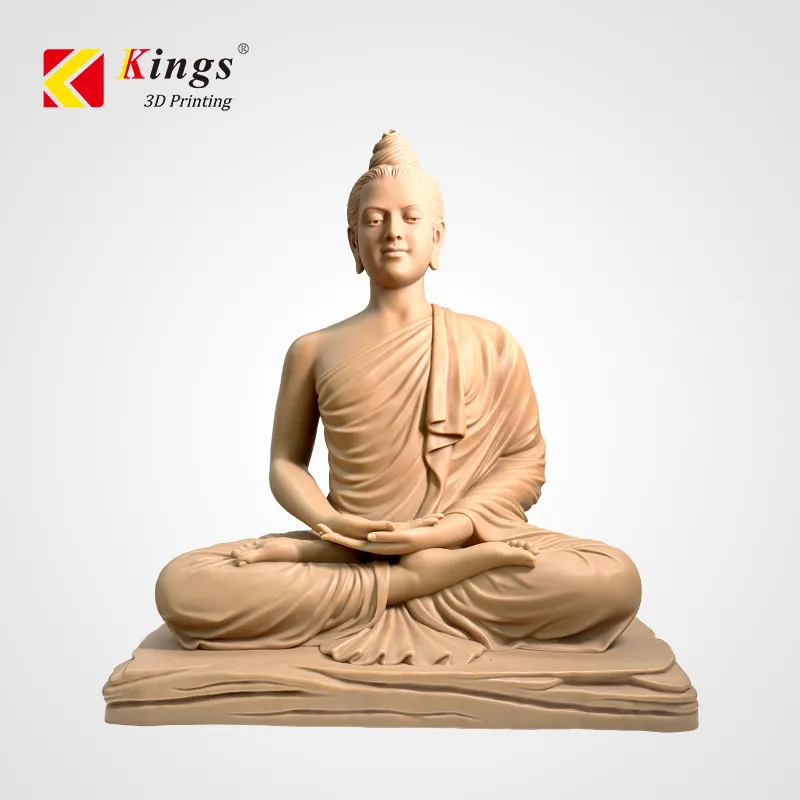

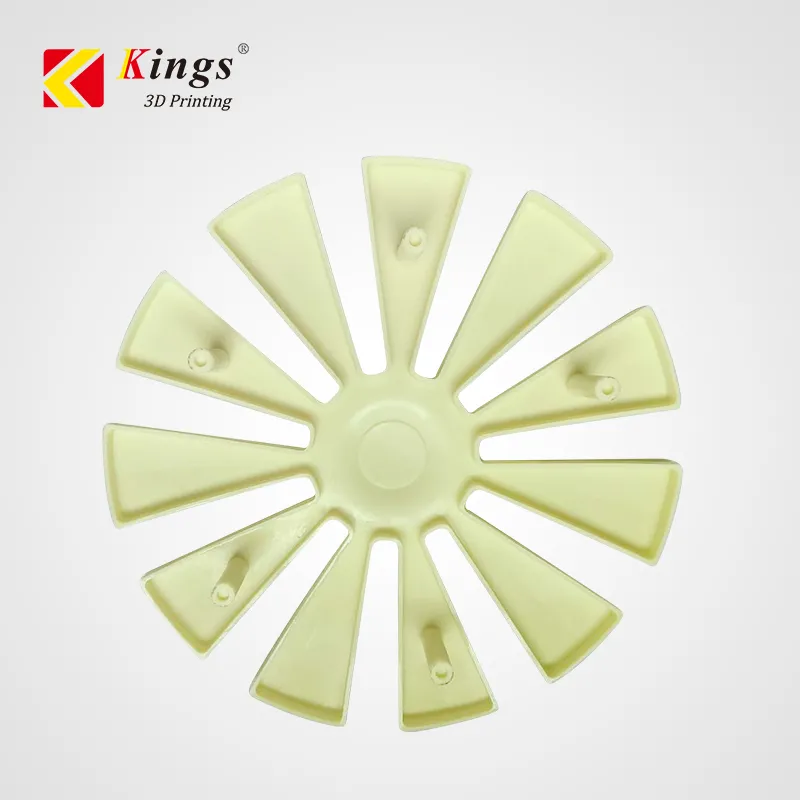

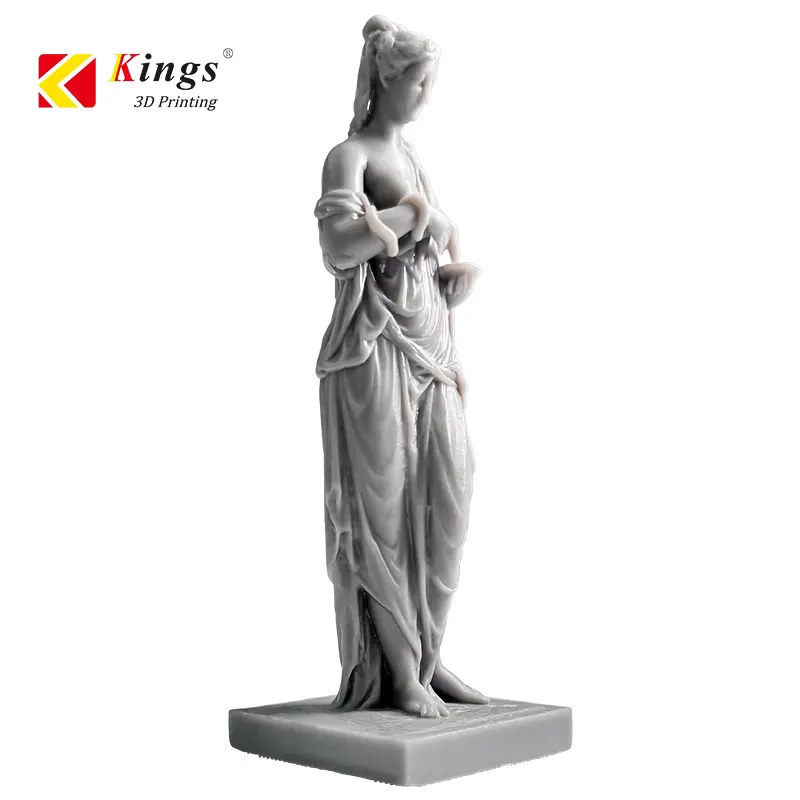

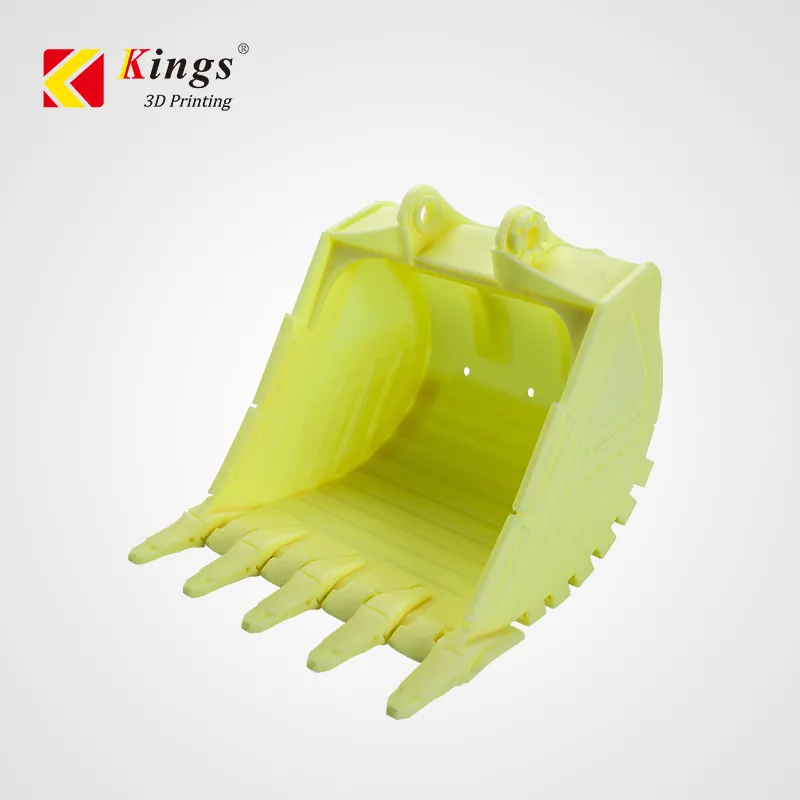

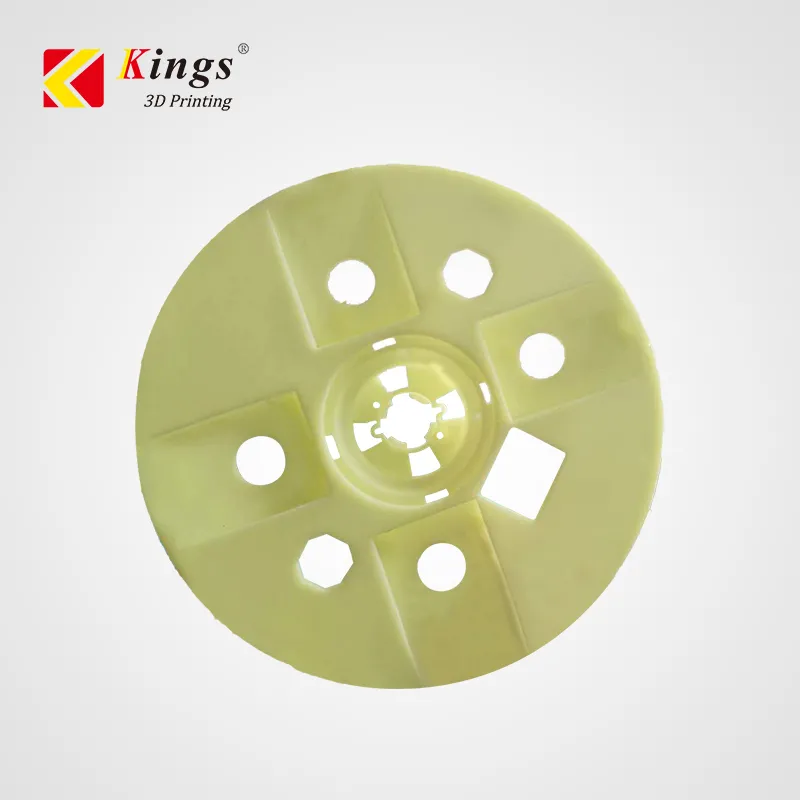

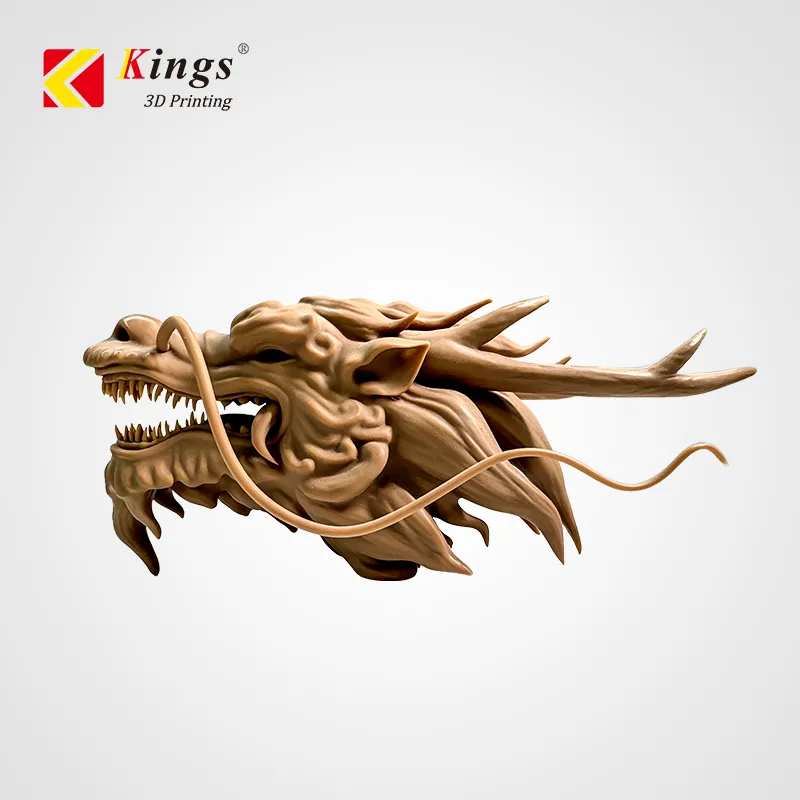

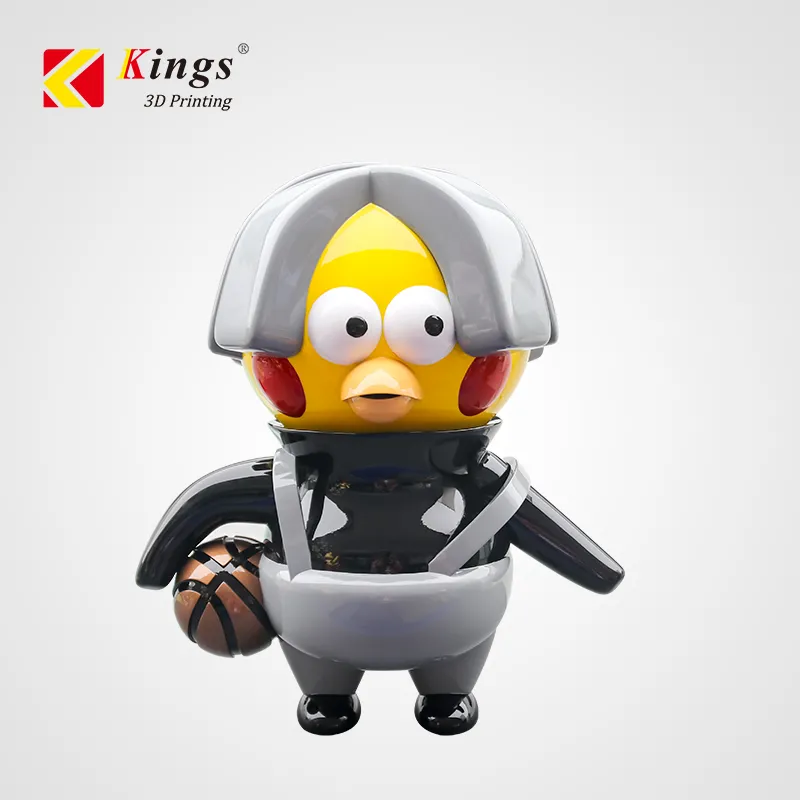

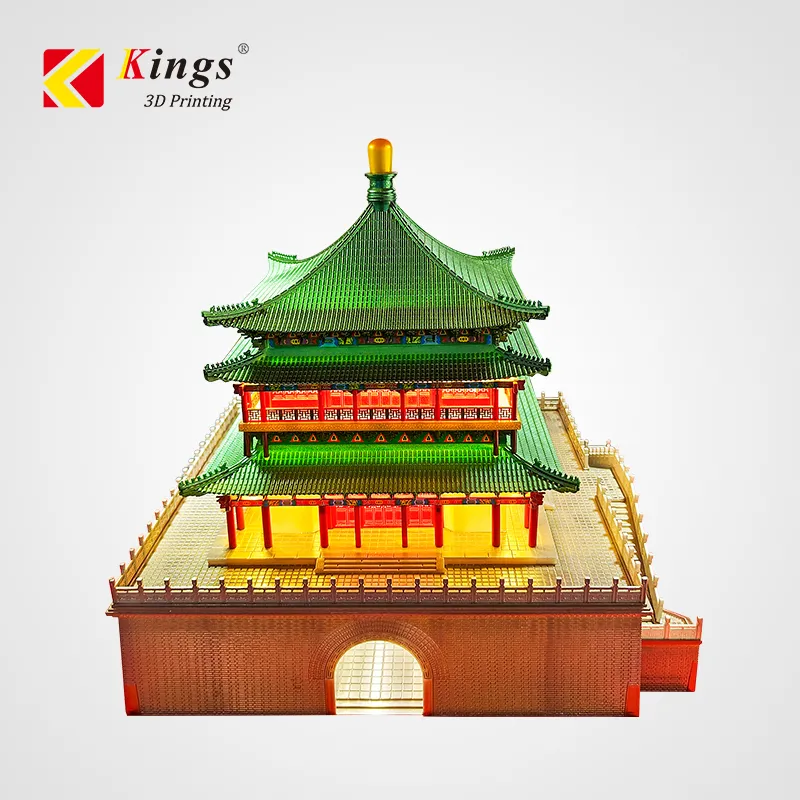

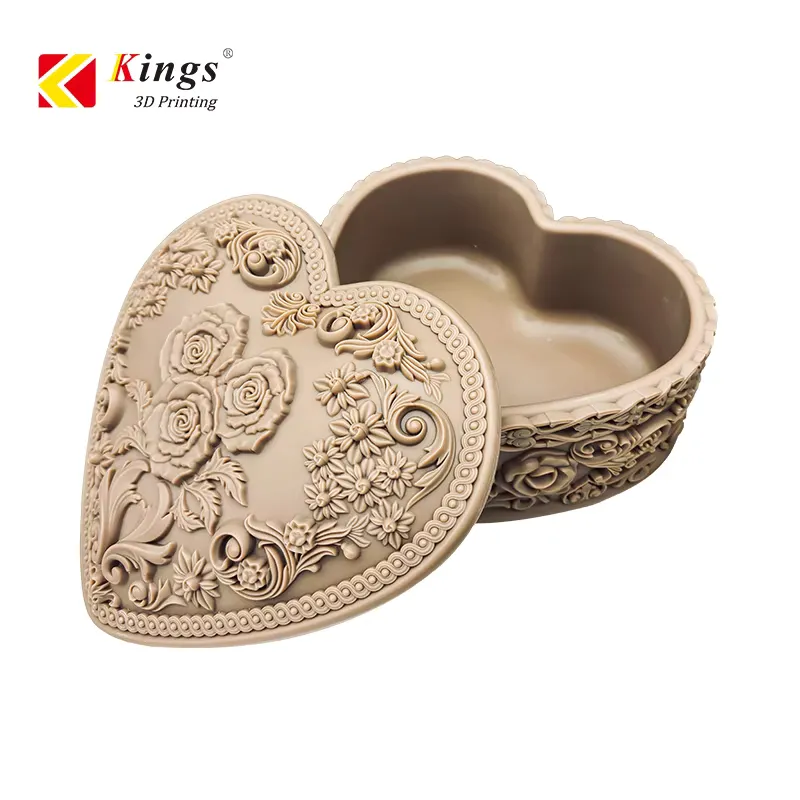

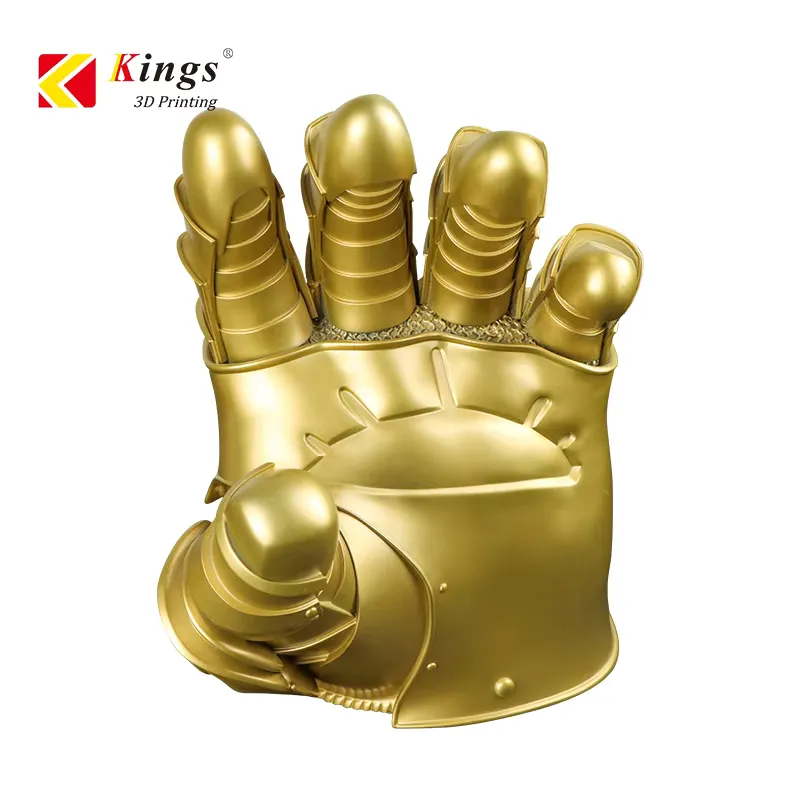

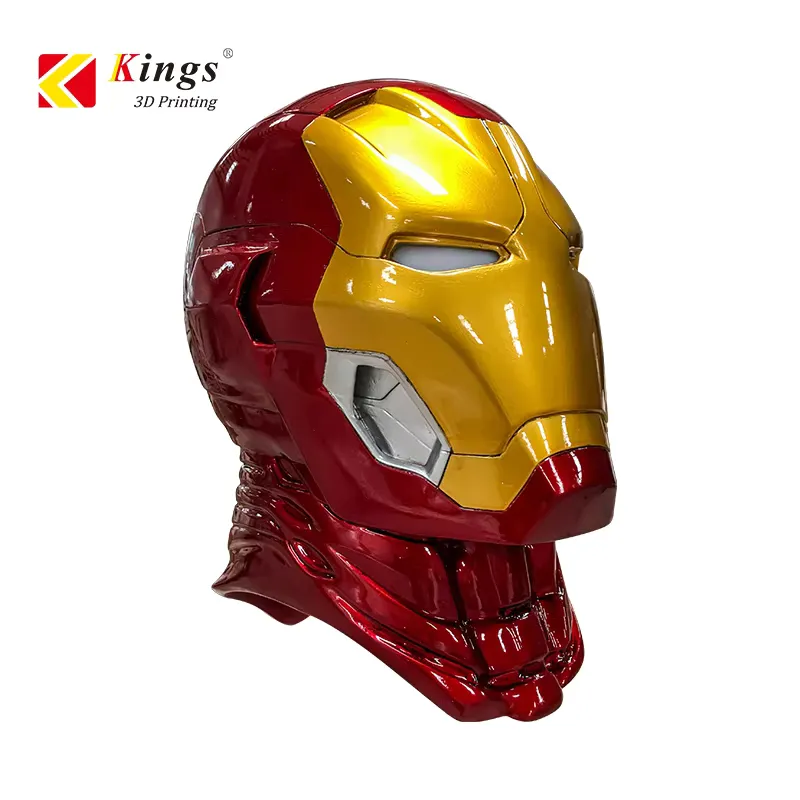

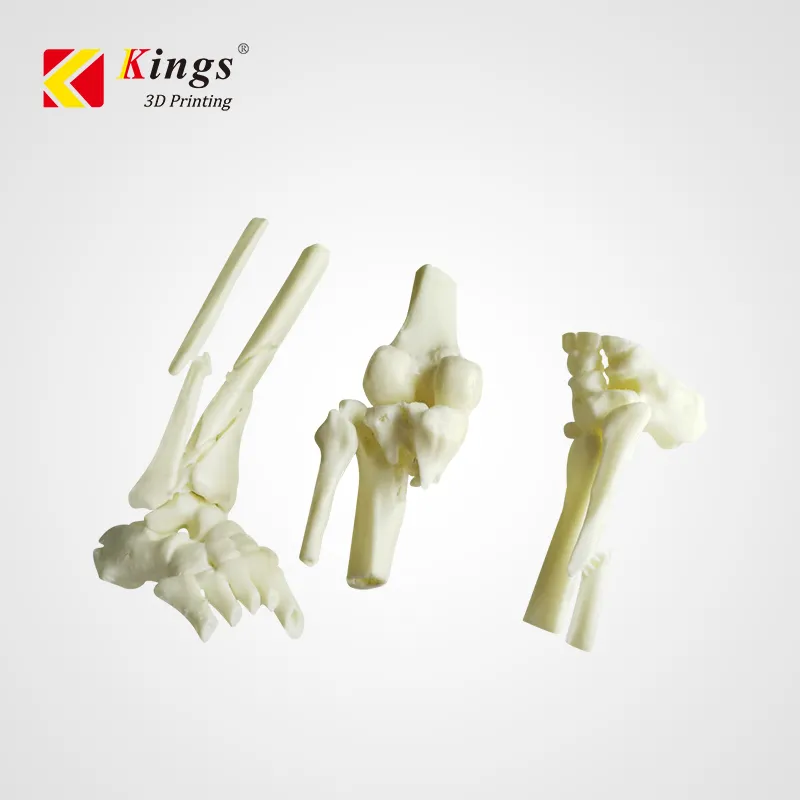

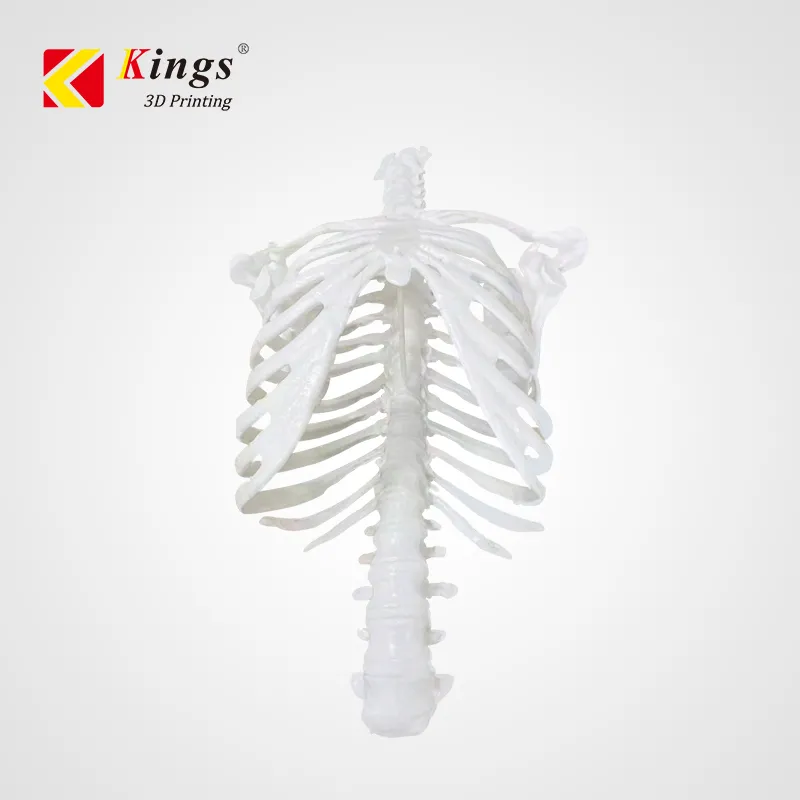

Printing Samples
