| 2700*900*800mmMax Printing Size | 351cm(W)*196cm(D)*273cm(H)Machine Size |
| 3.0KVARated Power Consumption | 3750kgMachine Weight |
| 2700kgFirst Tank Resin | 0.08-0.8mm(Variable Beam)Beam Size (diameter @1/e²) |
Product Details
Overview
The Kings SLA 2700 Pro is one of the largest large-format industrial SLA 3D printers on the market. Featuring a robust marble frame, high-grade ball screw rails, and advanced laser technology, it delivers outstanding stability and precision for ultra-large part production. With silent motion, laser liquid level detection, and remote monitoring, the SLA 2700 Pro is purpose-built for demanding industrial applications using optimized resin materials.
Advantages
Large Build Volume
Long-term Printing Stability
Basic Parameter
| Max Printing Size | 2700 × 900 × 800 mm |
| Machine Size | 351 cm (W) × 196 cm (D) × 273 cm (H) |
| Rated Power Consumption | 3.0 KVA |
| Machine Weight | 3750 kg |
| First Tank Resin | 2650 kg |
| Beam Size (diameter @1/e²) | 0.08 – 0.8 mm (Variable Beam) |
| Max Scanning Speed | 15.0 m/s |
| Layer Thickness | 0.05 – 0.2 mm |
| Accuracy | ±0.15 mm (L ≤ 100 mm); ±0.15 % × L (L > 100 mm) |
| Laser Type | Solid-state frequency-tripled Nd:YVO₄ |
| Wavelength | 355 nm |
| Power | Resin Surface Power ≥ 300 mW |
| Variable Beam System | Galvo / Closed-loop |
| Main Structure | Marble recoater frame, marble elevator holder, marble scanning system base |
| Coating Mode | Intelligent position vacuum recoating |
| Vertical Resolution Ratio | 0.0005 mm |
| Repeat Positioning Accuracy | ±0.01 mm |
| Motion Control System | Closed-loop |
| Machine Control Software | KINGS 3D control software |
| Input Data File Format | STL / SLC |
| Operating System | Windows 10 |
| Network Type and Protocol | Ethernet, TCP/IP |
| Electrical Requirement | 200–240 VAC, 50/60 Hz, single-phase, 10 A |
| Ambient Temperature | 20–26 °C (72–79 °F) |
| Relative Humidity | < 40 %, non-condensing |
| Machine Warranty | 2 years (including laser) |

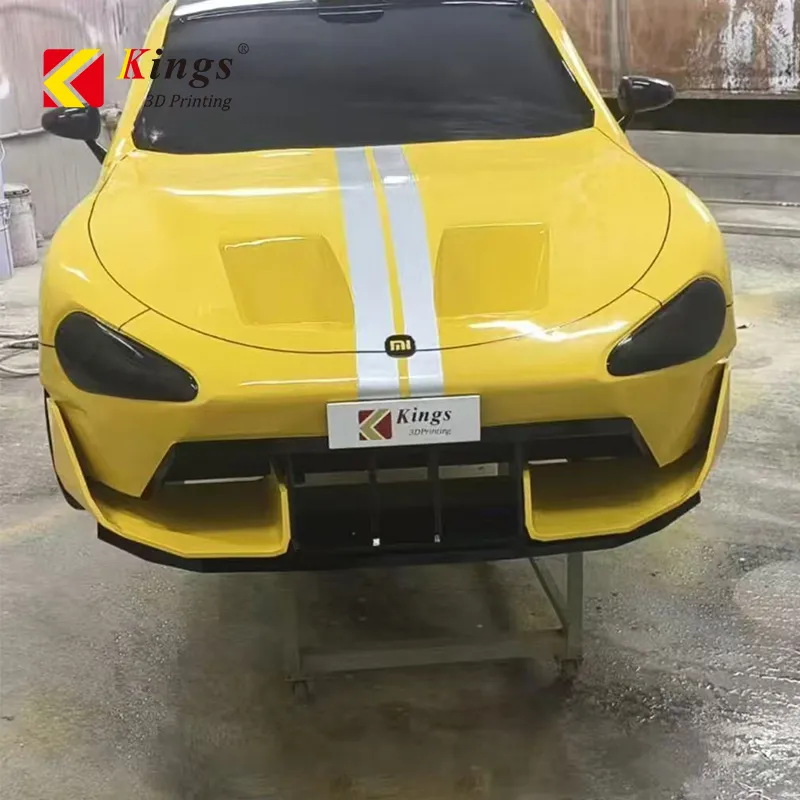

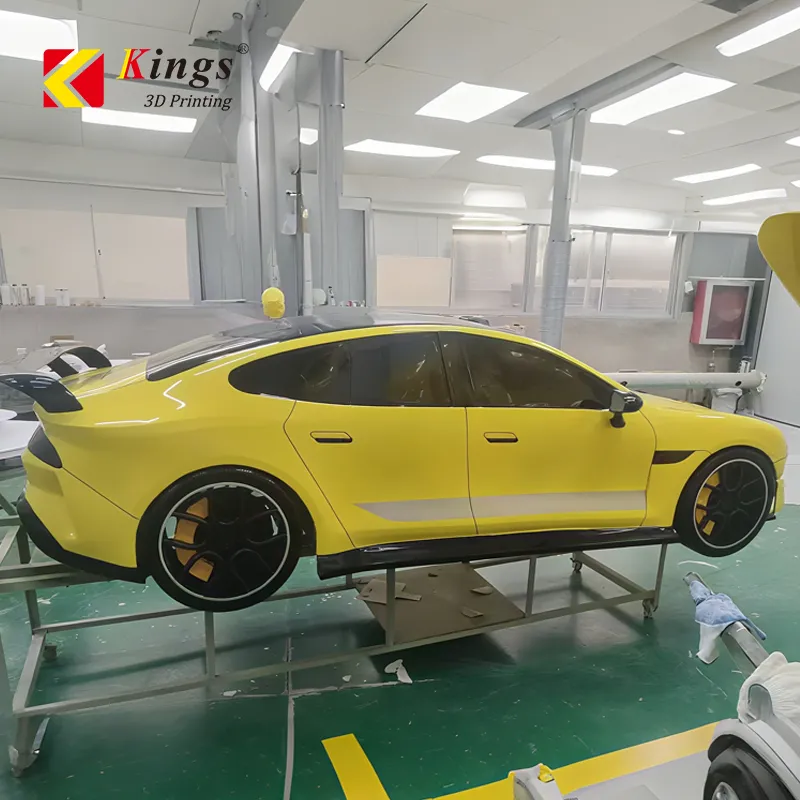

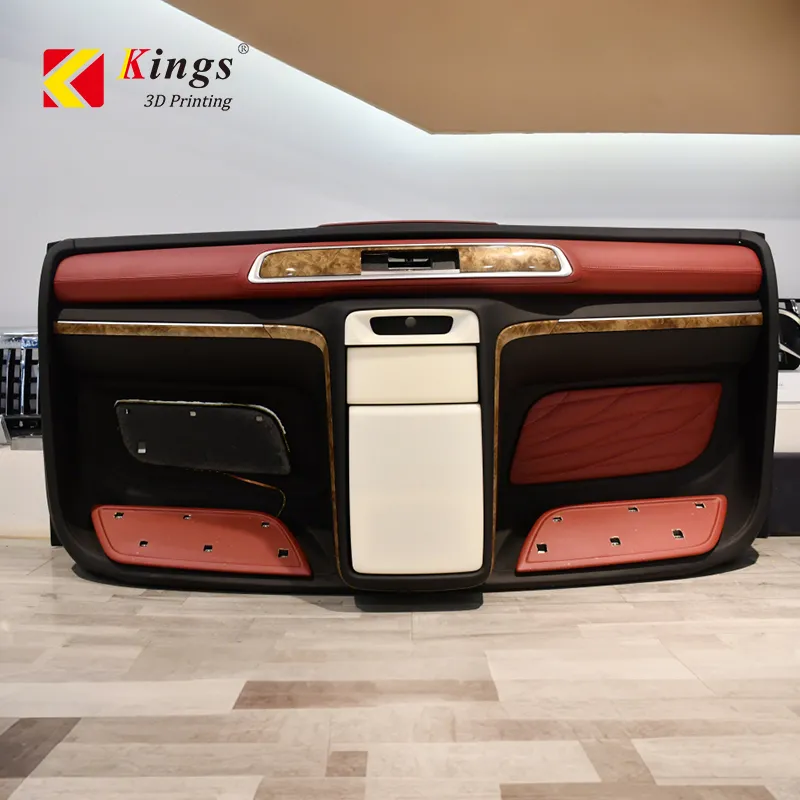

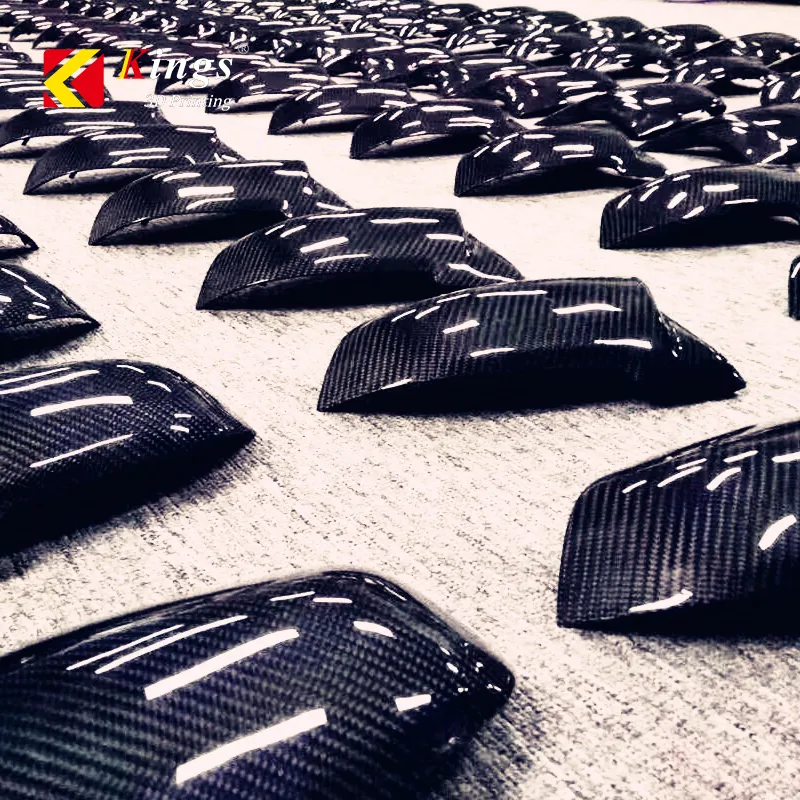

Printing Samples
