Kings SLA 1450 Pro 4D Printer

355nmWavelength	0.0005mmVertical Resolution Ratio
±0.01mmRepeat Positioning Accuracy	20-26ºC (72-79℉)Ambient Temperature
≤40%，non-condensingRelative Humidity	2 years (including laser)Machine Warranty

Inquire Now

Download

Product Details

Overview

The KINGS 1450Pro Industrial SLA 3D Printer is engineered for large-format, high-precision manufacturing. With a massive 1450×800×650 mm build volume, a robust full-metal structure, and continuous high-load performance, it empowers industries to produce large prototypes, molds, and functional parts with exceptional accuracy and speed.

Features

Ultra-Large Build Volume:

1450×800×650 mm construction size, perfect for large-scale industrial printing.

Heavy-Duty Structure:

Full-metal frame and 2550 kg robust body ensure long-term stability and precision.

Efficient Power System:

Rated dissipation of 2.2 KVA supports reliable, continuous operation.

Compact Footprint for Size:

Despite its large print area, the 222×177×230 cm design optimizes workshop space usage.

Advantages

Industrial-Grade Productivity: Ideal for manufacturing large prototypes, molds, and functional parts in fewer build cycles.
Superior Precision and Quality: Stable structure minimizes vibration, ensuring fine surface finish and dimensional accuracy.
Cost and Time Efficiency: Print bigger parts in one go, reducing assembly needs and saving production time.
Global-Ready Reliability: Engineered for continuous, high-load operation to meet bulk production demands.

Basic Parameter

Download

	Kings 1200Pro	Kings 1450Pro
Max Printing Size	1200 × 1200 × 650 mm	1450 × 800 × 650 mm
Machine Size	198 cm (W) × 177 cm (D) × 230 cm (H)	222 cm (W) × 177 cm (D) × 230 cm (H)
Rated Power Consumption	2.2 KVA	2.2 KVA
Machine Weight	2350 kg	2550 kg
First Tank Resin	940 kg	1090 kg
Beam Size (diameter @1/e²)	0.08 – 0.8 mm (Variable Beam)	0.08 – 0.8 mm (Variable Beam)
Max Scanning Speed	15.0 m/s	15.0 m/s
Layer Thickness	0.05 – 0.2 mm	0.05 – 0.2 mm
Accuracy	±0.15 mm (L ≤ 100 mm); ±0.15 % × L (L > 100 mm)	±0.15 mm (L ≤ 100 mm); ±0.15 % × L (L > 100 mm)

Laser Type	Solid-state frequency-tripled Nd:YVO₄
Wavelength	355 nm
Power	Resin Surface Power ≥ 300 mW
Variable Beam System	Galvo / Closed-loop
Main Structure	Marble recoater frame, marble elevator holder, marble scanning system base
Coating Mode	Intelligent position vacuum recoating
Vertical Resolution Ratio	0.0005 mm
Repeat Positioning Accuracy	±0.01 mm
Motion Control System	Closed-loop
Machine Control Software	KINGS 3D control software
Input Data File Format	STL / SLC
Operating System	Windows 10
Network Type and Protocol	Ethernet, TCP/IP
Electrical Requirement	200–240 VAC, 50/60 Hz, single-phase, 10 A
Ambient Temperature	20–26 °C (72–79 °F)
Relative Humidity	≤ 40 %, non-condensing
Machine Warranty	2 years (including laser)

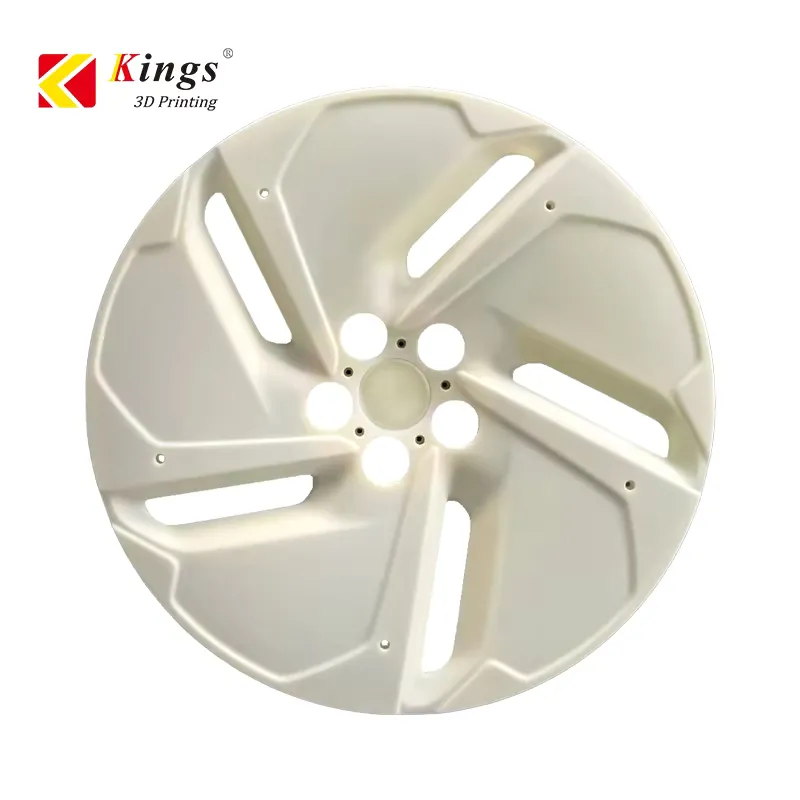

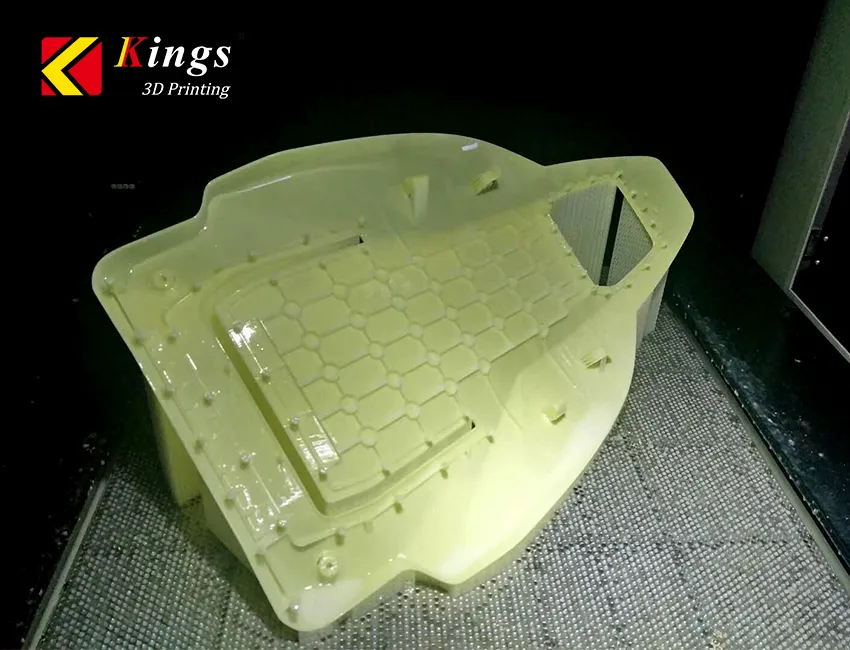

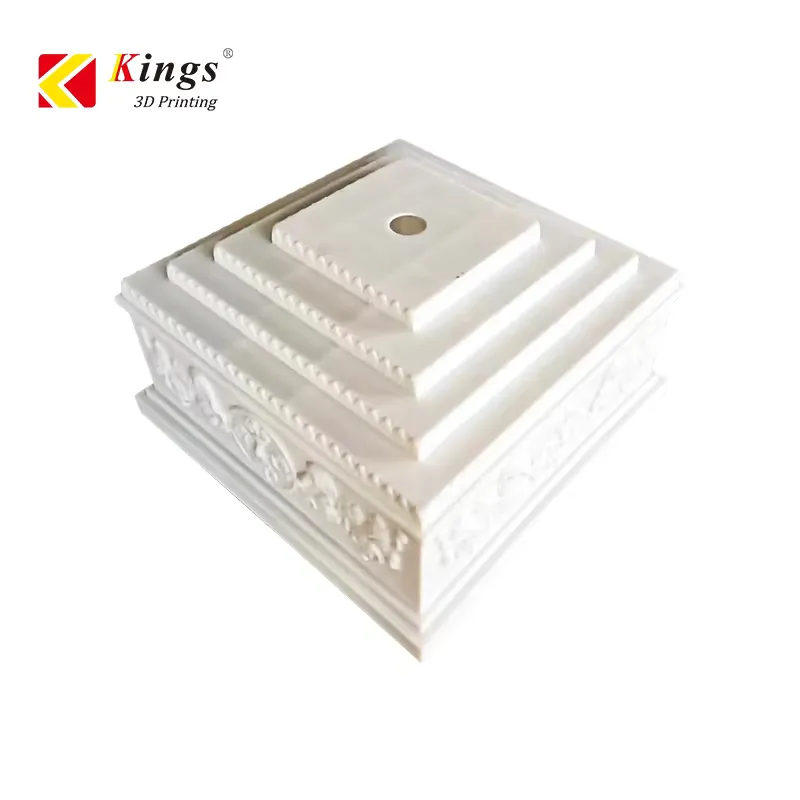

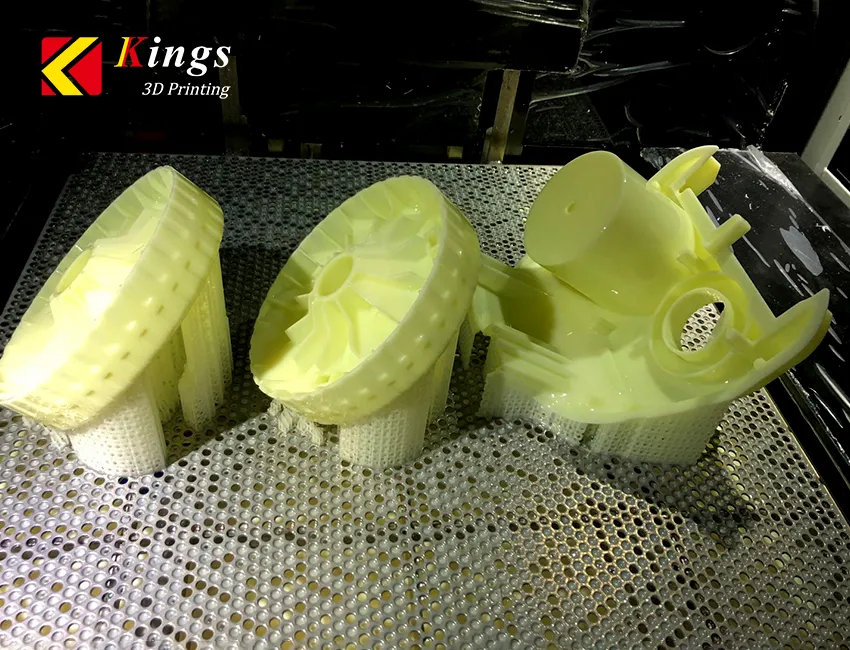

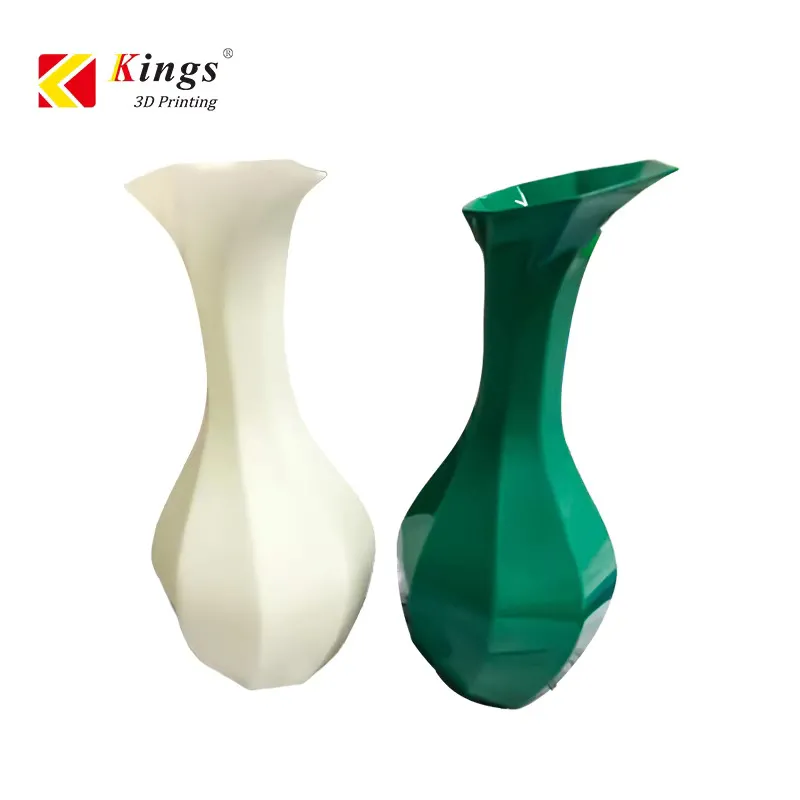

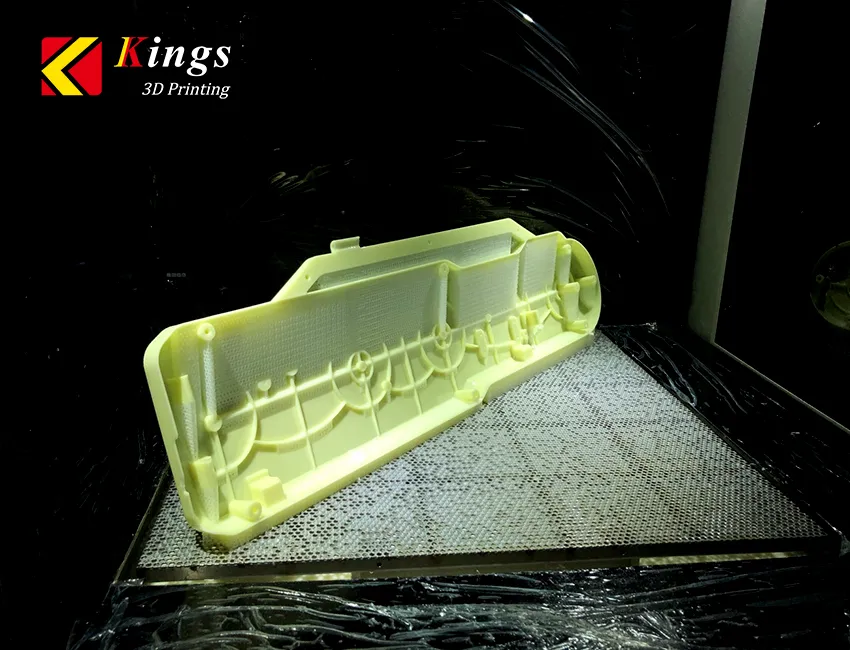

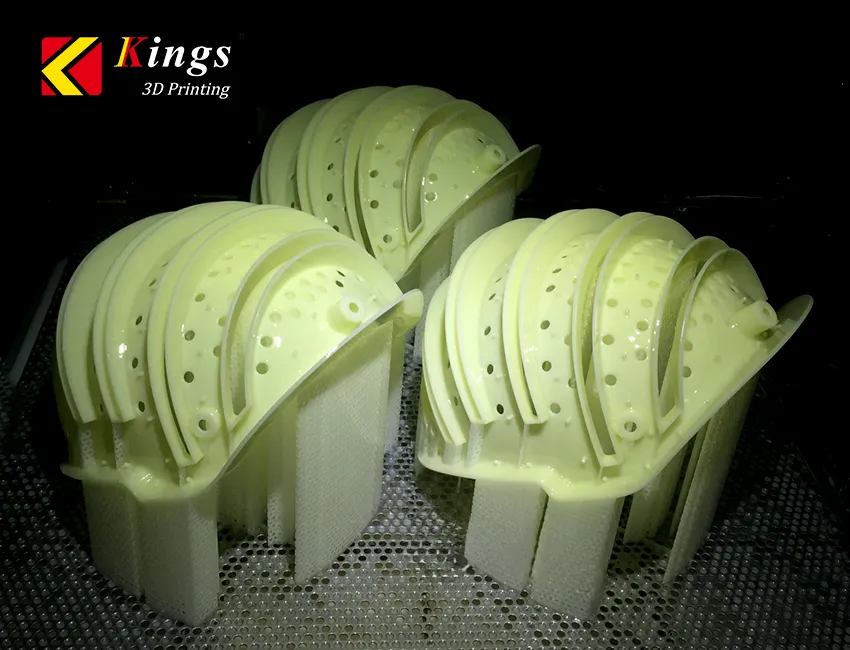

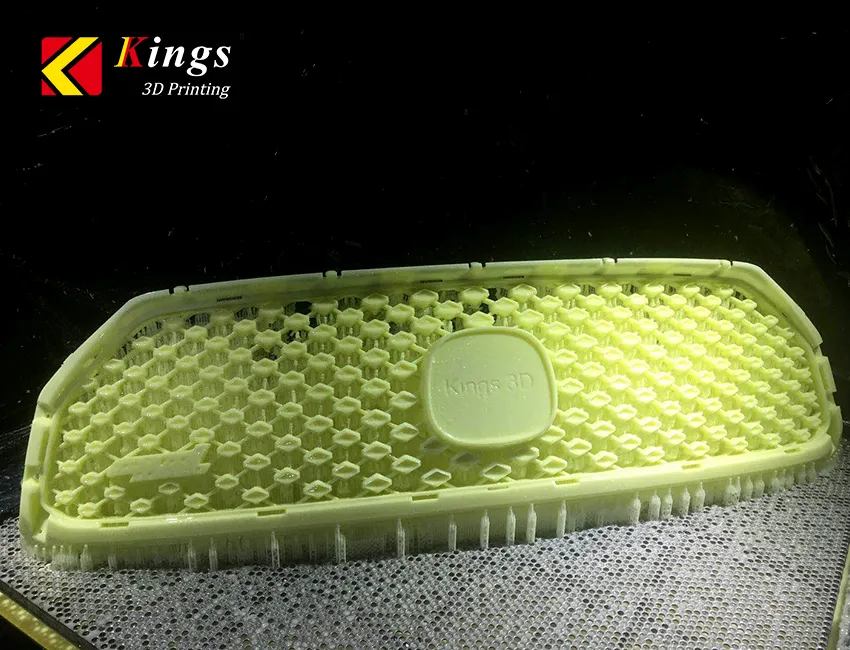

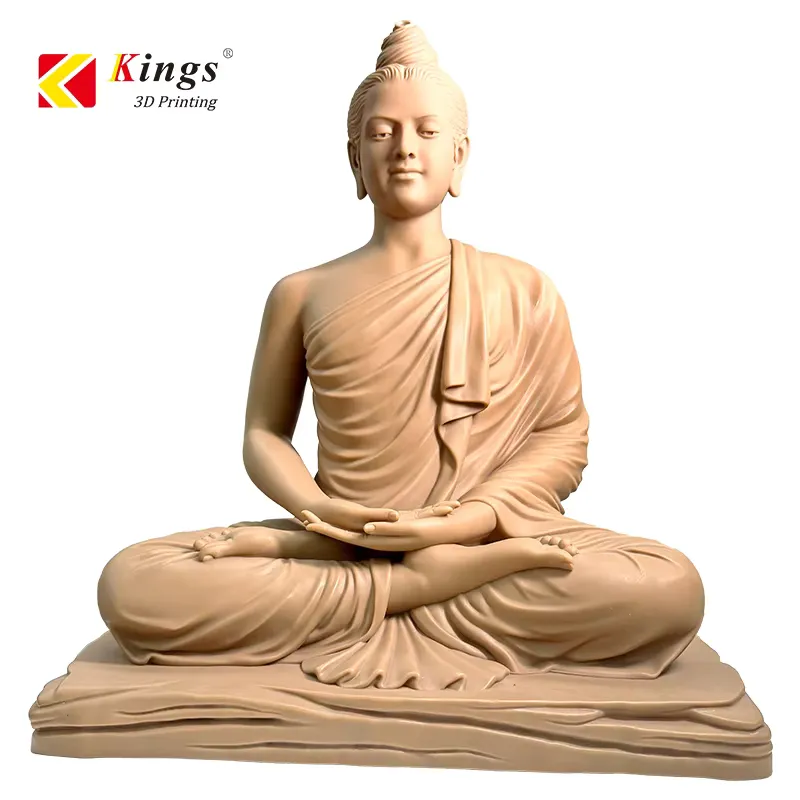

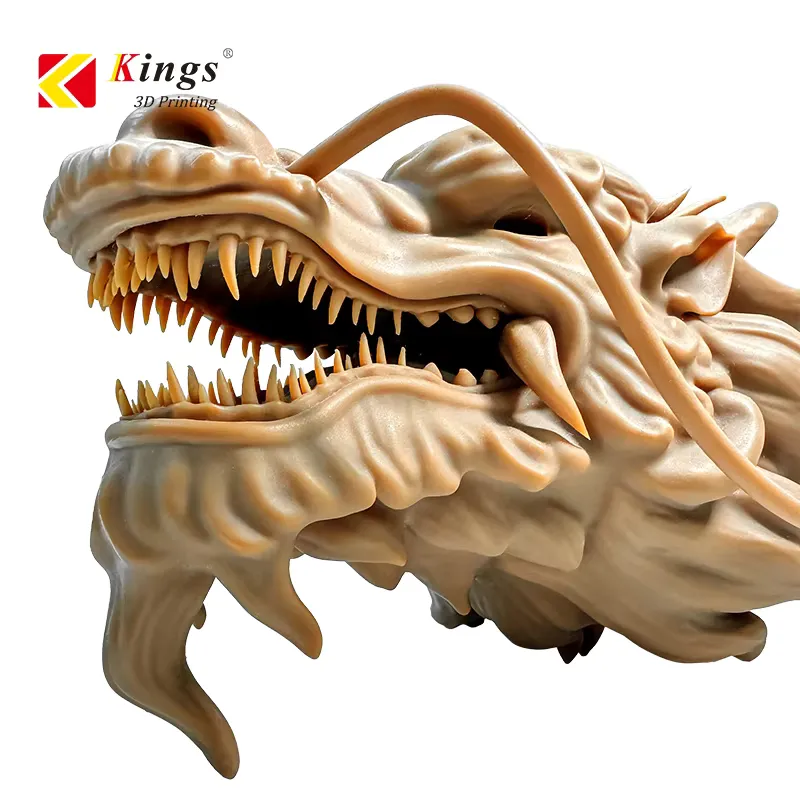

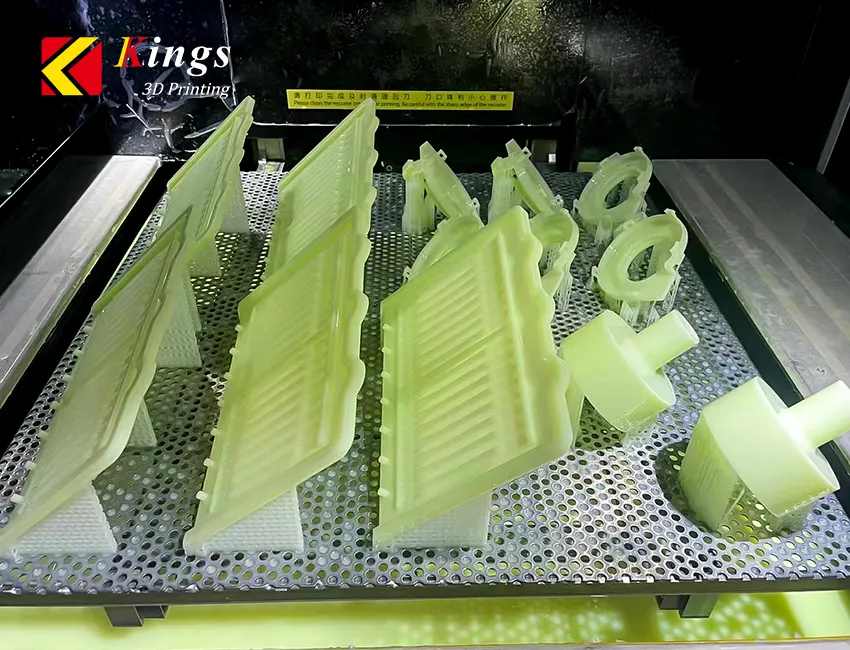

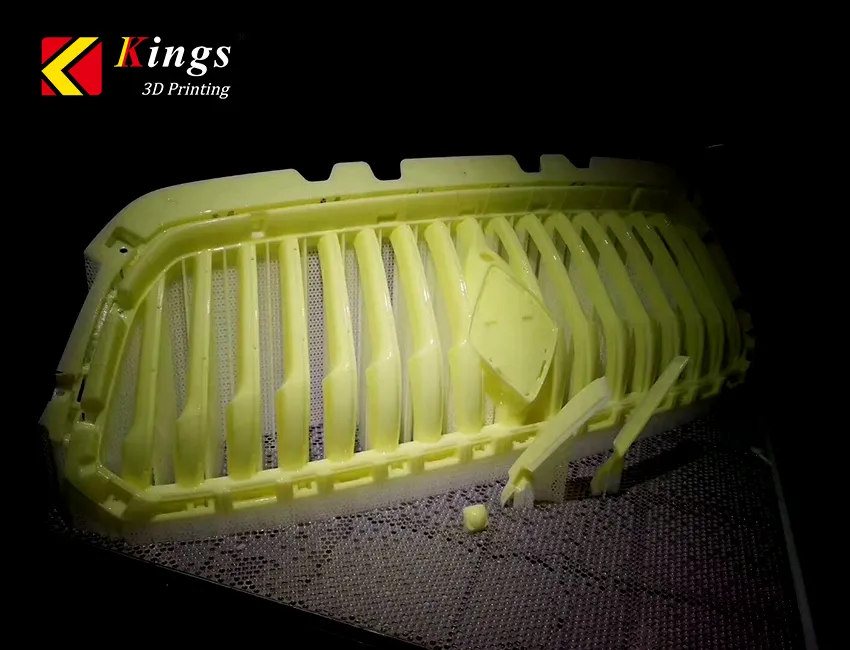

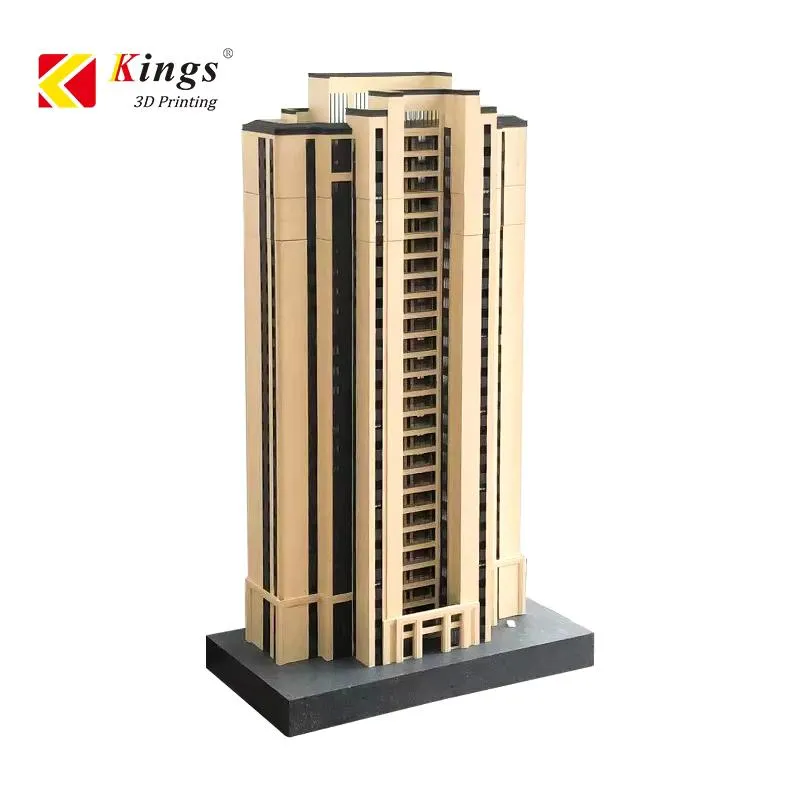

Printing Samples

Application

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
