Kings SLA 1200 Pro 3D Printer

355nmWavelength	0.0005mmVertical Resolution Ratio
±0.01mmRepeat Positioning Accuracy	20-26ºC (72-79℉)Ambient Temperature
≤40%，non-condensingRelative Humidity	2 years (including laser)Machine Warranty

Inquire Now

Download

Product Details

Overview

The Kings SLA 1200/1450Pro delivers exceptional precision and performance in professional 3D printing. With a robust marble frame, high-grade ball screw rails, and advanced laser technology, it ensures precise, reliable results. Ideal for diverse industrial applications with optimized materi als and efficient production capabilities, it meets large size 3D printing needs.

Advantages

Enhanced Printing Efficiency
Long-term Printing Stability

Basic Parameter

Download

	Kings 1200Pro	Kings 1450Pro
Max Printing Size	1200 × 1200 × 650 mm	1450 × 800 × 650 mm
Machine Size	198 cm (W) × 177 cm (D) × 230 cm (H)	222 cm (W) × 177 cm (D) × 230 cm (H)
Rated Power Consumption	2.2 KVA	2.2 KVA
Machine Weight	2350 kg	2550 kg
First Tank Resin	940 kg	1090 kg
Beam Size (diameter @1/e²)	0.08 – 0.8 mm (Variable Beam)	0.08 – 0.8 mm (Variable Beam)
Max Scanning Speed	15.0 m/s	15.0 m/s
Layer Thickness	0.05 – 0.2 mm	0.05 – 0.2 mm
Accuracy	±0.15 mm (L ≤ 100 mm); ±0.15 % × L (L > 100 mm)	±0.15 mm (L ≤ 100 mm); ±0.15 % × L (L > 100 mm)

Laser Type	Solid-state frequency-tripled Nd:YVO₄
Wavelength	355 nm
Power	Resin Surface Power ≥ 300 mW
Variable Beam System	Galvo / Closed-loop
Main Structure	Marble recoater frame, marble elevator holder, marble scanning system base
Coating Mode	Intelligent position vacuum recoating
Vertical Resolution Ratio	0.0005 mm
Repeat Positioning Accuracy	±0.01 mm
Motion Control System	Closed-loop
Machine Control Software	KINGS 3D control software
Input Data File Format	STL / SLC
Operating System	Windows 10
Network Type and Protocol	Ethernet, TCP/IP
Electrical Requirement	200–240 VAC, 50/60 Hz, single-phase, 10 A
Ambient Temperature	20–26 °C (72–79 °F)
Relative Humidity	≤ 40 %, non-condensing
Machine Warranty	2 years (including laser)

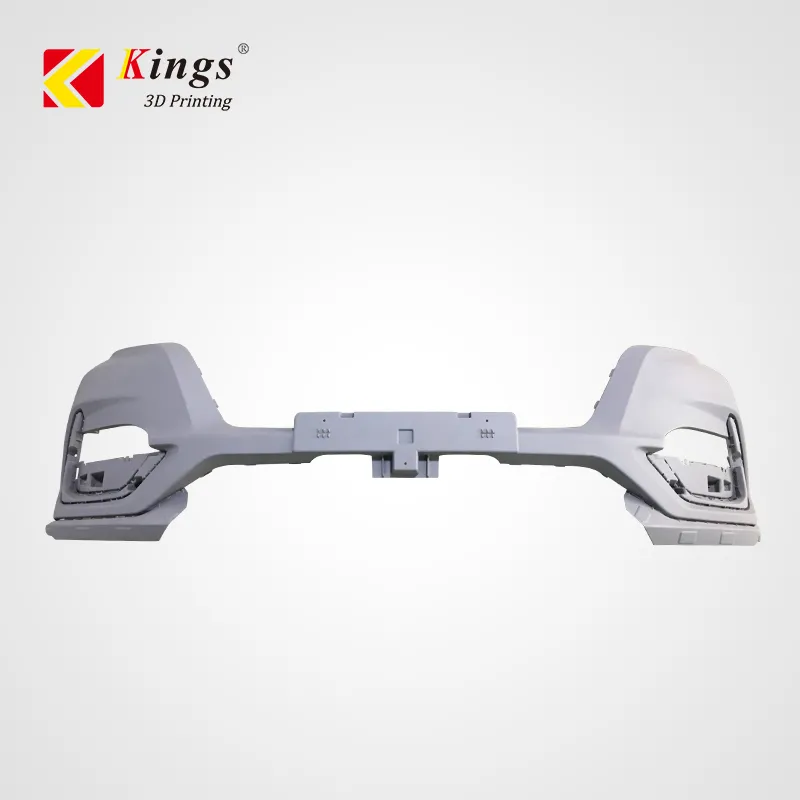

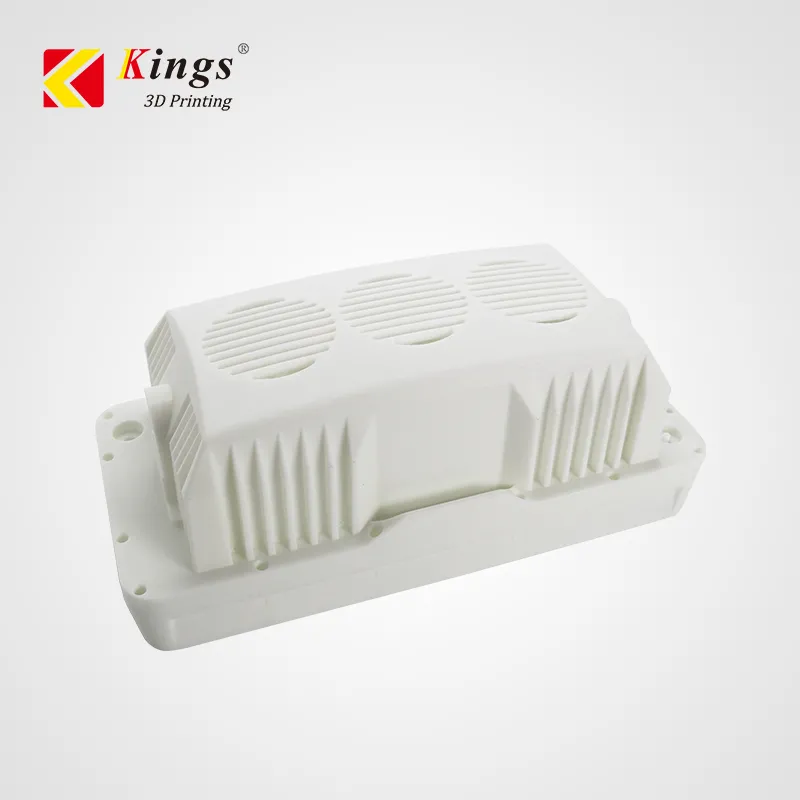

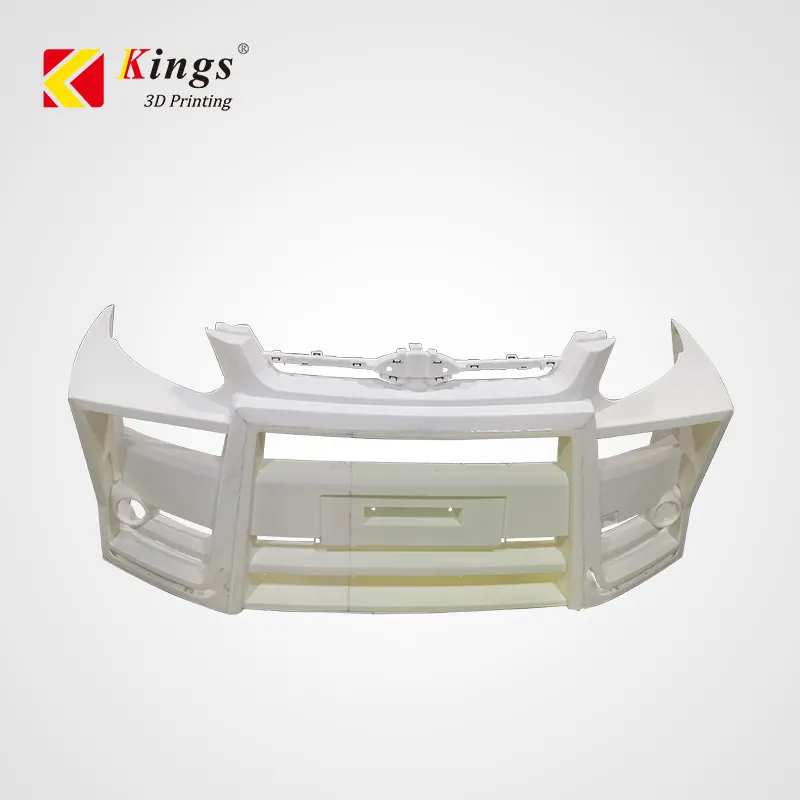

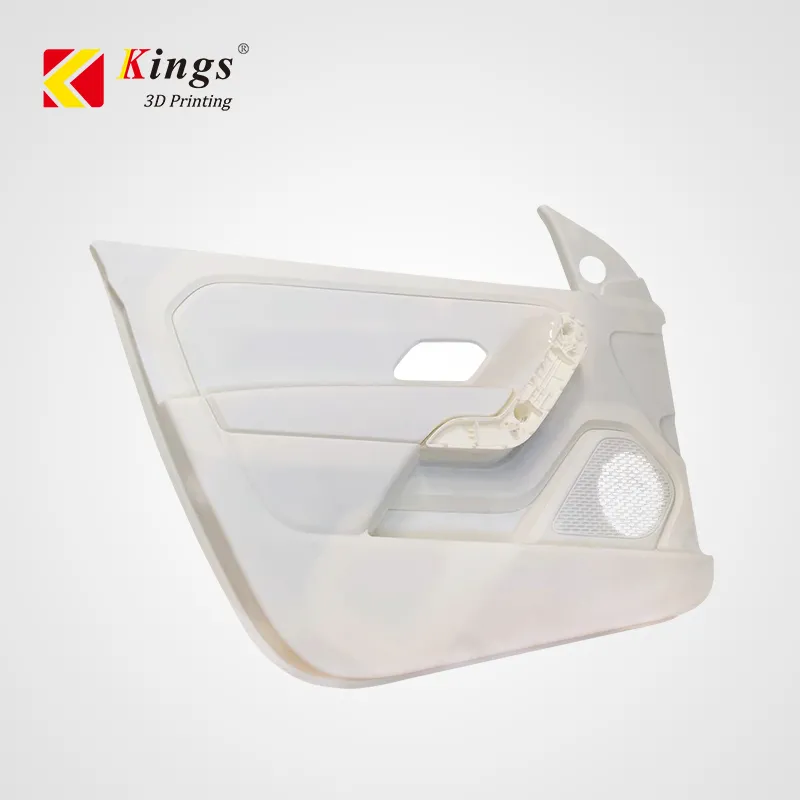

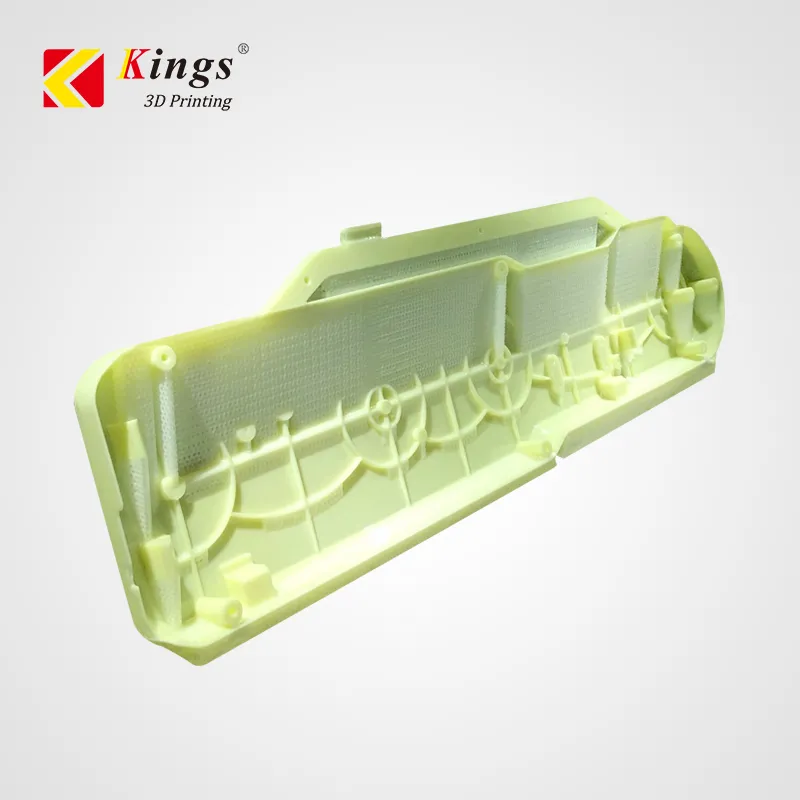

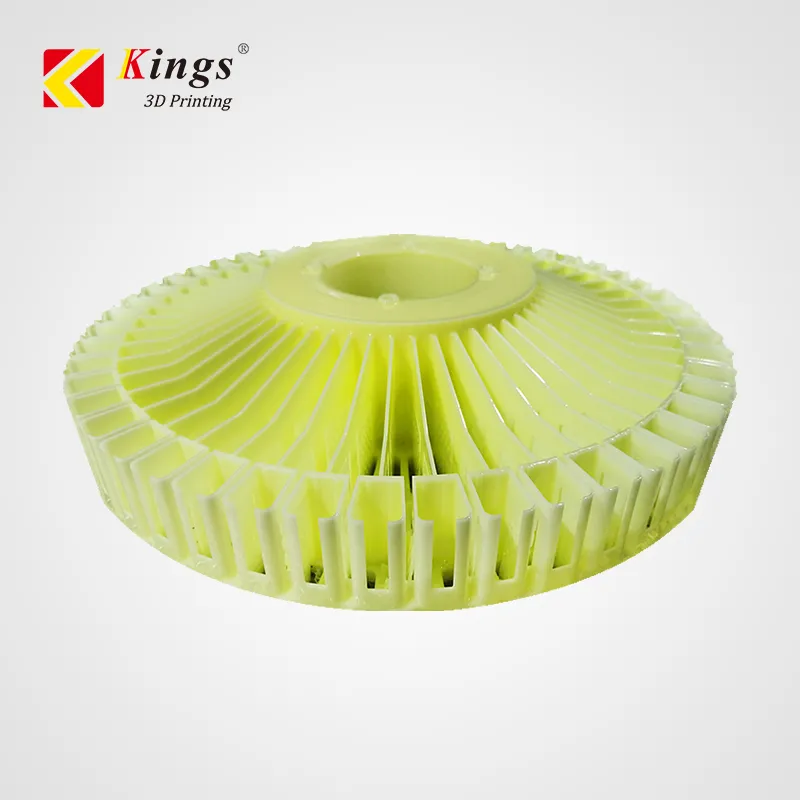

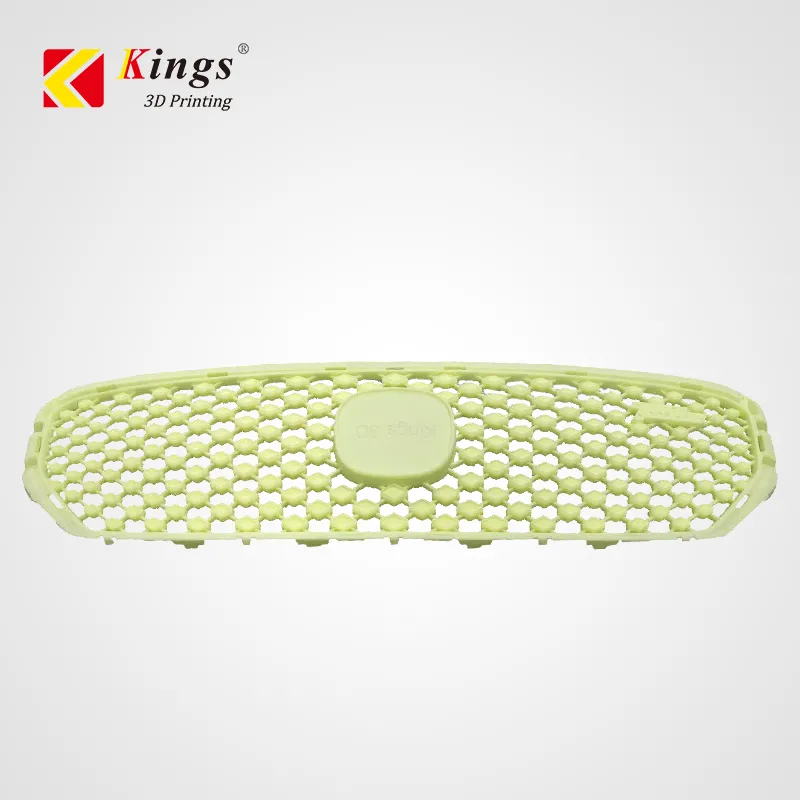

Printing Samples

Application

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
