| 1000*1000*600mmMax Printing Size | 160cm(W)*170cm(D)*243cm(H)Machine Size |
| 1.8KVARated Power Consumption | 1630kgMachine Weight |
| 850kgFirst Tank Resin | 0.08-0.8mm(Variable Beam)Beam Size (diameter @1/e²) |
Product Details
Overview

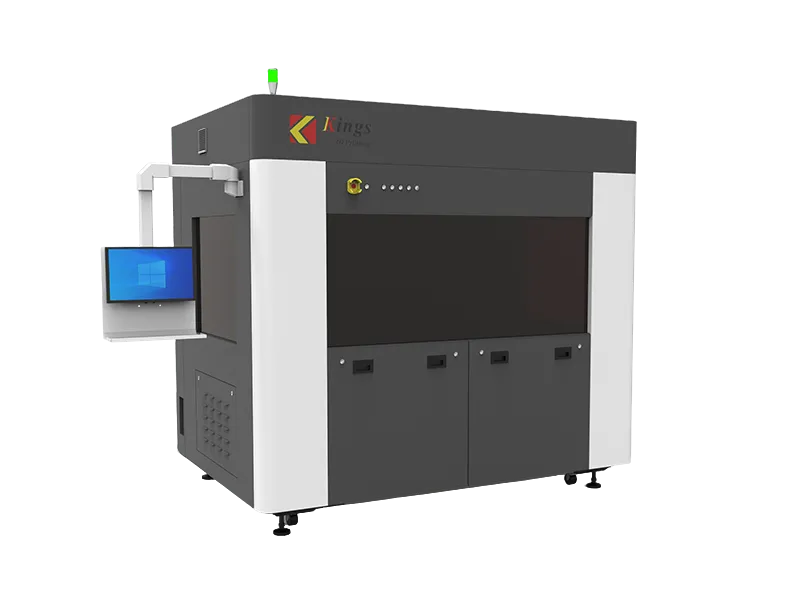

The Kings 1000 SLA 3D printer leads in precision and performance for professional 3D printing. It excels in crafting medium and large sized models, like intricate prototypes, detailed dental models, and complex engineering designs with unmatched accuracy. Integrated with advanced scanning and CAD software, it ensures precise data handling and streamlined workflows across industries like den tistry, jewelry, and engineering. Ideal for demanding projects, the The Kings 1000 SLA 3D printer set a new standard in additive manufacturing, offering exceptional quality and reliability.
Advantages
Enhanced Printing Efficiency
Long-term Printing Stability
Basic Parameter
| Max Printing Size | 1000*1000*600mm |
| Machine Size | 160cm(W)*170cm(D)*243cm(H) |
| Rated Power Consumption | 1.8KVA |
| Machine Weight | 1630kg |
| First Tank Resin | 850kg |
| Beam Size (diameter @1/e²) | 0.08-0.8mm(Variable Beam) |
| Max Scanning Speed | 15.0m/s |
| Layer Thickness | 0.05mm~0.2mm |
| Accuracy | ±0.1(L≦100mm)； ±0.1%*L(L>100mm) |
| Laser Type | Solid-state frequency tripled Nd: YV04 |
| Wavelength | 355nm |
| Power | Resin Surface Power≥300 mw |
| Variable Beam System | Galvo/Closed-loop |
| Main structure | Marble recoater frame, marble elevator holder and marble scanning system base |
| Coating Mode | lntelligent position vacuum recoating |
| Vertical Resolution Ratio | 0.0005mm |
| Repeat Positioning Accuracy | 土0.01mm |
| Motion Control System | Closed-loop |
| Machine Control Software | KINGS 3D control software |
| lnput Data File Format | STL/SLC |
| Operating System | Windows 10 |
| Network Type and Protocol | Ethernet，TCP/IP |
| Electrical Requirement | 200-240VAC 50/60Hz,single-phase,10A |
| Ambient Temperature | 20-26°C(72-79F) |
| Relative Humidity | <40%，non-condensing |
| Machine Warranty | 2 years (including laser) |

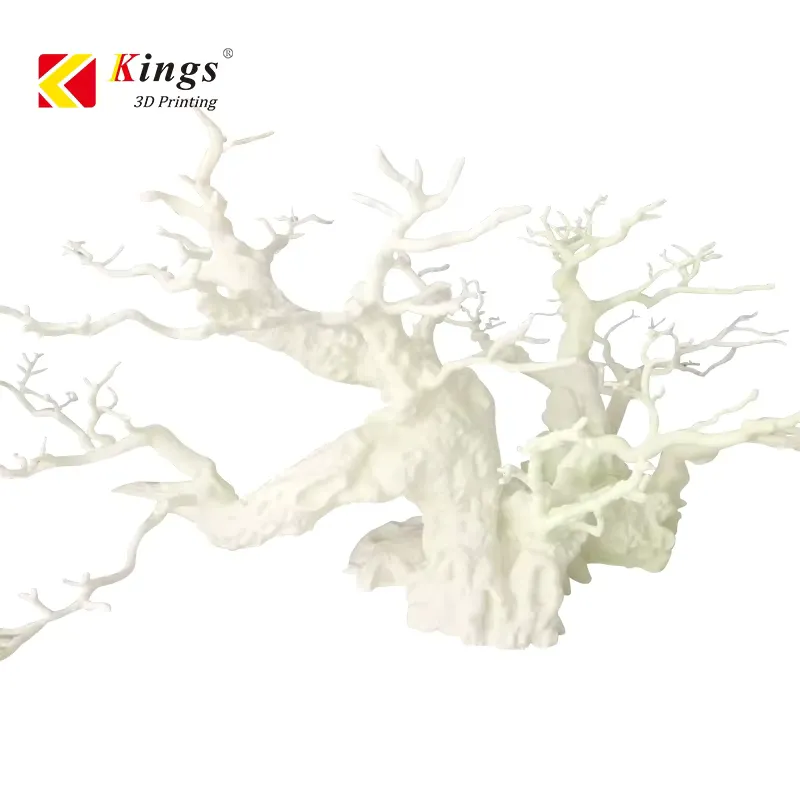

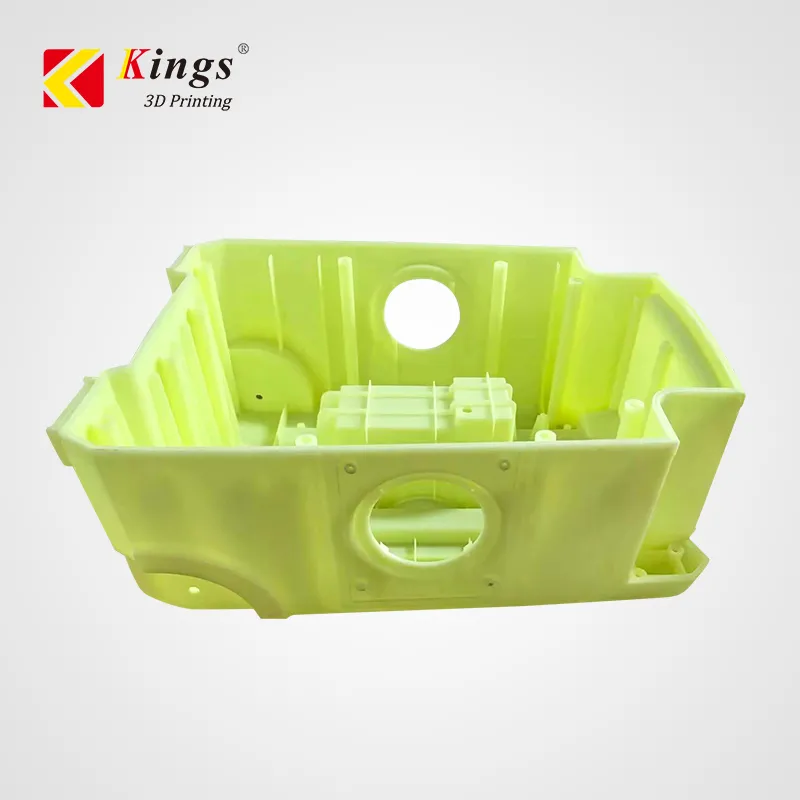

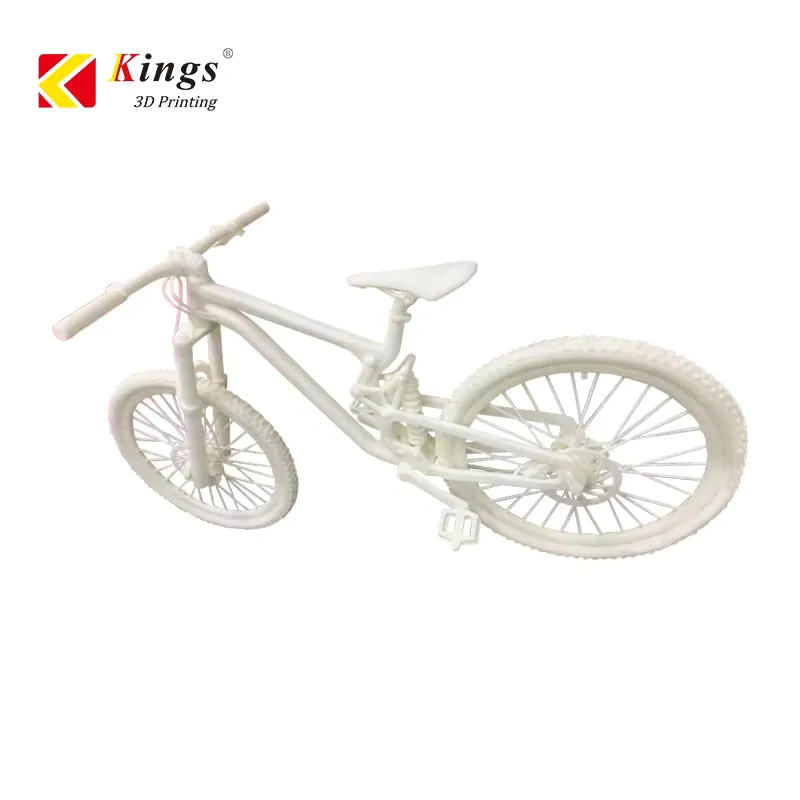

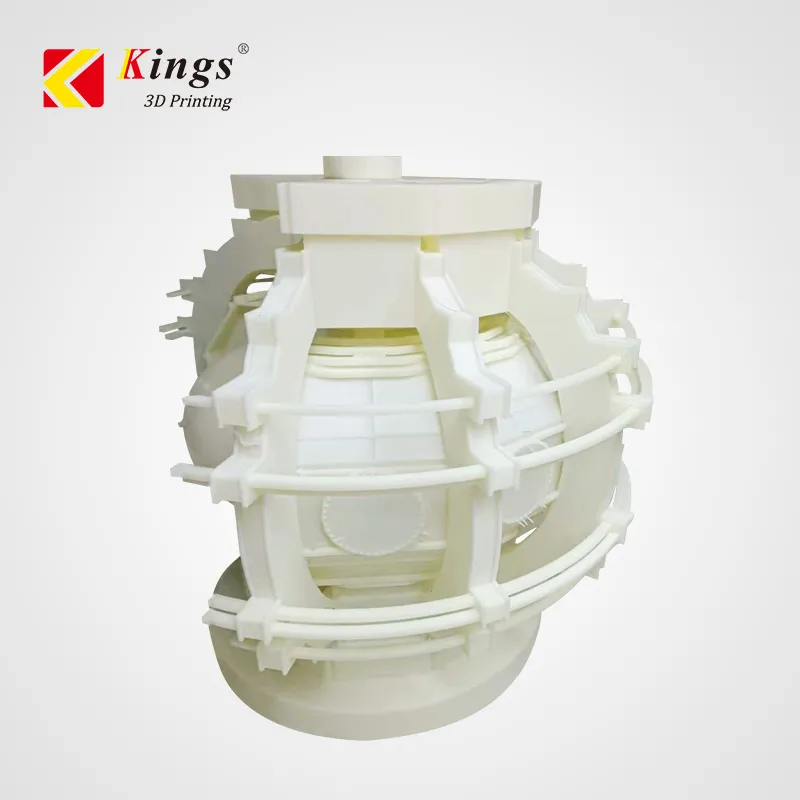

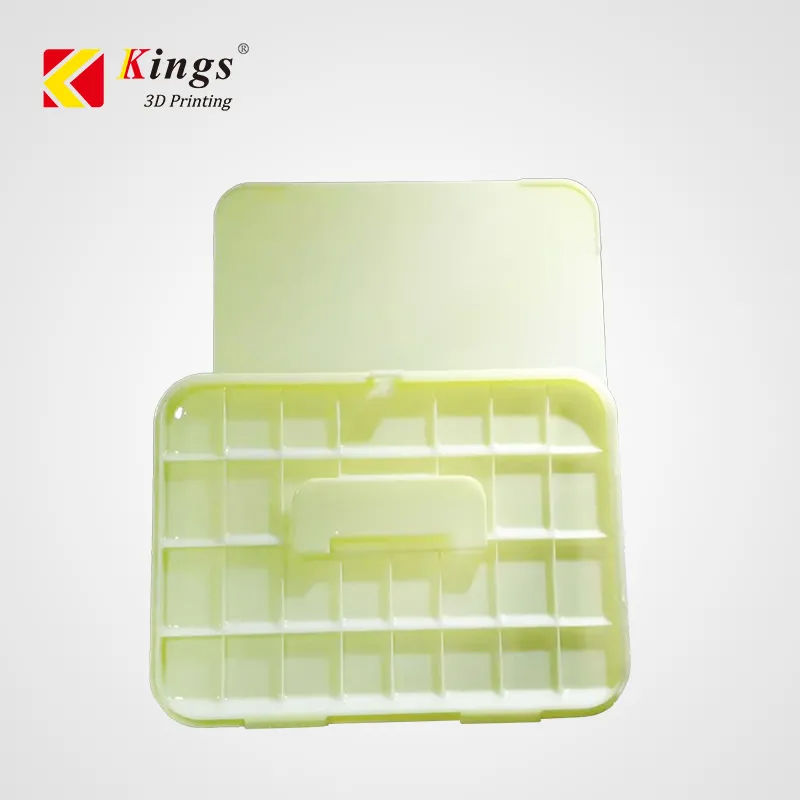

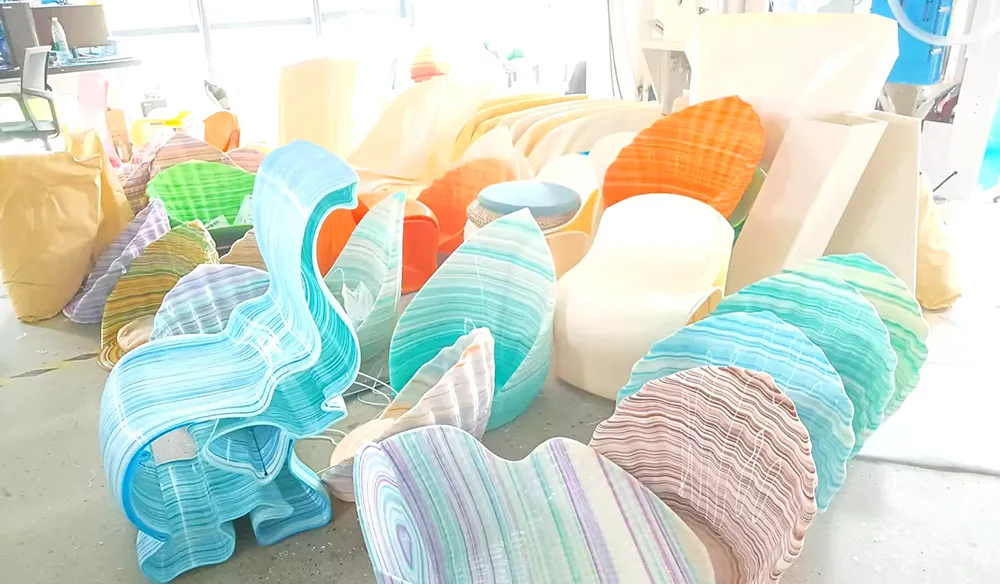

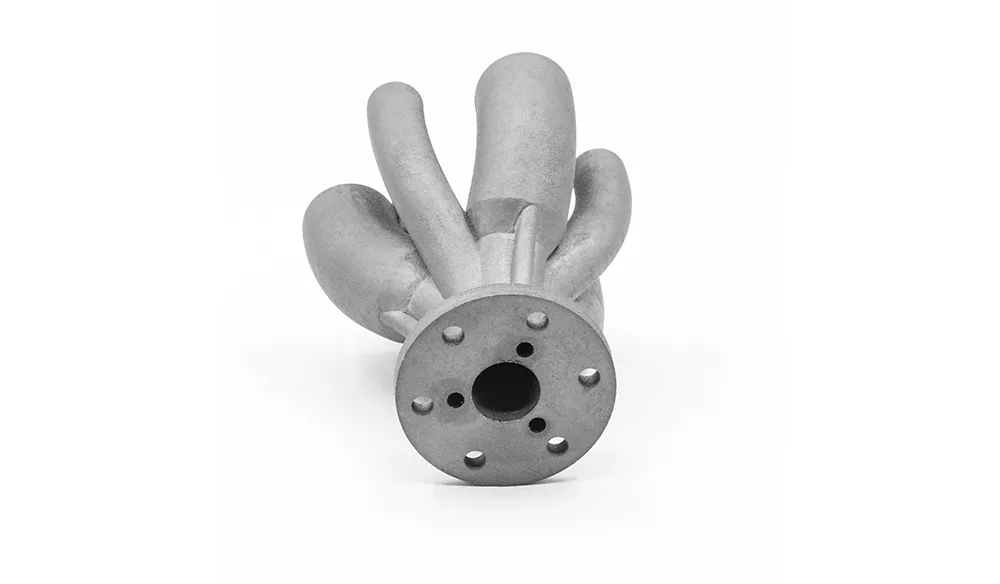

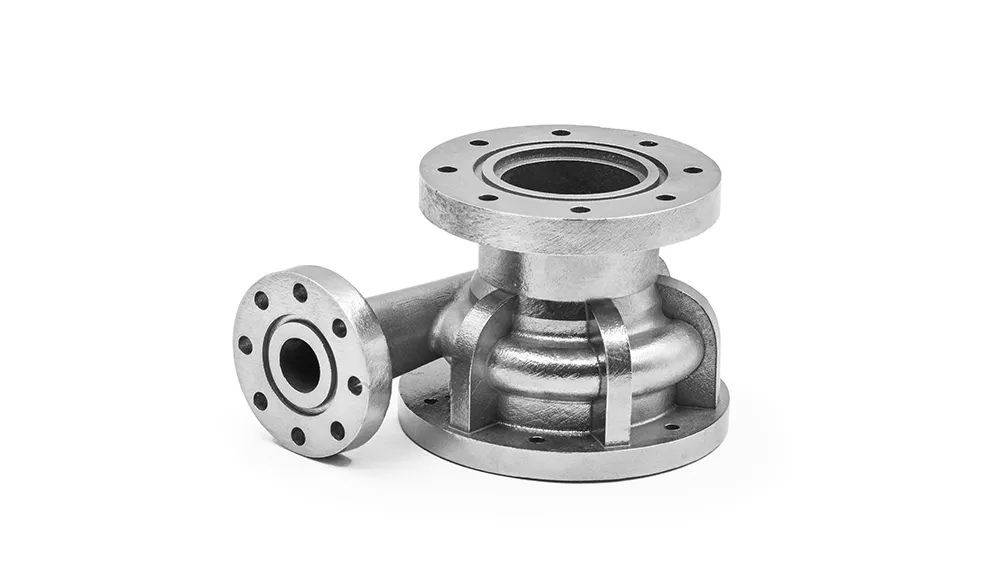

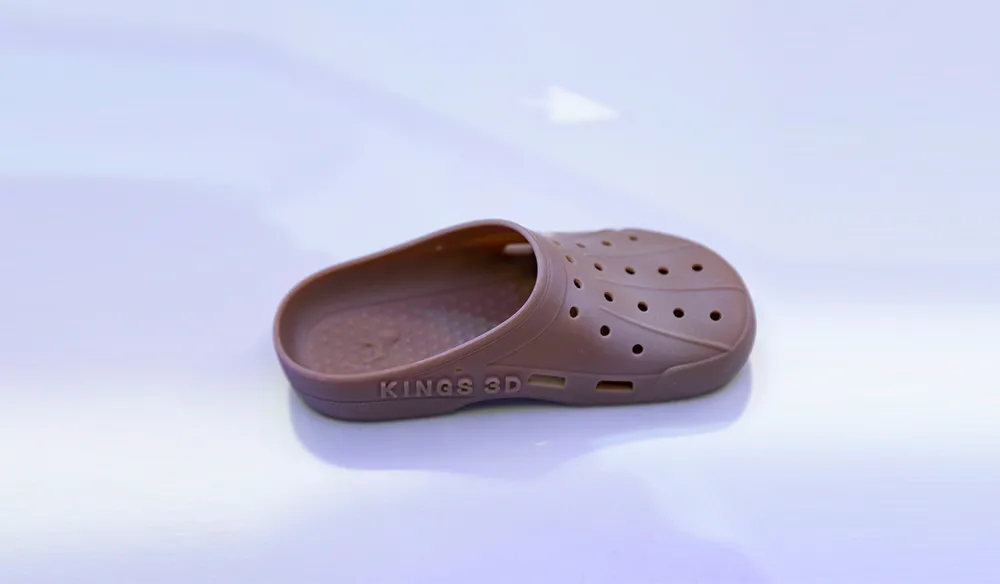

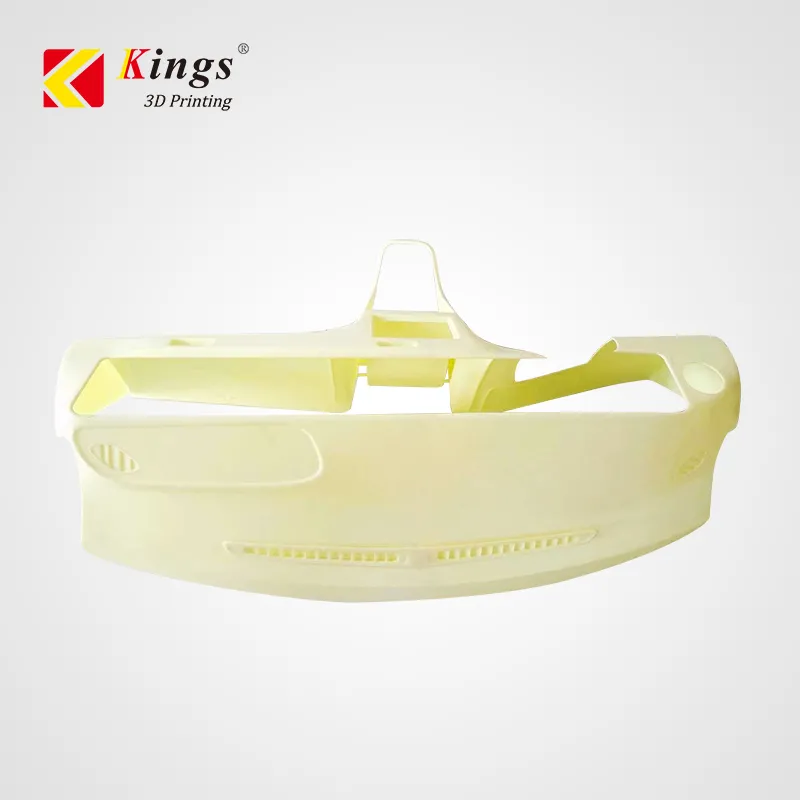

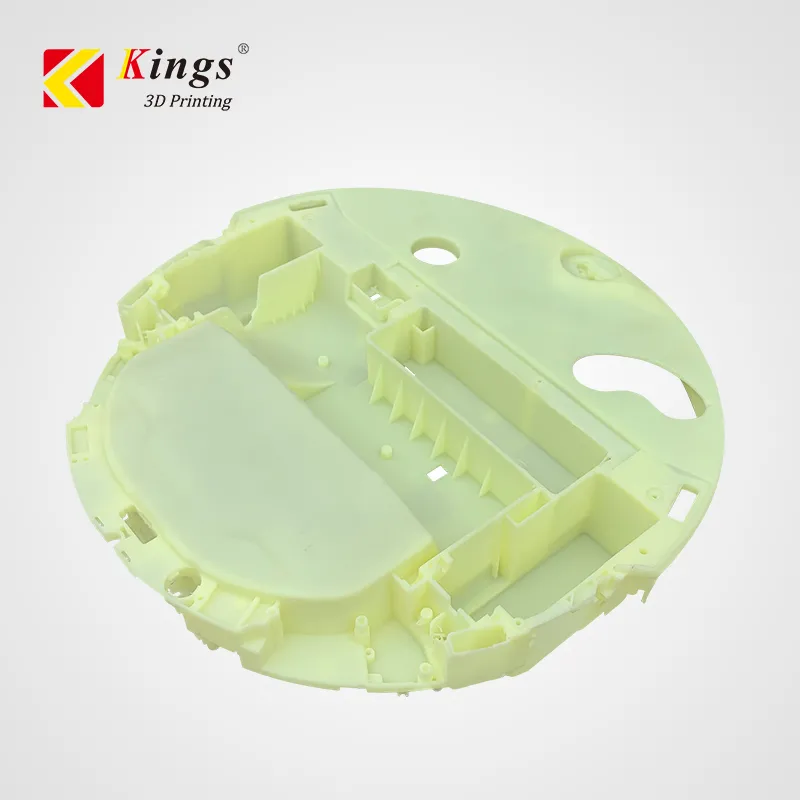

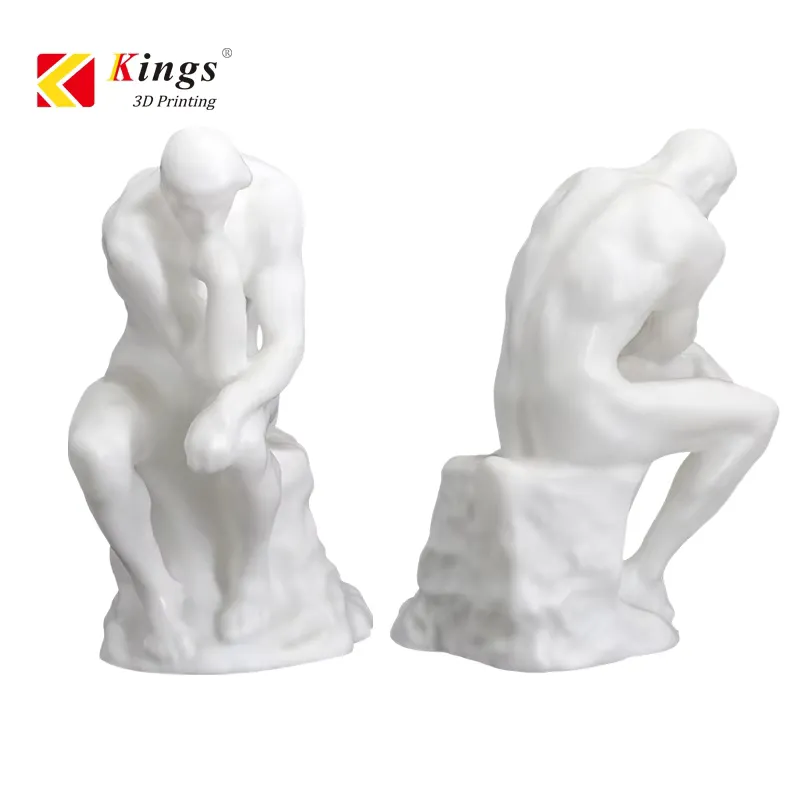

Printing Samples
