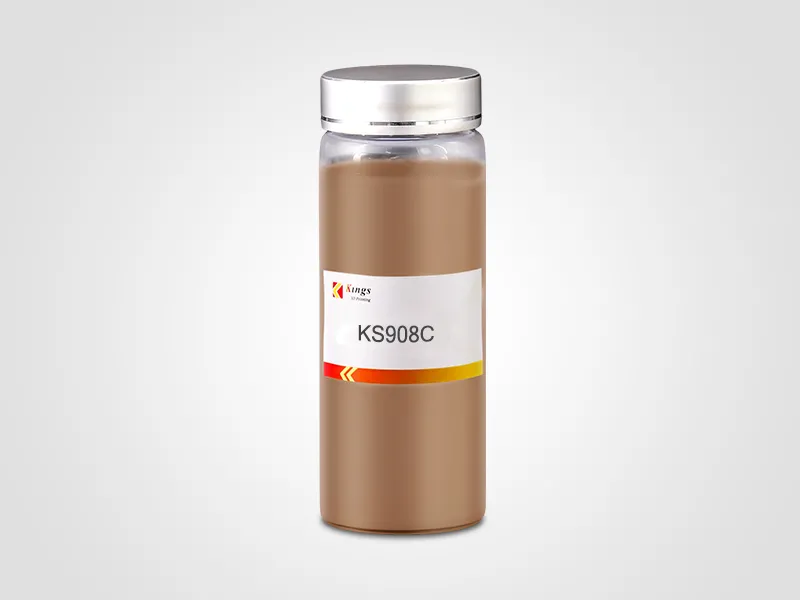

KS908C

KS908C UV Resin is a brown SLA resin with strong durability and precision. It is widely used for master patterns, concept models, and functional prototypes in automotive, medical, and consumer electronics applications.

Inquire Now

Download

Product Details

Overview

KS908C UV Resin is an ABS-like SLA material designed for solid-state SLA platforms, delivering high accuracy and durability. It is ideal for master patterns, concept models, general parts, and functional prototypes in the automotive, medical, and consumer electronics industries. Parts produced with KS908C UV Resin demonstrate durability of over 6.5 months, ensuring long-lasting performance.

Typical Benefits

Need less part finishing time, easier post-curing

Building accurate and high-tough parts with improved dimensional stability

High-quality controls for vacuum casting parts

Low shrink and good resistance to yellowing

Magnificent brown color

Outstanding machinable SLA material

Outstanding temperature-resistant

Physical Properties – Liquid Material

Appearance	Brown
Density	1.11-1.14g/cm³ @ 25 ℃
Viscosity	405~500 cps @ 28 ℃
Dp	0.135-0.155 mm
Ec	9-12 mJ/c㎡
Building layer thickness	0.1-0.15mm

Mechanical Properties of Post-Cured Material

MEASUREMENT	TEST METHOD	VALUE

Hardness , Shore D	ASTM D 2240	74~82
Flexural modulus , Mpa	ASTM D 790	2,650-2,750
Flexural strength , Mpa	ASTM D 790	60- 75
Tensile modulus , MPa	ASTM D 638	2,150-2,370
Tensile strength , MPa	ASTM D 638	25-30
Elongation at break	ASTM D 638	12 -20%
Impact strength notched Izod, J/m	ASTM D 256	58 - 70
Heat deflection temperature, ℃	ASTM D 648 @66PSI	58~68
Glass transition, Tg, ℃	DMA, E" peak	55~70
Density, g/cm³		1.14~1.16
Dielectric Constant 60 Hz	ASTM D 150-98	4.1~5.0
Dielectric Constant1 kHz	ASTM D 150-98	3.2~4.2
Dielectric Constant 1 MHz	ASTM D 150-98	3.2~4.1
Dielectric StrengthkV/mm	ASTM D 1549-97a	12.7~16.2

Notes: The temperature in using and storing KS908C UV Resin should not be too high, please use it below 25 ℃; the relative humidity must be below 38%.

Advantages

Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance

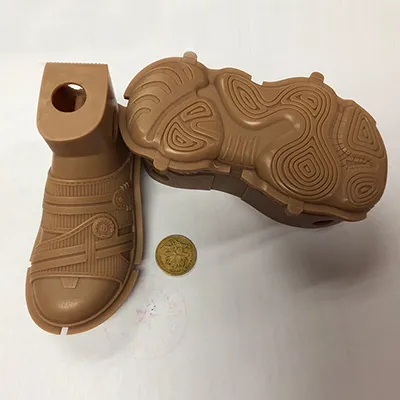

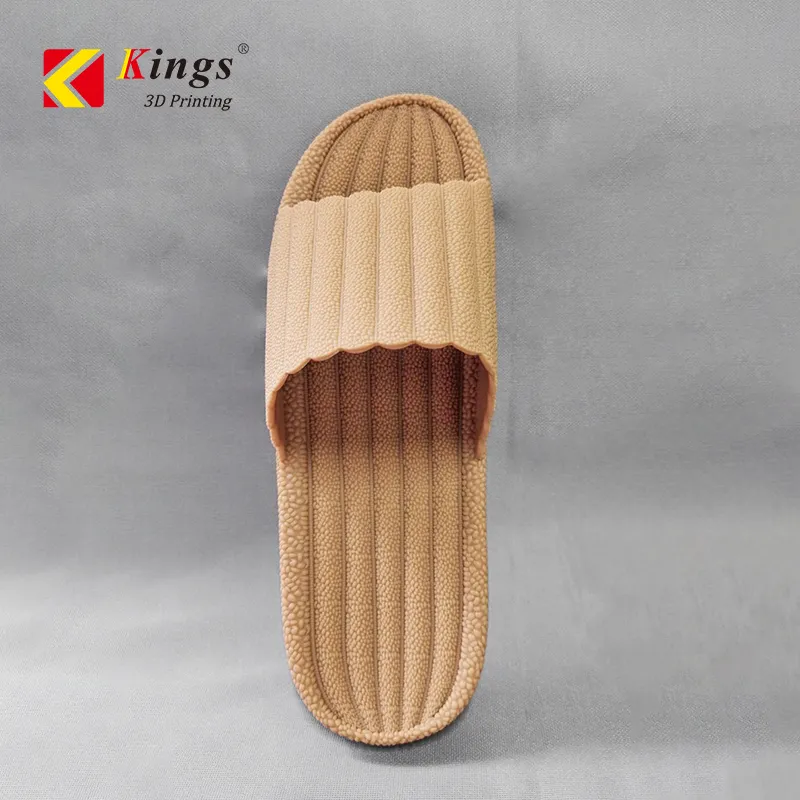

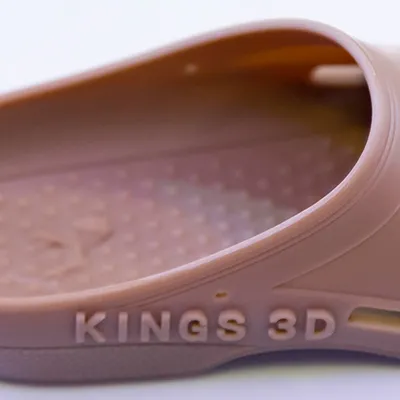

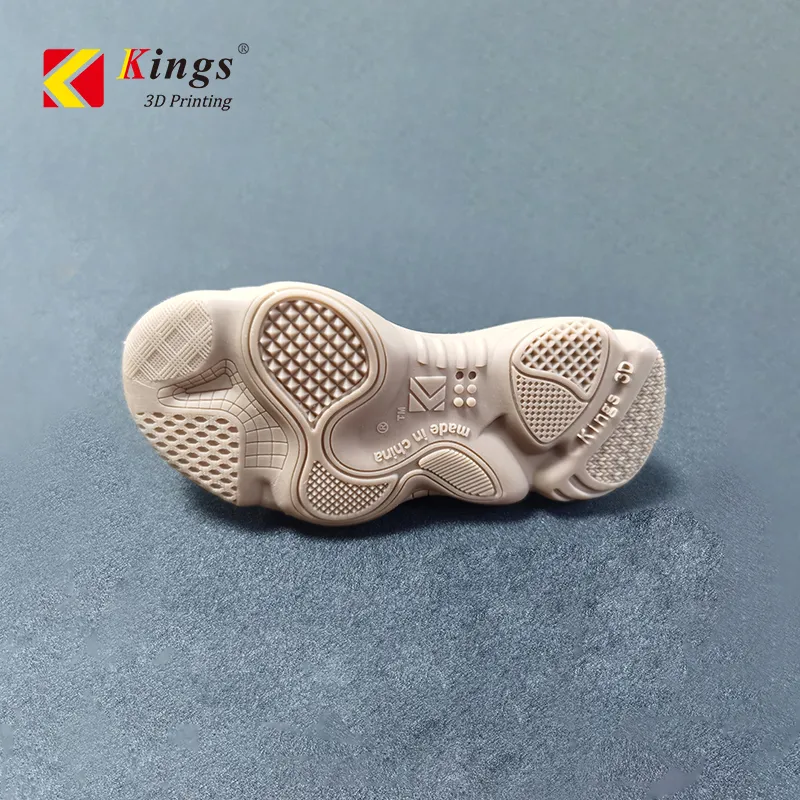

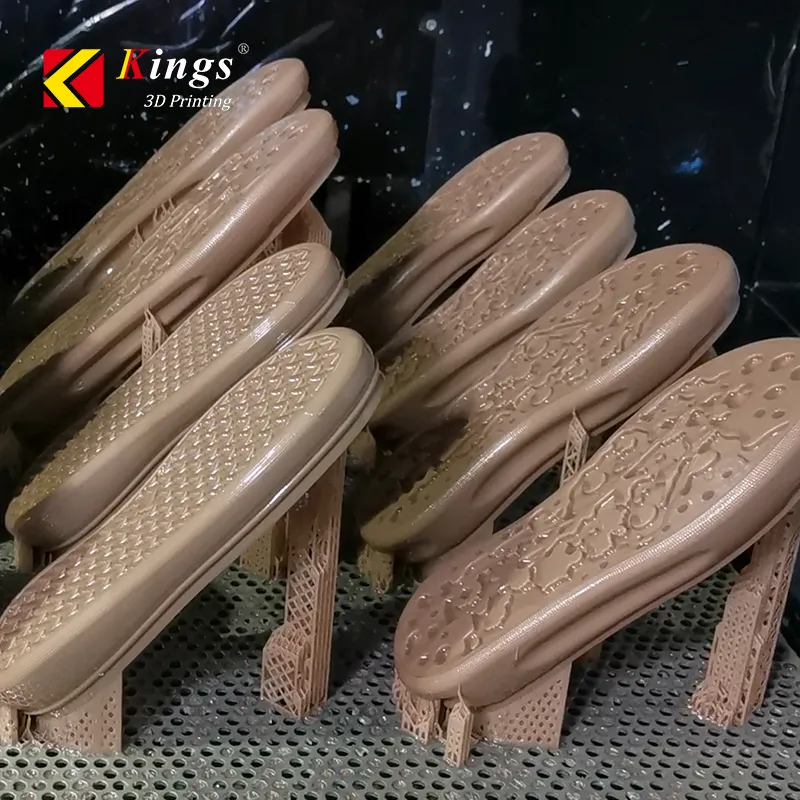

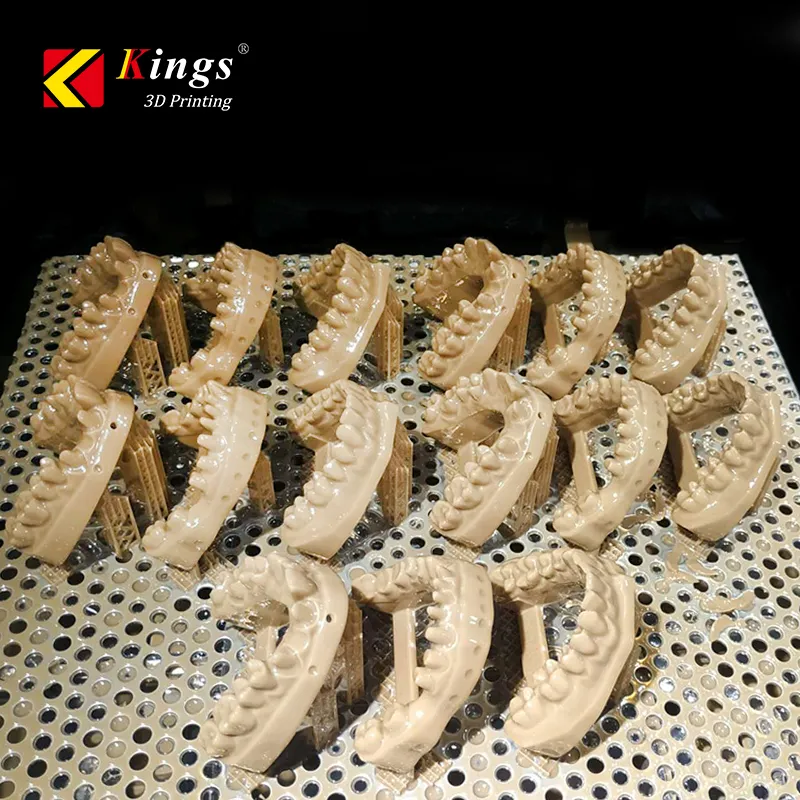

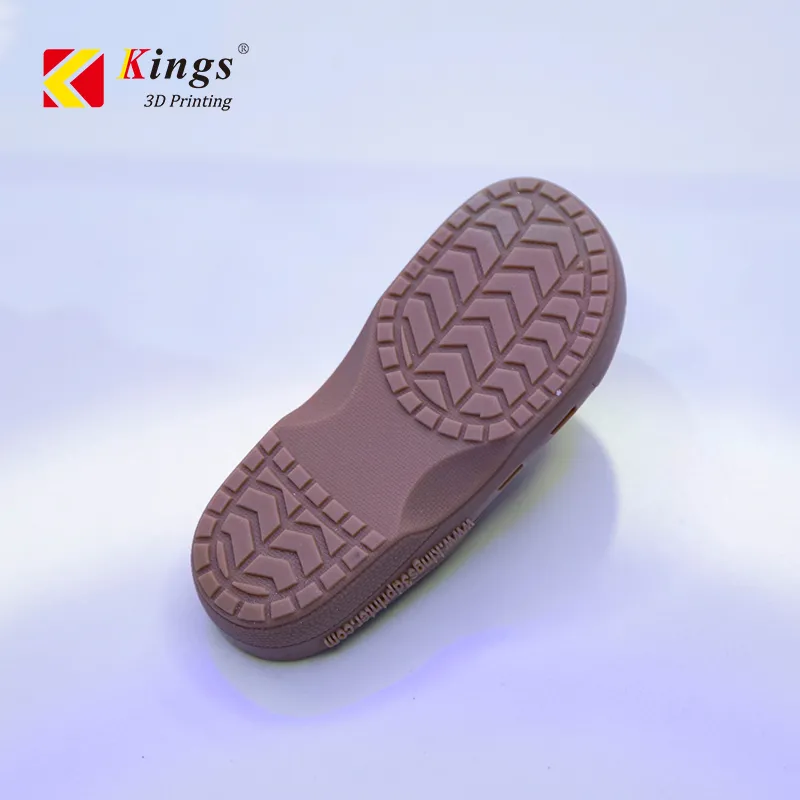

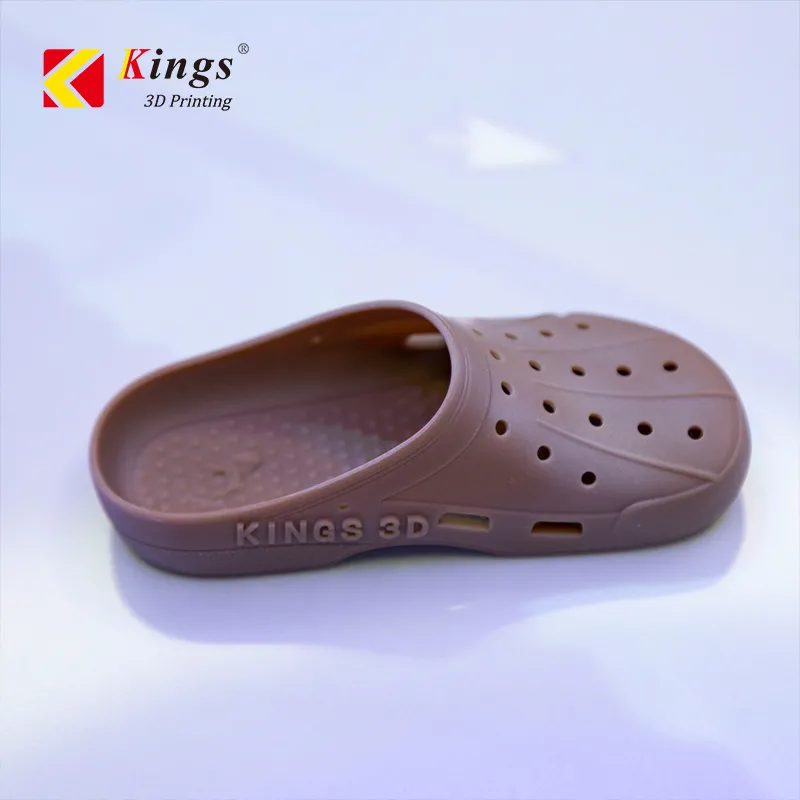

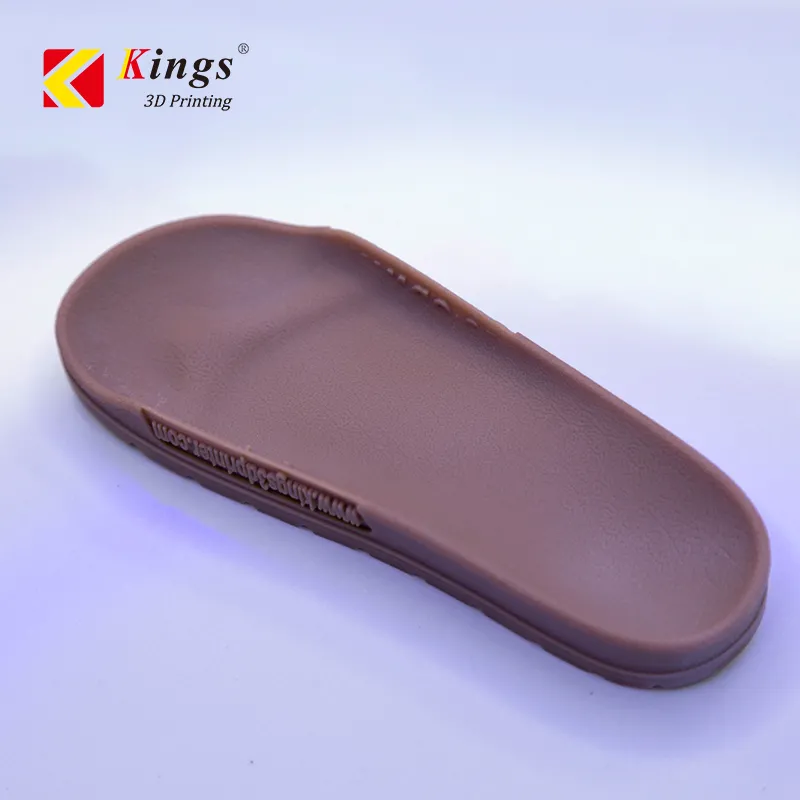

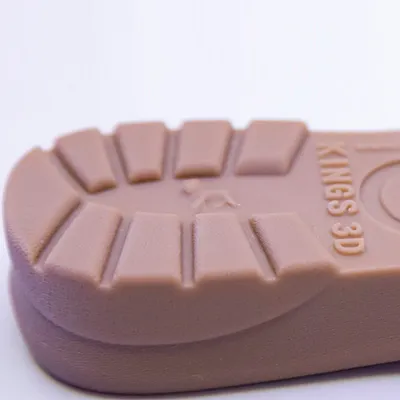

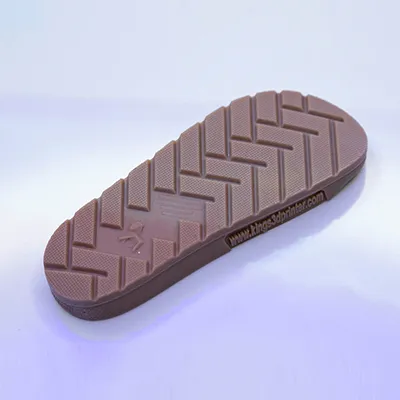

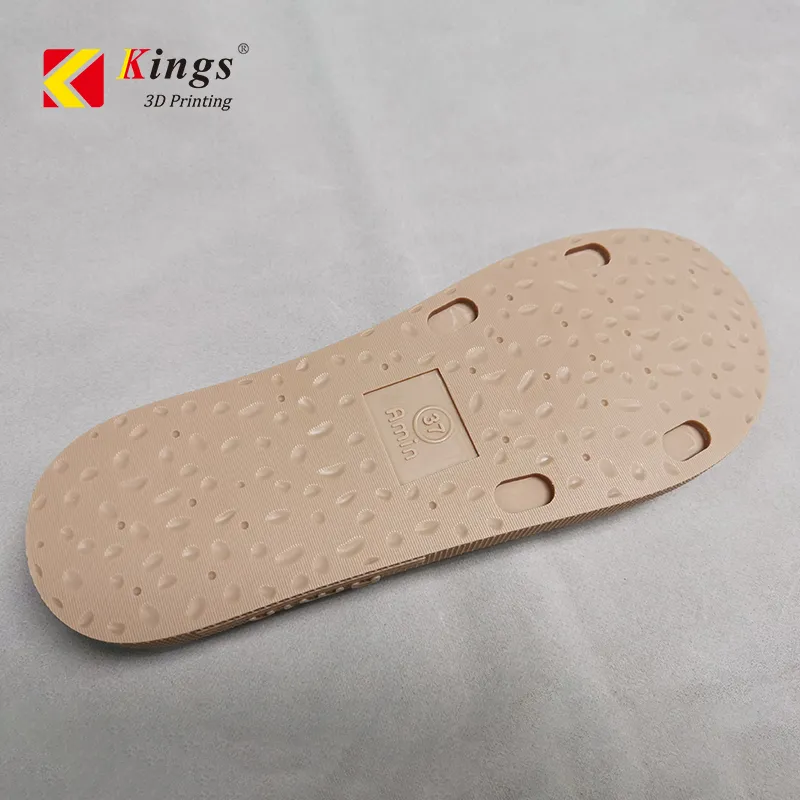

Printing Samples

Application

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
