KS808-BK UV Resin is a black SLA resin with excellent durability and mechanical performance. It is suitable for general parts, prototypes, and industrial components requiring long-term strength and stability.
Product Details
Overview
KS808-BK is a black, high-performance SLA material designed for applications requiring both durability and precision. With excellent mechanical properties and stability, it is widely used for functional prototypes, general parts, and end-use applications in industries such as automotive, medical, and consumer electronics.
Ideal Applications
High-toughness functional prototype
Conceptual model
Applications in automotive, aerospace, architecture, electronic products, and other fields
Technical Datasheet
| Liquid Properties | Value |
| Color | Black |
| Density, g/cm3 | 1.12-1.14 g/cm3 @ 25 ℃ |
| Viscosity | 450-505 cps @ 25 ℃ |
| Depth | 0.135-0.155 mm |
| Critical Exposure | 9-12 mJ/cm2 |
| Building layer thickness | 0.05~0.125mm |
| Mechanical Properties | Test Method | Value |
| Hardness, Shore D | ASTM D 2240 | 79-83 |
| Flexural modulus, MPa | ASTM D 790 | 2,650-2,750 |
| Flexural strength, MPa | ASTM D 790 | 60- 75 |
| Tensile modulus, MPa | ASTM D 638 | 2,150-2,370 |
| Tensile modulus, MPa | ASTM D 638 | 25-30 |
| Elongation at break | ASTM D 638 | 12 -20% |
| Impact strength, notched Izod, J/m | ASTM D 256 | 48-60 |
| Heat deflection temperature, ℃ | ASTM D 648 @66PSI | 58-70 |
| Glass transition, Tg, ℃ | DMA， E"peak | 60-77 |
Advantages
Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance

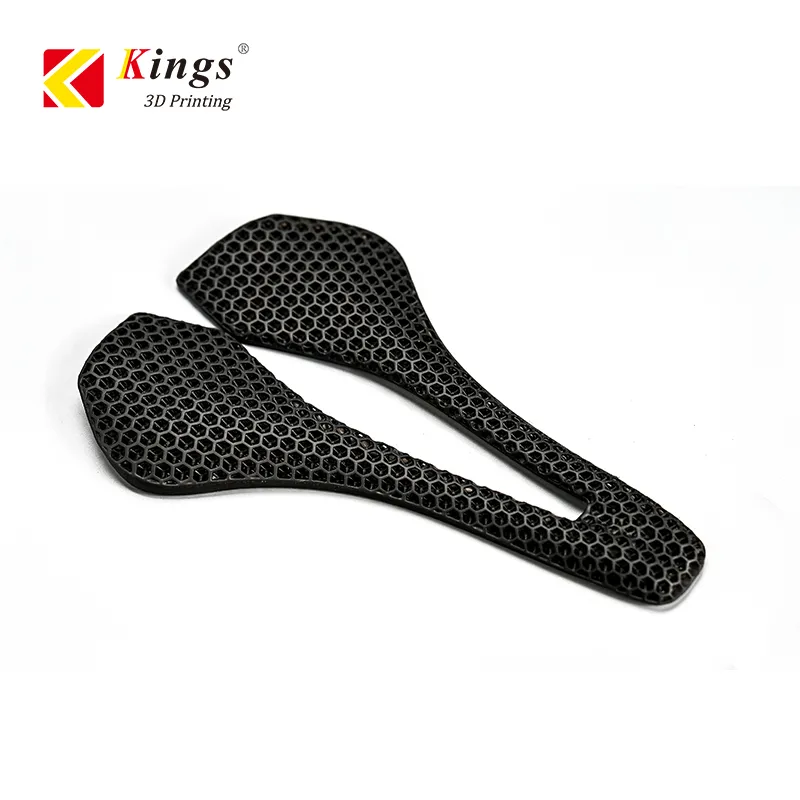

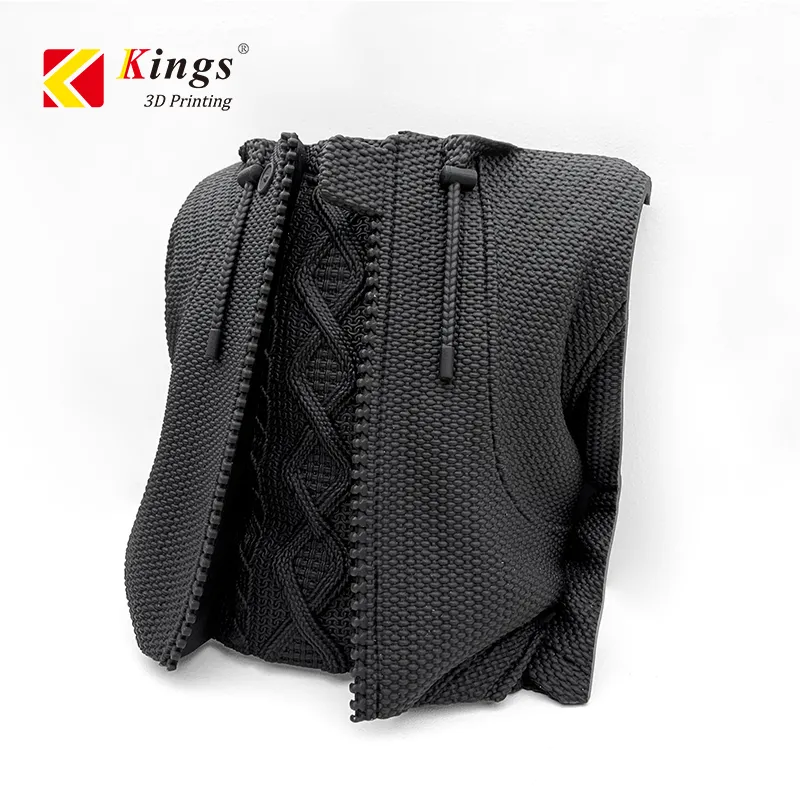

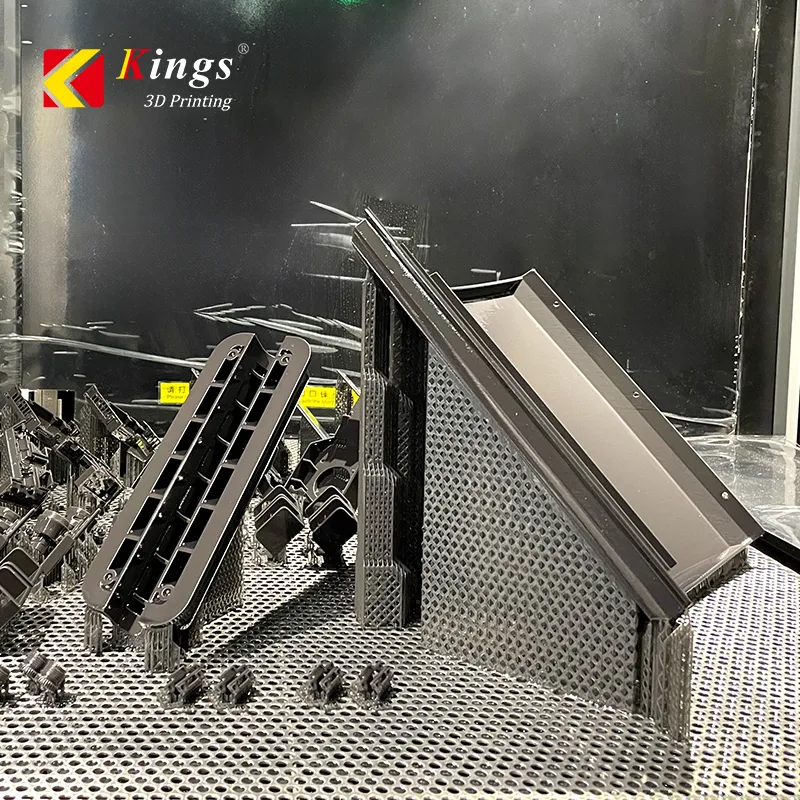

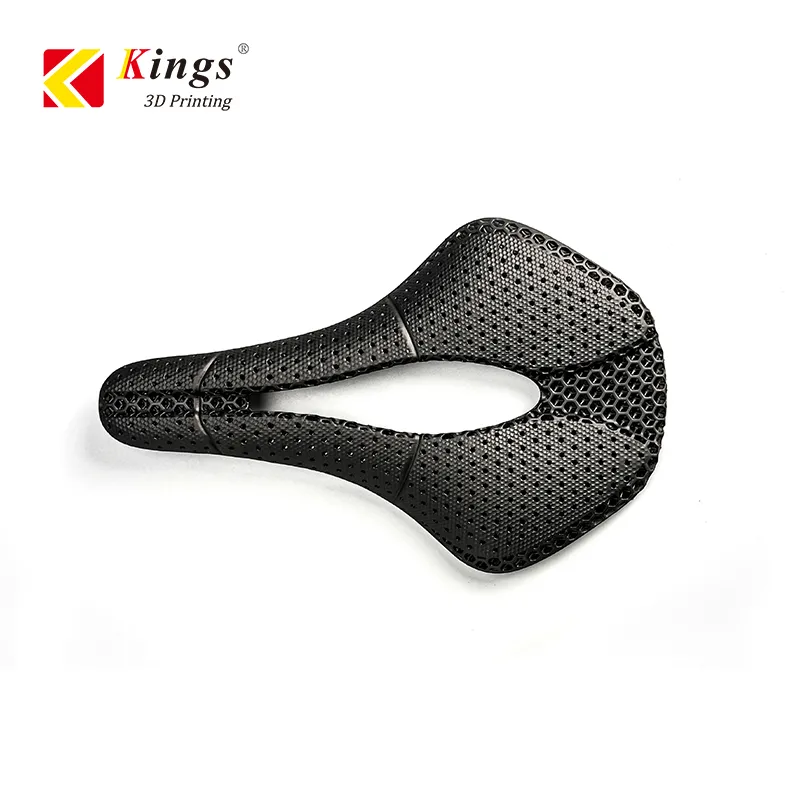

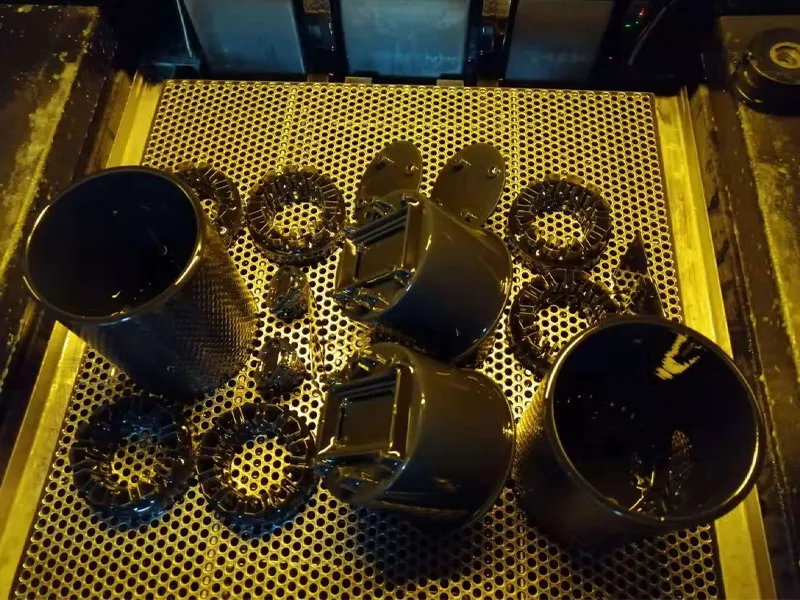

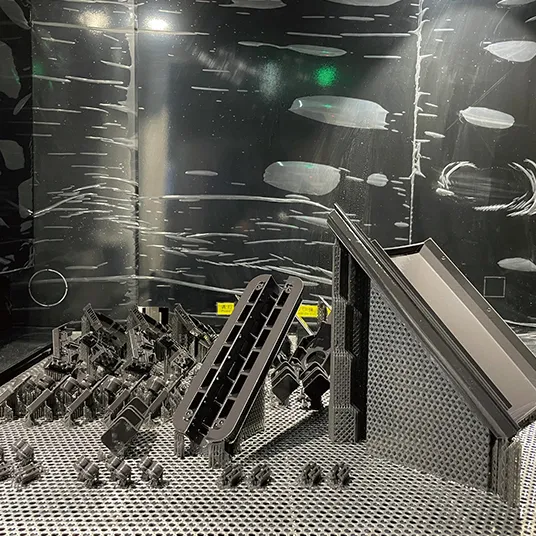

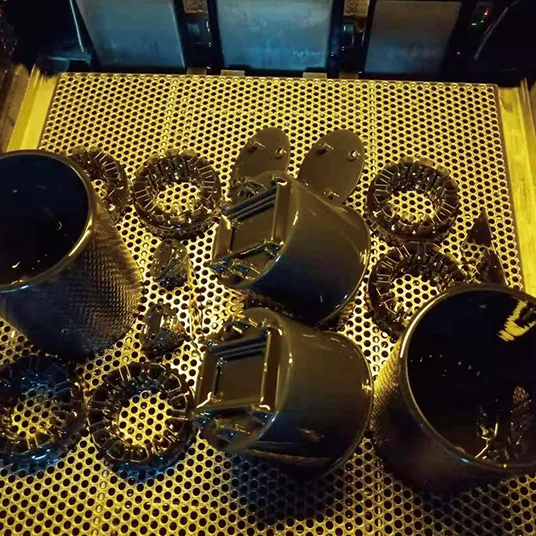

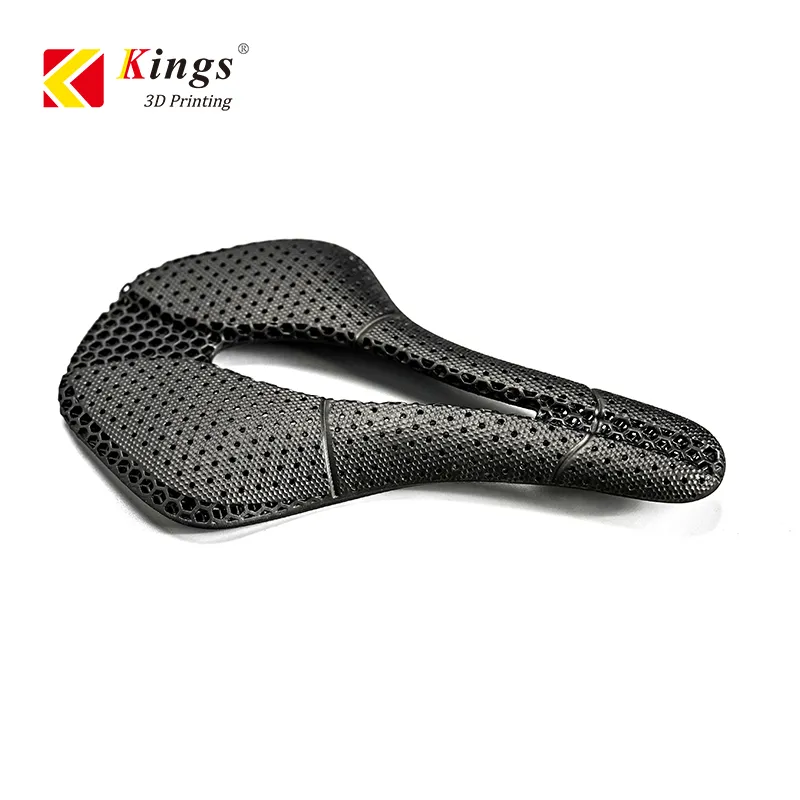

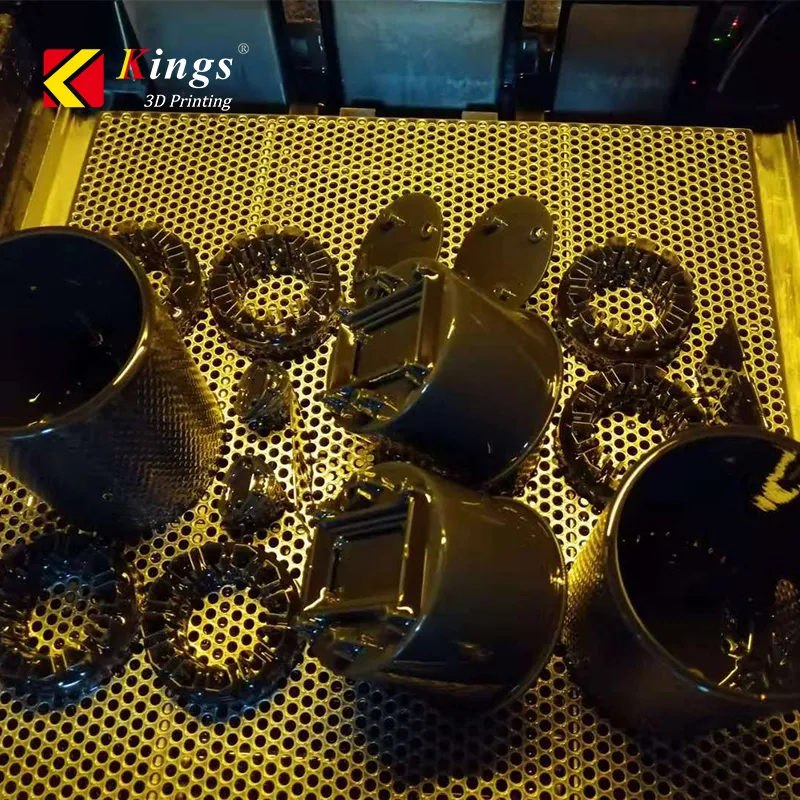

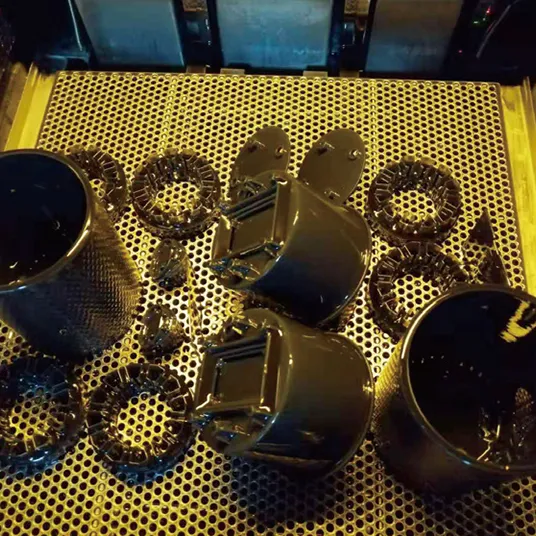

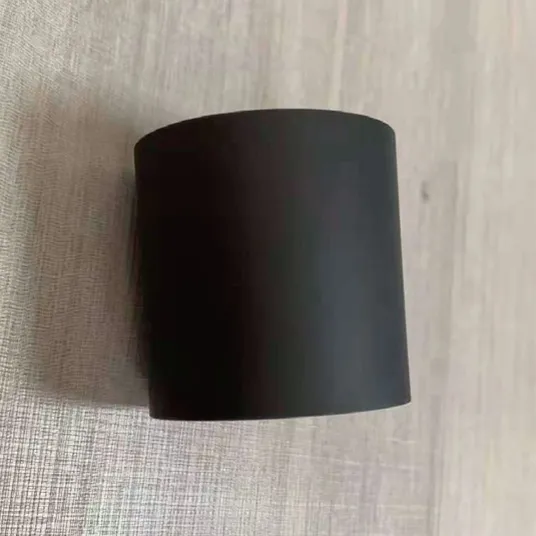

Printing Samples
