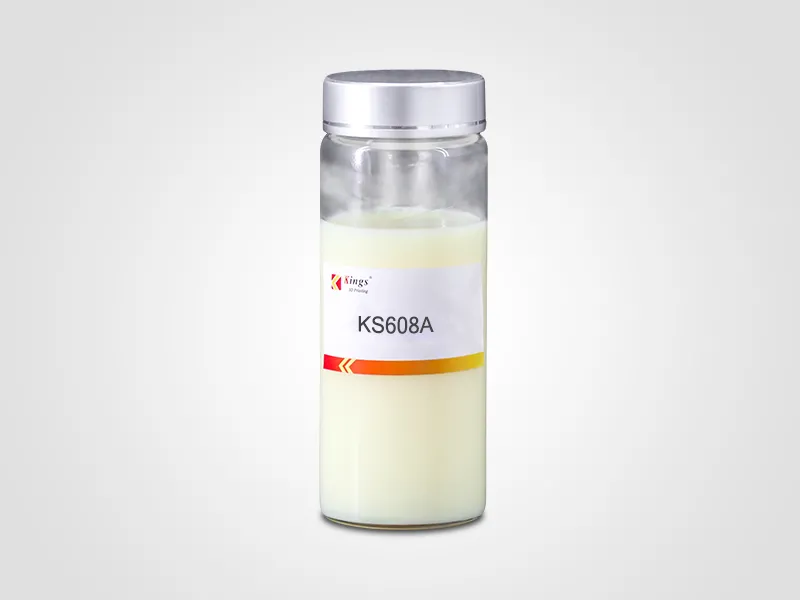

KS608A UV Resin is a yellow SLA material with ABS-like properties, combining toughness and accuracy. It is ideal for prototyping, functional testing, and model making in automotive, healthcare, and consumer electronics industries.
Product Details
Overview
KS608A UV Resin is a durable yellow SLA material with ABS-like properties, offering excellent accuracy and toughness for 3D printing. Ideal for model making and prototyping in automotive, medical, and consumer electronics industries, it ensures reliable performance with part durability exceeding 6.5 months.
Typical Benefits
Need less part finishing time, easier post-curing.
Building accurate and high-tough parts with improved dimensional stability.
High-quality controls for vacuum casting parts.
Color is closer to the ABS.
Outstanding machinable SLA material.
Physical Properties – Liquid Material
| Appearance | Light yellow |
| Density | 1.11-1.14g/cm³ @ 25 ℃ |
| Viscosity | 355-455 cps @ 28 ℃ |
| Dp | 0.135-0.155 mm |
| Ec | 9-12 mJ/c㎡ |
| Building layer thickness | 0.05-0.15mm |
Mechanical Properties of Post-Cured Material
| MEASUREMENT | TEST METHOD | VALUE |
| 90-minute UV post-cure | ||
| Hardness, Shore D | ASTM D 2240 | 76-82 |
| Flexural modulus, Mpa | ASTM D 790 | 2,650-2,760 |
| Flexural strength, MPa | ASTM D 790 | 65- 74 |
| Tensile modulus, MPa | ASTM D 638 | 2,160-2,360 |
| Tensile strength, MPa | ASTM D 638 | 25-30 |
| Elongation at break | ASTM D 638 | 12 -20% |
| Poisson`s Ratio | ASTM D 638 | 0.38-0.42 |
| Impact strength notched Izod, J/m | ASTM D 256 | 58 - 70 |
| Heat deflection temperature, ℃ | ASTM D 648 @66PSI | 58 - 68 |
| Glass transition, Tg, ℃ | DMA, E" peak | 55-70 |
| Coefficient of thermal expansion, /℃ | TMA(T<Tg) | 92*E-6 |
| Density, g/cm3 | 1.14-1.16 | |
| Dielectric Constant 60 Hz | ASTM D 150-98 | 4.5 |
| Dielectric Constant 1 kHz | ASTM D 150-98 | 3.9 |
| Dielectric Constant 1 MHz | ASTM D 150-98 | 3.6 |
| Dielectric Strength kV/mm | ASTM D 1549-97a | 14.8 |
Advantages
Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance

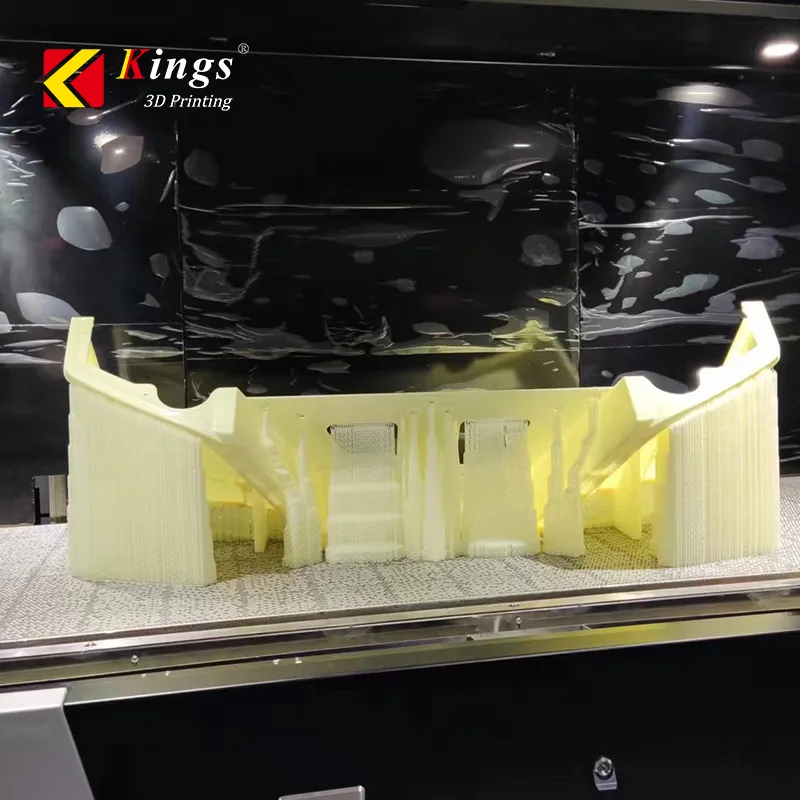

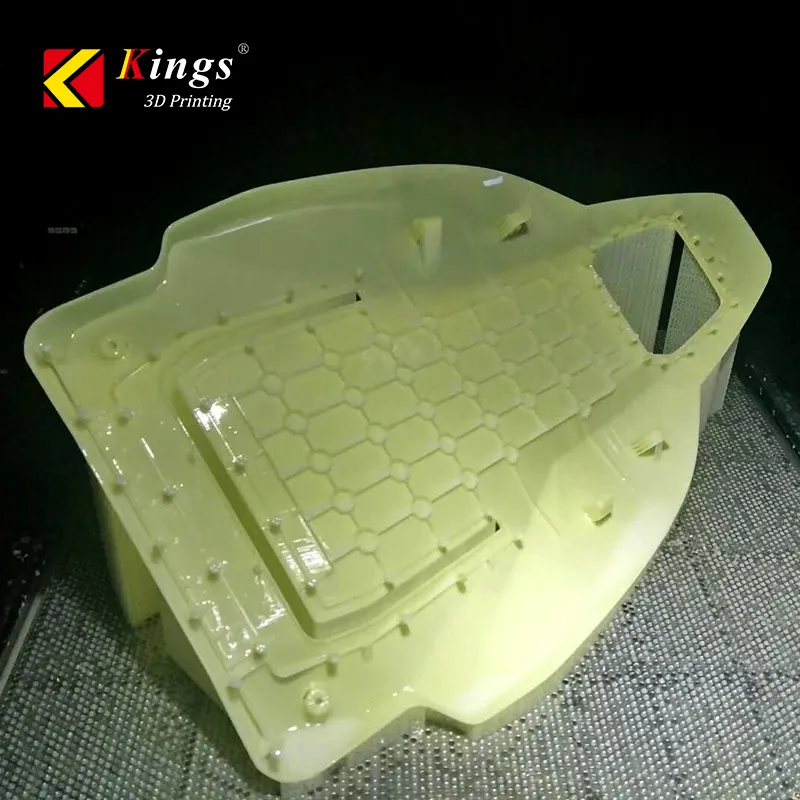

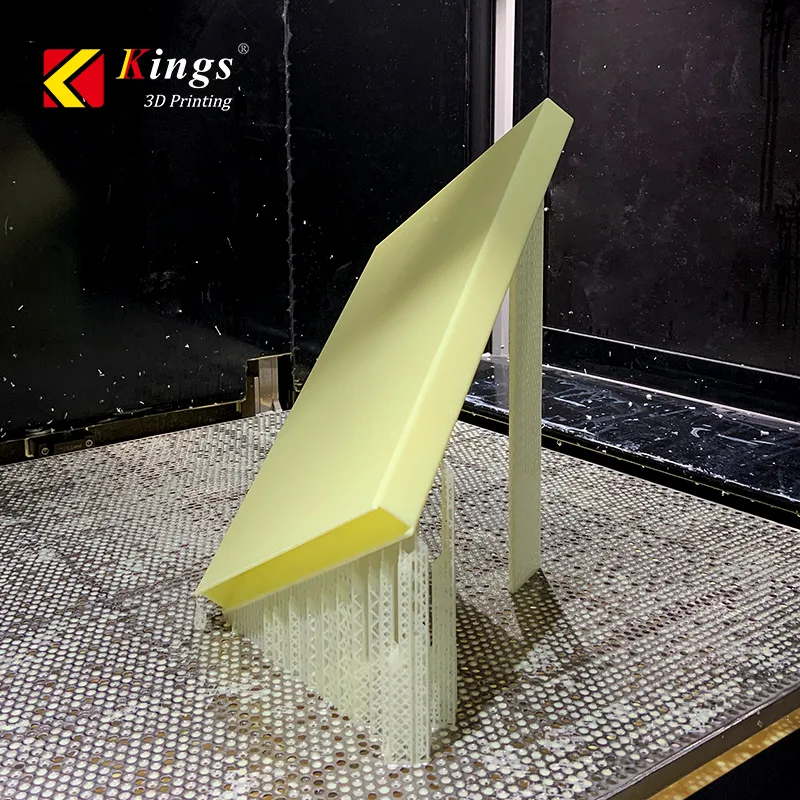

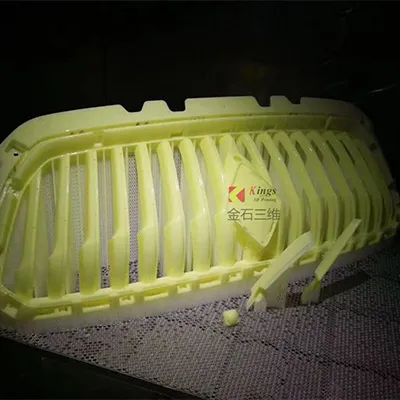

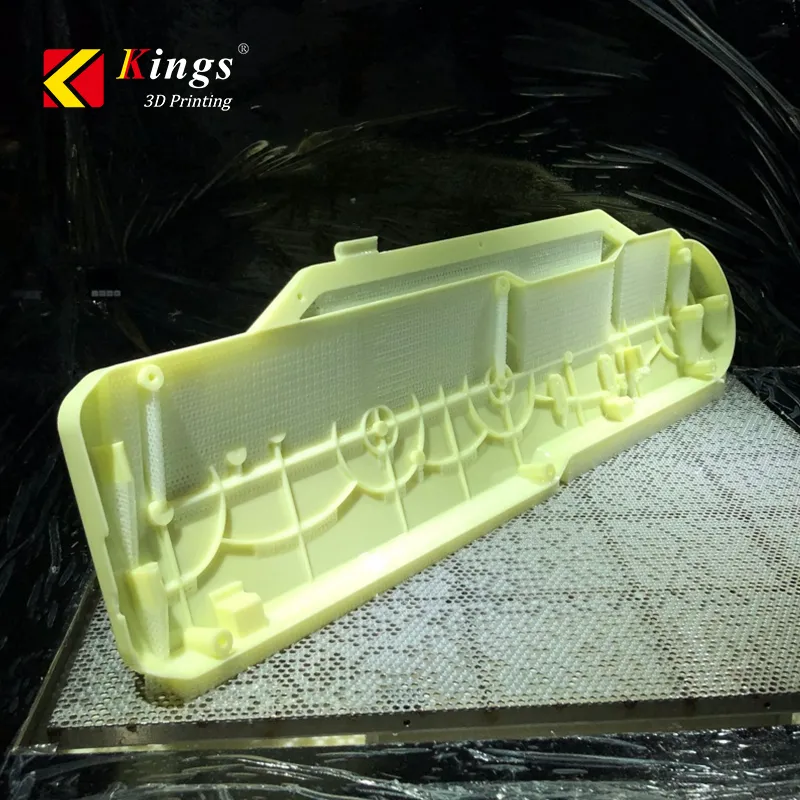

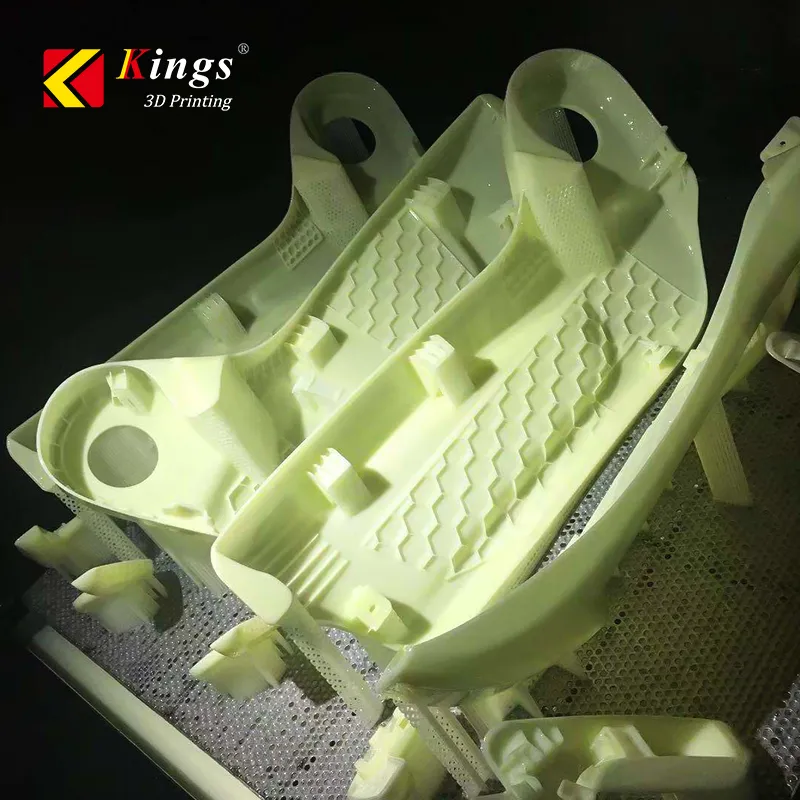

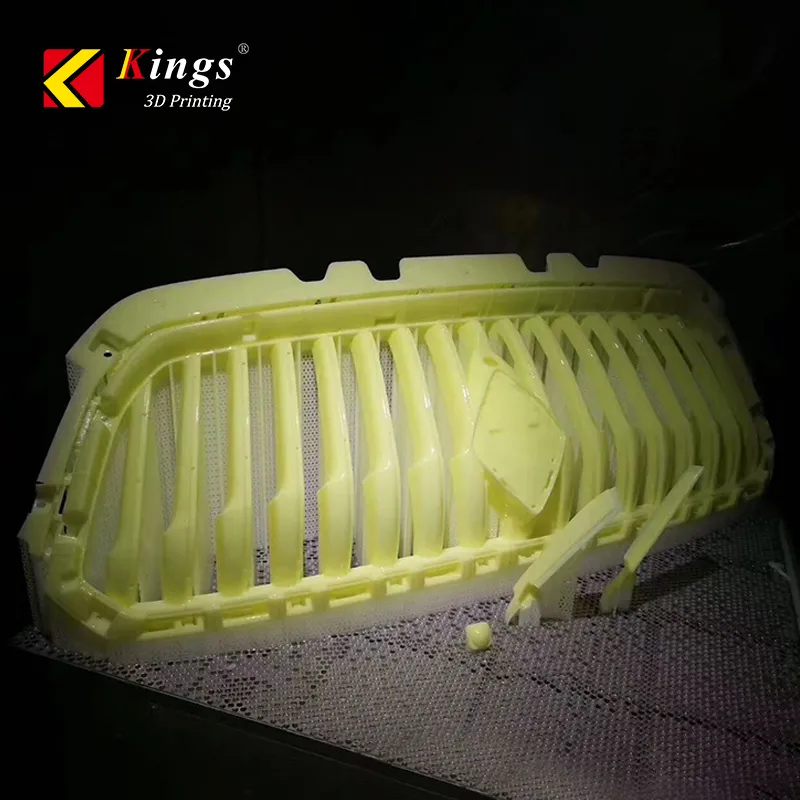

Printing Samples
