Product Details
Overview
KS50TGH is a high-toughness resin engineered for applications requiring excellent impact resistance, low shrinkage, and reliable mechanical performance. With a balanced combination of toughness, strength, dimensional stability, and surface quality, KS50TGH is ideal for precision prototypes, complex structural parts, assembly testing, and functional components.
IDEAL APPLICATIONS
> Precision Prototypes
> Appearance Verification Models
> Complex Structural Parts
> Assembly Testing Parts
> Automotive Interior Components
> Consumer Electronics Components
> Functional Prototypes
TECHNICAL DATASHEET
Physical Properties - Liquid Material
| Appearance | Yellow-green |
| Viscosity | 480-530 |
| Density | 1.11-1.14g/cm³ @ 25℃ |
Optical Properties
| Dp | 0.135-0.155 mm |
| Ec | 9-12 mJ/c㎡ |
| Building Layer Thickness | 0.05-0.15mm |
Mechanical Properties
| Measurement | Test Method | Test Value |
| Hardness Shore D | ASTM D240 | 75-78 |
| Flexural Strength | ASTM D790 | 60-75 |
| Tensile Strength | ASTM D638 | 35-40 |
| Elongation at Break | ASTM D638 | 19-22% |
| Tensile Modulus | ASTM D638 | 2,150-2,370 |
| Impact Strength, J/m | ASTM D256 | 58-70 |
| Heat Deflection Temperature, ℃ | ASTM D648 | 48-50 |
Advantages
Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance

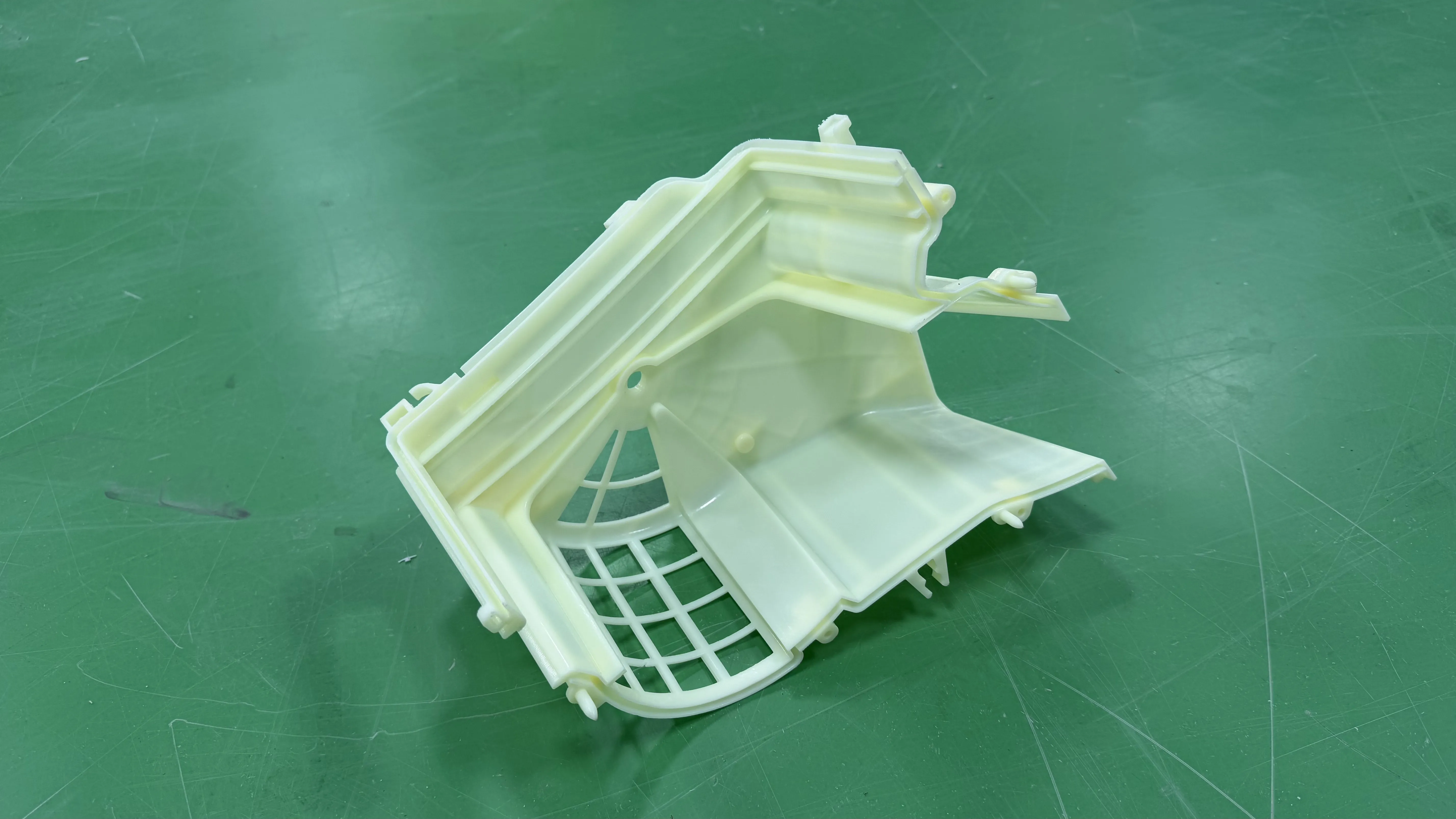

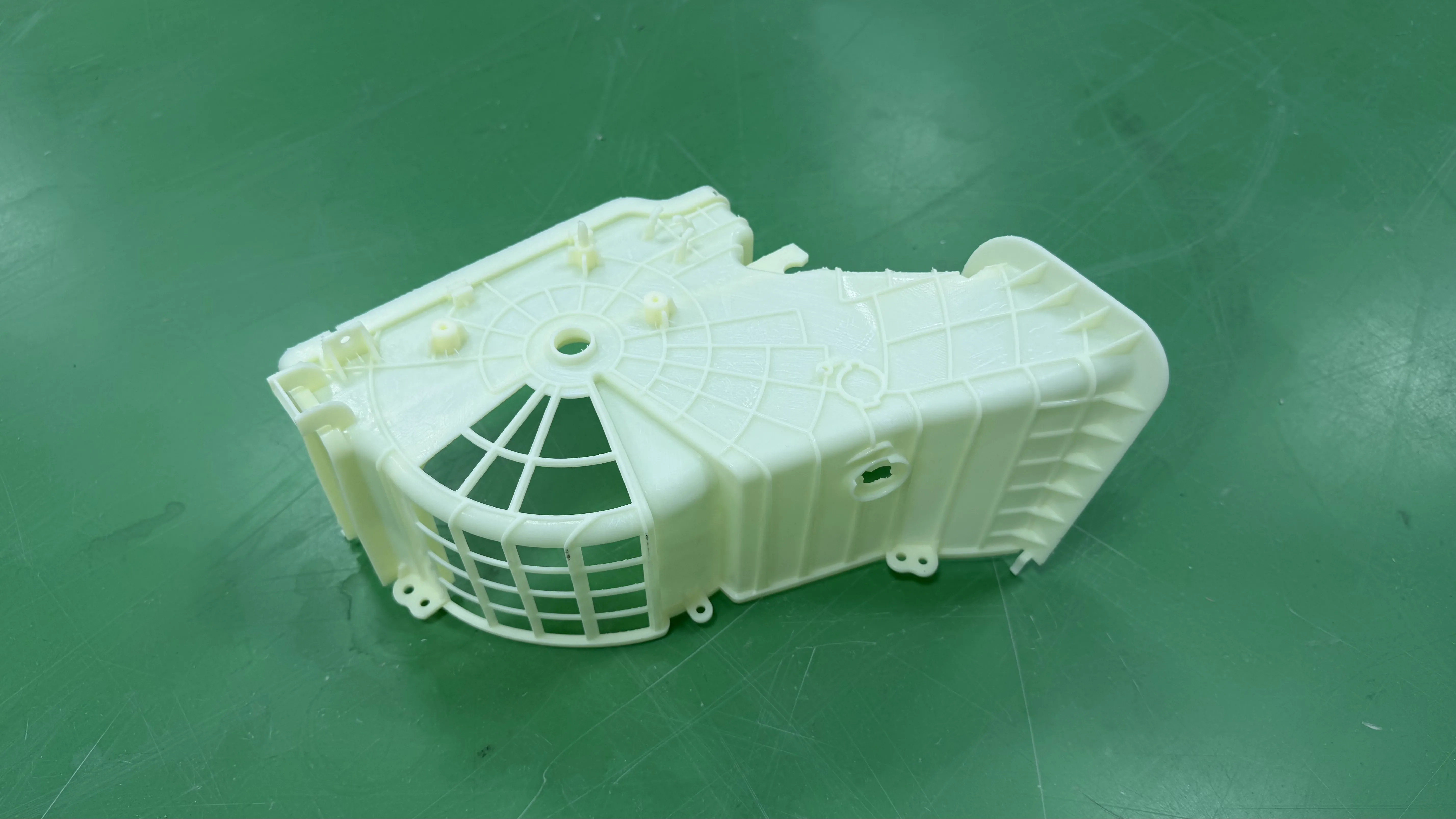

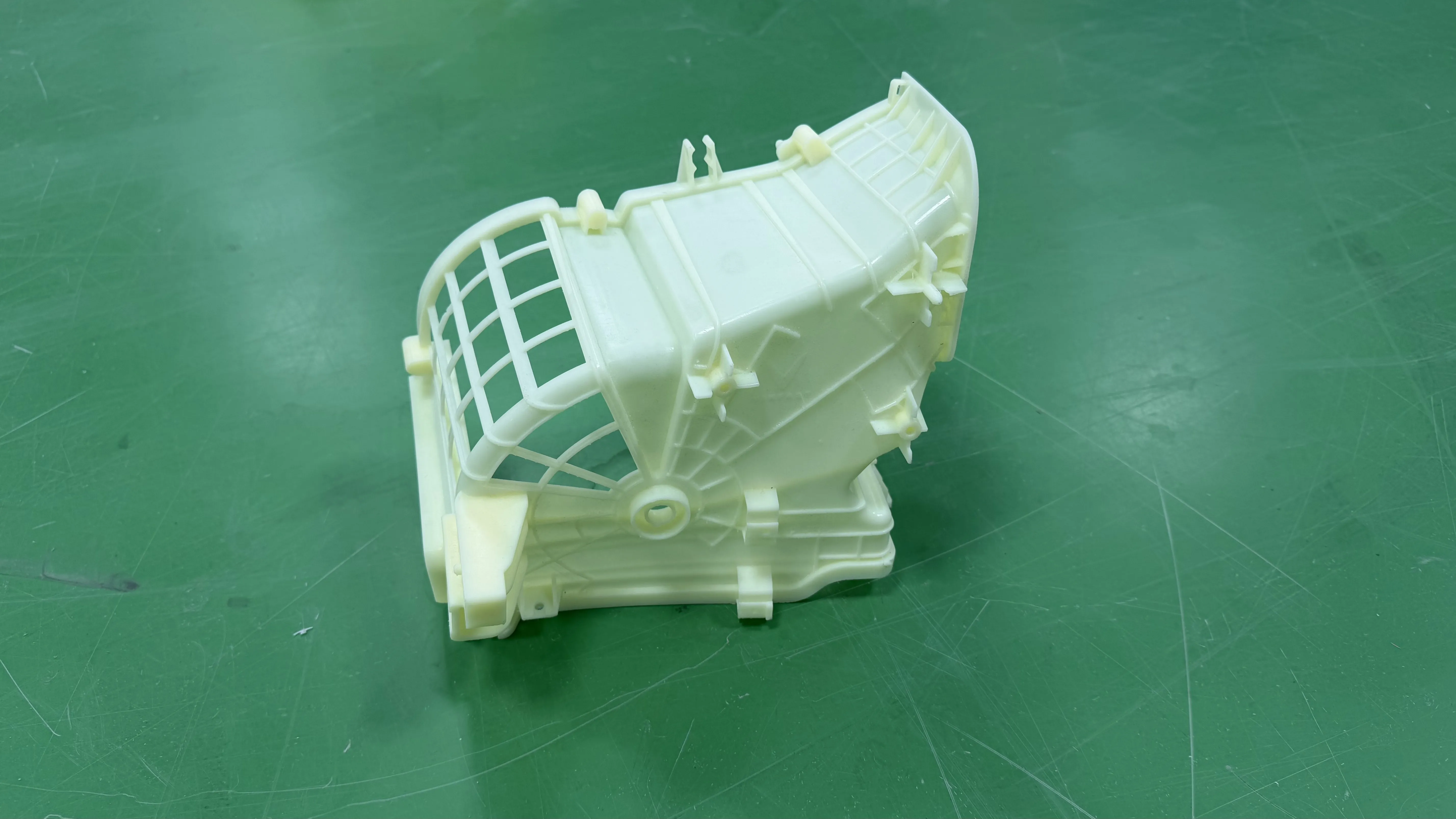

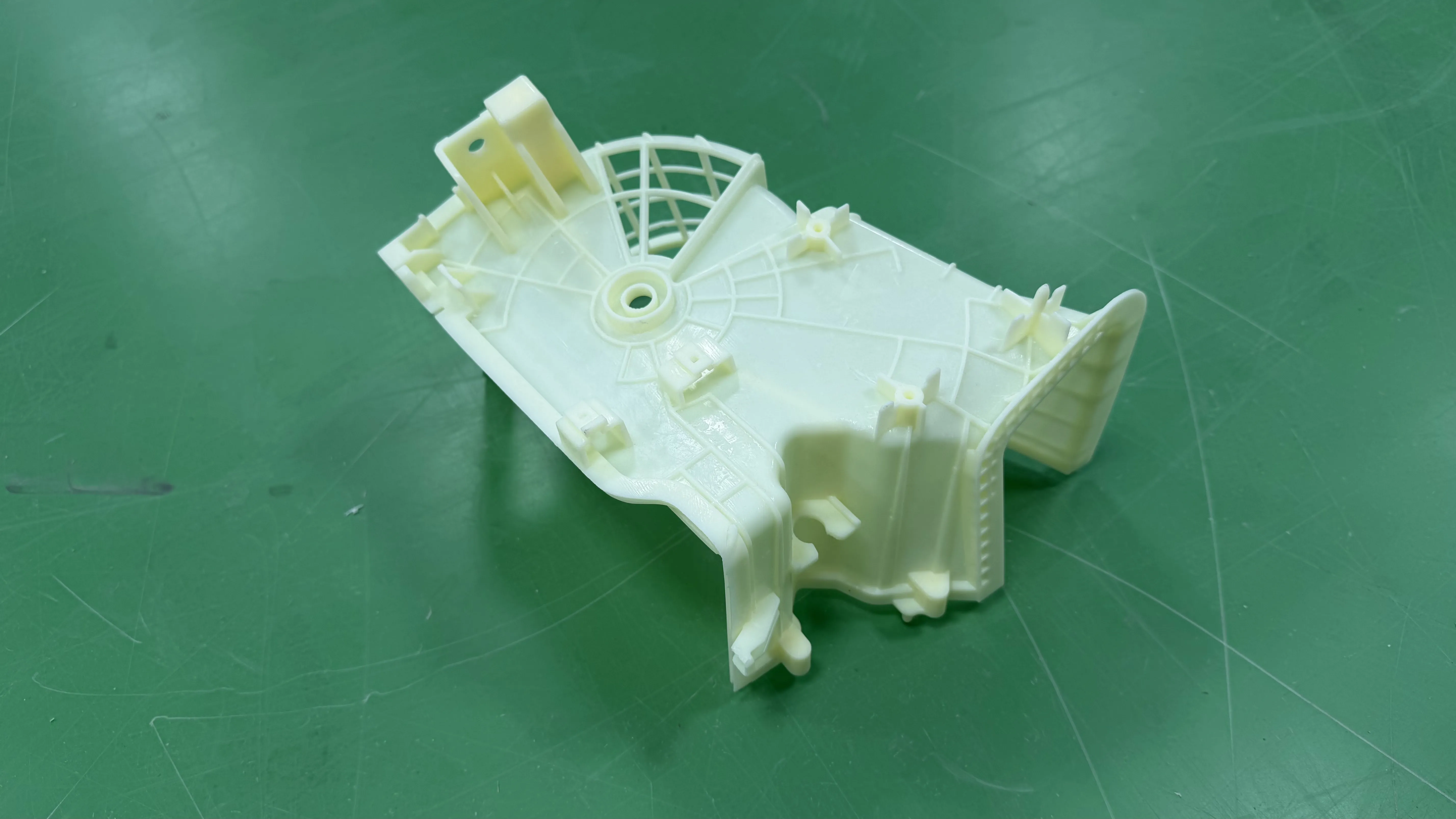

Printing Samples
