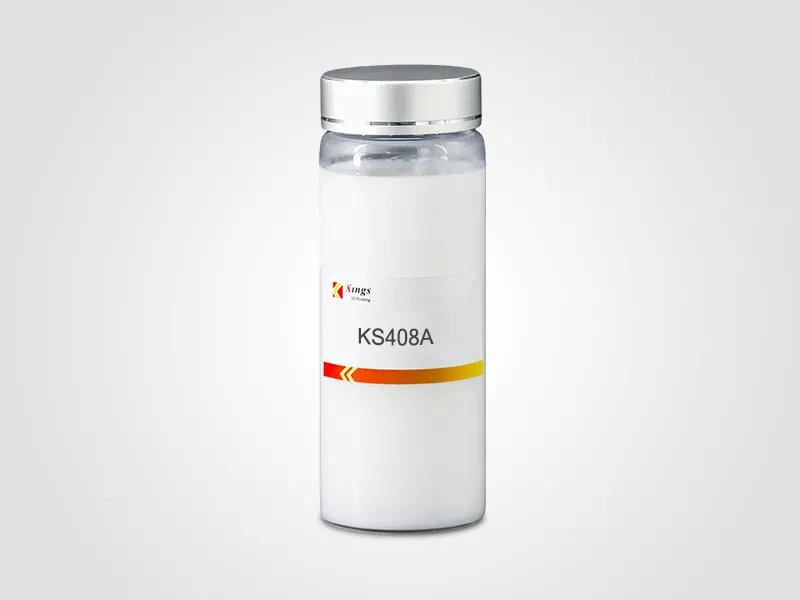

KS408A

KS408A UV Resin is a white SLA resin with excellent accuracy and surface quality. It is widely used in prototyping, design models, and industrial applications across automotive, medical, and consumer electronics fields.

Inquire Now

Download

Product Details

Overview

KS408A UV Resin is a precision and durable ABS-like lithography resin used in SLA 3D printers. It is a master model for the production of common 3D printing materials, automotive, medical, consumer electronics and other industrial fields, conceptual models, general components,functional components can be produced.The parts durability building with KS408A is over 6.5months.

Get more details about the 3D Printer Resin Cost.

Typical Benefits

Need less part finishing time, easier post-curing

Building accurate and high-tough parts with an improved dimensional stability

High-quality controls for vacuum casting parts

Low shrink and good resistance to yellowing

Magnificent white color

Outstanding machinable SLA material

Physical Properties of Liquid Material

Appearance	Opaque White
Density	1.11-1.14g/cm³ @ 25 ℃
Viscosity	355-455 cps @ 28 ℃
Dp	0.135-0.155 mm
Ec	9-12 mJ/c㎡
Building layer thickness	0.05-0.15mm

Mechanical Properties of Post-Cured Material

MEASUREMENT	TEST METHOD	VALUE
		90-minute UV post-cure
Hardness , Shore D	ASTM D 2240	76-82
Flexural modulus, Mpa	ASTM D 790	2,690-2,775
Flexural strength, Mpa	ASTM D 790	68- 75
Tensile modulus, MPa	ASTM D 638	2,180-2,395
Tensile strength, MPa	ASTM D 638	27-31
Elongation at break	ASTM D 638	12 -20%
Impact strength, notched lzod, J/m	ASTM D 256	58 - 70
Heat deflection temperature, ℃	ASTM D 648 @66PSI	55-65
Glass transition, Tg，℃	DMA，E" peak	55-70
Coefficient of thermal expansion, /℃	TMA(T<Tg)	97*E-6
Density, g/cm3		1.14-1.16

Note: The temperature for KS408A resin processing and storage should be lower than 25℃, and the recommended temperature is 18℃ - 25℃.

Get a free quote

Advantages

Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance

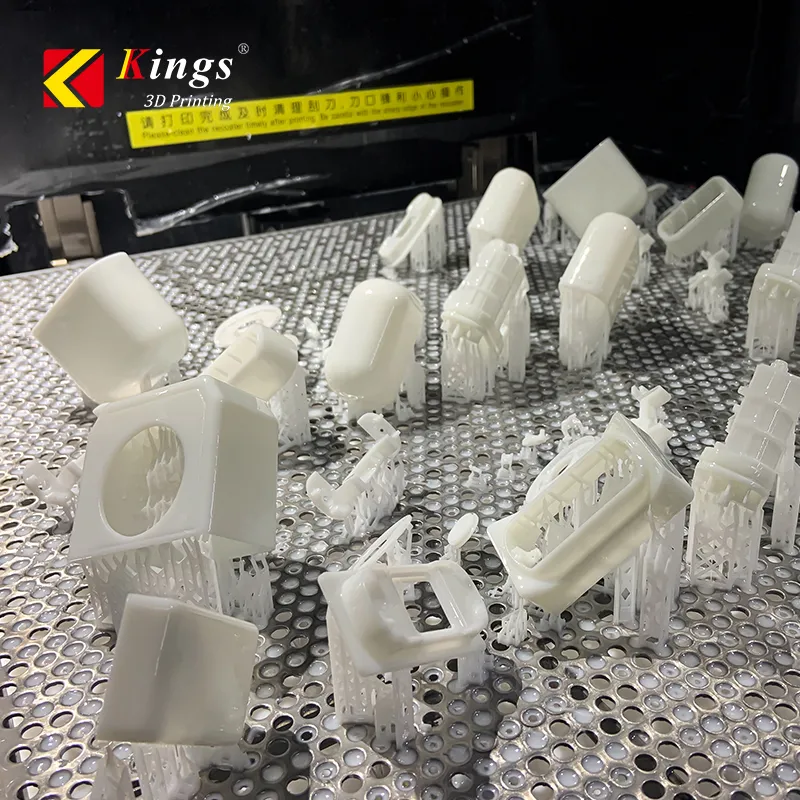

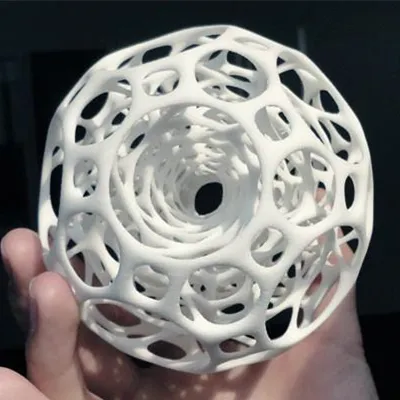

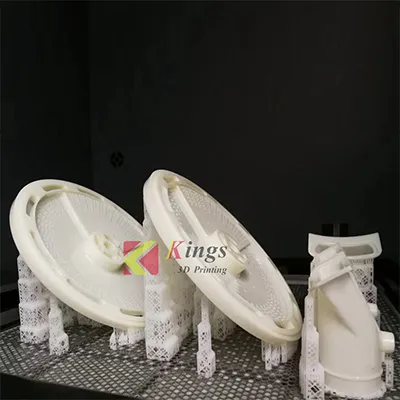

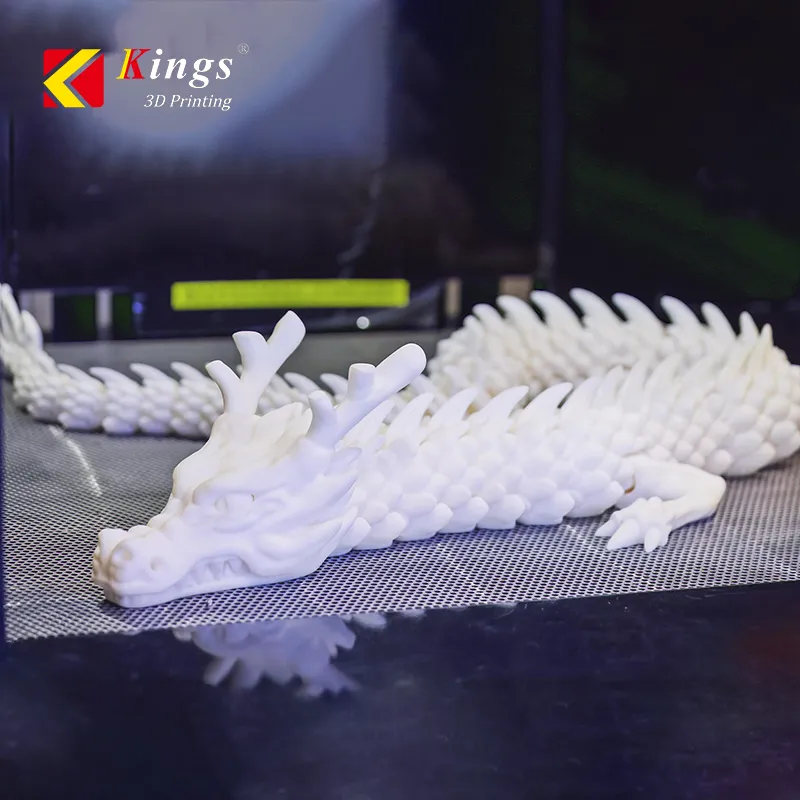

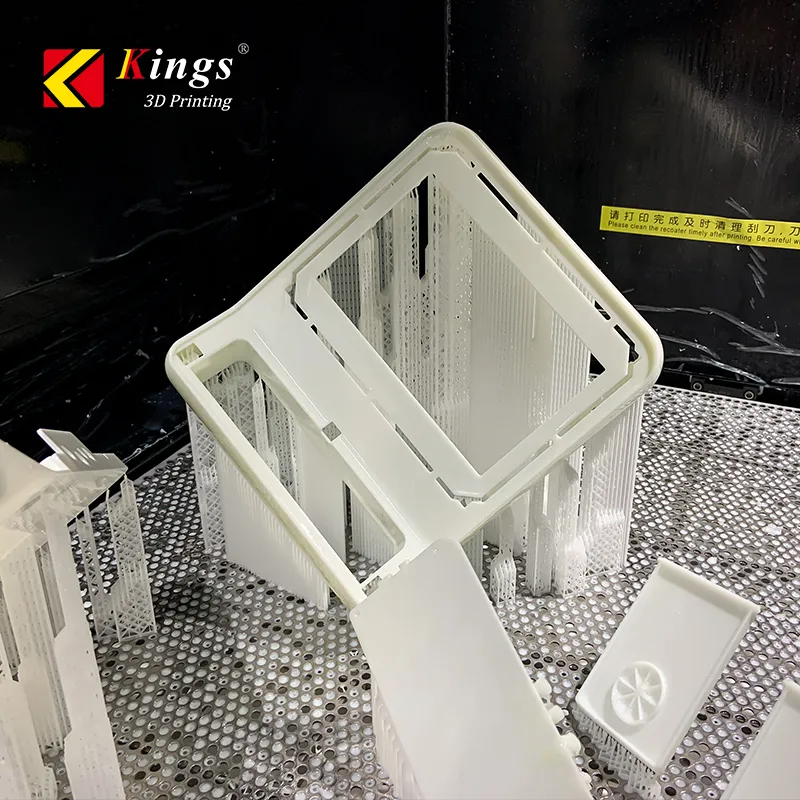

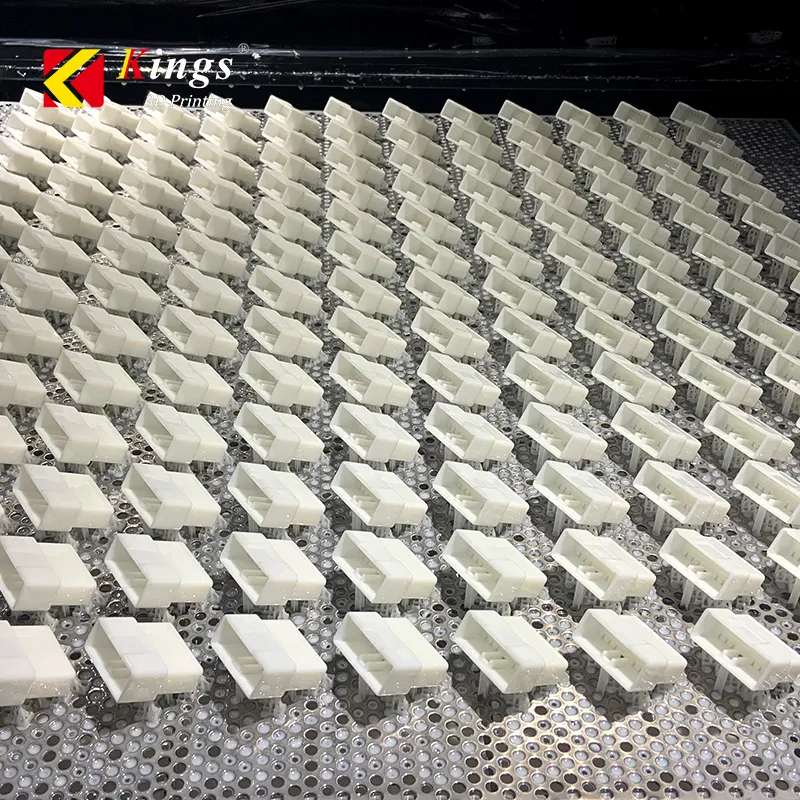

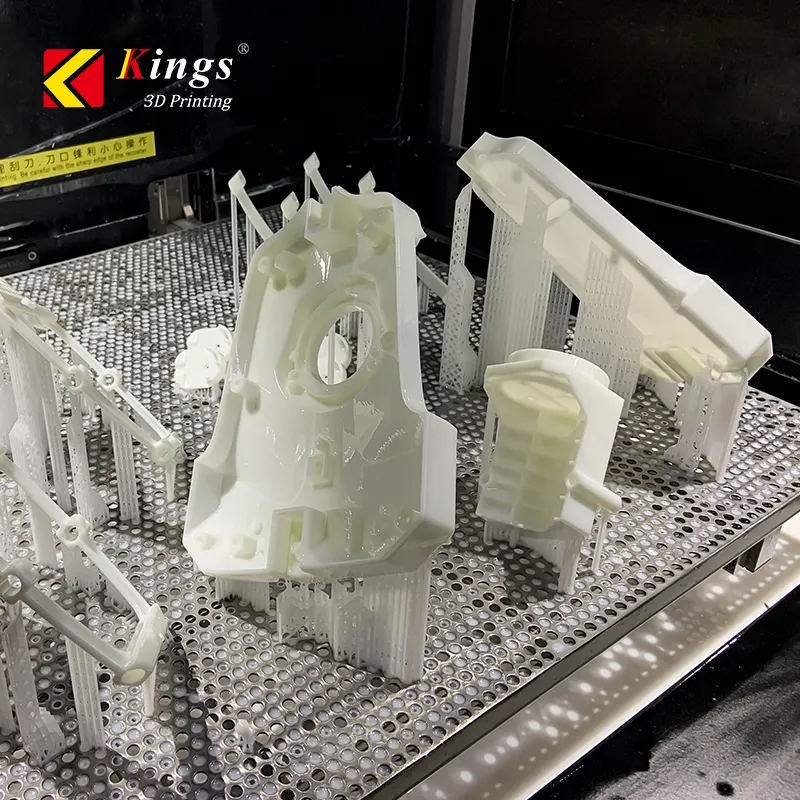

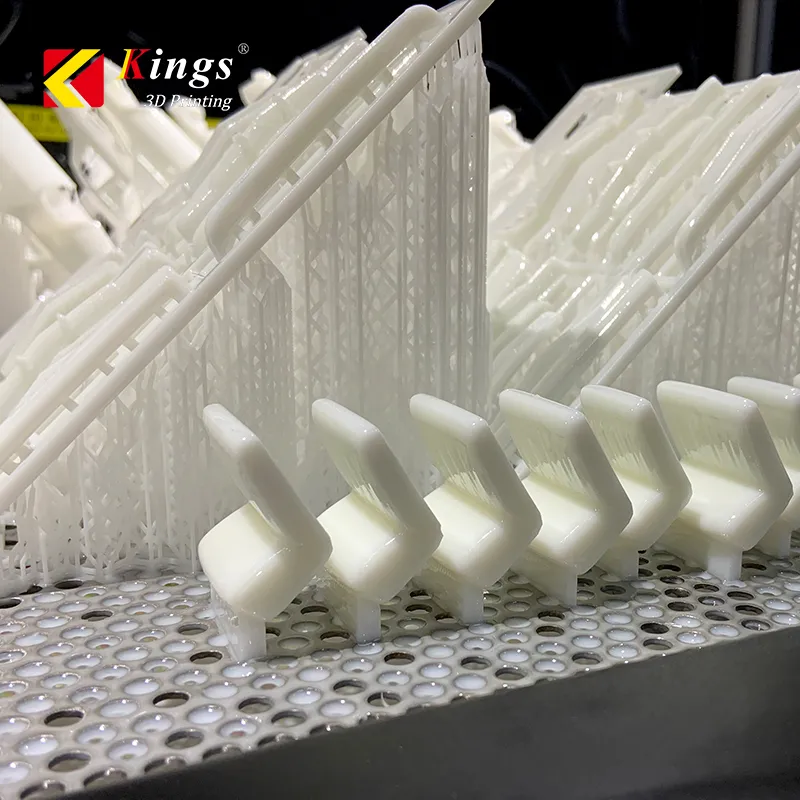

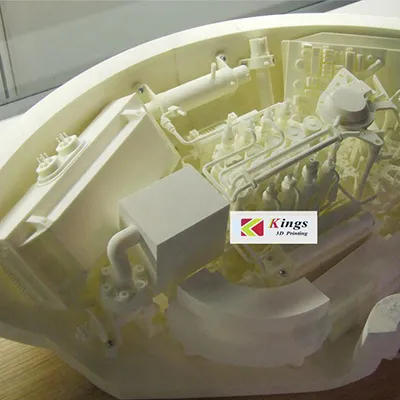

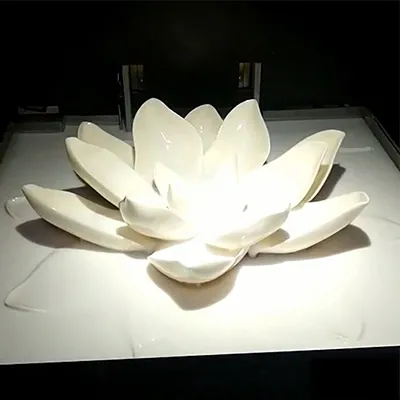

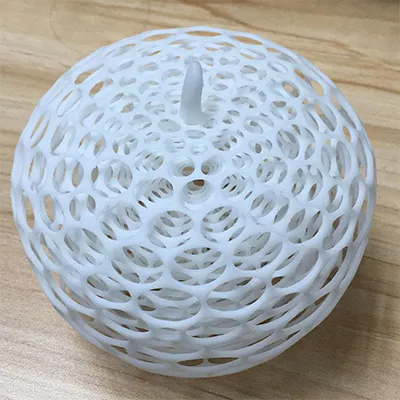

Printing Samples

Application

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
