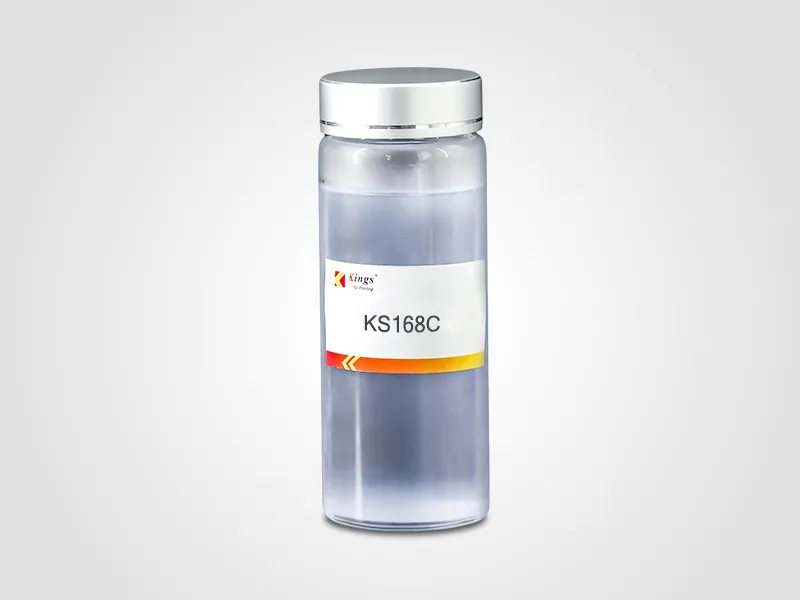

KS168C

KS168C UV Resin is a clear SLA resin designed for high-precision and durable applications. It is widely applied in functional prototypes, transparent models, and product development across multiple industries.

Inquire Now

Download

Product Details

Overview

KS168C is a high-performance transparent material designed for SLA 3D printers. Offering excellent clarity and stability, it is ideal for creating prototypes, concept models, and functional parts that require transparency. KS168C is widely applied in automotive, medical, and consumer electronics industries, making it a versatile choice for professional-grade 3D printing.

TYPICAL BENEFITS

Superior clarity, building parts with outstanding clarity and excellent accuracy

Need less part finishing time, easier post-curing

Suitable for casting

Physical Properties – Liquid Material

Appearance	Clear
Density	1.12g/cm³ @ 25 ℃
Viscosity	407cps @ 26 ℃
Dp	0.18 mm
Ec	9.7 mJ/cm²
Building layer thickness	0.1mm

Mechanical Properties of Post-Cured Material

MEASUREMENT	TEST METHOD	VALUE
		90-minute UV post-cure
Hardness D	ASTM D 2240	83
Flexural modulus , Mpa	ASTM D 790	2,670-2,780
Flexural strength, MPa	ASTM D 790	75- 82
Tensile modulus , MPa	ASTM D 638	2,570-2,660
Tensile strength, MPa	ASTM D 638	45-61
Elongation at break	ASTM D 638	12-21%
Impact strength,notched lzod, J/m	ASTM D 256	32 - 47
Heat deflection temperature, ℃	ASTM D 648 @66PSI	51
Glass transition, Tg, ℃	DMA，E" peak	60

Advantages

Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance

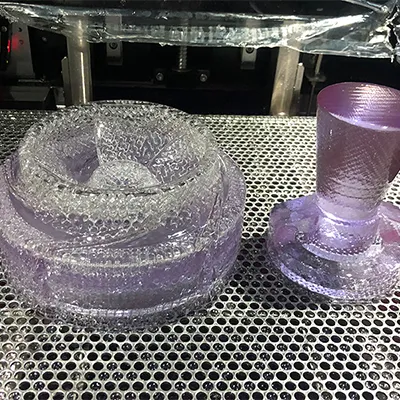

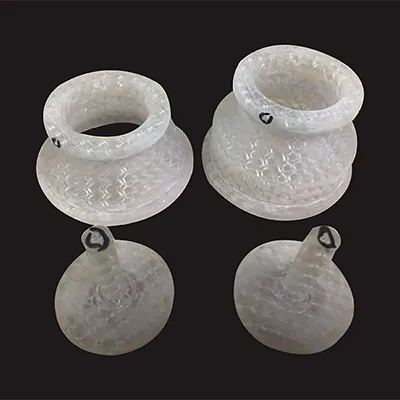

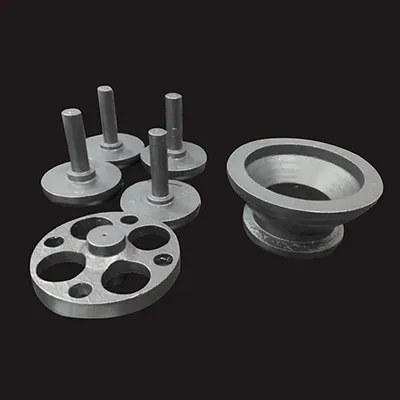

Printing Samples

Application

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
