KS1208H is a high-temperature yellow resin specially developed for precision 3D printing under demanding conditions. With outstanding thermal stability and mechanical strength, it is ideal for industrial parts, functional prototypes, and high-performance manufacturing, ensuring reliable printing results even in challenging environments.
Product Details
Overview
KS1208H is a high-temperature yellow resin specially developed for precision 3D printing under demanding conditions. With outstanding thermal stability and mechanical strength, it is ideal for industrial parts, functional prototypes, and high-performance manufacturing, ensuring reliable printing results even in challenging environments.
Ideal Applications
Prototypes need high-temp resistance
Quick mold
Advantages
Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance
Technical Datasheet
| Physical Properties - Liquid Material | |||
| Appearance | light yellow | Dp | 0.16 mm |
| Viscosity | 251-305cps/27°C | Building layer thickness | 0.05-0.125 mm |
| Density | 1.121-1.125g/cm’ @ 25 °C | ||
| MEASUREMENT | TEST METHOD | VALUE（ UV curing and thermocuring ) |
| Hardness Shore D | ASTM D 2240 | 80-84 |
| Flexural modulus, Mpa | ASTM D 790 | 2400-2800 |
| Flexural strength, Mpa | ASTM D 790 | 46-57 |
| Tensile modulus, MPa | ASTM D 638 | 1300-1600 |
| Tensile strength, MPa | ASTM D 638 | 30-37 |
| Elongation at break | ASTM D 638 | 2.3-3.8% |
| Impact strength notched Izod, J/m | ASTM D 256 | 12-20 |
| Heat deflection temperature, ℃ | ASTM D 648 @66PSI | 120-130 |

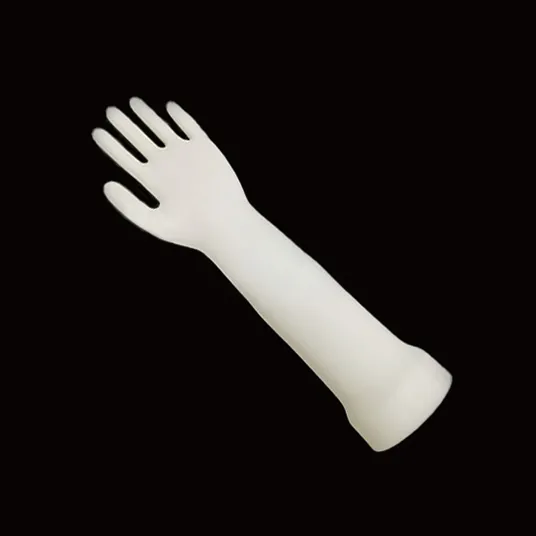

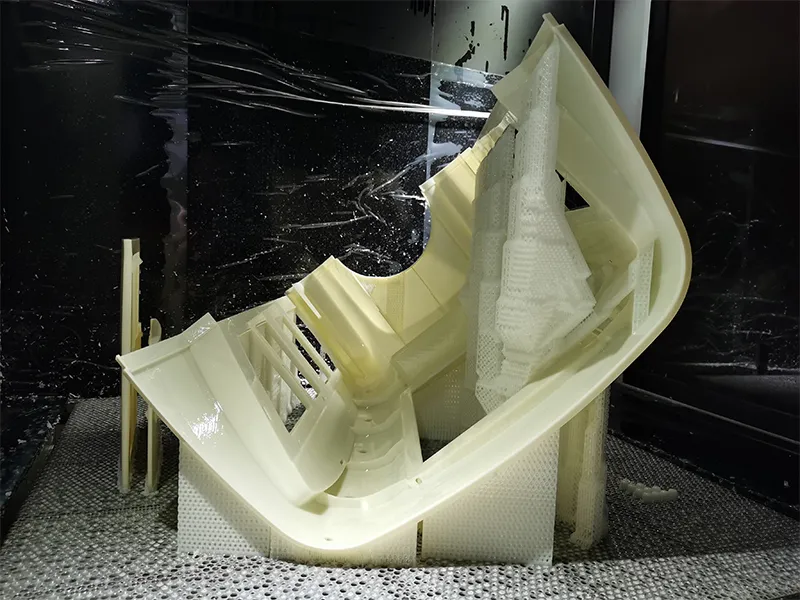

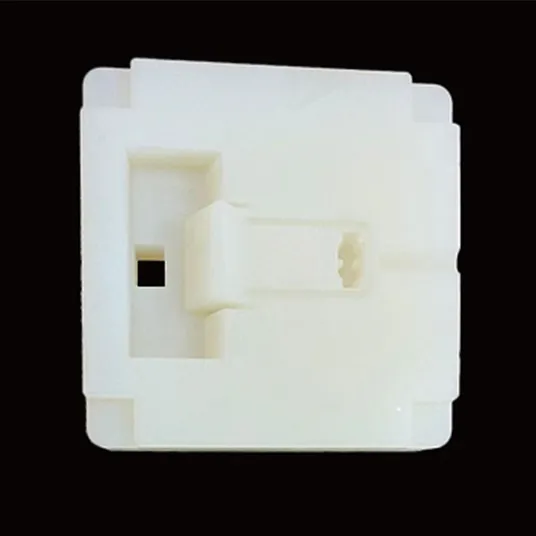

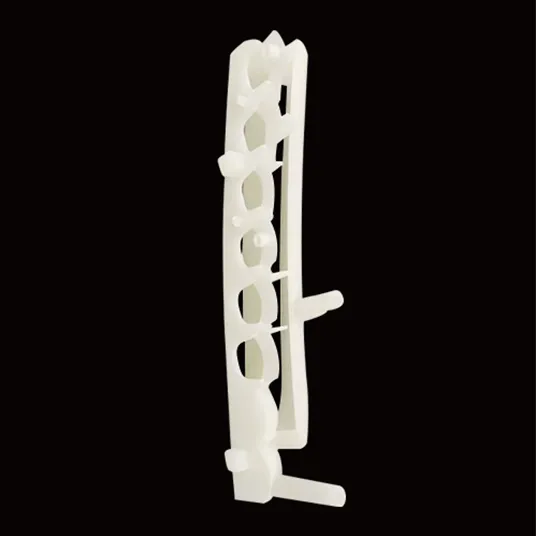

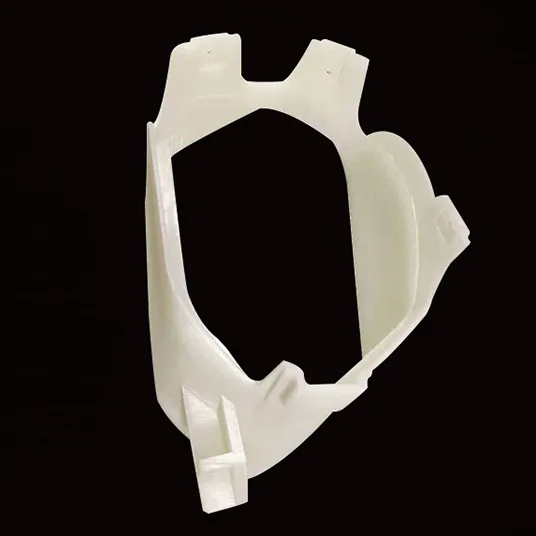

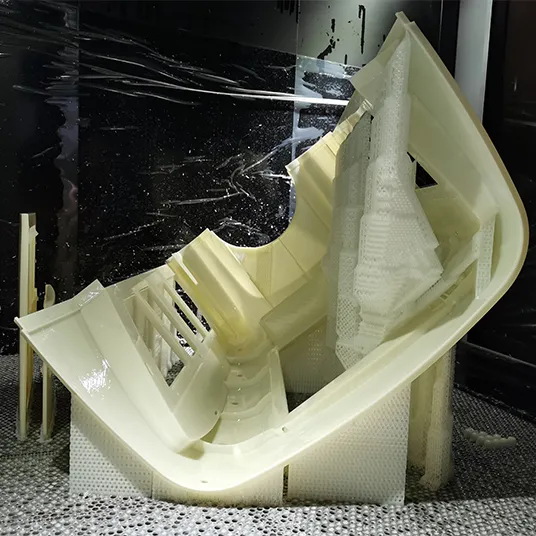

Printing Samples
