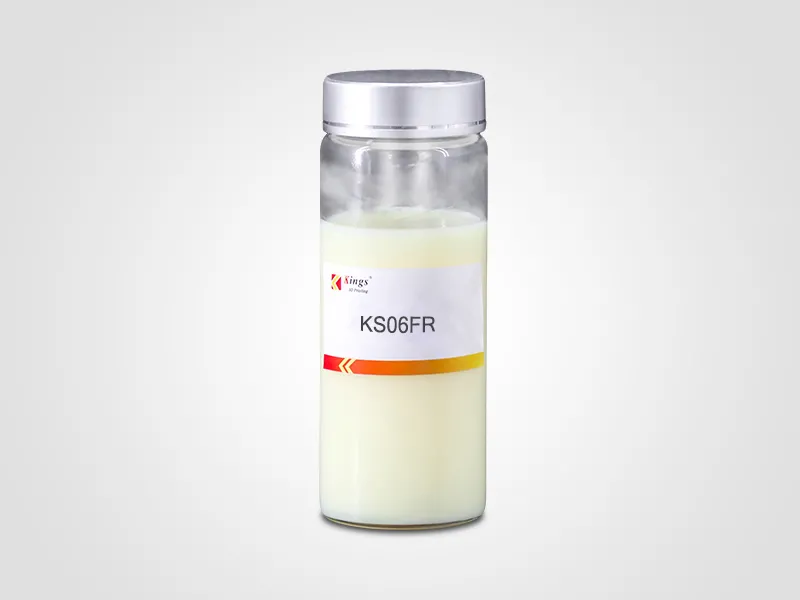

KS06FR

KS06FR is a fire-resistant, ABS-like SLA resin offering high accuracy and durability. Ideal for master patterns, concept models, general parts, and functional prototypes in automotive, medical, and consumer electronics applications.

Inquire Now

Download

Product Details

Overview

KS06FR is an ABS-like SLA resin that has fire-resistant, accurate, and durable features. It is designed for solid-state SLA platforms. KS06FR can be applied in master patterns, concept models, general parts, and functional prototypes in the field of automotive, medical, and consumer electronics industries.

Typical Benefits

Medium viscosity resin allows for easy recoating and cleaning

Improved strength and dimensional stability in humid environments

Requires minimal finishing and post-curing time

Excellent machinability and low shrinkage

V0-level flame retardant with good yellowing resistance

Physical Properties – Liquid Material

Apperance	Greenyellow
Density	1.2-1.24g/cm³ @ 25℃
Viscosity	500-700cps @ 25℃
Dp	0.135-0.155mm
Ec	9-12 mJ/c㎡
Building Layer Thickness	0.05-0.12mm

Mechanical Properties of Post-Cured Material

MEASUREMENT	TEST METHOD	VALUE
Hardness, Shore D	ASTM D 2240	76-82
Flexural modulus, Mpa	ASTM D 790	2,650-2,760
Flexural strength, MPa	ASTM D 790	65-74
Tensile modulus, MPa	ASTM D 638	2,150-2,370
Tensile strength, MPa	ASTM D 638	33-38
Elongation at break	ASTM D 638	12-18%
Impact strength notched Izod, J/m	ASTM D 256	58-70
Heat deflection temperature, ℃	ASTM D 648 @66PSI	45-50
Glass transition, Tg, ℃	DMA, E" peak	45-70
Density, g/cm3		1.25-1.3

Advantages

Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance

Printing Samples

Application

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
