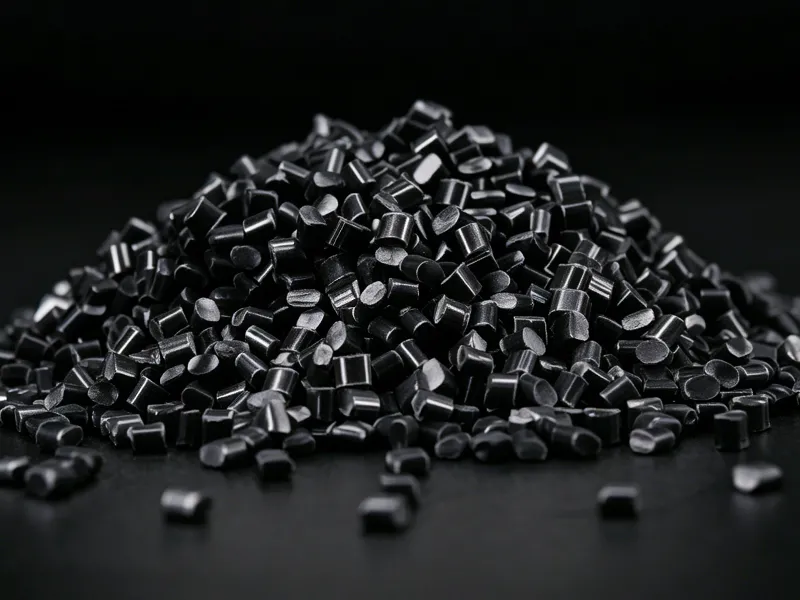

PU20CF is a 20% carbon fiber-reinforced PESU pellet material designed for high-temperature composite molding. It combines the excellent thermal and chemical resistance of PESU with the high strength, stiffness, and low warpage characteristics of carbon fiber. With a heat deflection temperature of up to 200°C, it is ideal for demanding mold applications requiring dimensional stability, durability, and cost-efficient production.
Product Details
Overview
PU20CF is a 20% carbon fiber-reinforced PESU pellet material designed for high-temperature composite molding. It combines the excellent thermal and chemical resistance of PESU with the high strength, stiffness, and low warpage characteristics of carbon fiber. With a heat deflection temperature of up to 200°C, it is ideal for demanding mold applications requiring dimensional stability, durability, and cost-efficient production.
IDEAL APPLICATIONS
> Industrial Molds
> Automotive Parts
> Aerospace Components
> High-Temperature Fixtures
> Functional Prototypes
> Structural Parts
> Engineering Applications
TECHNICAL DATASHEET
Physical Properties - Liquid Material
| Property | Test Method | Typical Value |
| Density (g/cm³, 21.5℃) | ASTM D792 (ISO 1183, GB/T 1033) | 1.48 |
| Melt Index (g/10min) | 337℃, 6.6kg | 17.5 |
| Glass Transition Temperature (℃) | DSC, 10℃/min | 220 |
| Heat Deflection Temperature (℃) | ISO 75 1.8 MPa 0.45 MPa | 214 220 |
Mechanical Properties¹
| Property | Test Method | Typical Value |
| Young's Modulus (MPa) | ASTM D638 (ISO 527, GB/T 1040) | 9404 ± 477 |
| Tensile Strength (MPa) (X-Y) | ASTM D638 (ISO 527, GB/T 1040) | 74.6 ± 7 |
| Elongation at Break (%) (X-Y) | ASTM D638 (ISO 527, GB/T 1040) | 1.01 ± 0.14 |
| Flexural Modulus (MPa) (X-Y) | ASTM D790 (ISO 178, GB/T 9341) | 8764 ± 951 |
| Flexural Strength (MPa) (X-Y) | ASTM D790 (ISO 178, GB/T 9341) | 117 ± 6.4 |
| Young's Modulus (MPa) (Z) | ASTM D638 (ISO 527, GB/T 1040) | 3848 ± 227 |
| Tensile Strength (MPa) (Z) | ASTM D638 (ISO 527, GB/T 1040) | 30.6 ± 2.6 |
| Elongation at Break (%) (Z) | ASTM D638 (ISO 527, GB/T 1040) | 0.87 ± 0.11 |
| Flexural Modulus (MPa) (Z) | ASTM D790 (ISO 178, GB/T 9341) | 3716 ± 235 |
| Flexural Strength (MPa) (Z) | ASTM D790 (ISO 178, GB/T 9341) | 47.8 ± 3.3 |
Note: Specimens were printed using a 340°C nozzle temperature, 8mm nozzle diameter, 22mm shell width, and 3mm layer height. The single-layer printing time was 50 seconds with an extrusion output of 14 kg/h at an ambient temperature of 25°C. Specimens were printed with 100% solid infill.
Recommended Printing Conditions
| Parameter | Recommended Setting |
| Drying Temperature (°C) | 150-165 (Equipped with dehumidifying dryer) |
| Drying Time (Hours) | ≥4 |
| Maximum Moisture Content (%) | 0.06 |
| Barrel Zone 1 Temperature (°C) | 300 - 320 |
| Barrel Zone 2 Temperature (°C) | 315 - 335 |
| Barrel Zone 3 Temperature (°C) | 325 - 345 |
| Nozzle Temperature (°C) | 330 - 350 |
Note:
1. Short Pauses:
If printing is stopped for a short duration (e.g., 1–60 minutes), it is recommended to keep the extruder running at a low flow rate (e.g., 2 kg/h) to ensure a continuous material supply and avoid long periods of stagnation or screw idling.
2. Long Pauses
If printing is stopped for several hours, use high-temperature specialty purging material to clean the extruder.
3. Drying Equipment
Drying must be performed using the machine equipped with a dehumidifying dryer.
4. Air Exposure
Once dried, the material should not be left in the air for a long time before entering the printer screw; recommended exposure time should not exceed 15 minutes. Stricter control is required in humid environments.
Product Information
Manufacturer: Guangdong Kings intelligent manufacturing co., ltd.
Material: >PU20CF-PESU<
Color: Black
Shape: Granulate
Processing Way: 3D printing
Flame retardant: V0
Purpose:● General ● Sculpture ● Large-format 3D Printing ● Furniture & Home Appliance
