ABS is a thermoplastic polymer material structure with high gloss and high rigidity and easy processing and molding. it has strong corrosion resistance to acidalkali and salt, and can also tolerate the dissolution of organic solvents to a certain extent. lt has excellent mechanical properties and dimensional stability and can be used to manufacture sculptures.

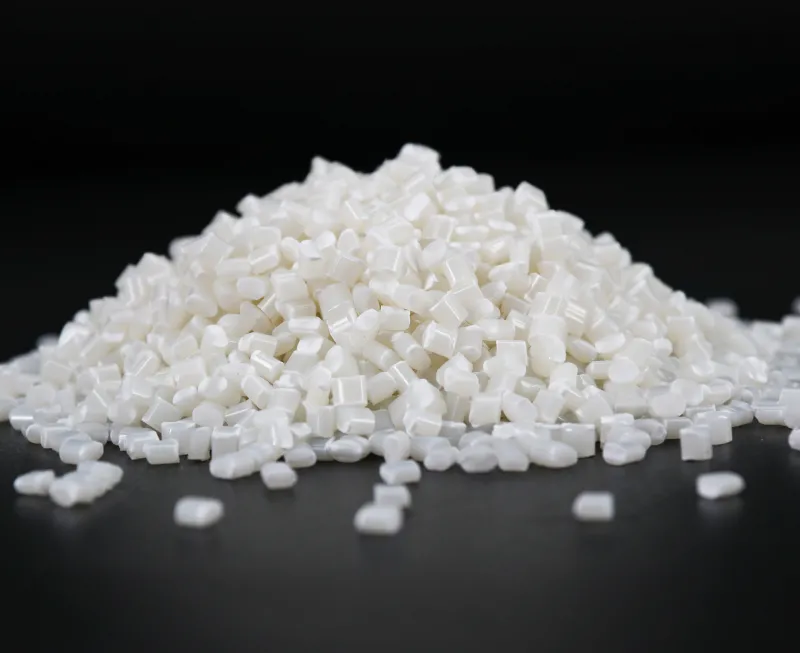

The good discharging state is: bubble-free and glossy particle diameter: about 3mm

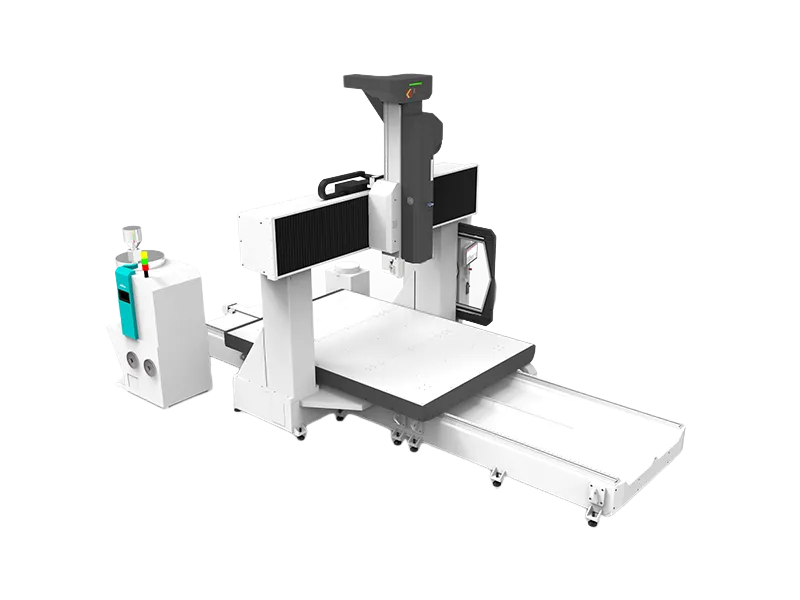

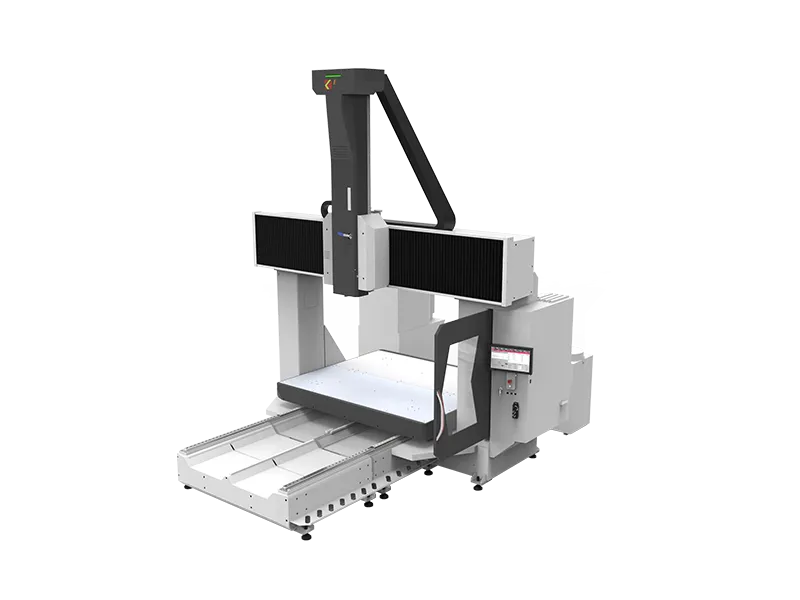

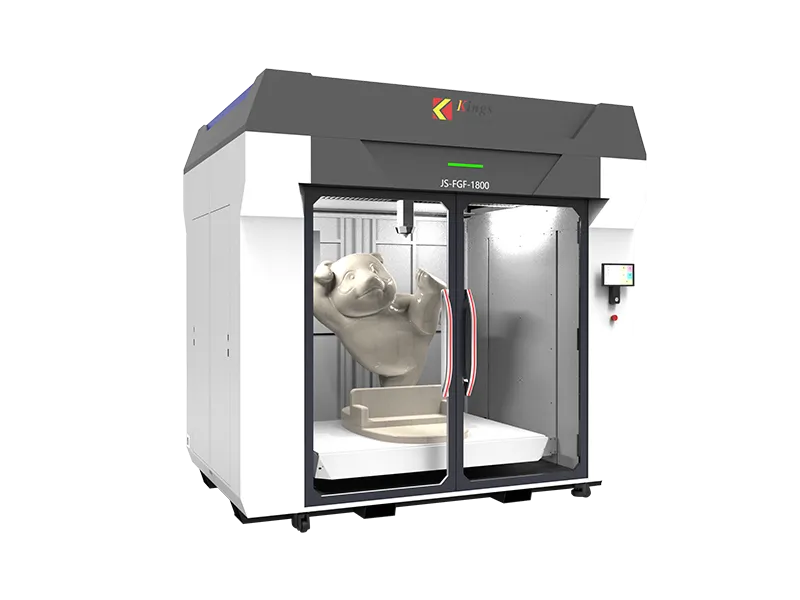

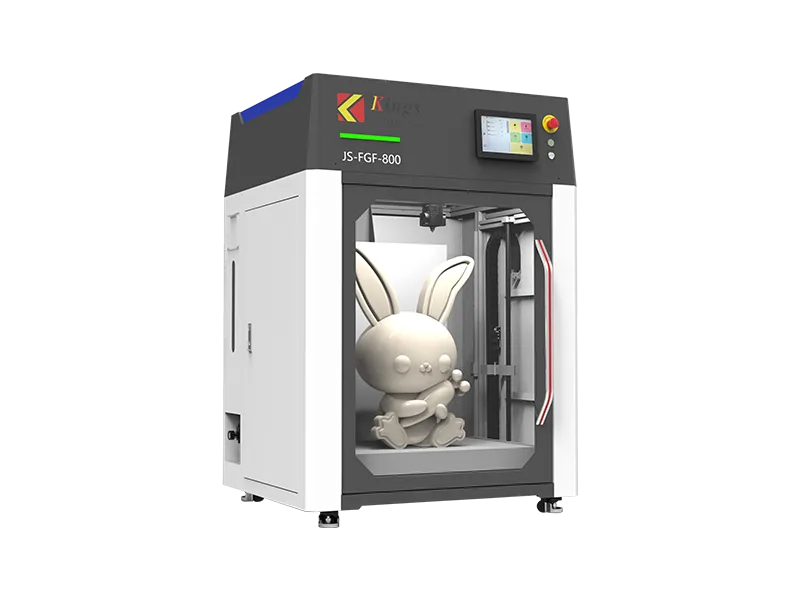

Applicable model: FGF-800, FGF-1800, FGF-AM-2420, FGF-HM-2435
Product Details
Overview
ABS is a thermoplastic polymer material structure with high gloss and high rigidity and easy processing and molding. it has strong corrosion resistance to acidalkali and salt, and can also tolerate the dissolution of organic solvents to a certain extent. lt has excellent mechanical properties and dimensional stability and can be used to manufacture sculptures.
The good discharging state is: bubble-free and glossy particle diameter: about 3mm Applicable model: FGF-800, FGF-1800, FGF-AM-2420, FGF-HM-2435
Product Information
Manufacturer: Guangdong Kings intelligent manufacturing co., ltd.
Other certificates: REACH
Material identification: >ABS<
Color: ORIGINAL
Material shape: granulate
Processing method: 3D printing
Flame retardant rating: HB
Up to specification: ● UL
Material use: ● General ● Sculpture
Advantages
Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance
Technical Datasheet
| Physical Property | Testing Standards | Data | Unit |
| Specific gravity 23°C | ASTM D792 | 1.12 | g/cm³ |
| Specific gravity 23°C | ISO 1183 | 1.12 | g/cm³ |
| Melt index 220°C 10kg | ASTM D1238 | 36.2 | g/10min |
| Melt index 220°C 10kg | ISO 1133 | 36.2 | g/10min |
| Melt index 200°C 5kg | ASTM D1238 | 2.4 | g/10min |
| Melt index 200°C 5kg | ISO 1133 | 2.4 | g/10min |
| Hardness | Testing Standards | Data | Unit |
| Rockwell hardness R scale 23°C | ASTM D785 | 110 | / |
| Rockwell hardness R scale 23°C | ISO 2039 | 110 | / |
| Mechanical Character | Testing Standards | Data | Unit |
| Tensile strength 23°C | ASTM D638 | 565 | kg/cm² |
| Tensile strength 23°C | ISO 527 | 58 | MPa |
| Bending strength 23°C | ASTM D790 | 735 | kg/cm² |
| Bending strength 23°C | ISO 178 | 76 | MPa |
| Bending modulus 23°C | ASTM D790 | 24800 | kg/cm² |
| Bending modulus 23°C | ISO 178 | 2330 | MPa |
| The notch impact of cantilever beam is 23 ℃ 6.4 mm. | ASTM D256 | 24 | kg-cm/cm |
| The notch impact of cantilever beam is 23 ℃ 6.4 mm. | ISO 180 | 210 | J/m |

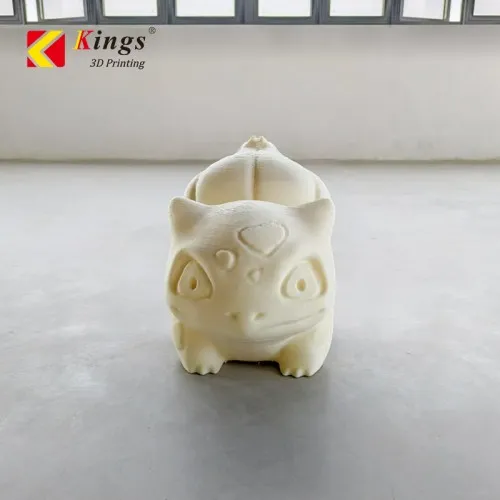

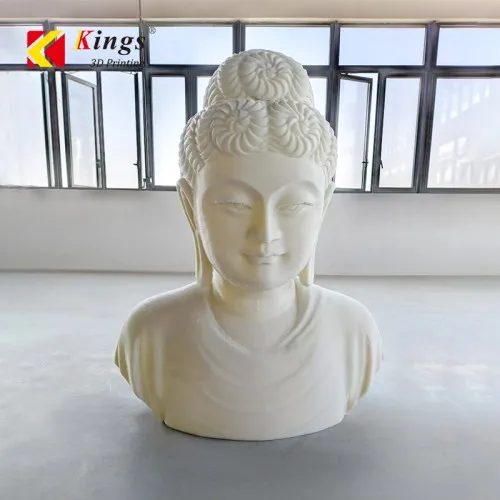

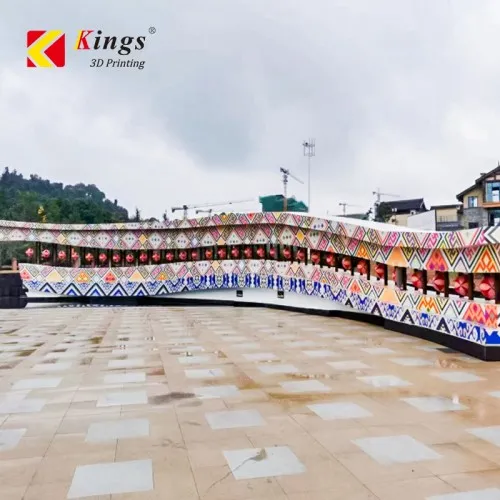

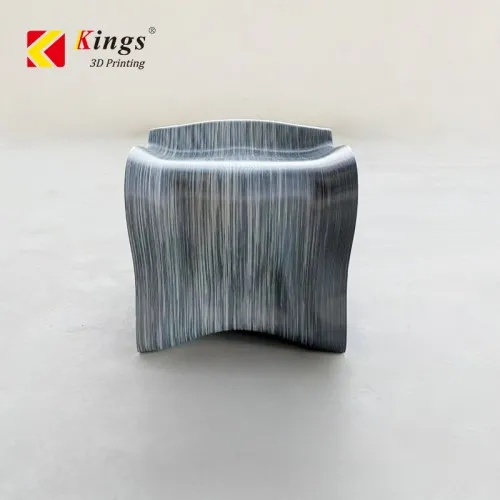

Printing Samples
