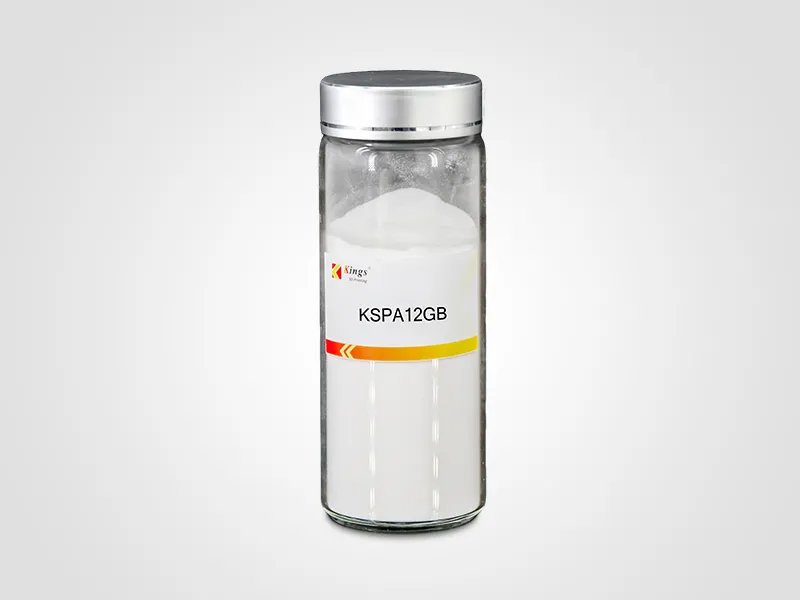

KSPA12GB is a composite nylon powder enriched with 40% glass beads, delivering 3D-printed parts known for their exceptional stiffness and high-temperature resistance. Moreover, the powder boasts an impressive reusability rate of up to 100%.
Product Details
Overview
KSPA12GB is a composite nylon powder enriched with 40% glass beads, delivering 3D-printed parts known for their exceptional stiffness and high-temperature resistance. Moreover, the powder boasts an impressive reusability rate of up to 100%.
Ideal Applications
- Functional structures
- Concept prototypes
- Automotive, aerospace, architectural, and electronic applications
Technical Datasheet
| Mechanical property | Value | Unit | Test Standard |
| Tensile Modulus | 3000 | Mpa | ISO 527 |
| Tensile Strength | 46 | Mpa | ISO 527 |
| Strain at break | 9 | % | ISO 527 |
| Charpy impact strength | 36 | KJ/㎡ | ISO 179 |
| Charpy notched impact strength | 6 | KJ/㎡ | ISO 179 |
| Flexural modulus | 2800 | Mpa | ISO 178 |
| Flexural Strength | 70 | Mpa | ISO 178 |
| Other Properties | Value | Unit | Test Standard |
| Powder Melting temperature (10℃/min) | 187 | ℃ | ISO 11357 |
| Vicat softening temperature (50℃/h50N) | 150 | ℃ | ISO 306 |
| Density (Laser Sintered) | 1.2 | g/cm³ | Own method |
| Density (Powder) | 0.72 | g/cm³ | Own method |
| Particle Size (D50) | 50 | μm | Laser Diffraction |
Advantages
Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance

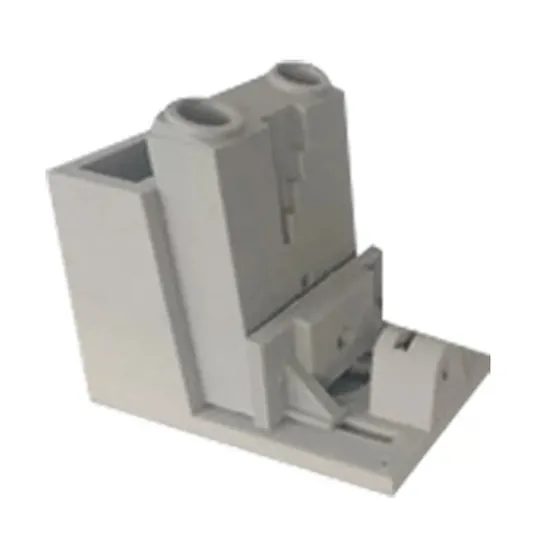

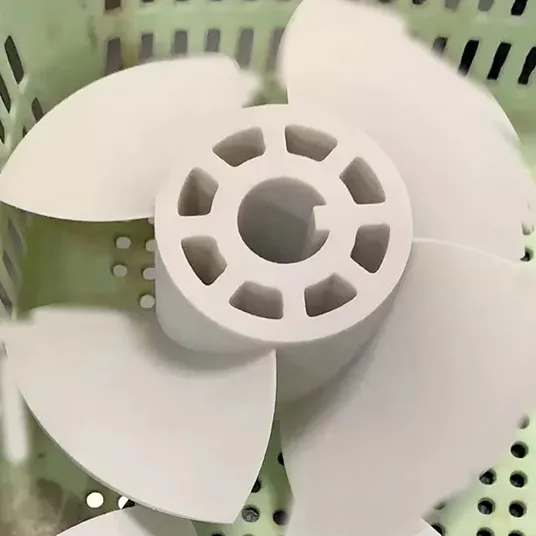

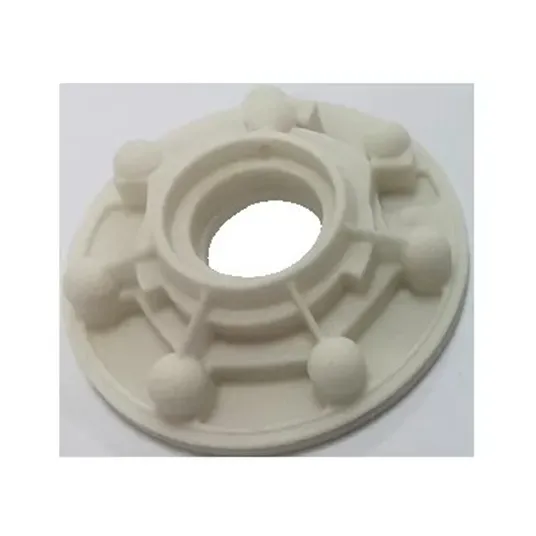

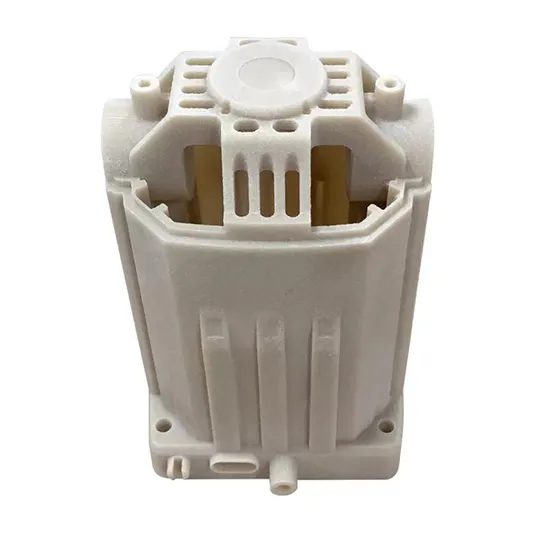

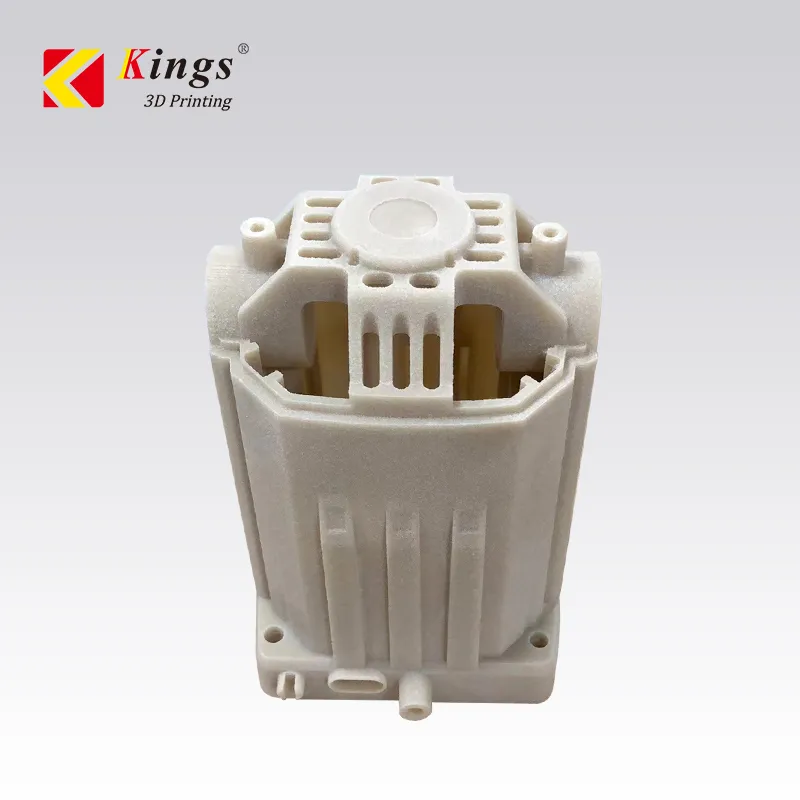

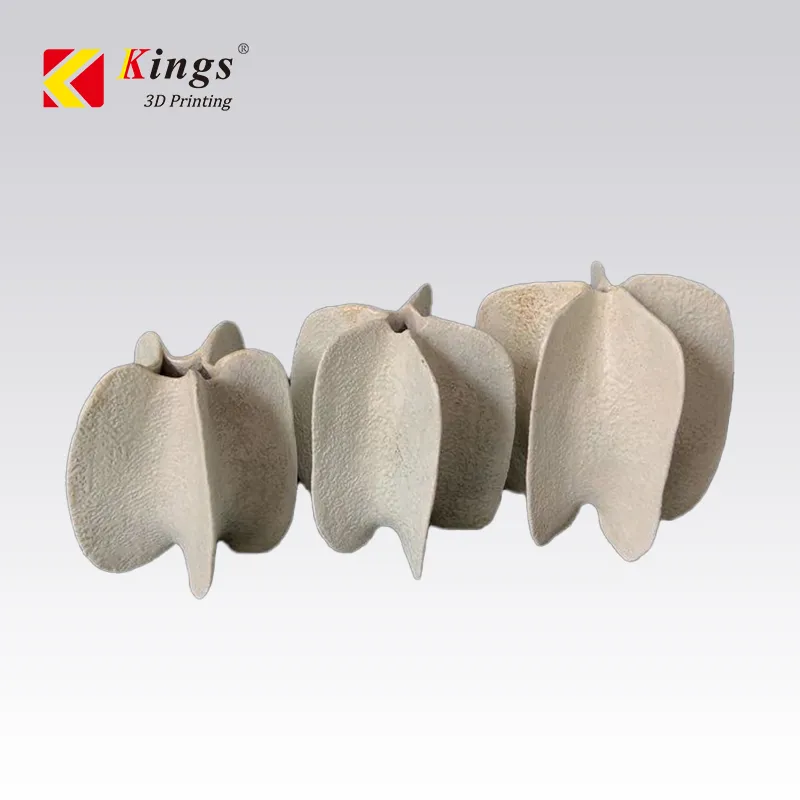

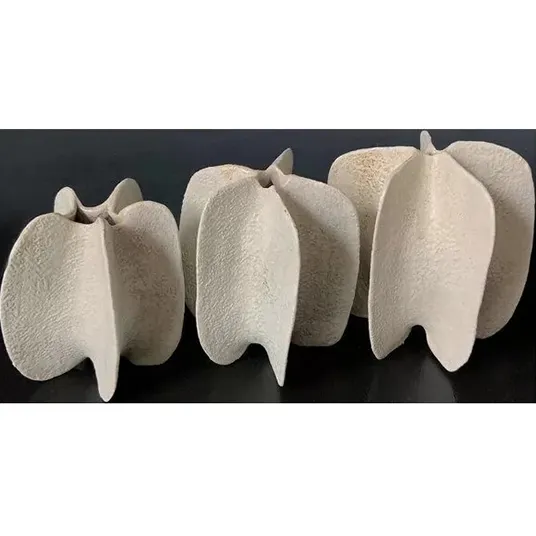

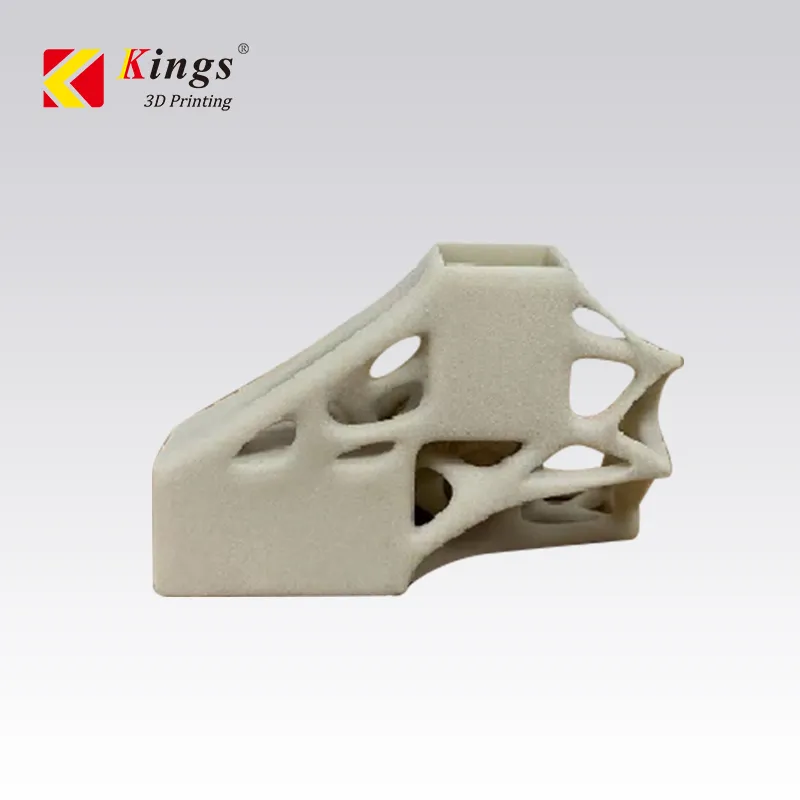

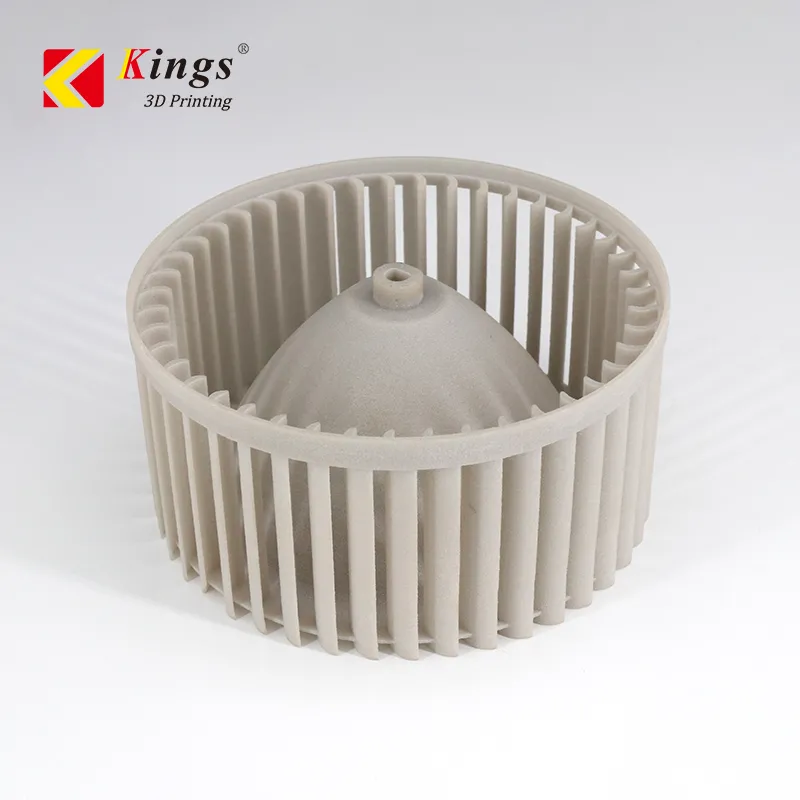

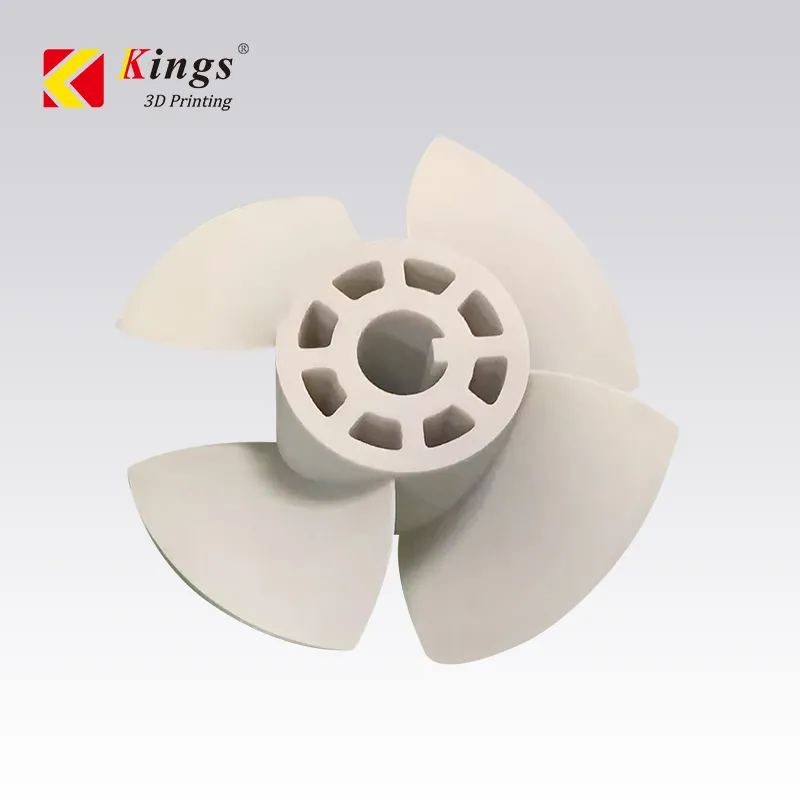

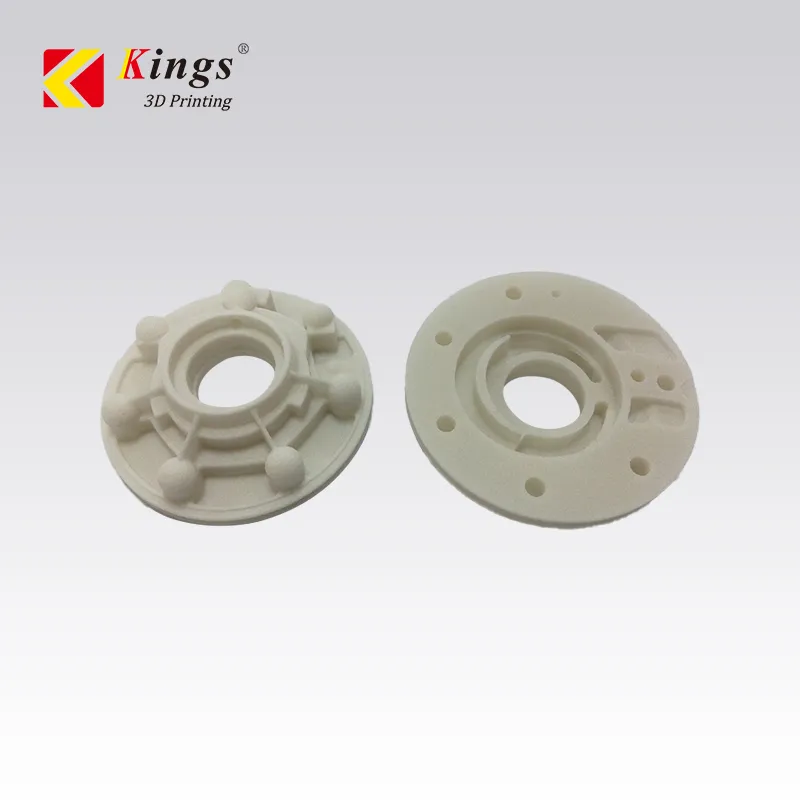

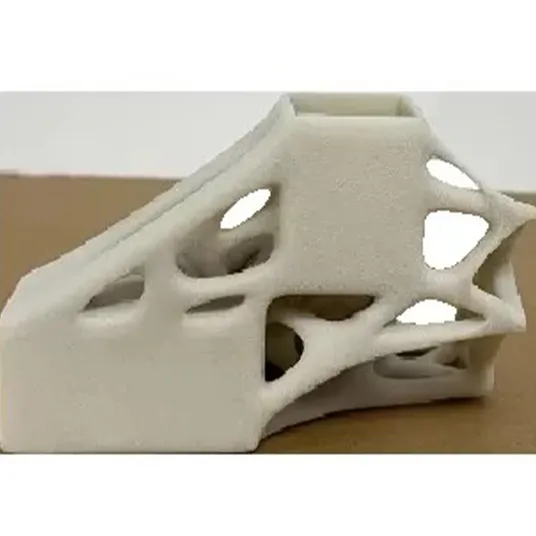

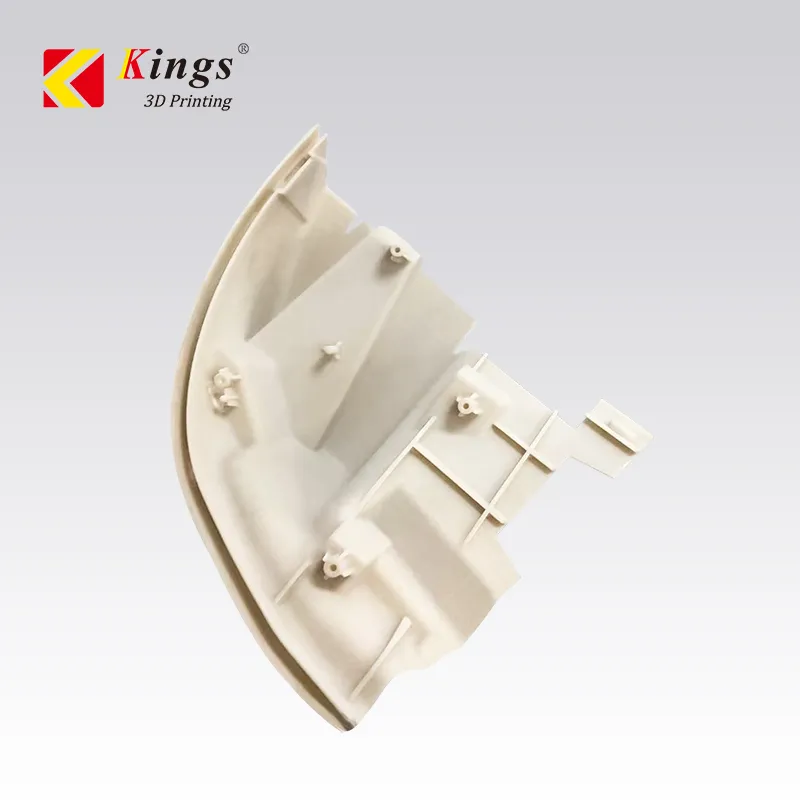

Printing Samples
