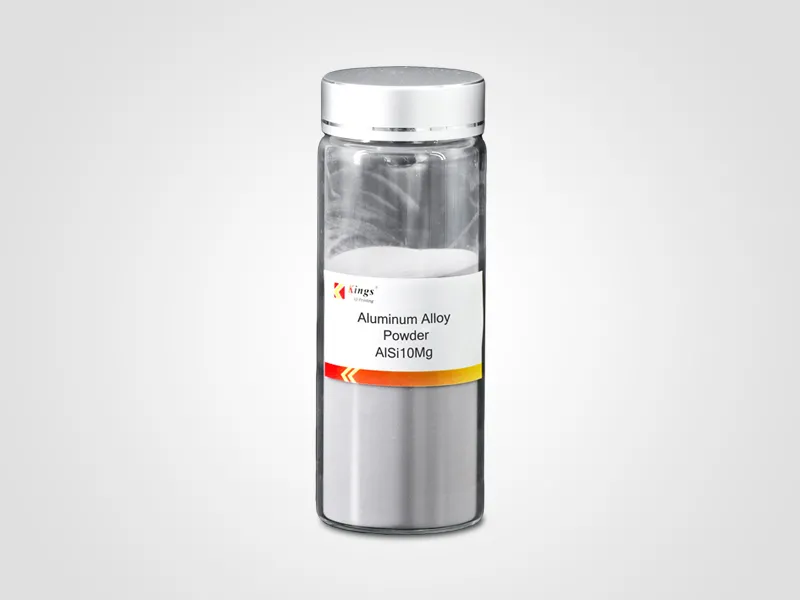

Aluminum Alloy is the most widely used class of non-ferrous metal structure materials in the industry.
The models printed has low density but relatively high strength which is close to or beyond high-quality steel and good plastic.
Product Details
Overview
Aluminum Alloy is the most widely used class of non-ferrous metal structure materials in the industry. The models printed has low density but relatively high strength which is close to or beyond high-quality steel and good plastic.
Typical Features
> Build parts offers excellent mechanical properties,such as hardness and tensile strength
> Outstanding corrosion resistance
> Good thermal and electrical conductivity
> High dynamic toughness
Technical Datasheet
General Properties | Density ISO3369 | ≥2.65 g/cm3 |
Mechanical Properties(As built) | Tensile Strength ISO6892-1 | ≥430 MPa |
Yield Strength ISO6892-1 | ≥250 MPa | |
Elongation after Fracture ISO6892-1 | ≥5% | |
Vickers hardness ISO6507-1 | ≥120 HV5/15 | |
Thermal conductivity at20℃ | 98W/mK-108W/mK | |
Surface roughness Ra Z | 6-10μm | |
Mechanical Properties (Heat treated) | Tensile Strength ISO6892-1 | ≥300 MPa |
Yield Strength ISO6892-1 | ≥200 MPa | |
Elongation after Fracture ISO6892-1 | ≥10 % | |
Vickers hardness ISO6507-1 | ≥70 HV5/15 | |
Hardness (HRC) ISO6507-1 | ≥50 | |
Thermal conductivity at20℃ | 163W/mK-183W/mK |
Advantages
Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance

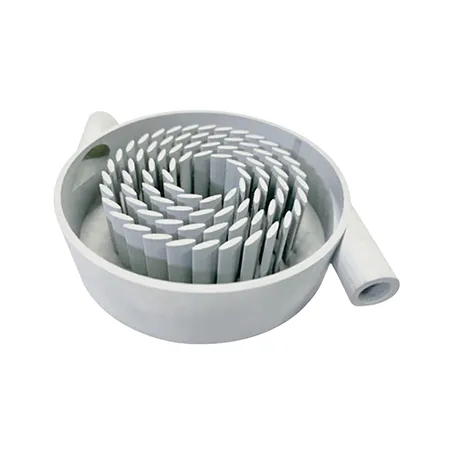

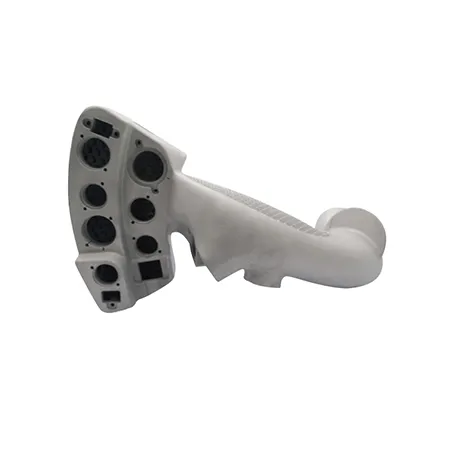

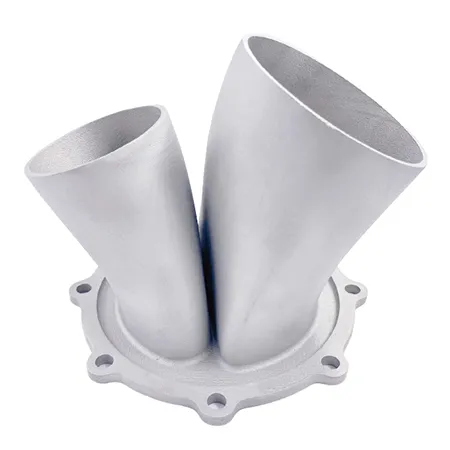

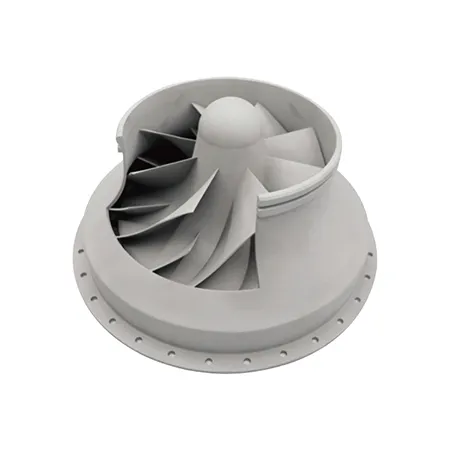

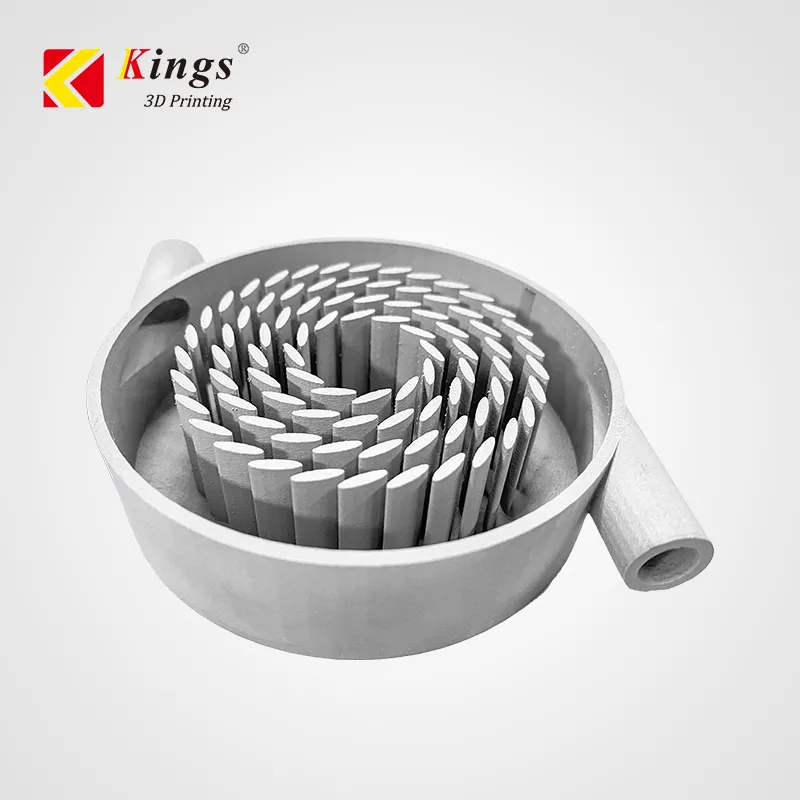

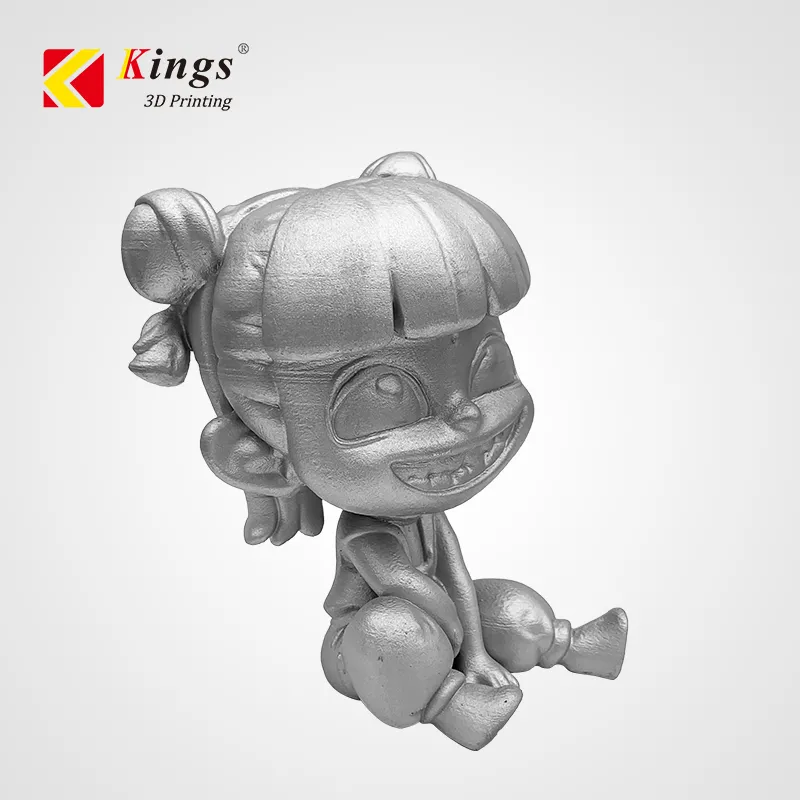

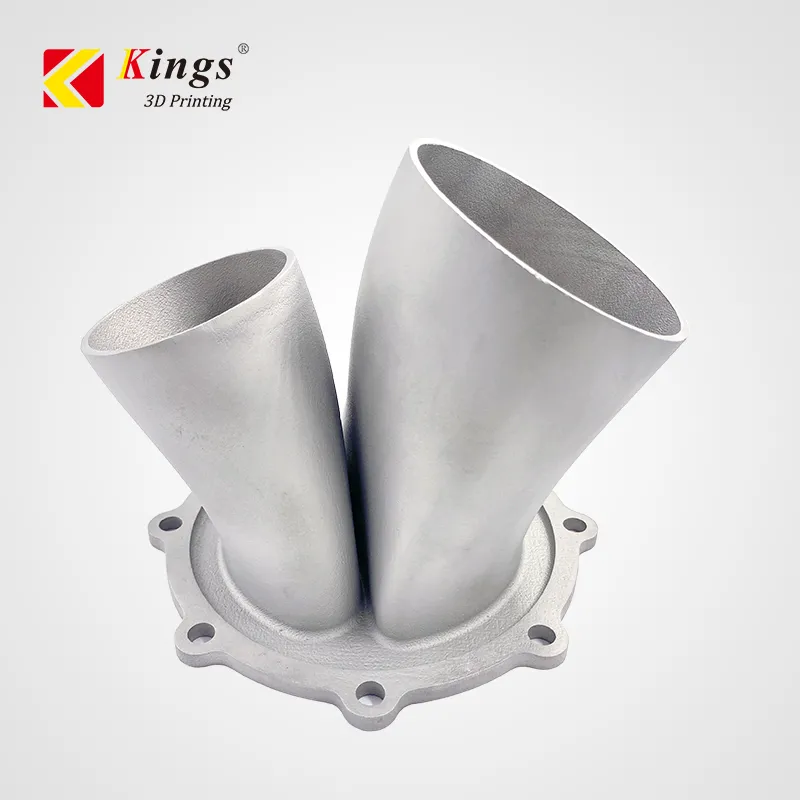

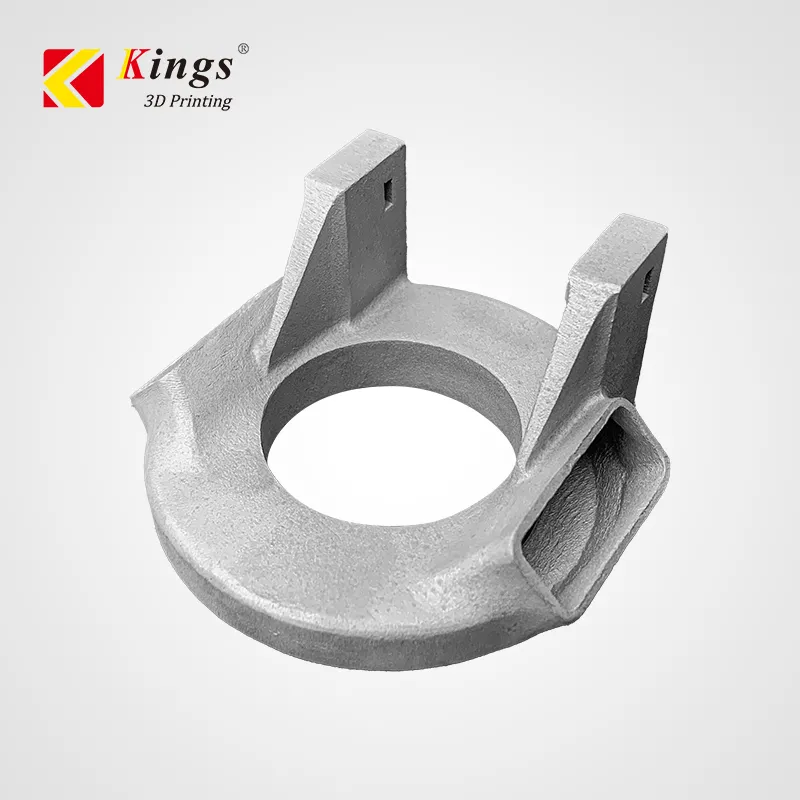

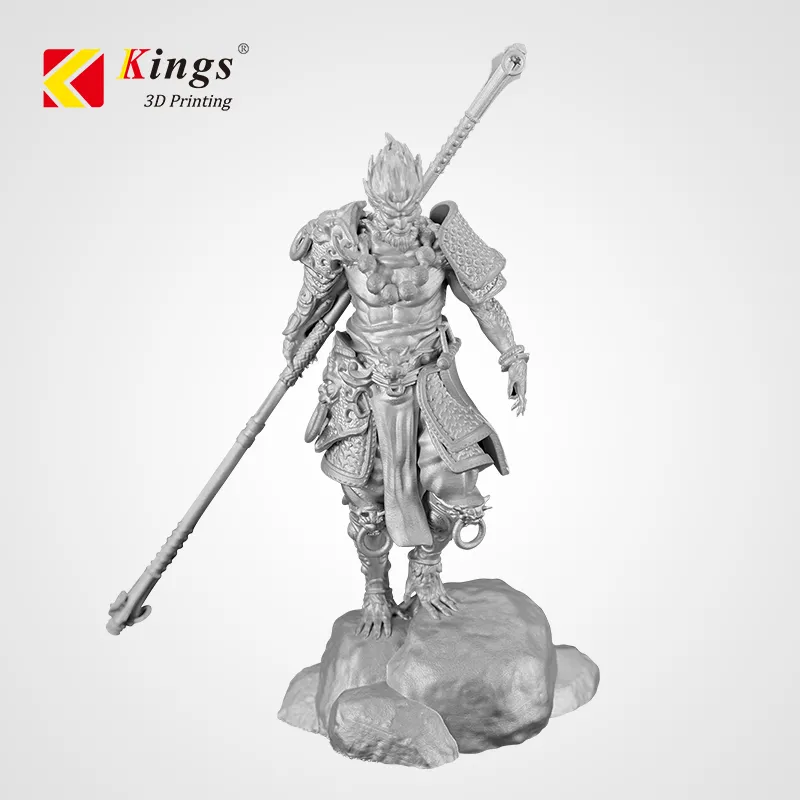

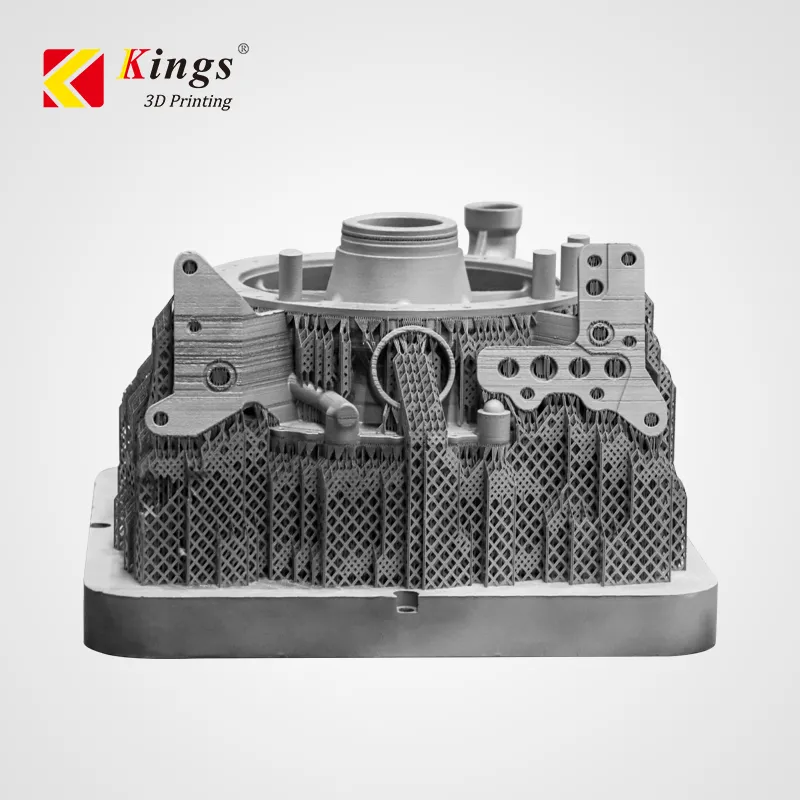

Printing Samples
