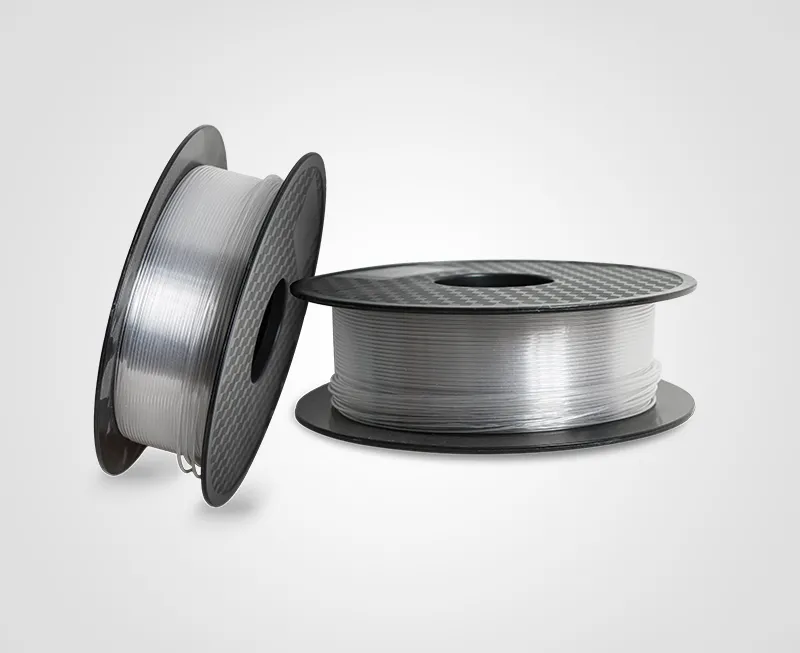

PETG

PETG is a thermoplastic material, short for Polyethylene Terephthalate Glycol-modified. It is an amorphous copolyester and part of the transparent plastics family. PETG is produced by copolymerizing three different monomers.

Inquire Now

Download

Product Details

Overview

Features

Outstanding hot forming performance

High Toughness

Weathering resistance

Easy processing

Environmental protection

High cost-effectiveness

Excellent chemical resistance

Advantages

Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance

PETG polyester chips quality index TDS

Download

Item	Units	RH-1500C	Remark
IntrinsicViscosity	dL/g	0.73±0.015	Indicates the size of polymer molecules and its corresponding mechanical performance. The Viscosity is higher, the mechanical performance is better.
Melting Temp	°C	191±2	The product is non-crystalline and has no defined melting point. The melting point is measured by a microscope to obtain themelting temperature.
Carboxyl Group	mol/ton	≤35	High terminal carboxyl content will reduce the thermal stability of the product.
Color Value(b-value)	/	1±2	b:Yellow color index; higher values indicate more yellow.
Color Value(L-value)	/	≥60	L: Lightness value.
Di-ethylene Glycol	%	≤1	Side reactions with Etherification may degrade material durabili- ty and thermal properties.
Moisture content	%	≤0.4	Processing can cause polymer degradation due to moisture.
Ash Content	%	≤0.08	Ash is used to characterize the content of impurities in polyes- ter, which comes from metal oxides decomposed by catalysts, raw materials and mechanical impurities generated during the production process.
Density	g/cm³	1.27
Melt Flow Index	g/10min	10±2	Melt flow rate at 210°C with a 2.16kg weight.

Note:
1. The intrinsic viscosity is a phenol/tetrachloroethane mixed solvent of 3:2, tested at 25°C
2. This polyester is an amorphous polyester material, and there is no melting peak in the DSC test; therefore, the melting point is tested by microscopy, and the mid-melting temperature is taken.
3. This polyester can be widely used in 3D printing consumables, polyester plates, sheets, polyester injection molding, home appliances and other fields.

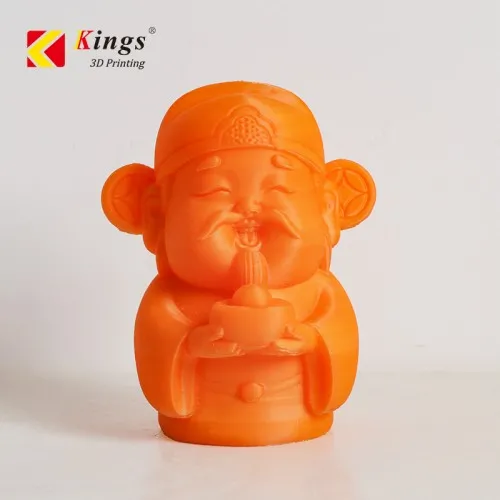

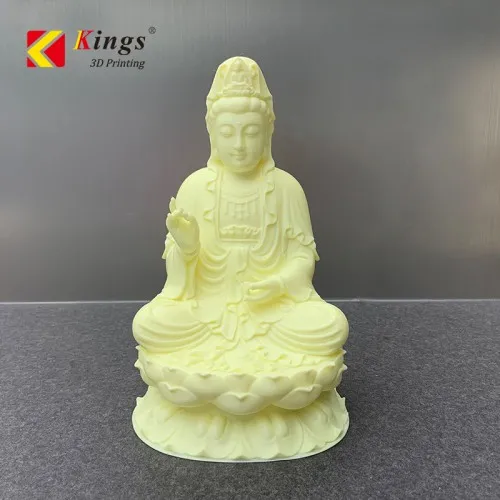

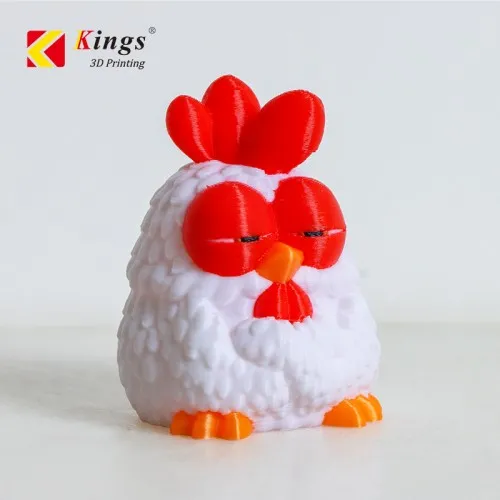

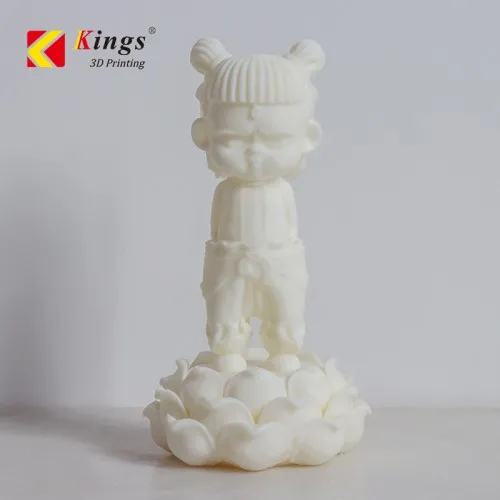

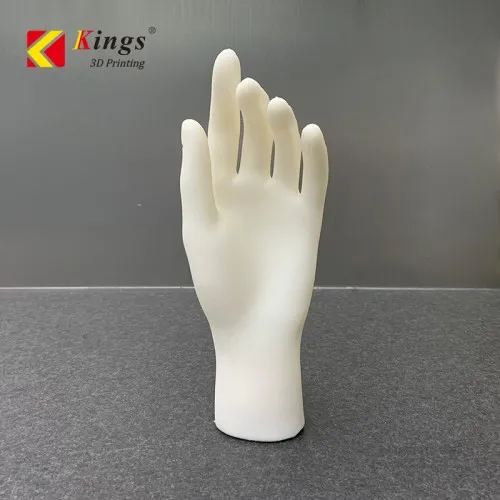

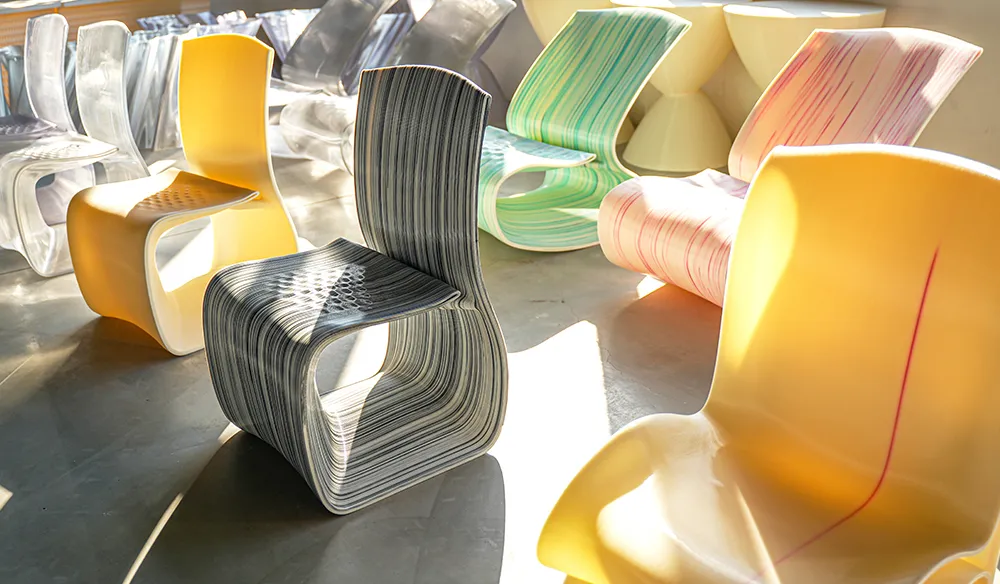

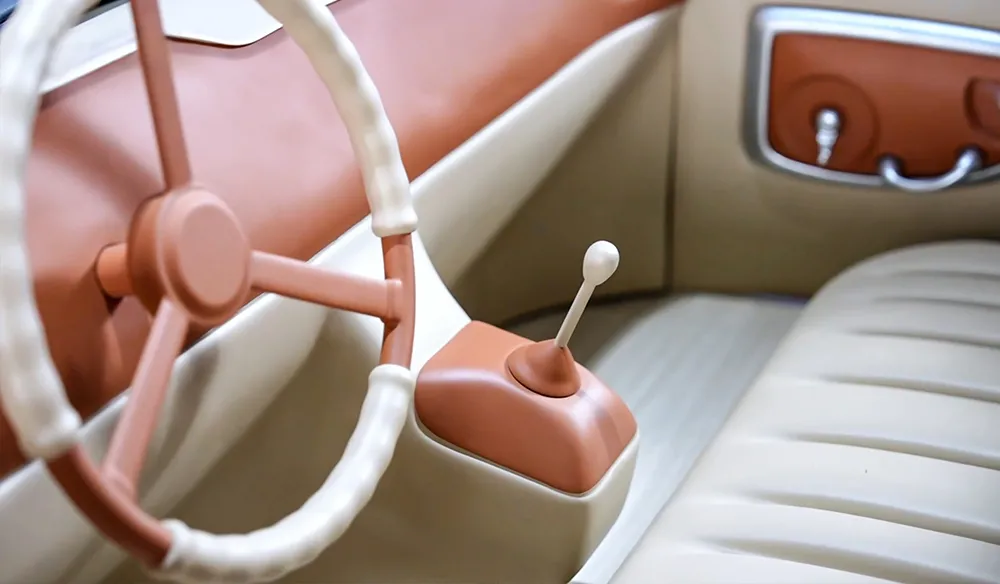

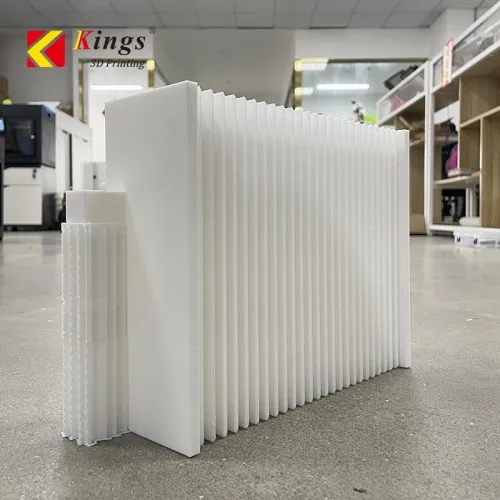

Printing Samples

Application

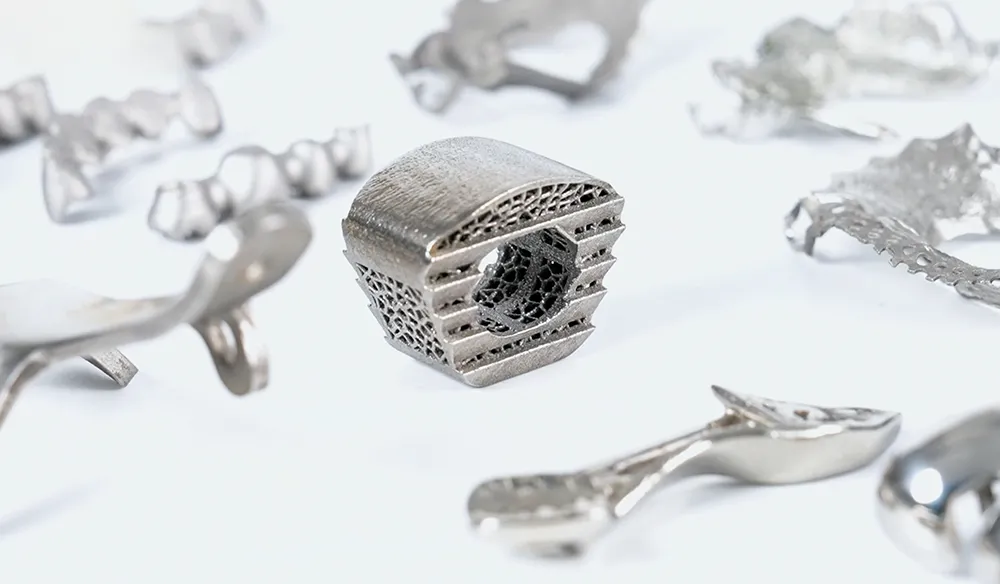

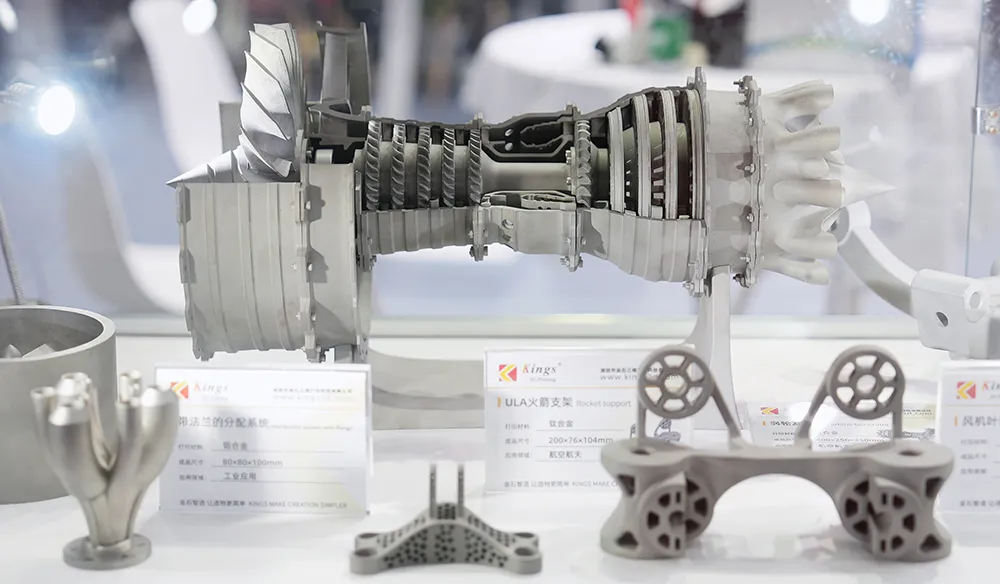

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
