| (L*W*H) 1800*1300*1300mmMolding dimensions | (L*W*H) 2662*1950*2610.6mmMachine dimensions |
| 1-8mmOptional nozzle diameter | 50kgStorage hopper volume |
| 3-10kWRated power | 1300kgMachine weight |
Product Details
Overview
JS-FGF-1800 uses granular and polymer composite materials for printing, which has the advantages of low material cost, fast printing speed and forming speed, high strength, and outdoor weather resistance. It is widely used for sculpture making, furniture designing, mining industry, oil & gas industry, toy industry, art crafts, mold manufacturing, plaques, landscape signs etc.
Features
50kg closed storage box, pneumatic feeding
Sensitive touch display screen
Fully enclosed sheet metal cover for thermal insulation, optional high temperature version
Advantages
Automatic feeding, automatic alarm if there is no material
Emergency stop mode, safety guarantee
Machine status indicator belt with progress bar
Integral hoisting, directly used after plugging in
Basic Parameter
| Molding technology | Fused granular fabrication |
| Molding dimensions | (L*W*H) 1800*1300*1300mm |
| Machine dimensions | (L*W*H) 2662*1950*2610.6mm |
| Optional nozzle diameter | 1-8mm |
| Nozzle heating method | Three-zone intelligent heating |
| Storage hopper volume | 50kg |
| Drive mode | Servo motor |
| Rated power | 3-10kW |
| Machine weight | 1300kg |
| Working surface temperature | ≤120 degrees Celsius |
| Workbench contact surface | Aluminum Platform/Tempered Glass |
| The maximum temperature of the nozzle | ≤350 degrees Celsius (450 degrees Celsius is optional) |
| Printing connection method | SD/USB/WiFi |
| Slicing supported formats | STL/OBJ/AMF/3MF |
| Compressed air pressure | 0.6MPA |
| Materials | PLA/PETG/ABS/PC/PA/PP /HDPE/TPU/TPV/EVA /PETG+GF/PPS+GF/PA+CF/ABS+ CF/PC+CF/PEI+CF etc. |
| Material particle diameter | 1-5mm |
| Automatic feeder | Integrated |
| Chamber heating | Option |
| Power supply voltage | Single-phase AC 220V |

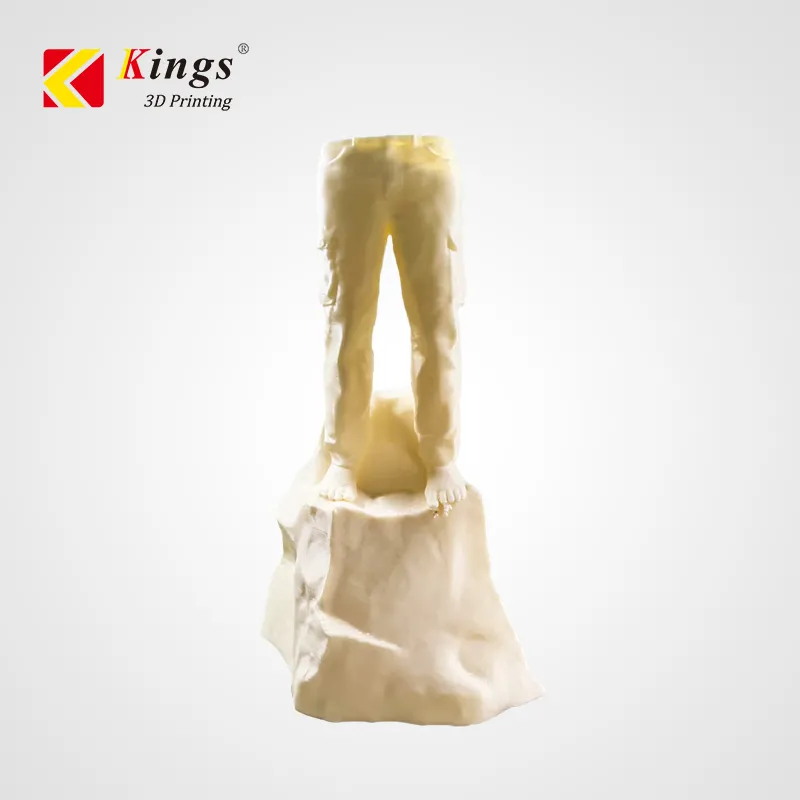

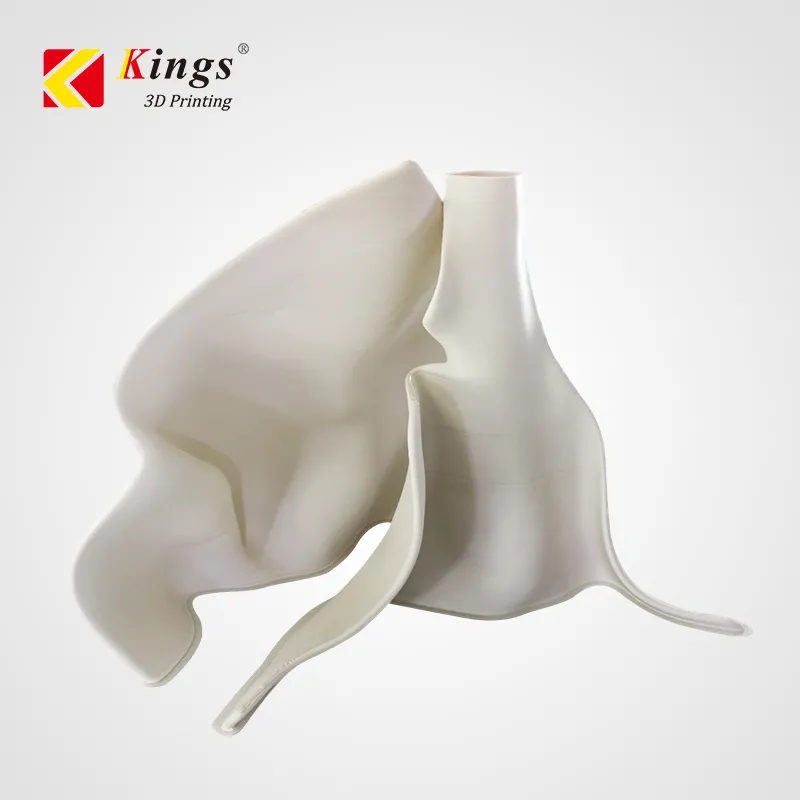

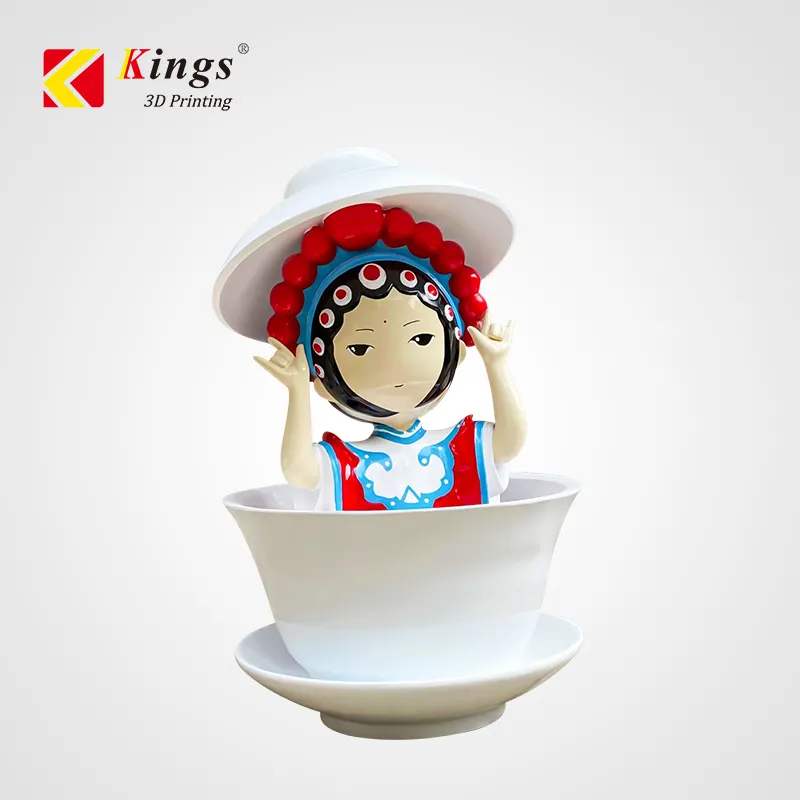

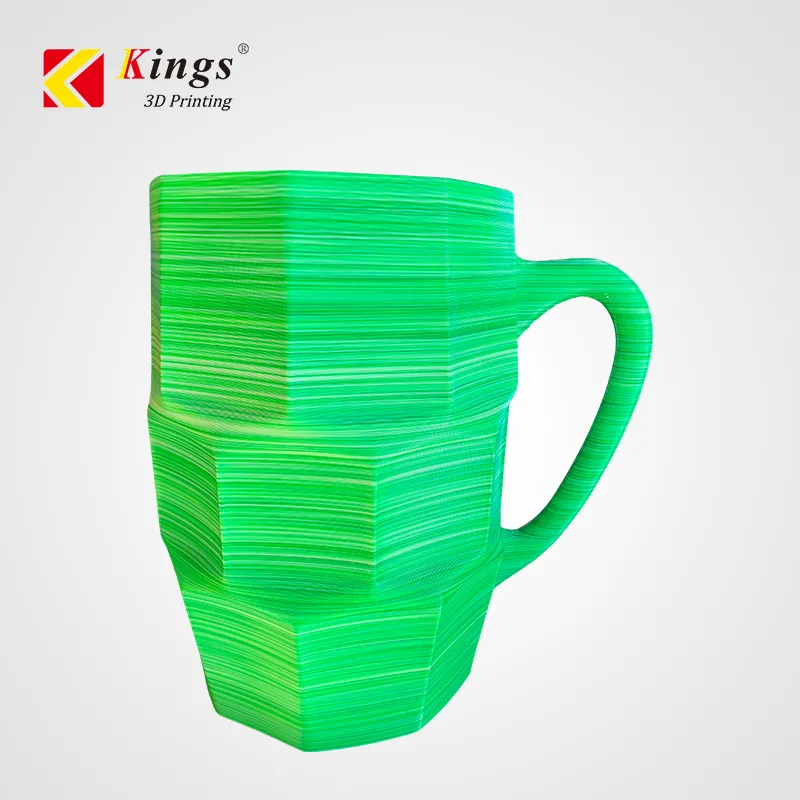

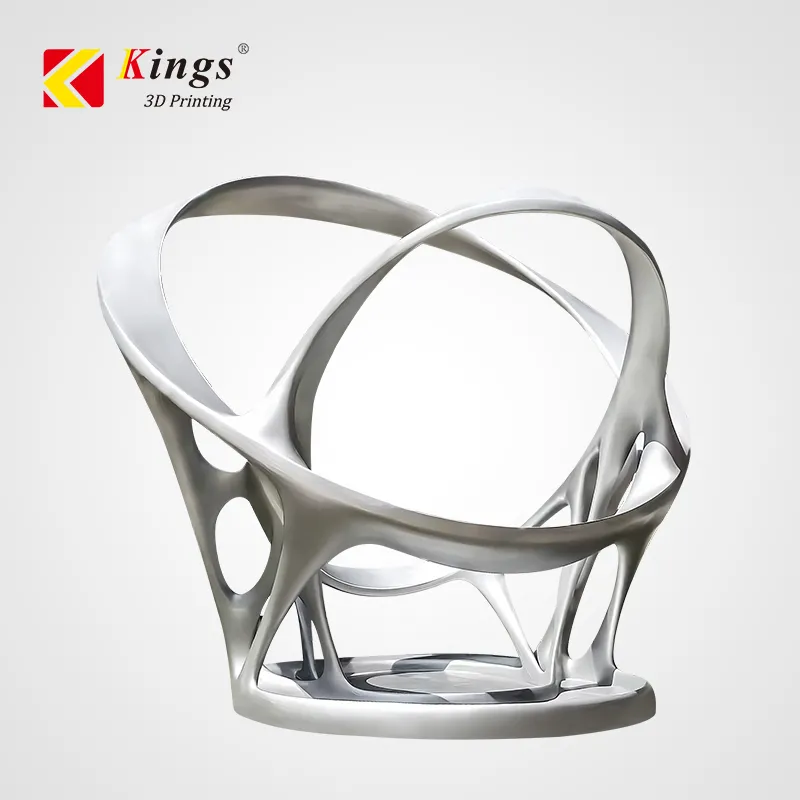

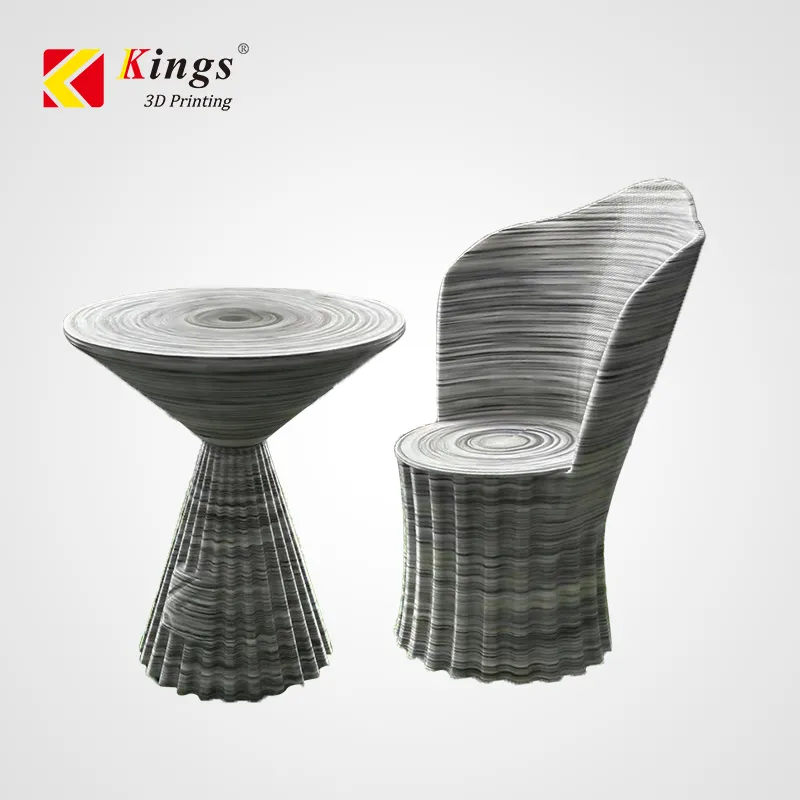

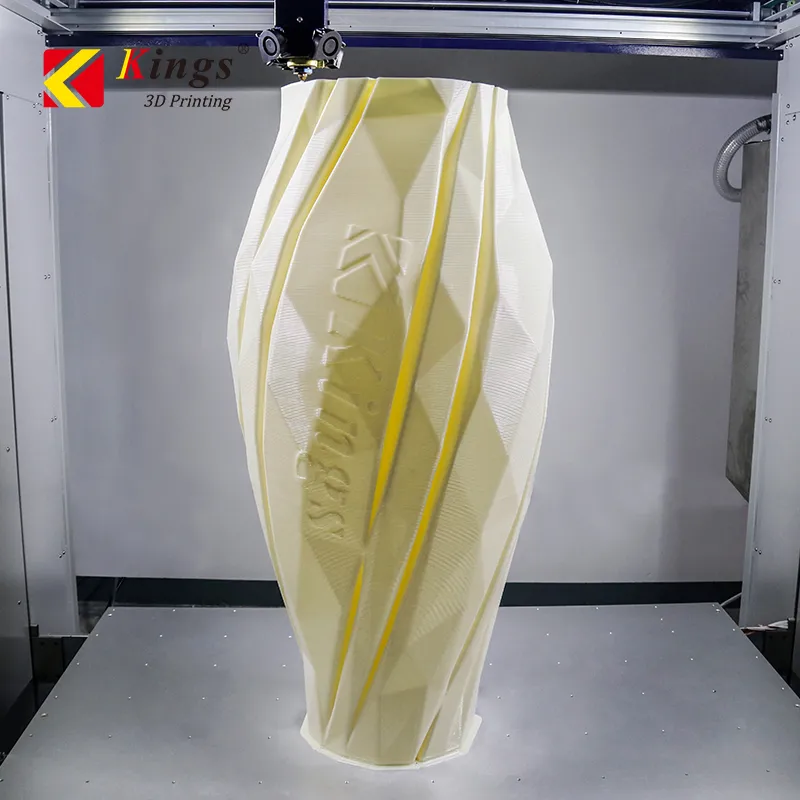

Printing Samples
