| (L*W*H) 3000*2000*1000mmMolding dimensions | (L*W*H) 8060*4080*4480mmMachine dimensions |
| 4-12mmOptional nozzle diameter | 30kg/h Maximum Extrusion |
| 70kWRated power | 16000kgMachine weight |
Product Details
Overview
FGF-3000HPro uses granular and polymer composite material, which features low material cost, fast printing speed, high product strength, and outdoor resistance. It supports high-performance materials such as PPS, PPSU, and PEI-CF, meeting the demanding requirements for high temperature resistance, high strength, and dimensional stability in the production of composite molds, jigs, fixtures, and industrial tooling.
Features
Hybrid Manufacturing System
Compact & Integrated Design
Intelligent Control & Monitoring
Advantages
Micron-Level Precision for Complex Parts
Improved Production Efficiency
Space-Saving & Cost-Effective
Enhanced Stability & Safety
Basic Parameter
| Molding technology | Fused granular fabrication |
| Molding dimensions | (L*W*H) 3000*2000*1000mm |
| Machine dimensions | (L*W*H) 8060*4080*4480mm |
| Optional nozzle diameter | 4-12mm |
| Nozzle heating method | Four-zone intelligent heating |
| Control System | Self-developed New Generation CNC System |
| Drive mode | Servo motor |
| Machine weight | 16000kg |
| The highest heating temperature | 450℃ |
| Printing connection method | USB |
| Slicing supported formats | STL/OBJ/AMF/3MF0 |
| Slicing software | Kings studio |
| Materials | ABS/ABS Fire Retardant/ABS+GF/ABS+CF/PETG/PETG Fire Retardant/ PETG+GF/PLA/ASA/ASA+GF/TPU/PC/PA/PP/PA+CF/PC+CF/PEl+CF etc. |
| Material particle diameter | 4-12 mm |
| Automatic feeder | Integrated |
| Rated Power | 70kW |
| Power supply voltage | Three-phase AC 380V |

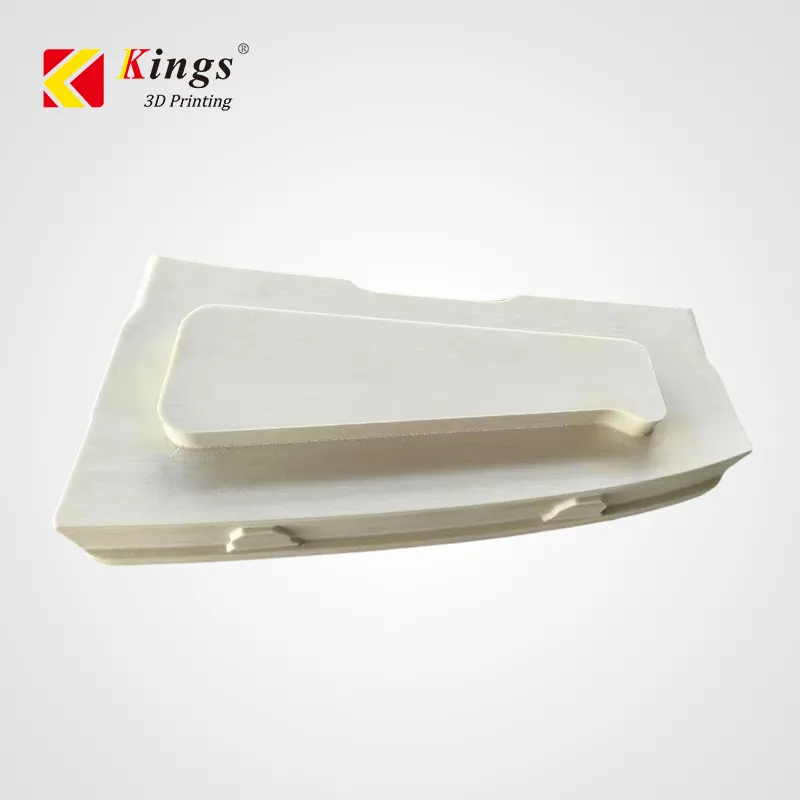

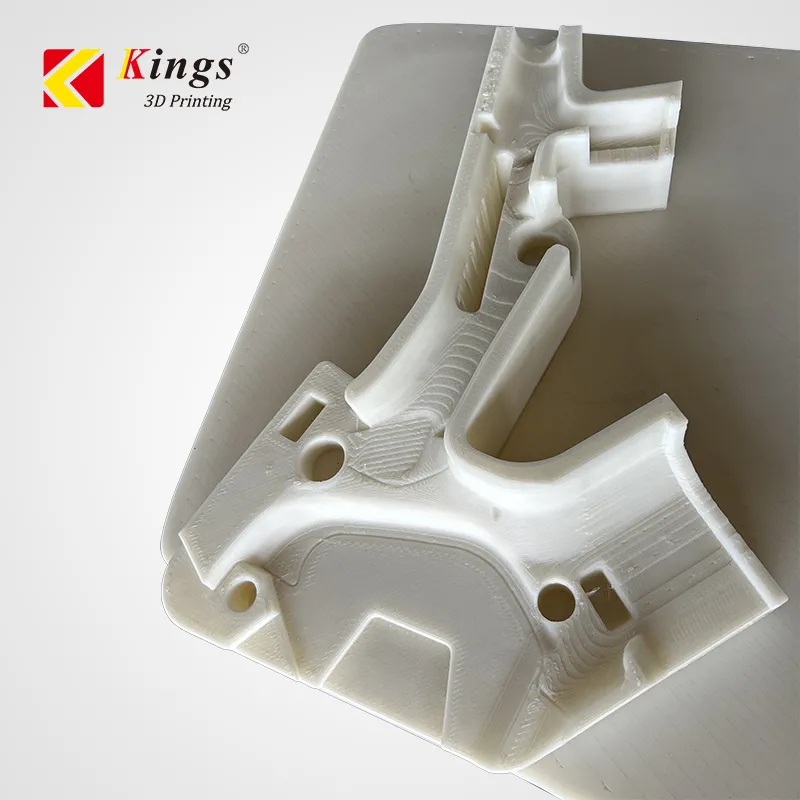

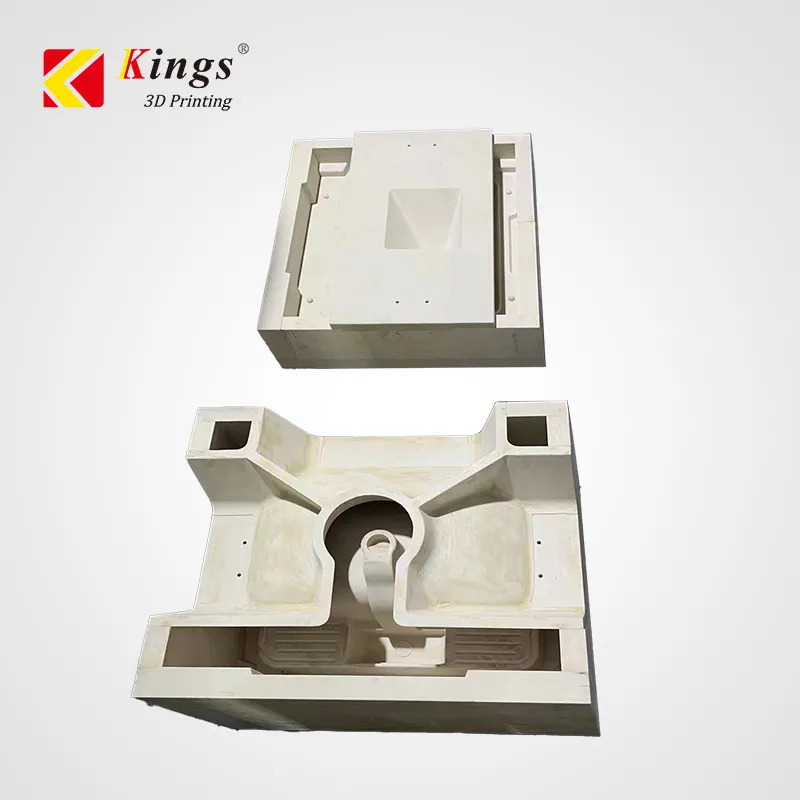

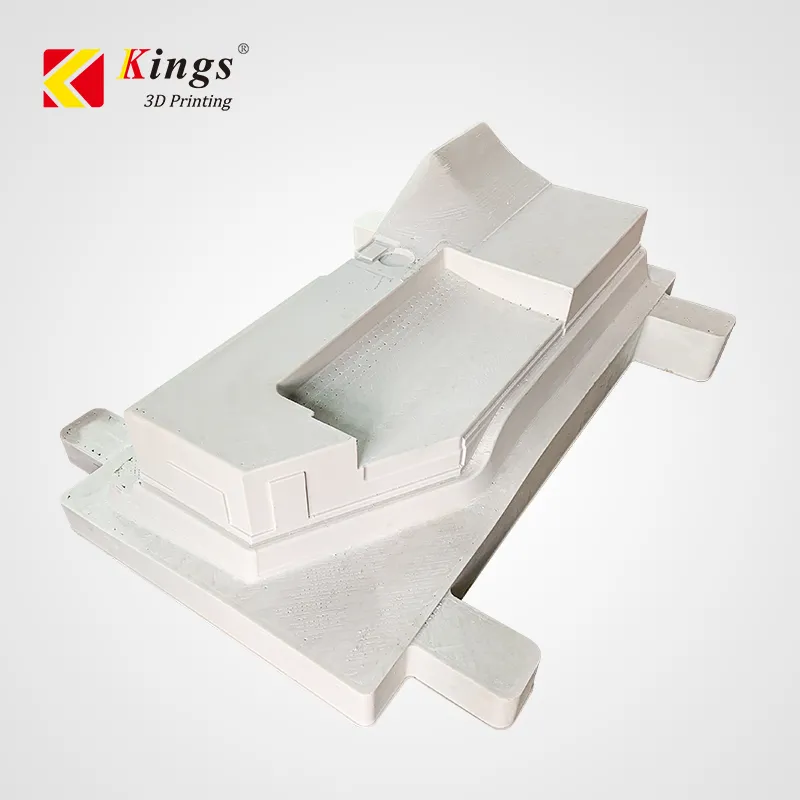

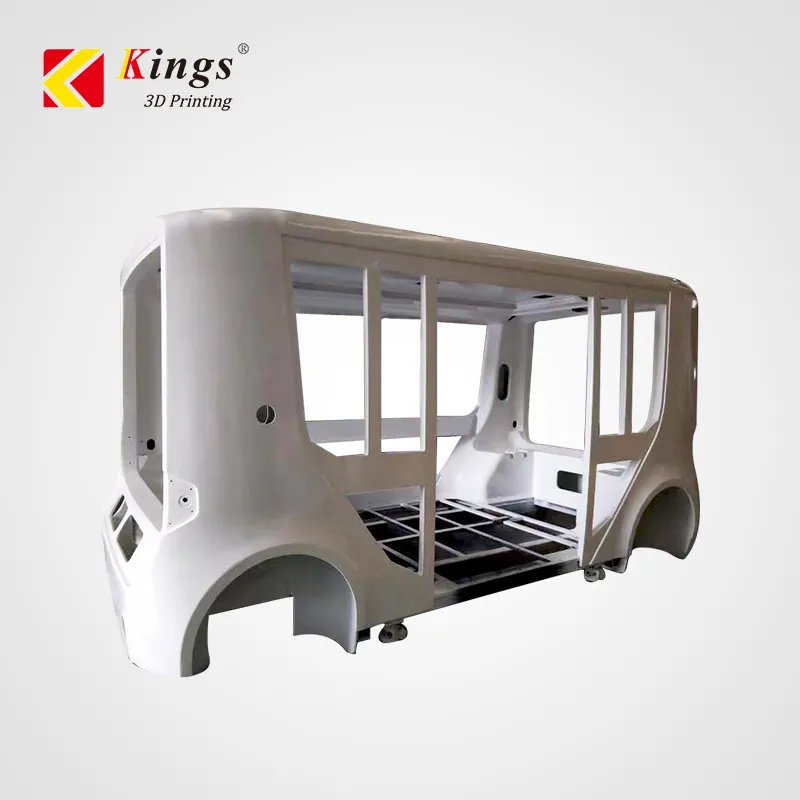

Printing Samples
