| (L*W*H) 3500 * 2400 * 1000mmMolding dimensions | (L*W*H) 7277 * 3906 * 4383 mmMachine dimensions |
| 3-16mmOptional nozzle diameter | 100kgStorage hopper volume |
| 70 kWRated power | 11000 kgMachine weight |
Product Details
Overview
JS-FGF-HM-2435 converts raw material directly to the print bed in a granular form. It has two version, one is addi tive only and another is Additive&Subtractive.It is designed to print big projects, resulting in shorter turnaround times and more reliability with low material cost, fast printing speed and the final product is with high strength.
Features
Emergency stop mode, safety guarantee
100 kg three-in-one automatic feeder
Optional oblique printing or vertical printing function.
Modular design, with multiple versions of increase/decrease or increase/decrease integration.
The workbench can set the heating area and temperature (maximum heating temperature:120℃)
Advantages
Machine status indicator lamp
Integral hoisting, directly used after plugging in
Sensitive touch display screen
Open design, easy to operate
Basic Parameter
| Molding technology | Fused granular fabrication |
| Molding dimensions | (L*W*H) 3500 * 2400 * 1000mm |
| Dimensions | (L*W*H) 7277 * 3906 * 4383 mm |
| Optional functions | oblique printing, vertical printing function |
| Working surface temperature | ≤120 degrees Celsius |
| Printing bed | Aluminum platform |
| Optional nozzle diameter | 3-16mm |
| The highest temperature of the nozzle | ≤450 degrees Celsius |
| Nozzle heating method | four-zone intelligent heating |
| Print connection | SD/USB/WiFi |
| Slicing supported formats | STL/OBJ/AMF/3MF |
| Compressed air pressure | 0.6MPA |
| Materials | PLA/PETG/ABS/PC/PA/HDPE/TPU/TPV/EVA PETG+GF/PPS+GF/PA+GF/ABS+GF/PC+CF/PEI+CF etc. |
| Material particle diameter | 1-5 mm |
| Storage hopper volume | 100kg |
| Automatic feeder | (integrated) |
| Power supply voltage | 3-phase AC 380V |
| Rated power | 70 kW |
| Machine weight | 11000 kg |

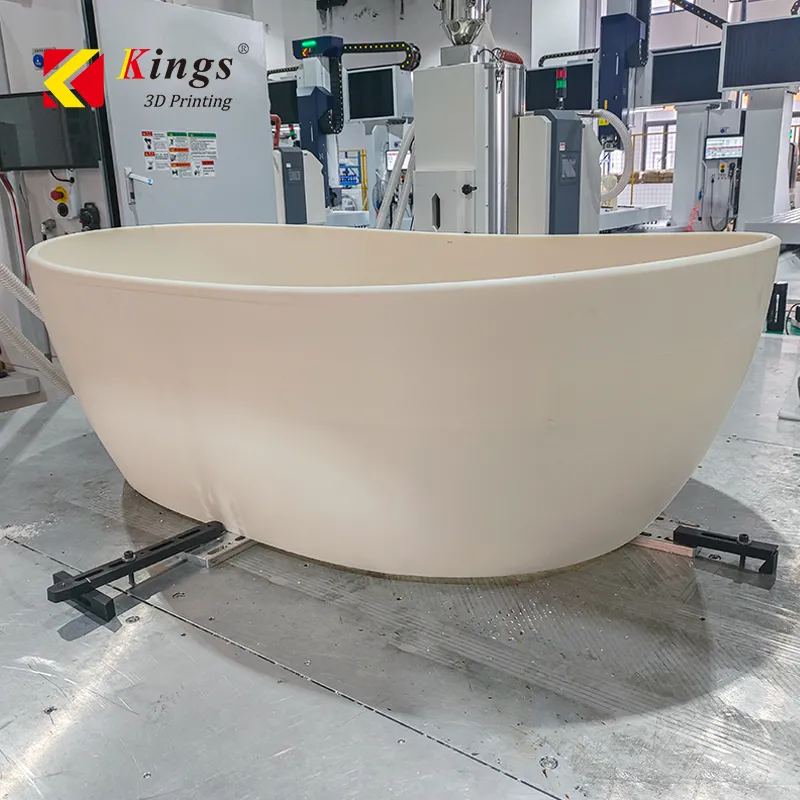

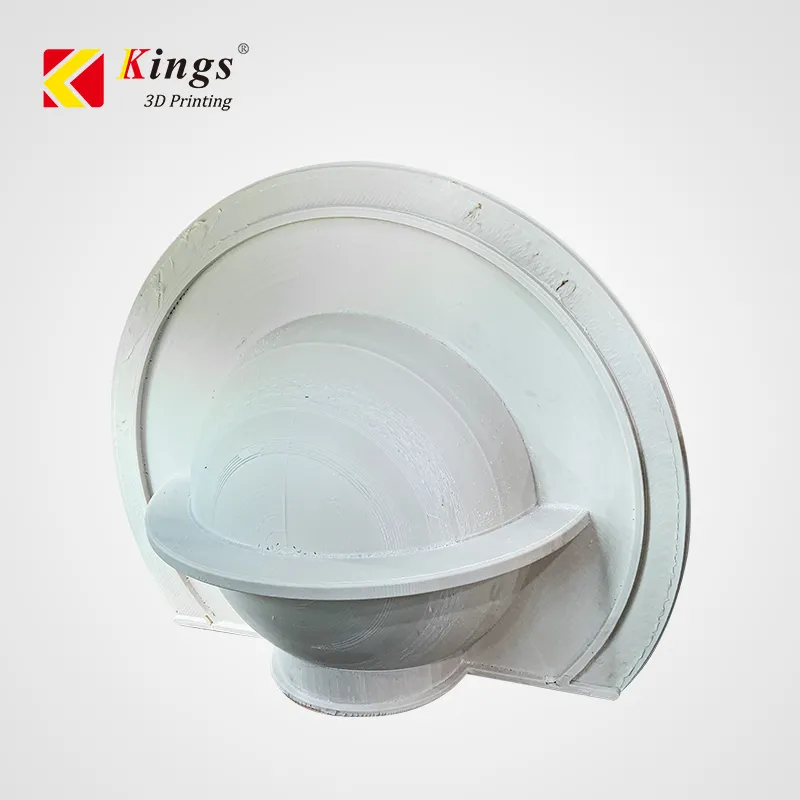

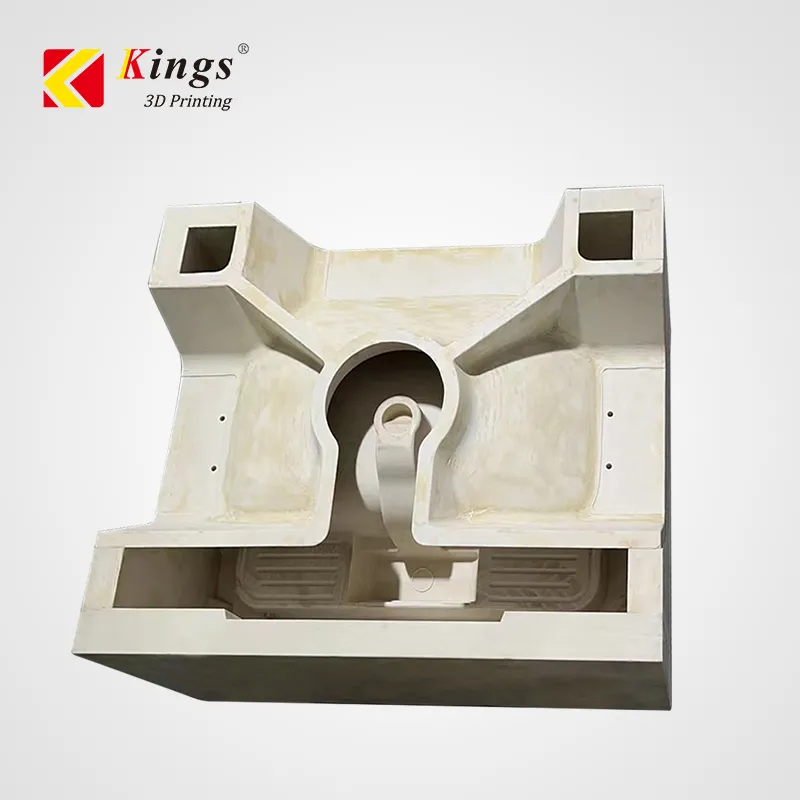

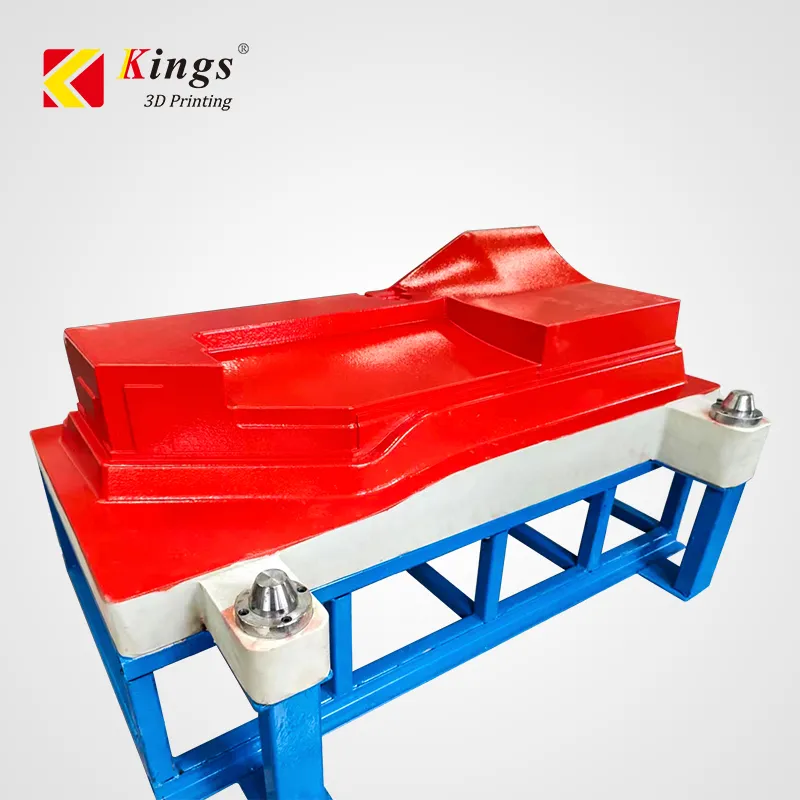

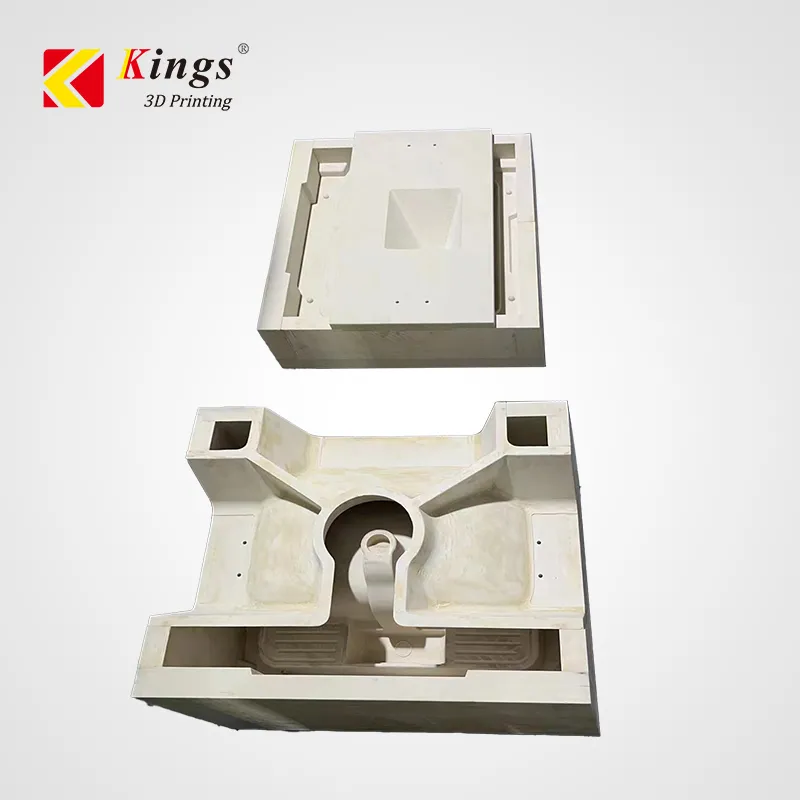

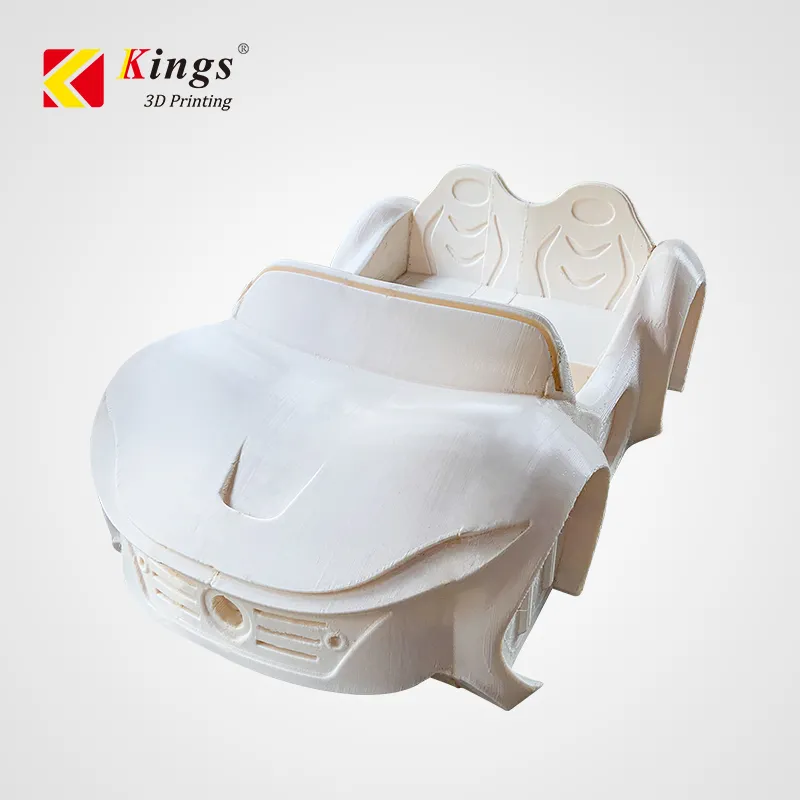

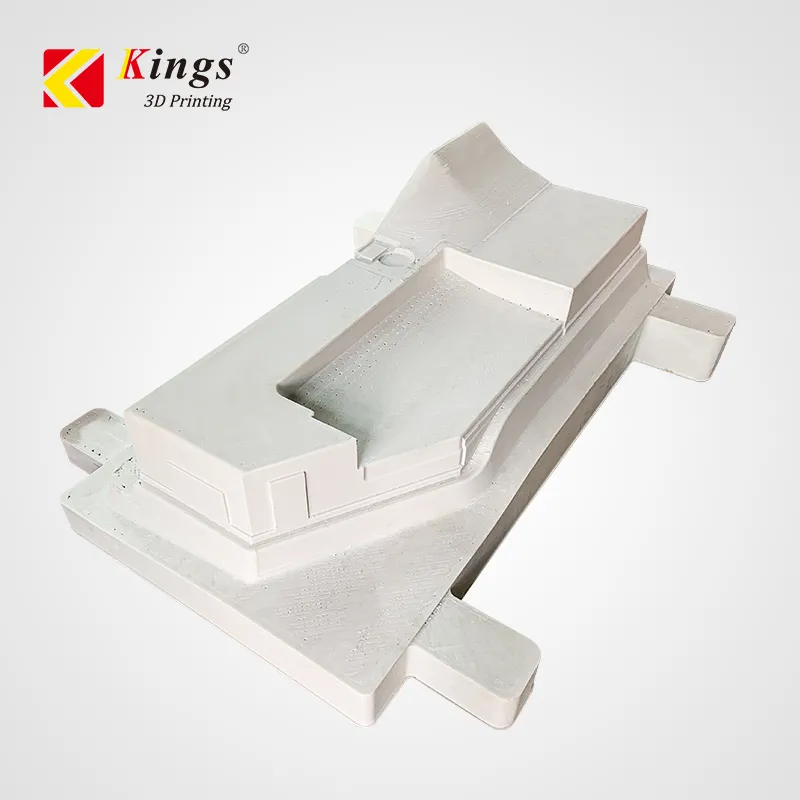

Printing Samples
