Kings FDM 5060 3D Printer

500×500×600mmBuild Size	680x730x1210mmMachine Size
0.05-0.35mmLayer Resolution	XY: 0.0011mm, Z: 0.00125mmPositioning Accuracy
30-600mm/sPrinting Speed	130kgNet Weight

Inquire Now

Download

Product Details

Overview

Kings FDM 5060 is a high-performance 3D printer designed for fast, high-quality printing with advanced features like the Klipper high-speed system and high-precision linear guides. Capable of reaching print speeds up to 500mm/s, it is ideal for professionals needing rapid prototyping and production with a wide range of high-temperature materials, including ABS, PETG, and carbon fiber-infused nylons.

Features

Klipper High-Speed System:

Enables a maximum printing speed of up to 500mm/s for faster production.

7-Inch Capacitive Touchscreen:

Provides a user-friendly and responsive interface for easier operation.

Precision Components:

XY-axis industrial-grade linear rails and high-precision servo motors for enhanced accuracy.

Dual Z-Axis:

Synchronized lead screw for smoother operation and improved print quality.

Advanced Heating and Cooling:

70W high-power heating rod with volcano nozzle and independent high-power heated bed ensures better print quality and faster heating.

Fully Enclosed Structure:

Maintains a constant internal temperature (up to 60°C), making it perfect for high-temperature materials.

Advantages

Extra-Large Build Volume Print massive parts or batch production in one run.
High-Temperature Printing Handles advanced materials like carbon fiber-reinforced nylon and ABS.
Precision and Speed Servo motors, linear modules, and Klipper system ensure accuracy.
Industrial-Grade Reliability Designed for 24/7 operation in demanding production environments.

Basic Parameter

Download

Build Size	500×500×600mm
Machine Size	680×730×1210mm
Printing Technology	Fused Deposition Modeling (FDM)
Layer Resolution	0.05-0.35mm (0.4 Nozzle)
Positioning Accuracy	XY: 0.0011mm, Z: 0.00125mm
Air Filtration System	Dual-fan Filtering
Power Loss Recovery	Yes
Filament run-out Alarm	Yes
Nozzle	1
Printing Color	Single Color
Printing Speed	30-600mm/s
Structure	Fully enclosed (double door type)
Filament Supply	Top-down
Movement	XY axis synchronous belt linear guide rail, double Z-axis mechanical integrated synchronous screw rod
Servo	XY axis Lesai closed-loop servo motor set (42cmeO8+CL1-507)

Lighting	LED
Nozzle Diameter	0.4/0.6/0.8/1mm
Nozzle Temperature	0-320℃
Display	7-inch Touchscreen
CPU	32-bit ARM CPU Microcontroller
Connectivity	USB Drive, LAN (Wi-Fi)
Power Supply	AC100v-AC240v 50Hz/60Hz
Operation System	Windows, Linux, MAC
File Format	STL, OBJ, GCODE
Appearance	High-temp baking paint sheet metal
Ambient Temperature	15℃-32℃（60°-90℉）
Storage Temperature	0℃-32℃（32°-90℉）
Net Weight	130kg
Printing Bed	Independent powered silicone hot bed + aluminum plate + removable magnetic steel plate

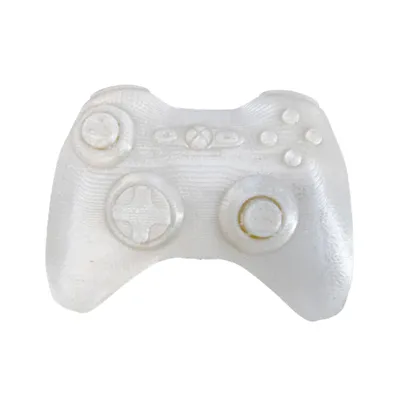

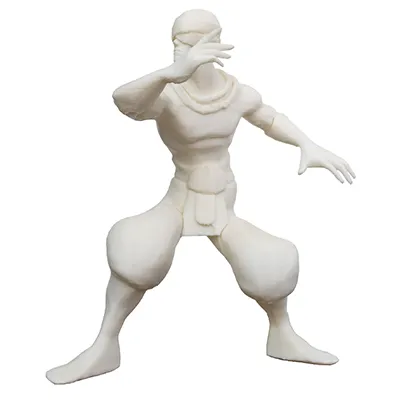

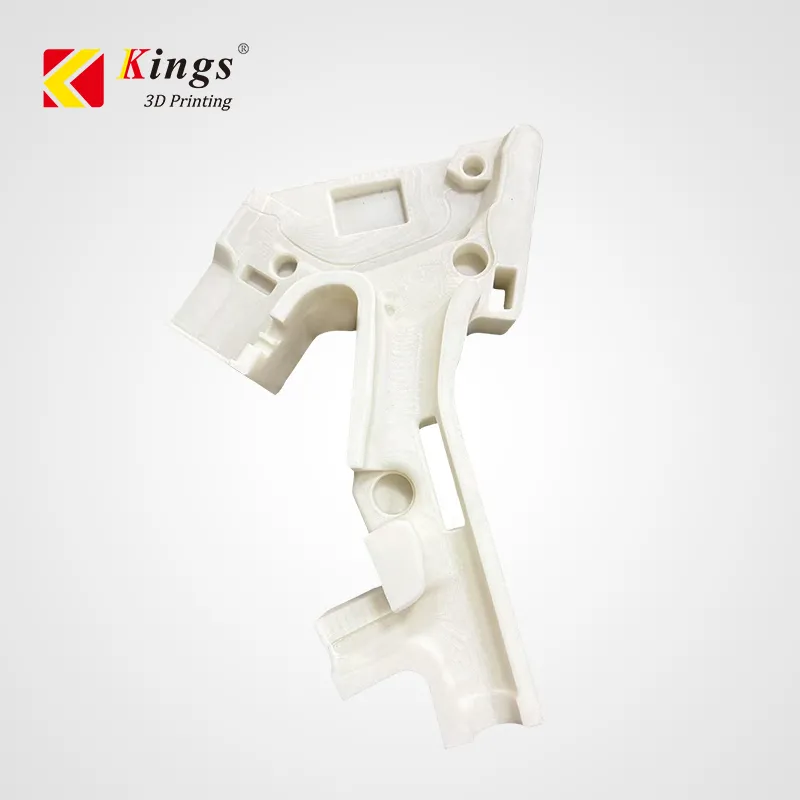

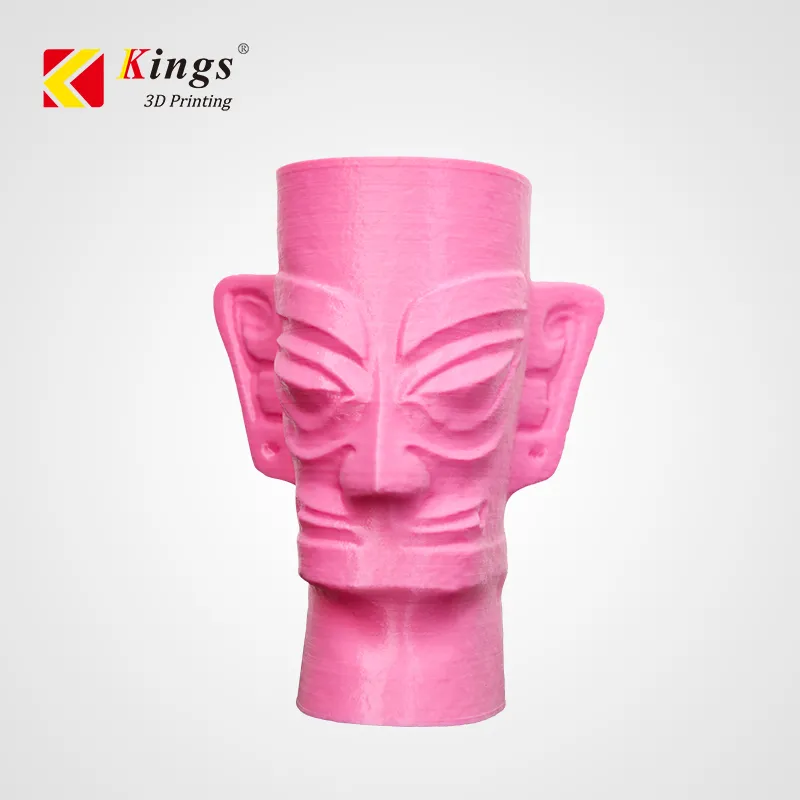

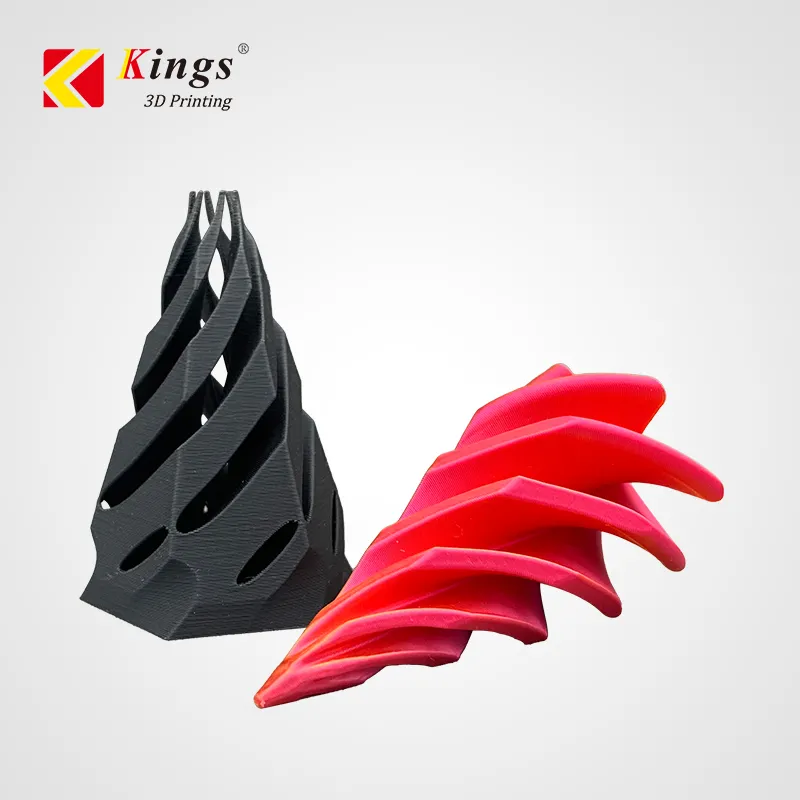

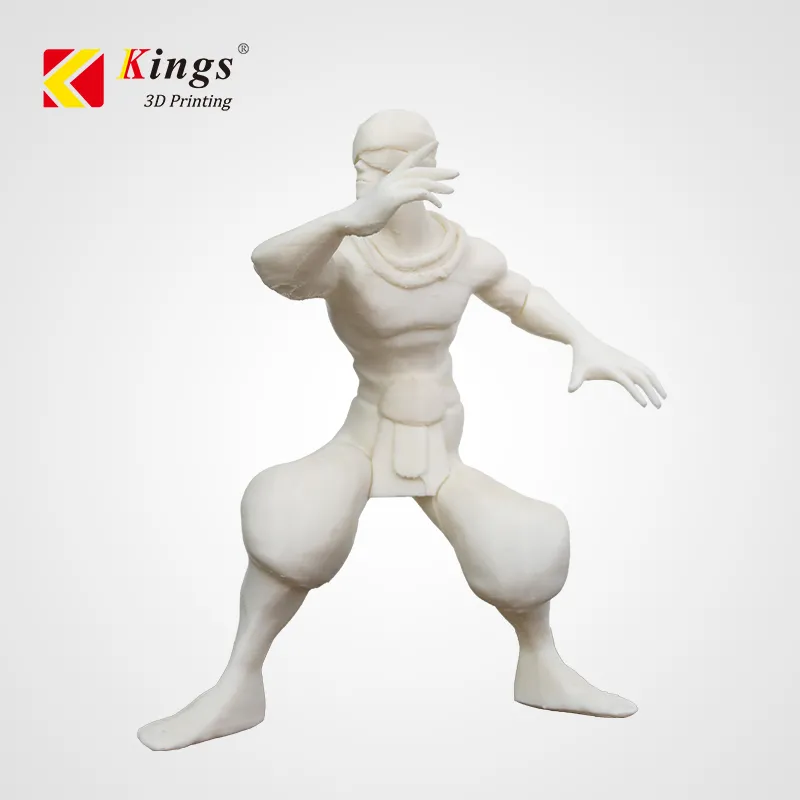

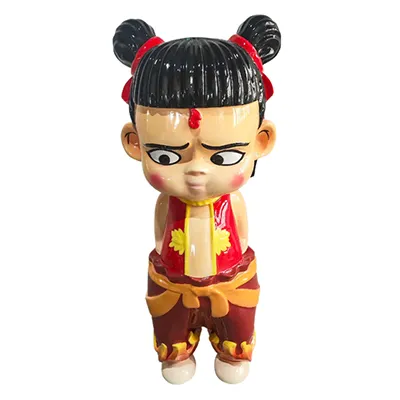

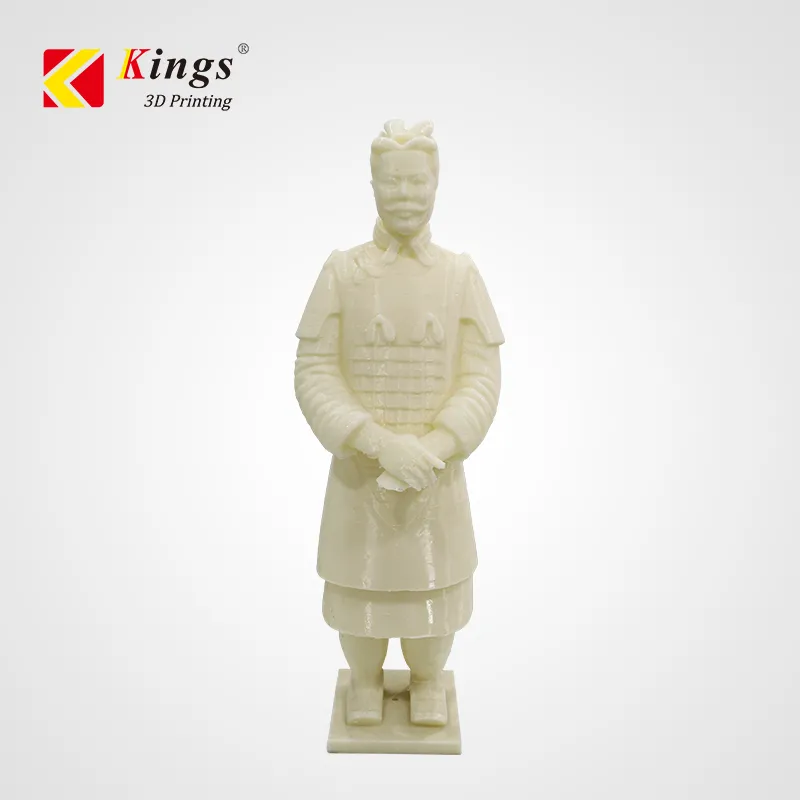

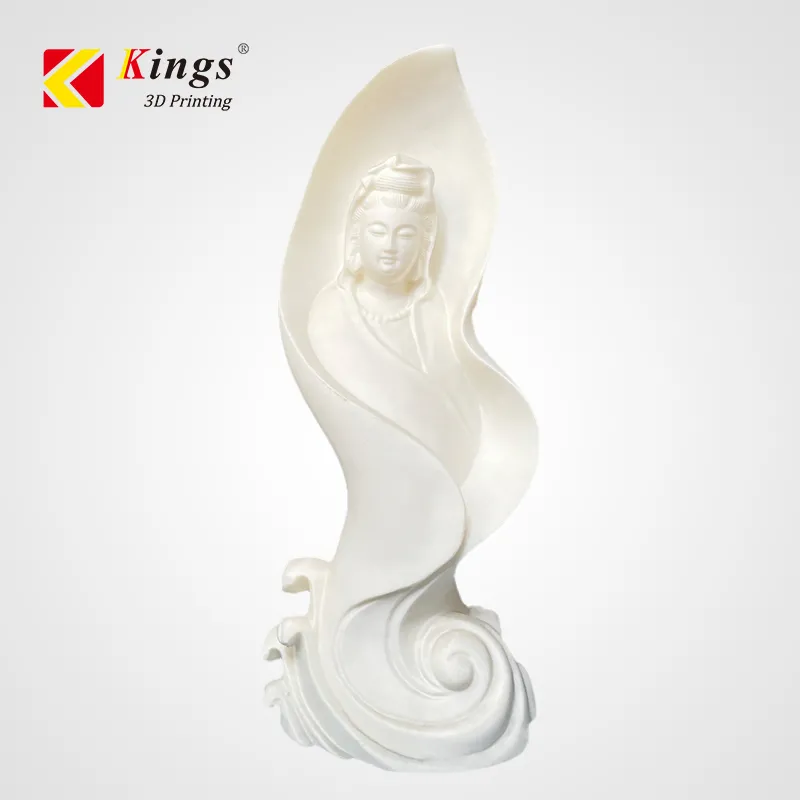

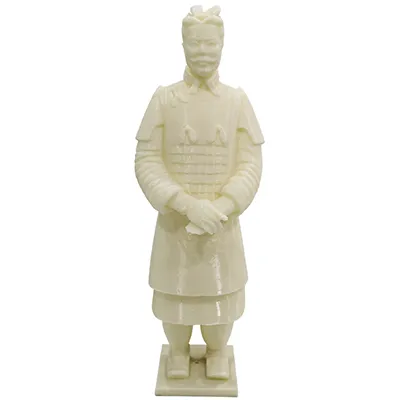

Printing Samples

Application

AutomotiveShoe Molds & Footwear PrototypingMedical & HealthcareSculpture & ArtFurniture & Home ApplianceAerospace & Precision EngineeringArchitectureMolds & Tools
