| 425×365×550mmBuild Size | 600×550×950mmMachine Size |
| ≥0.05Layer Resolution | 0.4mmDefault Nozzle Diameter |
| ≤500mm/sPrinting Speed | 50KGGross Weight |
Product Details
Overview
The Kings FDM 345 is engineered for speed, stability, and precision. Built with a CoreXY structure and a fully enclosed metal chassis, it delivers exceptional performance for professional and industrial-grade applications. Whether you're prototyping or producing in small batches, the Z345 ensures reliable results with high-temperature capability and advanced motion control.
Features
CoreXY motion structure
330°C high-temperature nozzle
600 mm/s high-speed printing
Fully enclosed metal frame
Triple Z-axis lead screws
Advantages
Speed Boosts productivity with fast print capability
Precision Industrial linear rails ensure dimensional accuracy
Material Compatibility Handles engineering-grade and composite filaments
Stability Triple Z-axis and enclosed design enhance print consistency
Basic Parameter
| Build Size | 425×365×550mm |
| Machine Size | 600×550×950mm |
| Printing Technology | Fused Deposition Modeling (FDM) |
| Layer Resolution | ≥0.05 |
| Air Filtration System | Available |
| Filament Run-out Alarm | Pause & Alert Supported |
| Camera | Equipped |
| Leveling Method | Auto Bed Leveling |
| Number of Nozzles | 1 |
| Printing Speed | ≤500mm/s |
| Motion System | CoreXY |
| Motor Drive Type | TMC2209 |
| Enclosure Structure | Fully Enclosed Heated Chamber (Dual-Door Design) |
| Filament Storage Box | External Hanging Type |
| Lighting Function | Built-in LED Lighting |
| Default Nozzle Diameter | 0.4mm |
| Nozzle Temperature | Max 330℃ |
| Heated Bed | Max 120℃ |
| Display | 4.5-inch Capacitive Touchscreen |
| Printing Method | USB Drive, LAN, Wi-Fi |
| Power Requirements | AC100v-AC240v 50Hz/60Hz |
| Operating System Support | Windows, Linux,MAC |
| Supported File Formats | STL, OBJ, GCODE |
| Machine Surface Finish | High-temperature baked sheet metal coating for a distinctive look |
| Gross Weight | 50KG |
| Recommended Operating Temperature | 15℃-32℃（60°-90℉) |
| Storage Temperature | 0℃-32℃（32°-90℉) |

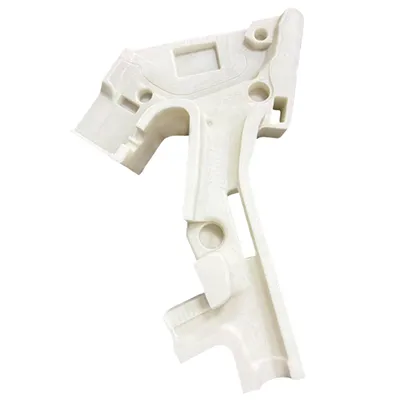

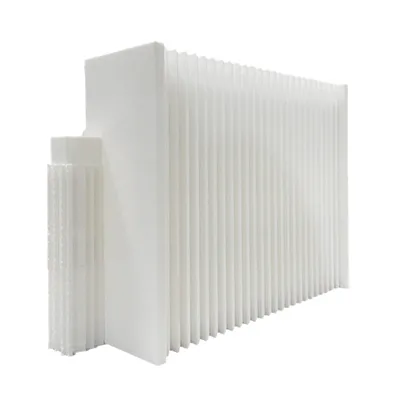

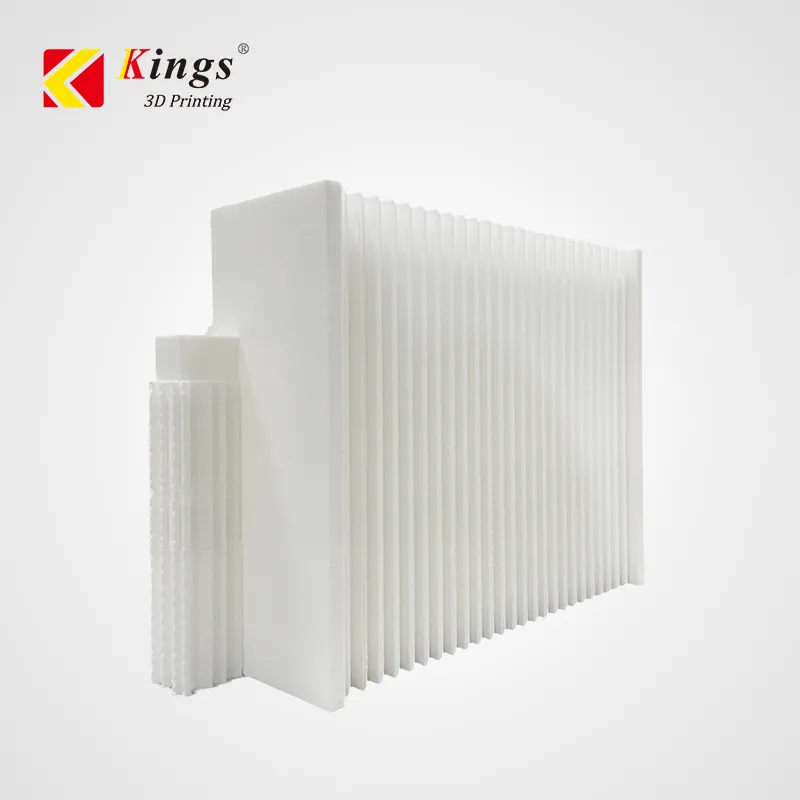

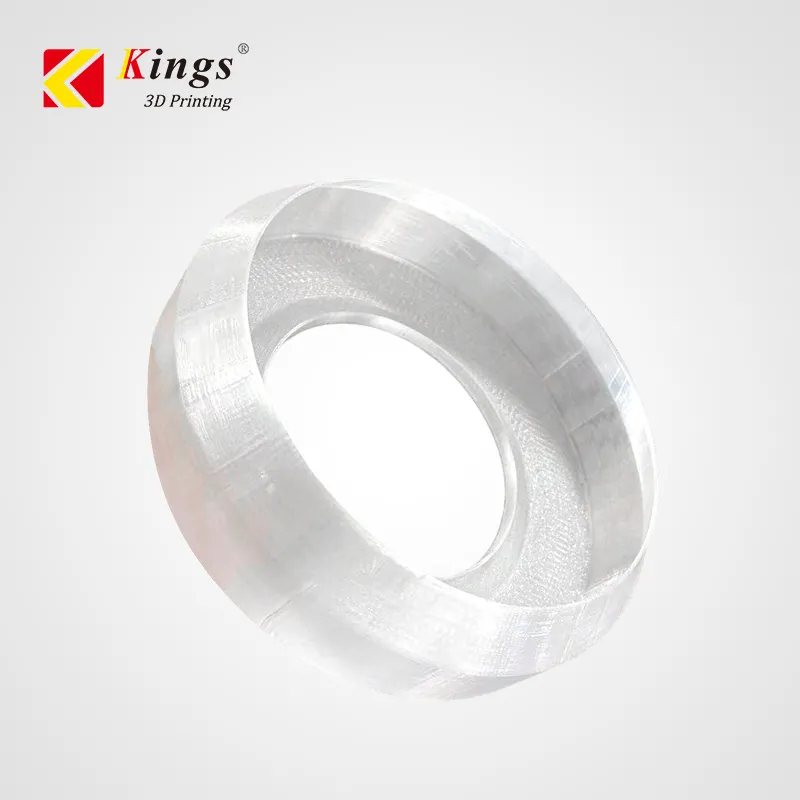

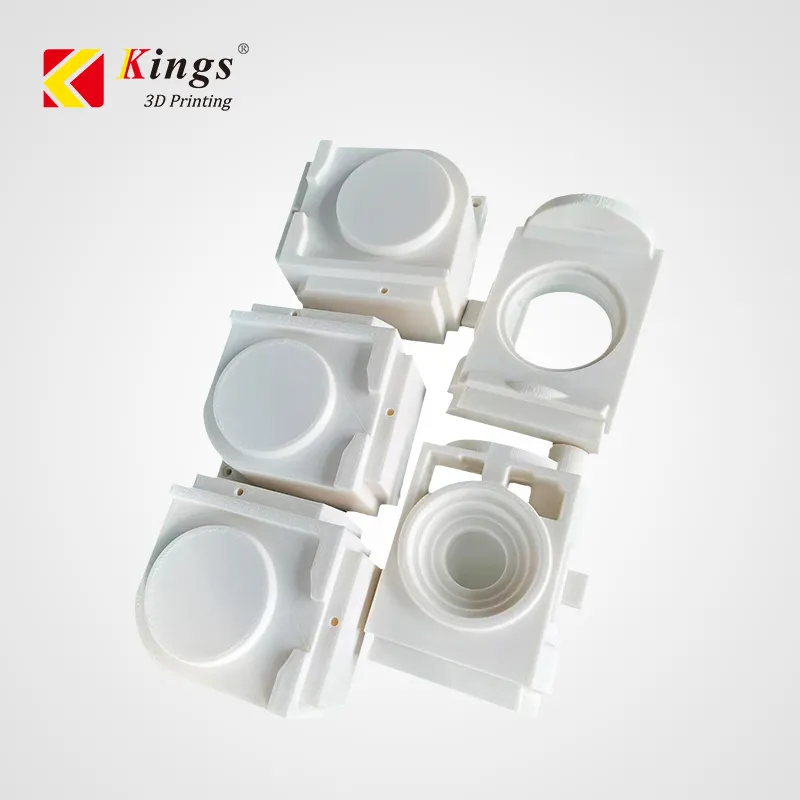

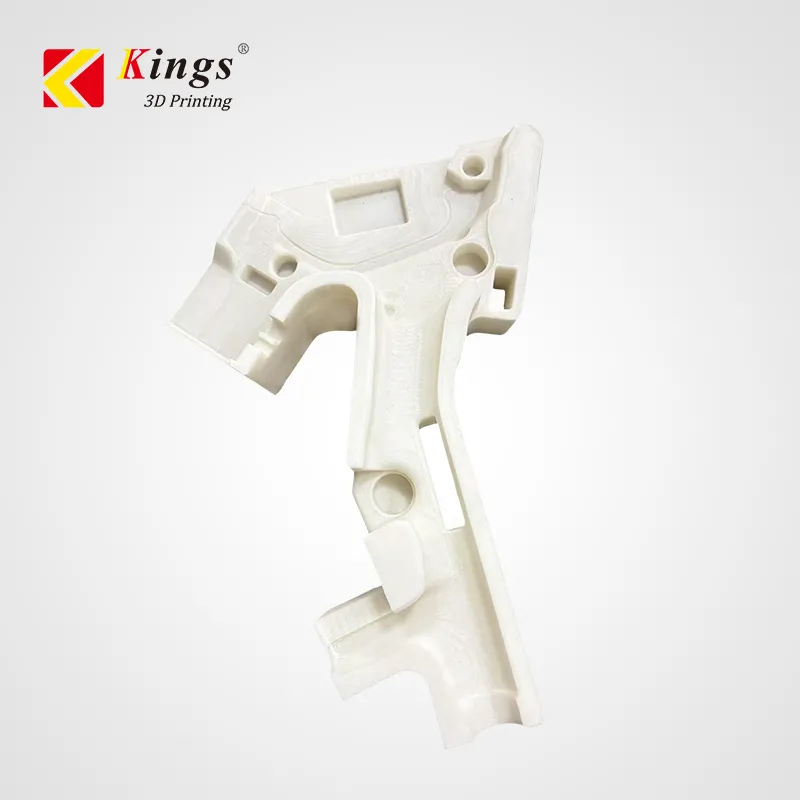

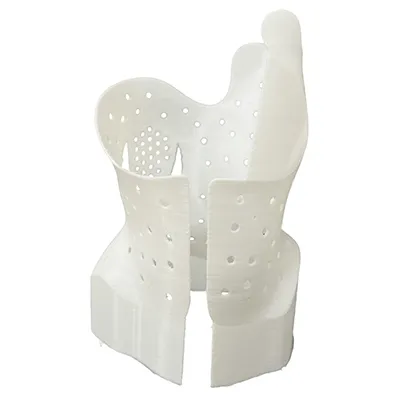

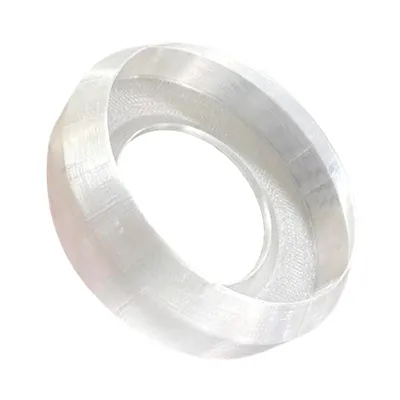

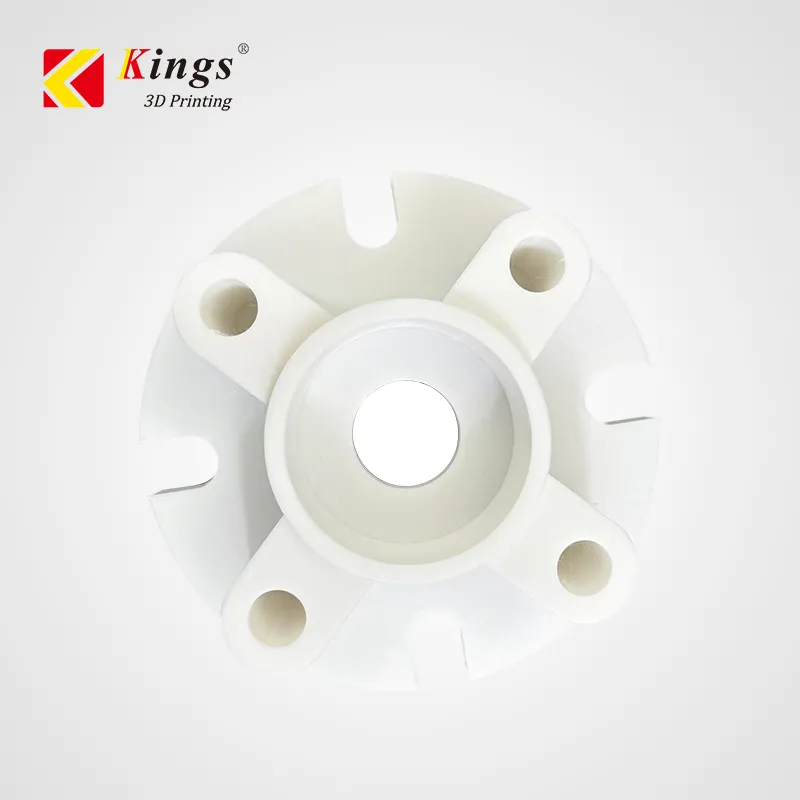

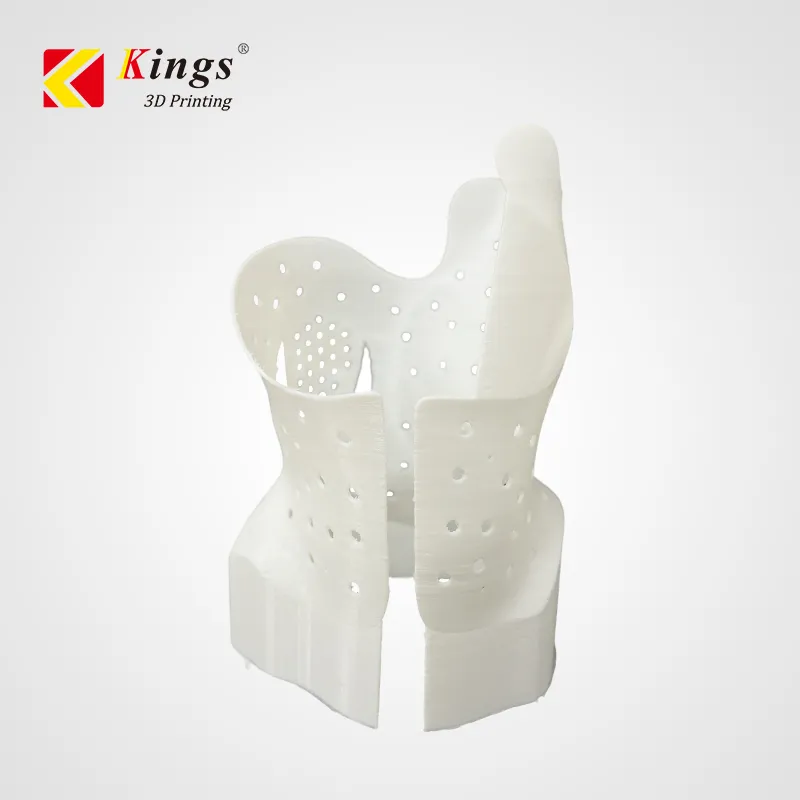

Printing Samples
