| 300×300×400mmBuild Size | 530×520×825mmMachine Size |
| 0.05-0.35mmLayer Resolution | XY:0.0011mm,Z:0.00125mmPositioning Accuracy |
| 30-350mm/sPrinting Speed | 48kgNet Weight |
Product Details
Overview
The Kings FDM 3D Printer 3040 is a reliable and efficient solution designed for precision and versatility. With a printing size of 300 x 300 x 400 mm and machine dimensions of 530 x 520 x 825 mm, it offers a compact yet functional design. This printer is ideal for a range of materials, including PLA (eco-friendly and non-toxic), ABS, and other standard 1.75mm diameter 3D printing filaments. Weighing in at over 48kg, the Kings 3040 is built for stability and durability, making it perfect for a variety of 3D printing projects.
Features
Klipper high-speed system
5-inch HD capacitive touchscreen
Industrial-grade linear guides for XY axis
Leadshine high-precision servo motors for XY axis (closed-loop drive)
Dual Z-axis synchronized integrated leadscrews
BMG dual gears
70W high-power heating rod, Volcano nozzle extruder for high-speed printing
Independent power silicone heated bed, 12mm aluminum, and detachable magnetic steel platform for a flat surface and easy model removal
Advantages
Balanced Performance Offers a strong balance between print quality, size, and cost.
Reliable Printing Stability Rigid frame and precise motion ensure consistent results.
Wider Material Support Prints PLA, ABS, TPU, and engineering-grade filaments.
Various-Purpose Applications Suited for design studios, makerspaces, and light prototyping.
Basic Parameter
| Build Size | 300×300×400mm |
| Machine Size | 530×520×825mm |
| Printing Technology | Fused Deposition Modeling (FDM) |
| Layer Resolution | 0.05-0.35mm (0.4 Nozzle) |
| Positioning Accuracy | 0.05-0.35mm |
| Air Purifier | XY: 0.0011mm, Z: 0.00125mm |
| Air Filtration System | Dual-fan Filtering System |
| Filament run-out Alarm | Yes |
| Nozzle | Yes |
| Printing Color | Single Color |
| Printing Speed | ≤6000mm/s |
| Structure | Fully enclosed (double door type) |
| Filament Supply | Top-down |
| Movement | XY axis synchronous belt linear guide rail, double Z axis mechanical integrated synchronous screw rod |
| Driver | XY axis Lesai closed-loop servo motor unit (42cme08+CL1-507) |
| Lighting | LED |
| Nozzle Diameter | 0.4/0.6/0.8/1mm |
| Nozzle Temperature | 0-320℃ |
| Display | 5-inch Touchscreen |
| CPU | 32-bit ARM CPU Microcontroller |
| Connectivity | USB Drive, LAN (Wi-Fi) |
| Power Supply | AC100v-AC240v 50Hz/60Hz |
| Operation System | Windows, Linux,MAC |
| File Format | STL, OBJ |
| Appearance | High-temp baking paint sheet metal |
| Ambient Temperature | 15℃-32℃（60°-90℉） |
| Storage Temperature | 0℃-32℃（32°-90℉） |
| Net Weight | 48kg |
| Printing Bed | Independent powered silicone hot bed + aluminum plate + removable magnetic steel plate |

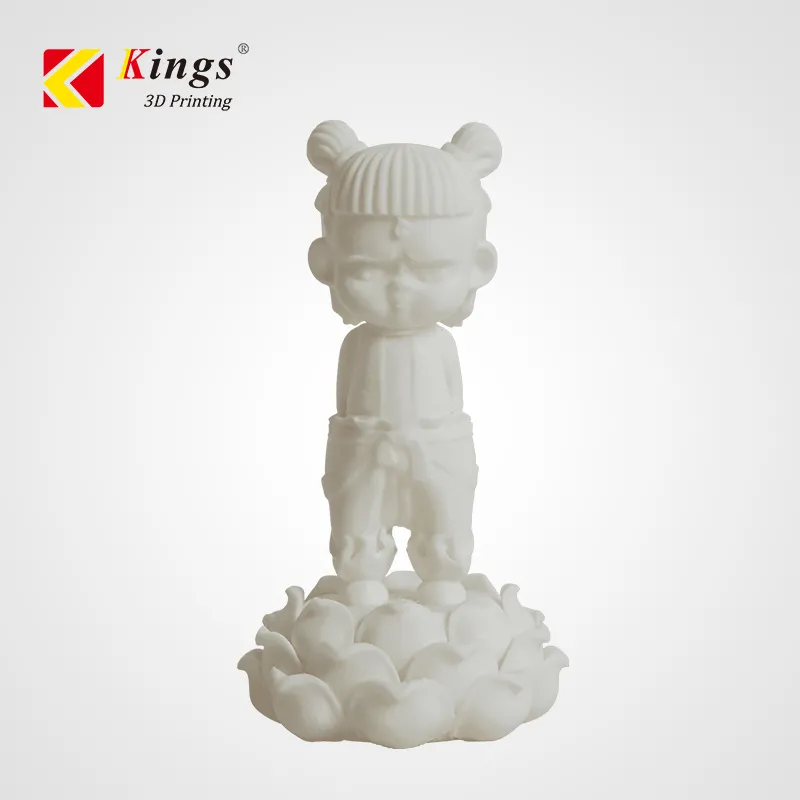

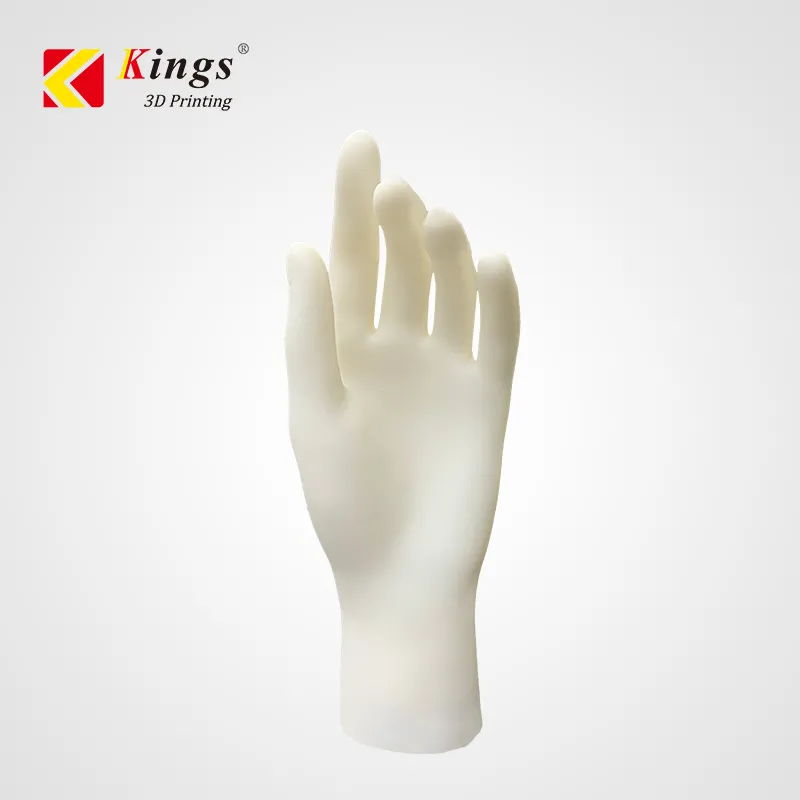

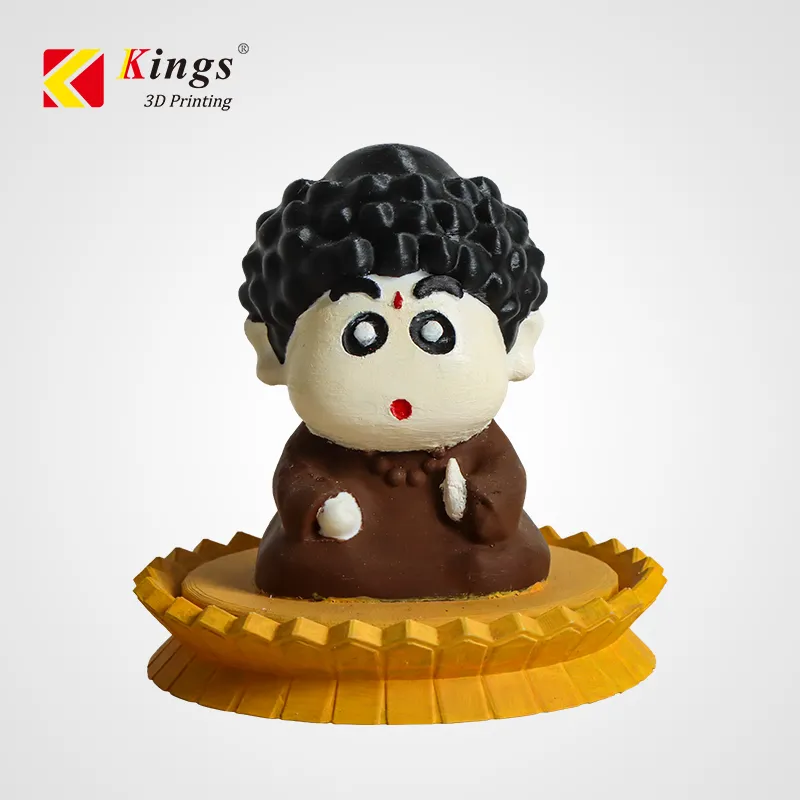

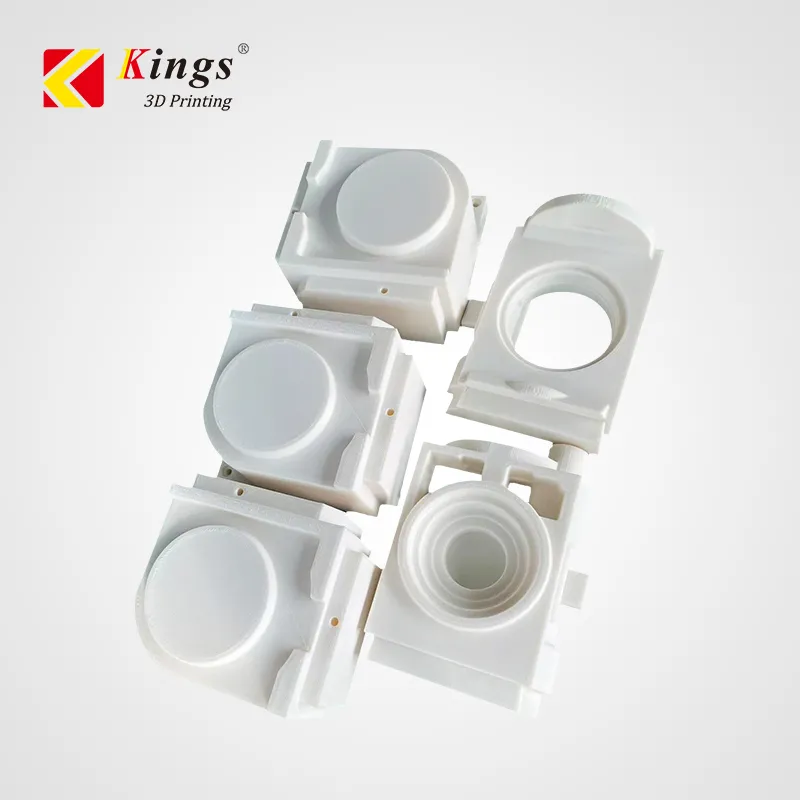

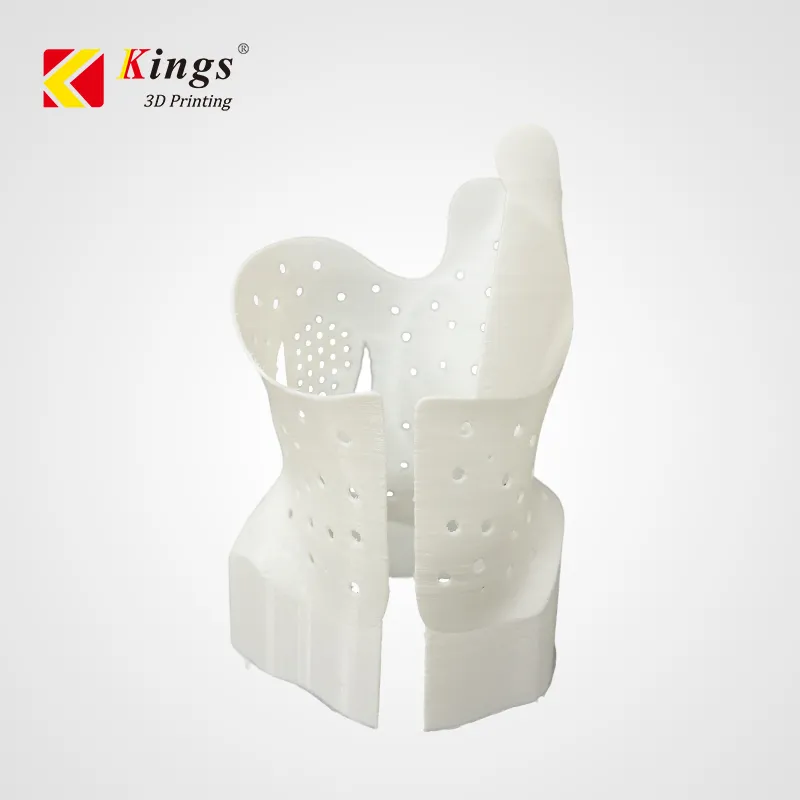

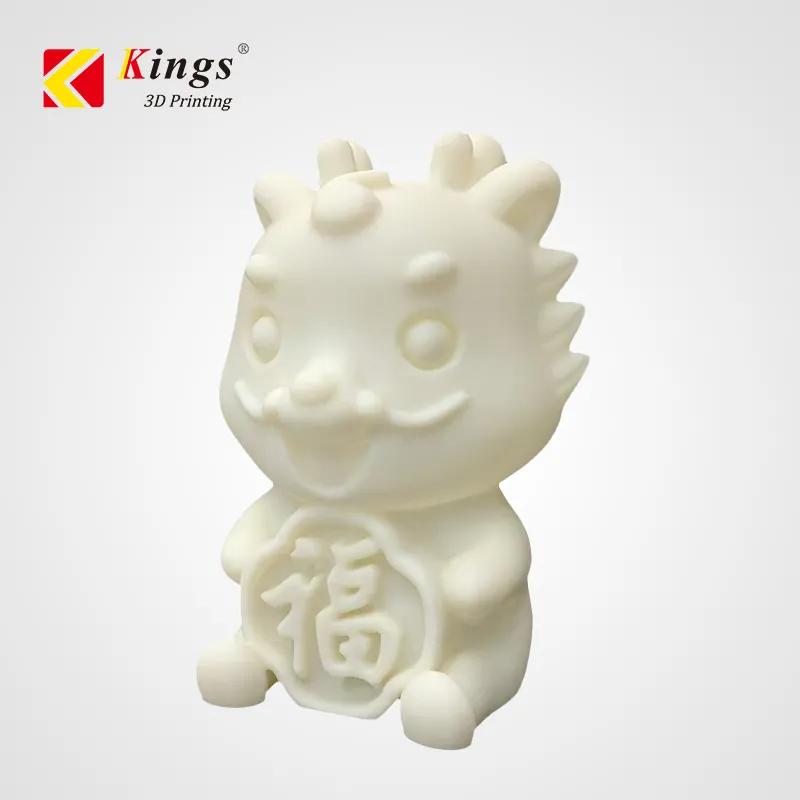

Printing Samples
